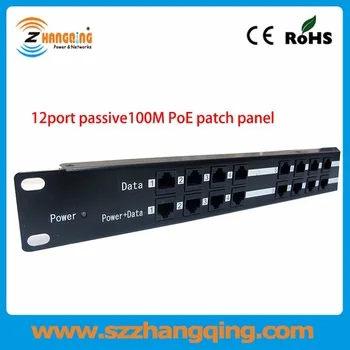

Multi Port PoE Injector 24V 48V 12 Port PoE Injector Patch Panel For Surveillance Camera

 12 Port PoE Injector

Model No : ZQPOEI012

PoE method : passive PoE Mode B

Usage : work with 24v power supply for Passive PoE

               work with 48v power supply for 802.3af/at PoE

Rate :     10/100M version

Input :      2.1*5.5mm female DC socket

                Power supply is separate

Packing : 36pcs and 22kgs each carton

 Overview:

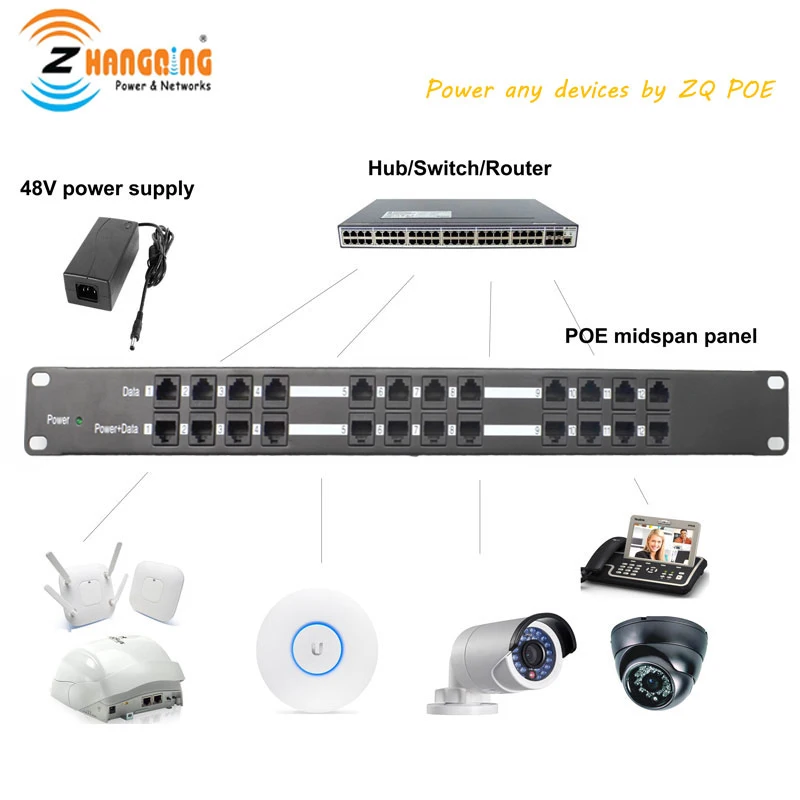

 The 12 port PoE panel is used 10/100M Ethernet, The upper Rj45 sockets
 is form “LAN/Switch/PC ” 1/2&3/6 are transmitting data . The under
 RJ45(power+data) socket is to deliver data and power:1/2&3/6 transmitting
 data, 4/5(+)&7/8(-)for power.Passive POE iscomposed of 12 set of Rj45
 sockets and two 60V DC power jack.Input power requests120W or more AC
 TO DC power converter.The input dc hole diameter is 2.1mm and the other end
 OD id 5.5mm.

 Each socket provides protection against short overflow (current protection
 650mA+15%-15%). The sum total output power must be lower than the MAX
 input power of AC-DCpower converter. If not, it is necessary to consider taking
 higher AC-DC power converter. Therecommended formula for AC-DC power
 converter is 10W per RJ45 set (1 set = 2 x RJ45sockets). For example, 12 x
10W = 120W for 12 port Passive PoE panel .

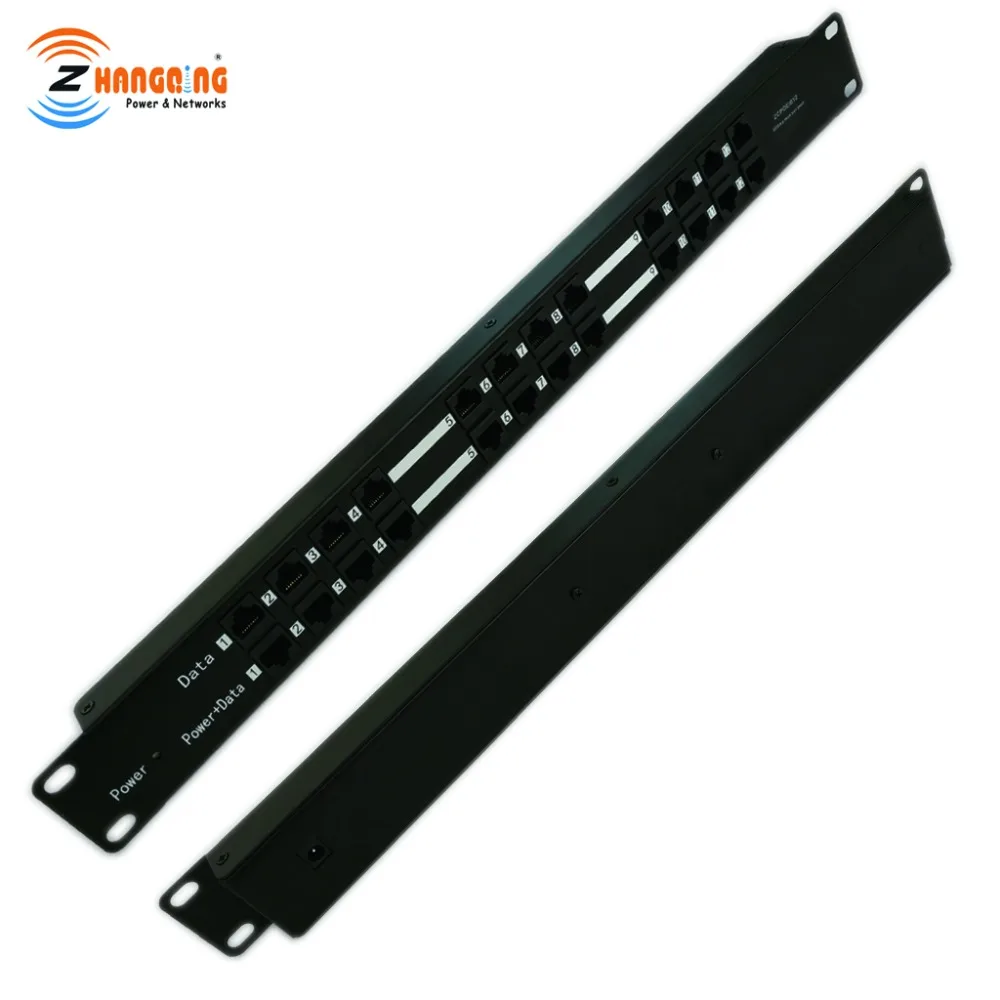

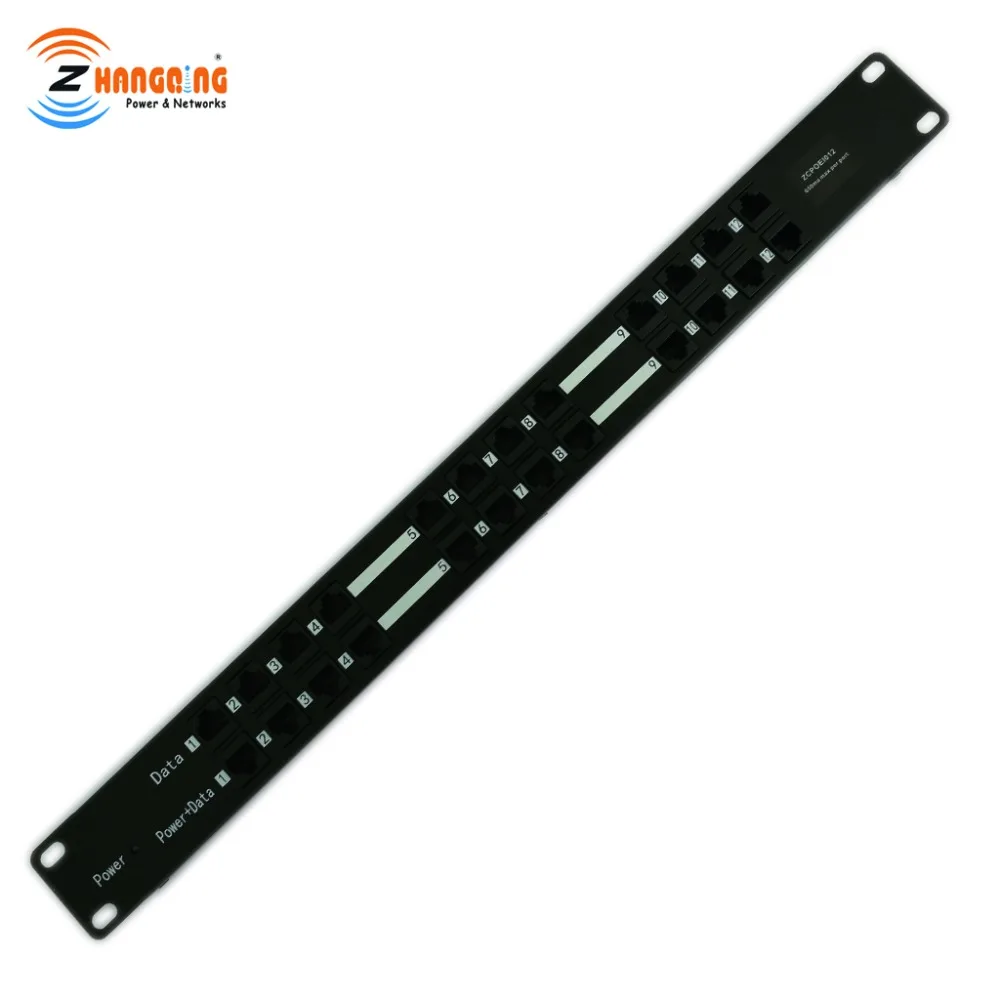

Picture Details :

Notes:

VOIP phones, cameras and WiFi AP'S need from 3 to 15 Watts each, with this injector, you can provide remote power up to 328 ft from the power source. If your device data sheet shows "48V 350ma" please understand that this is not the power your device needs, but the max power that is available according to the 802.3af spec. For example, a Polycom VOIP phone is 802.3af compatible, but needs about 4.5 Watts to operate. Therefore, one 12 port injector and a 60Watts power supply can power 12 phones at low cost.

 Shenzhen ZhangQing Electronic  LTD was founded in 2010. After these years developing, we have finished many unique and completed PoE midspan product line, 200w full range of power supplies,rich special features of PoE switch etc products.For the moment we have our sales office  in Shenzhen and manufacturing factory in ZhongShan. Since the company set up, we focus on power supply and Power Over Ethernet(PoE) all the time. so "focus, professional, honest,  innovation,wise " are our company faith. Devoting ourself provide PoE and power solution on WiFi Access Point, IP camera, IP phone etc for our customers  is our target.Creating value for  customers by our products and services is our pursue.

         Choose us, you will get value , professional, comfortable product and service. Let's work together to gain a bright future for all of us.
