Online fixed H2S gas detector applied to hydrogen sulfide gas transmitter pipeline

Product Overview

Description





Online fixed H2S gas detector applied to hydrogen sulfide gas transmitter pipeline

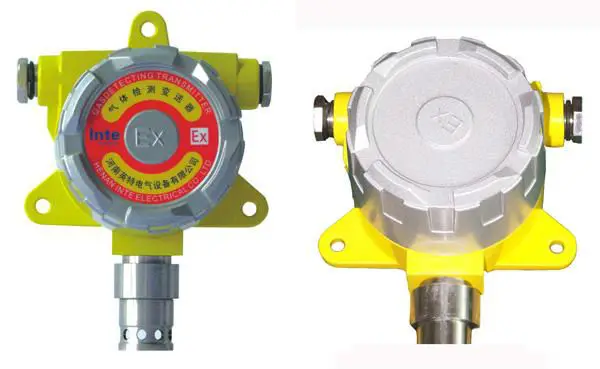

 KQ500 series fixed gas detector can continuousely detect the concentration of toxic gases, flammable gases, Oxygen.

  Widely used in metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmacy, sewage dealing and many other special industries and fields.

  Standard 4~20mA two wires signal output. It can transfer data in long distance, can get into the DSC system directly.









l  It can detect various kinds of gases. high precision

l  Fixed explosion-proof shell; it’s safe and reliable

l  Standard 4-20mA electric current output, compatible with existing alarm control unit or

DSC (distributed control system).

l  best sensor, high sensitivity, rapid response, stable and reliable

l  operation is simple; easy installation and maintenance







Detecting Gas	Hydrogen sulfide
Measuring range	0-100ppm
Working Temperature	- 20 °C ~ + 50 °C
Relative Humidity	≤90%R.H. no condensation
Technical Parameters	Working voltage: 16~30VDC
	Working current: KQ500-EX is 120mA, others ≤50 mA
	Output signal: 4~20mA standard signal two wire type output (KQ500-EX three wire type)
Sensor	electrochemical sensor; catalytic combustion type sensor for KQ500-EX
Respond Time	T90<30s
Weight	≤900g

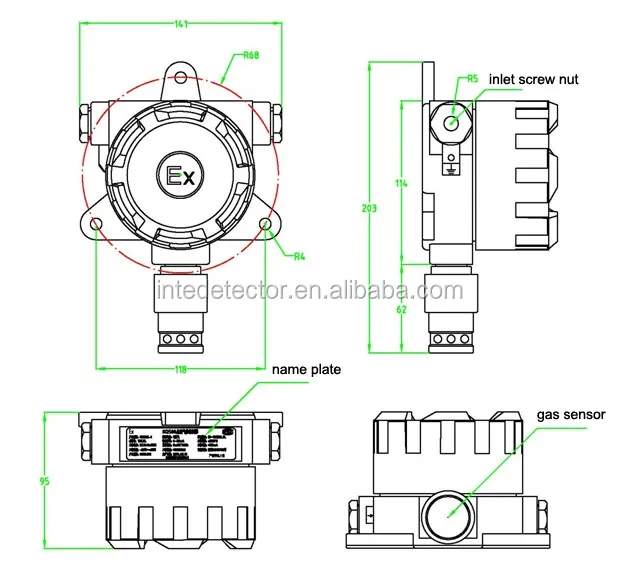

Fixing Parameters	Fixing type: wall-mounted type
	Transition cable: two core shield cable (KQ500-EX uses three core shield cable), section 2×1.5mm2, external diameter 10mm
	Transmission distance ≤1000m
Explosion-proof Level	Exd IICT6(used for explosion proofing detector);ExiaIICT4(used for intrinsic safety type detector)
Protection Class	IP66





Product Model	Detected Gas	Measuring Range	Resolution	Respond Time (T90)	Sensor service life
KQ500-O2	O2	0-30%vol	0.1%vol	≤15s	2-3years
KQ500-CO	CO	0-1000ppm	1 ppm	≤15s	2-3years
KQ500-H2S	H2S	0-100ppm	1 ppm	≤15s	2-3years
KQ500-HCN	HCN	0-20ppm	0.1 ppm	≤30s	2-3years
KQ500-CL2	CL2	0-20ppm	0.1 ppm	≤30s	2-3years
KQ500-O3	O3	0-5ppm	0.01 ppm	≤25s	2-3years
KQ500-NH3	NH3	0-200ppm	1 ppm	≤30s	2-3years
KQ500-H2	H2	0-1000ppm	1 ppm	≤30s	2-3years
KQ500-NO2	NO2	0-20ppm	0.1 ppm	≤25s	2-3years
KQ500-PH3	PH3	0-20ppm	0.1 ppm	≤15s	2-3years
KQ500-C3H3N	C3H3N	0-100ppm	1ppm	≤15s	2-3years
KQ500-NO	NO	0-250ppm	1ppm	≤25s	2-3years
KQ500-HCL	HCL	0-20ppm	0.1ppm	≤25s	2-3years
KQ500-SO2	SO2	0-20ppm	0.1ppm	≤15s	2-3years
KQ500-EX	combustible gas	0-100%LEL	1%LEL	≤30s	3-5years
As for unlisted detected gas and measuring range, please contact with our company





Installation case





 FAQ

Q1. Can it applied to other gases?

A: KQ500 series can detect a wide range of combustible gas, toxic gas, Oxygen.

Q2.What certificate can you support?

A: Our products have passed CE, Calibration Cert, Confirmity Cert of Explosion-proof, Pattern Approval Cert of the Measuring Instrument.

Q3. How is the calibration be done?

A: To keep the high sensitivity, please calibrate it at least once a year .

Q4. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.

Q5. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q7. How rto deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send new gas detectors with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution

including re-call according to real situation.
