200M Hydraulic Water Well Core Drilling Machine/XY 200 Borehole Water Well Drilling Rig

Product Overview

Description

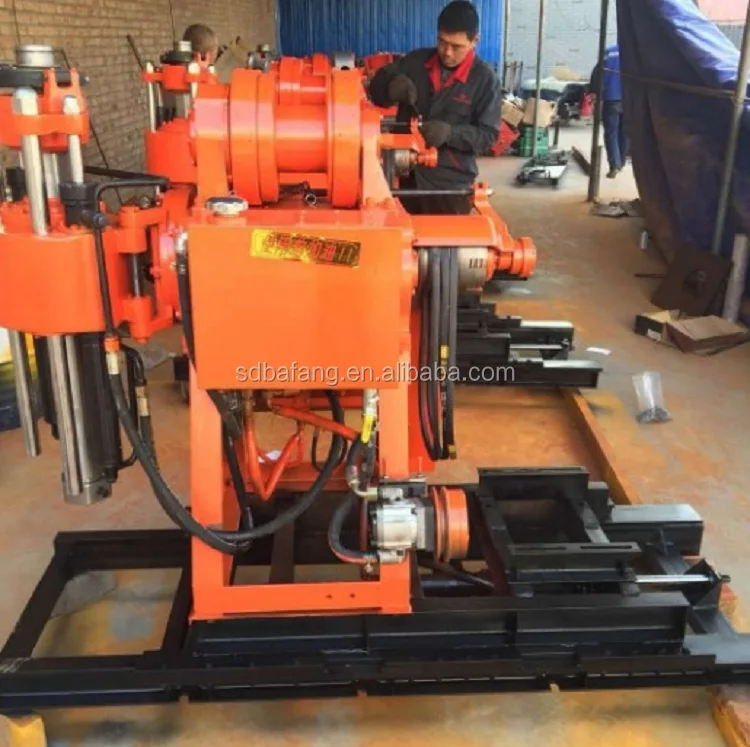

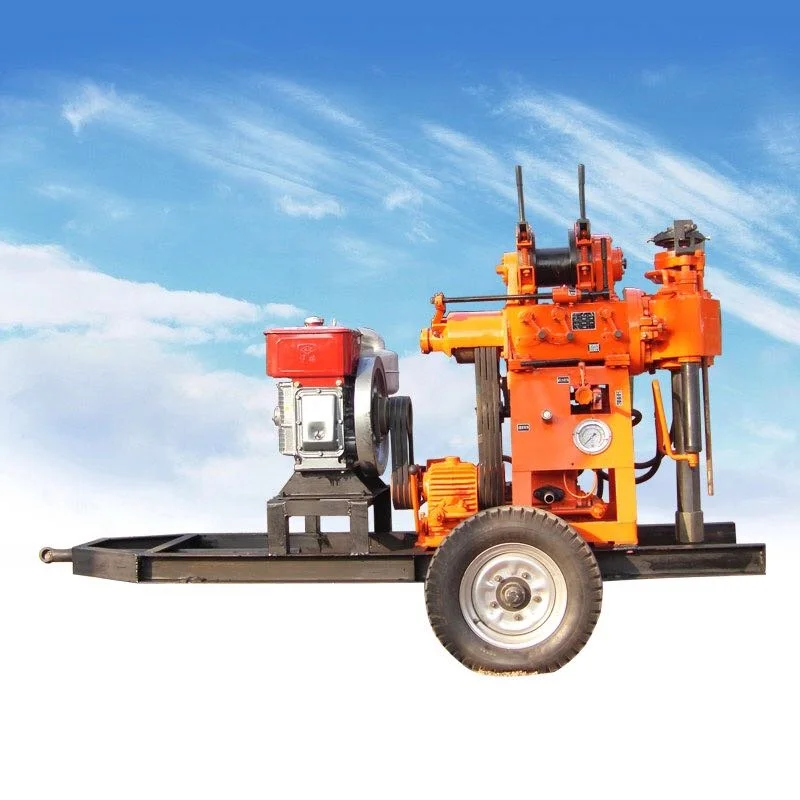

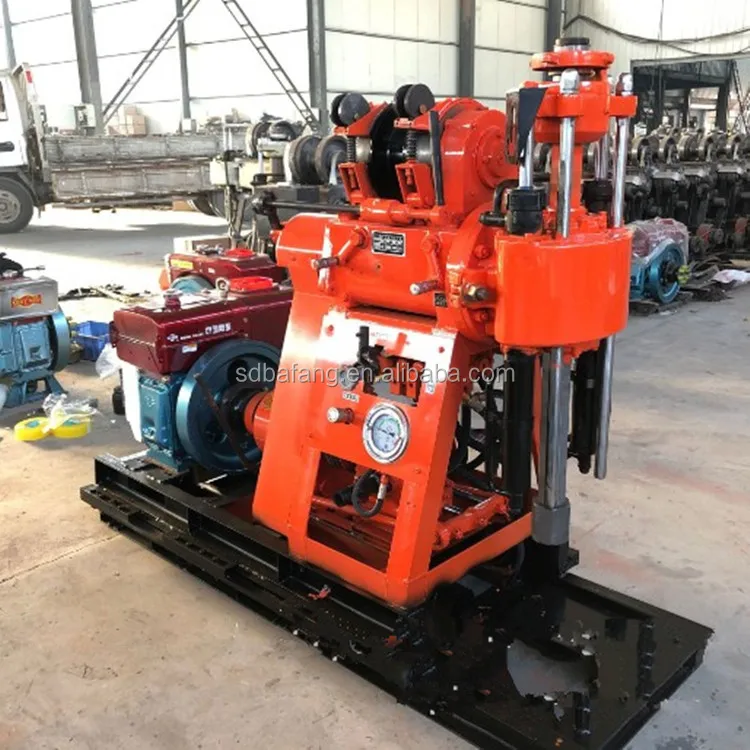

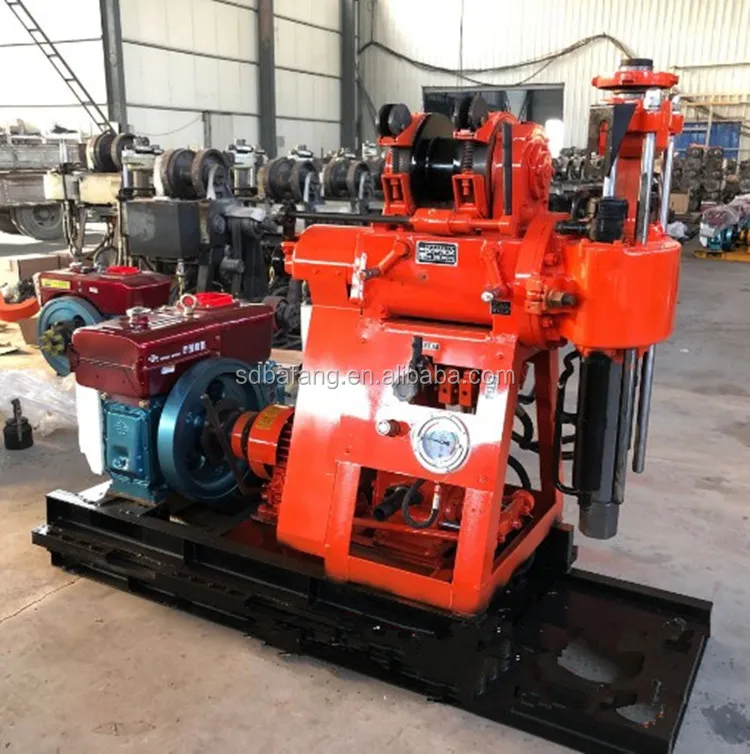

200M Hydraulic Water Well Core Drilling Machine/XY-200 Borehole Water Well Drilling Rig

XY-1 Drilling rig is light shallow hole drill with hydraulic feed.Applicable to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.

Applications

1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

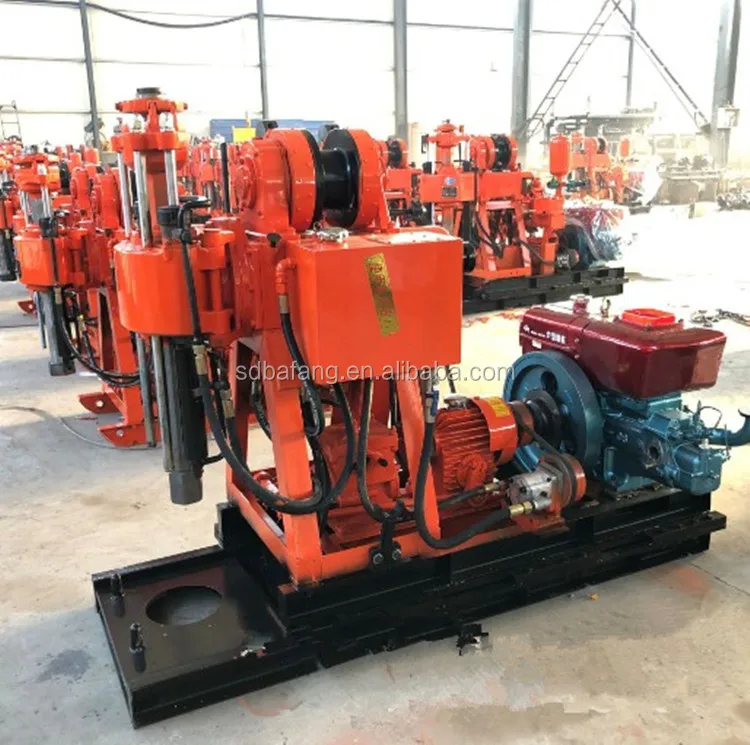

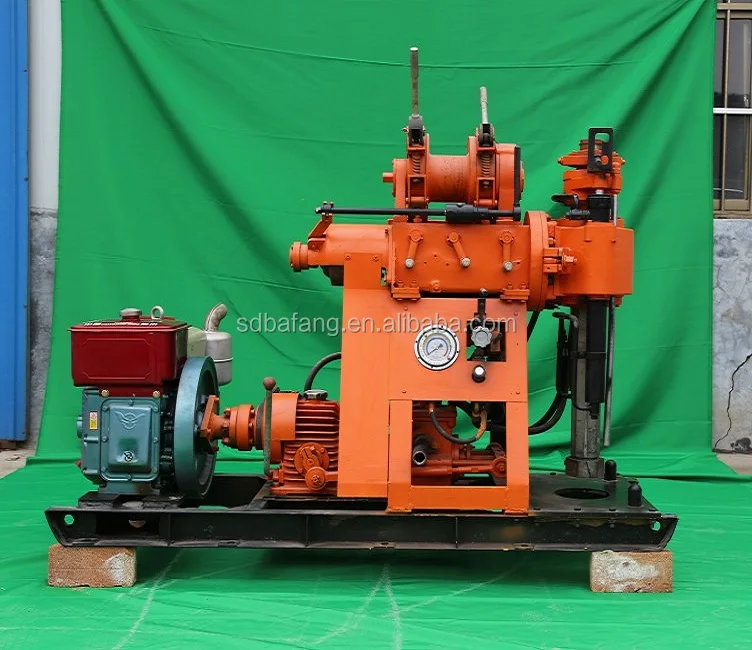

4. The pump and diesel engine are installed on common base frame in order to have a compact structure and occupy small field area. lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

Main Specification:

Unity machine parameter
Drilling depth	100m
Drilling caliber	200mm
Drill rod caliber	50mm
Drilling angle	90°~75 °
Drill weight (No include power)	510kg
Spindle
Spindle speed	64 128 287 557 r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	2400kg
Reel lifting speed	0.41 0.82 1.64m/s
Tightrope caliber	12.5mm
Tightrope cubic measure	35mm
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Distance between drill and hole	450mm
Mud pump
Type	Horizontal single urn twin action
Displacement	170L/mim
Power
Diesel engine	S1115 15HP
Electric motor	Y160M-4 11kw 1440r/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
