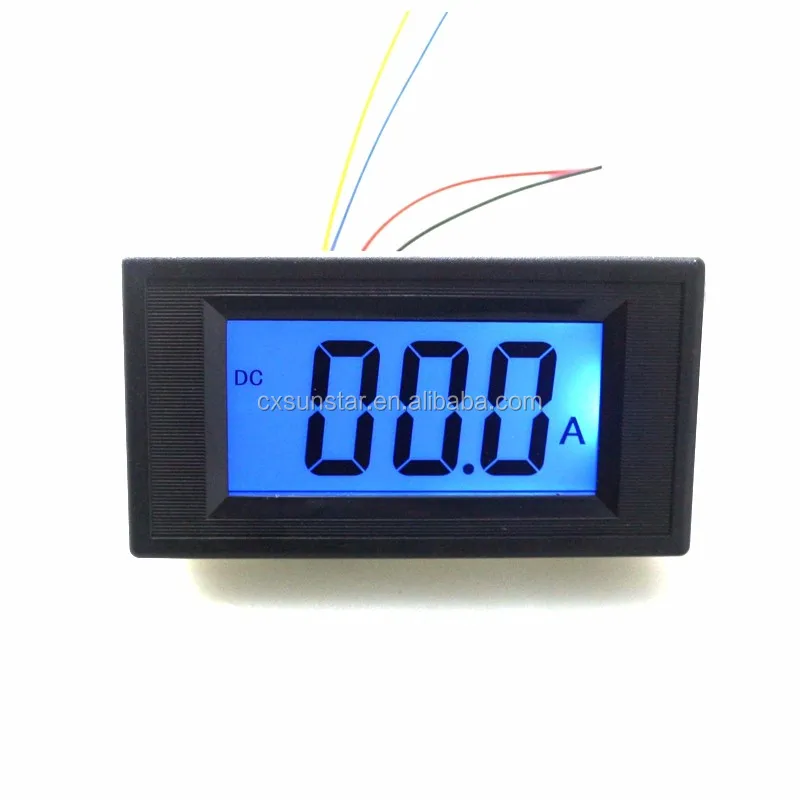

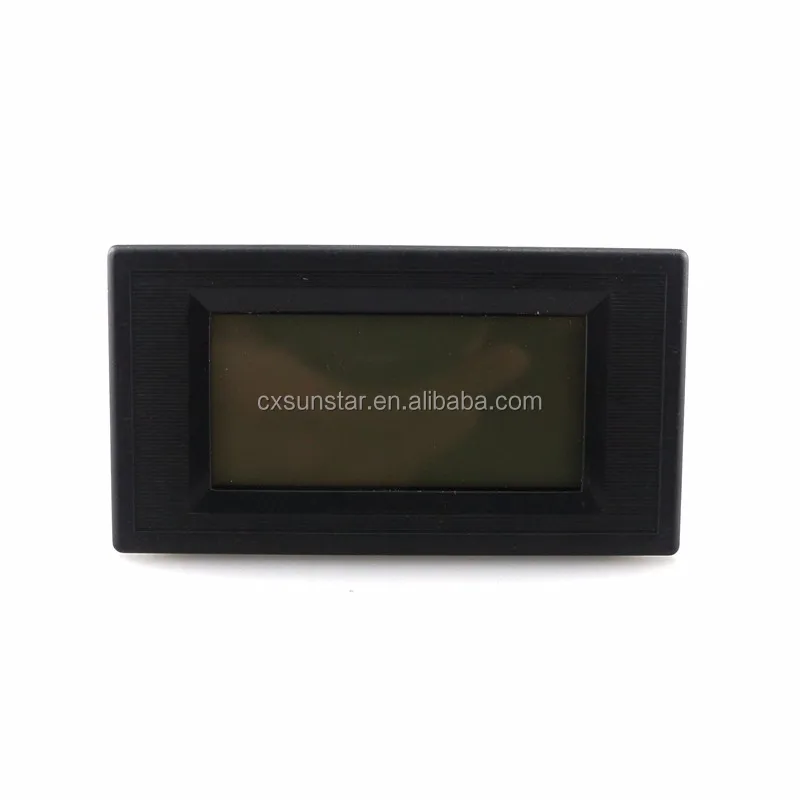

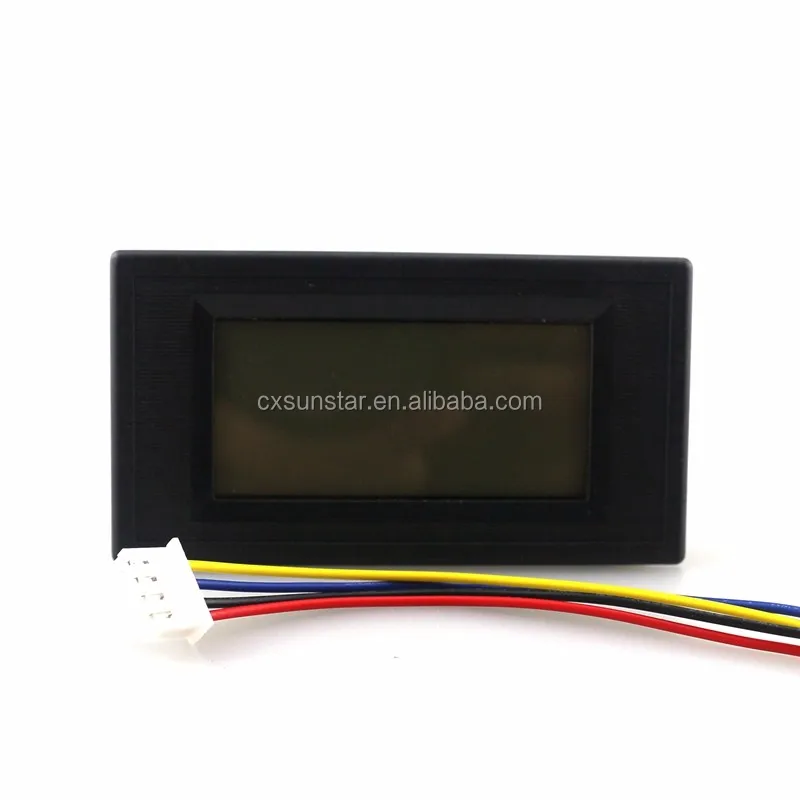

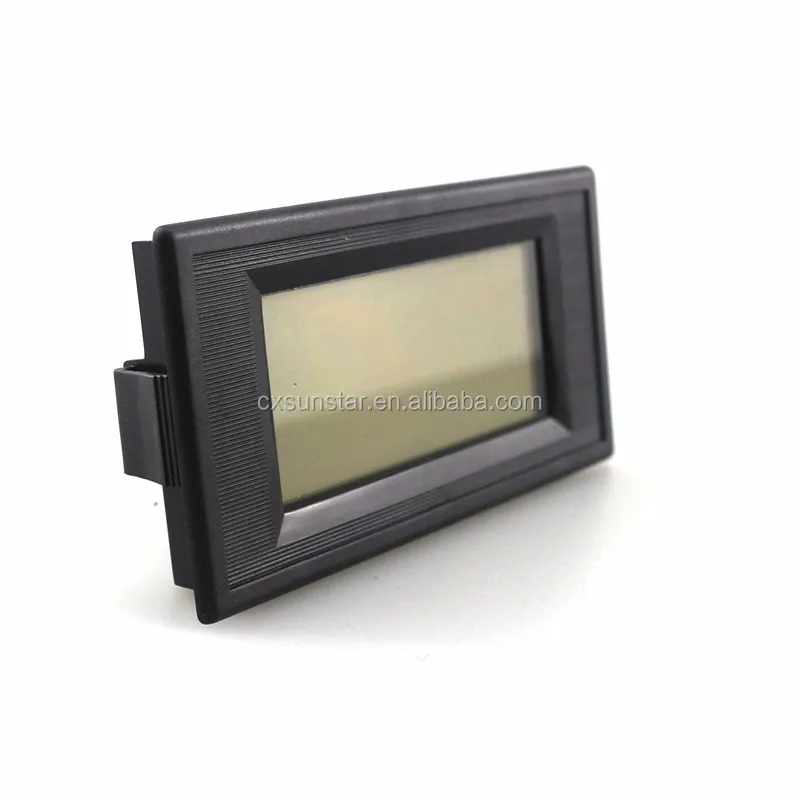

DC / 100A 12V Digital LCD Ammeter Ammpere Current Panel MeterPositive Negative Tester Blue Backlight 3 Digit Four Wires
- Category: >>>
- Supplier: Cixi Sunstar Electronic Technology Co. Ltd.
Share on (60640548228):
Product Overview
Description
Product Description
Features:
High stability, high measurement accuracy, strong anti-jamming capability
Technical parameters:
Measure Current: 0~+/-100A ( DC 100A ammeter must use with DC 100A Shunt)
Operating voltage: AC / DC 8 ~ 12V
Operating Current: <15mA
Display: LCD blue backlight, character height 20mm
Dimensions: 79*43*25 mm
Mounting cutout: 76*39 mm
Weight: about 60g
Measurement rate: 2 / S
The overrange show: first show a "1" or "-1", the latter three are not displayed
Only 1 digit after the decimal point.
Extreme working conditions:
Operating Temperature: -10°c ~ 50°c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure to
High stability, high measurement accuracy, strong anti-jamming capability
Technical parameters:
Measure Current: 0~+/-100A ( DC 100A ammeter must use with DC 100A Shunt)
Operating voltage: AC / DC 8 ~ 12V
Operating Current: <15mA
Display: LCD blue backlight, character height 20mm
Dimensions: 79*43*25 mm
Mounting cutout: 76*39 mm
Weight: about 60g
Measurement rate: 2 / S
The overrange show: first show a "1" or "-1", the latter three are not displayed
Only 1 digit after the decimal point.
Extreme working conditions:
Operating Temperature: -10°c ~ 50°c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure to
