kw20 200m depth water massenza drilling rigs
1. General description of KW20 Hydraulic Diesel Truck Drilling Rig for Water
KW20 Water Well Drilling Machine is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole specially for the water of the mountains and rock terrian project.
The rig could drill in the different stratum, drilling up to 254mm in diameter.
Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.
The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
2. Specification of KW20 Hydraulic Diesel Truck Drilling Rig for Water
More choose:
Model No: | KW10 | KW20 | KW30 | |
Dia.hole (mm) | 115-180 | 115-254 | 168-300 | |
Drilling depth | 120m | 200m | 300m | |
Air consumption: | 16-30 m³/min | 16-35 m³/min | 16-40 m³/min | |
Working pressure: | 10.5-24.6 bar | 10.5-24.6 bar | 10.5-24.6 bar | |
Ground clearance | 245mm | 280mm | 280mm | |
Support cylinder stroke | 460mm | 1000mm | 1000mm | |
Feed cylinder stroke | 1750mm | 2400mm | 2400mm | |
Feed power | 30000N | 45000N | 50000N | |
Lift power: | 70000 N | 95000N | 150000N | |
Speed of rotator: | Low speed | 50 rpm | 60 rpm | 43/52/69rpm |
High speed | 100 rpm | 105 rpm | 85/102/125rpm | |
Rotation torque: | 3200N.m | 4000N.m | High 8000N.m,Low 4000N.m | |
Travelling speed: | 0-2.5 km/h | 0-2.5 km/h | 0-2.5 km/h | |
Climb capacity: | 15° | 25° | 25° | |
Engine |
|
|
| |
Engine model | YC4D80 | YC6B125-K10 | YC6B150Z-T21 | |
power | 58KW/80HP | 92KW/125HP | 110KW/150HP | |
Rotation speed | 2400rpm | 2200rpm | 2100rpm | |
Matching Drilling components | ||||
Hammer | DHD360(DTH380) | |||
Dia. Of rod | Φ89mm | Φ79mm,Φ89mm | Φ89mm-Φ102mm | |
Length of rod | 3m | 3m | 3m/4m | |
Dia. Of bit | Φ115-180mm | Φ115-254mm | Φ168-300mm | |
Weight (kg) | 6500kgs | 8500kgs | 9500kgs | |
Dimension (mm) | 6000×2300×2500 | 5100×2300×2850 | 5200×2300×3200 | |
Mating Air Compressor of KW20 Water Well Drilling Machine for Sale Bore Well Drilling Machine
Model No. | LGCY-27/20 |
Capacity | 27m³/min(955cfm) |
Working pressure | 20bar(290psi) |
Engine Model No: | Yuchai YC6M395L-K20 |
Weight | 4850KGS |
Dimension (mm) | 4600*1950*2850 |
Matched Air Compressor

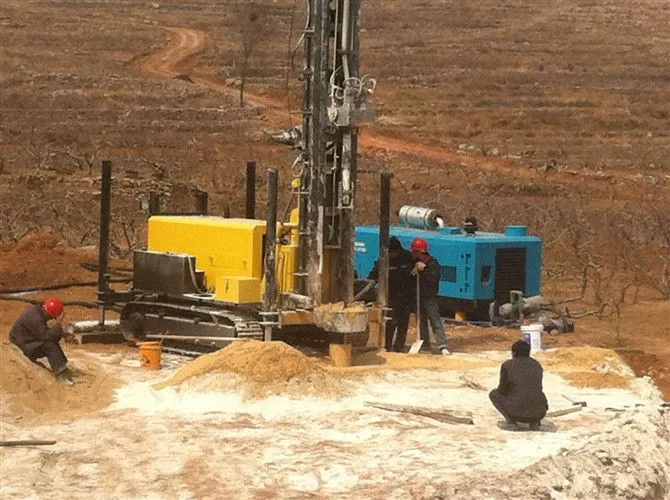

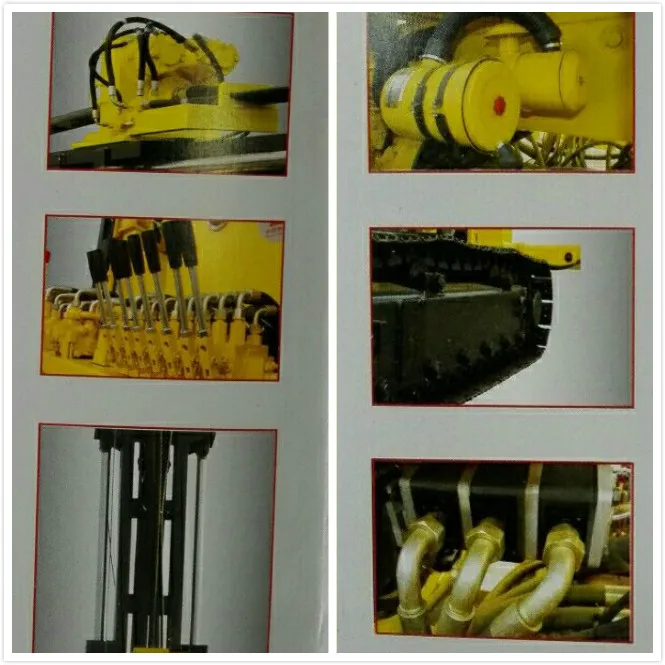

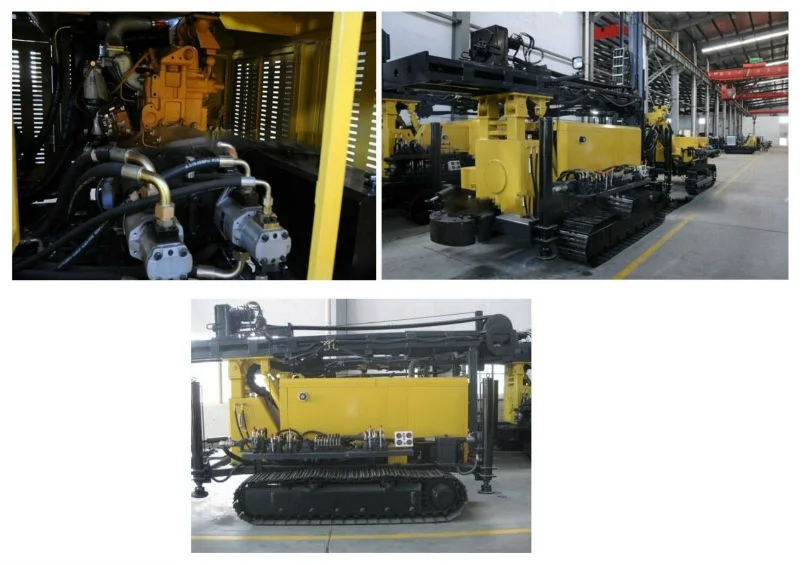

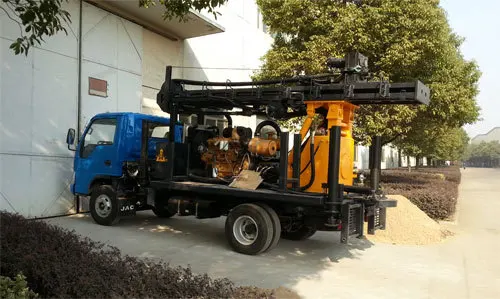

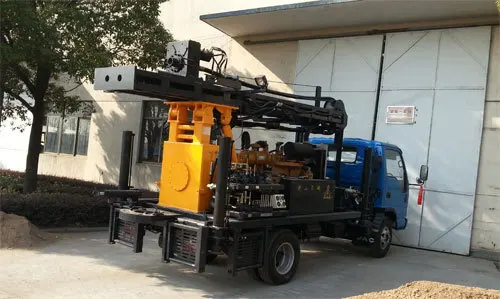

3. Pictures of KW20 Hydraulic Diesel Truck Drilling Rig for Water
Our advantages
. Top techonology and guranty
One year warranty in overseas branch
D&R center ensure top advantages
Asian biggest drilling rig manufacturer with long history
World top-class heat treatment production line imported from Japan
Advanced automatic mloding production line from USA
Advanced NC machine
German TRUMPF flexible sheet metal processing system
Company info
Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises, the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.
Specialized in air compressor / pump/ rig/drill carriage/ project design
Through years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
Certifications
Packaging & Shipping
6. package and shipping
Package way: containeror as customers' request
Shipping way: by sea or air , railway etc
Delievery time ;15-20 days after the payment.
