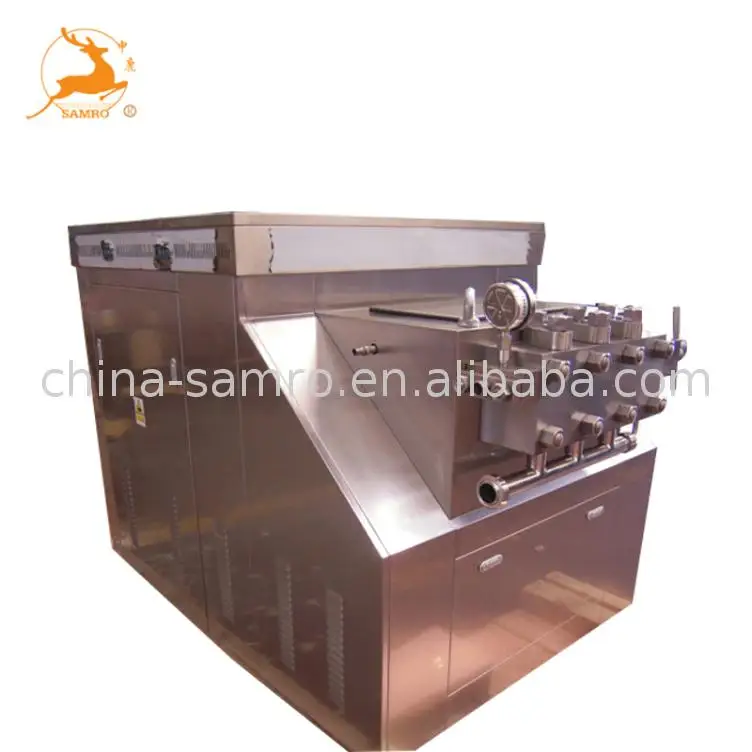

Pneumatic control system milk Homogenizer Processing Line Type UHT Plant:
Product Description

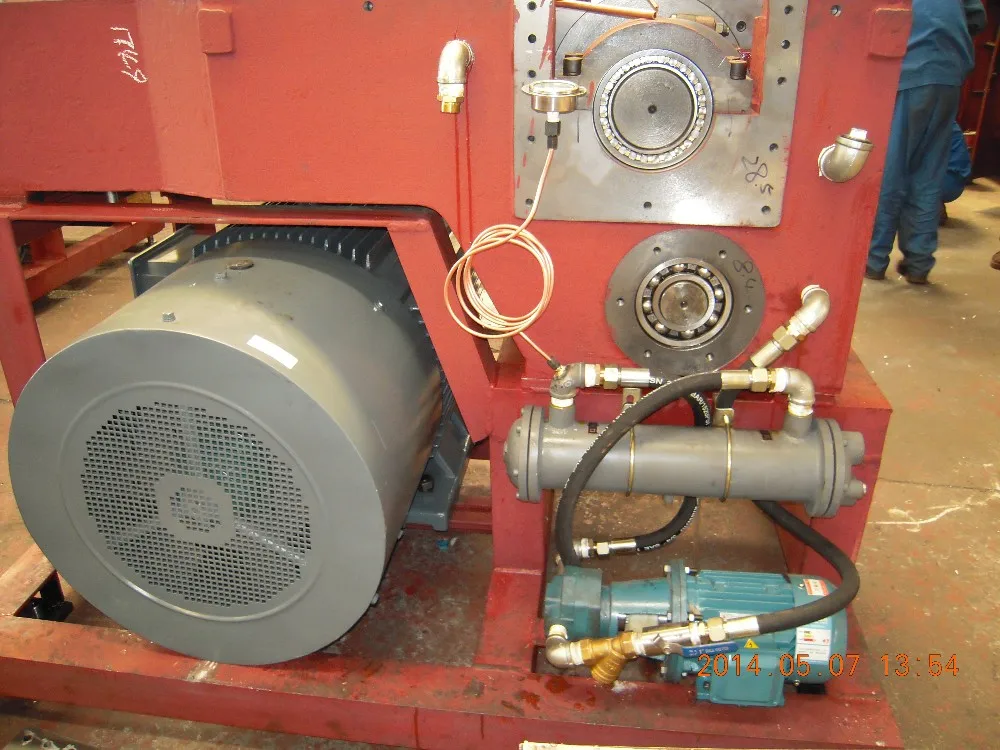

A: Power End
1.1 Driving: two-stage gear box;first stage, the triangle belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.
1.2 Lubricating: Automatic splash lubrication and oil pump lubrication, safe and reliable.
B: Liquid End
1.1 Pump: three way type, gland radial self sealing, durable, no leakage
1.2 Plunge: 3 plunge, durable, safe, easy dis-assembly
1.3 Checking valve: Poppet valve in and out each 3 sets, total 6 sets, Durable, reliable, make sure flow is over rated flow.
1.4 Pressure control: one diaphragm gauge assembly, control high pressure and low pressure.
3. Other specification:
Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger:High hardness stainless alloy(PH-type)
Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting
Pump block: SUS321.
Sealing: packing seal, with heat-proof reaching 100℃
| NO. | Machine | Piston | Working | MAX Working | Continual | Power | Weight | Size |
| Model | radix | rate | Pressure | Working | KW | Kg | L×W×H | |
| (Liters/Hr) | (Bar)MPa | Pressure | M | |||||
| (Bar) | ||||||||
| 1 | SRH60-70 | 1 | 60 | 70 | 0-56 | 3 | 270 | 0.7×0.4×1.3 |
| 2 | SRH250-70 | 3 | 250 | 70 | 0-56 | 5.5 | 700 | 1.2×0.8×1.0 |
| 3 | SRH500-35/45/70 | 3 | 500 | 35/45/70 | 0-28/36/56 | 5.5/7.5/11 | 700/750/800 | 1.2×0.8×1.0 |
| 4 | SRH1000-35/45 | 3 | 1000 | 35/45 | 0-28/36 | 11or15 | 800/850 | 1.2×0.8×1.3 |
| 5 | SRH1000-70 | 3 | 1000 | 70 | 0-56 | 22 | 1500 | 1.2×0.9×1.4 |
| 6 | SRH1500-30/60 | 3 | 1500 | 30/60 | 0-24/48 | 15/30 | 850/1800 | 1.2×0.8×1.3 |
| 7 | SRH1500-90 | 3 | 1500 | 90 | 0-72 | 45 | 2800 | 1.6×1.1×1.6 |
| 8 | SRH2000-25/30 | 3 | 2000 | 25/30 | 0-20/24 | 15/22 | 1500 | 1.2×0.9×1.4 |
| 9 | SRH2000-40 | 3 | 2000 | 40/45 | 0-32 | 30 | 1800 | 1.3×0.9×1.5 |
| 10 | SRH2000-70 | 3 | 2000 | 70 | 0-56 | 45 | 2800 | 1.6×1.1×1.6 |
| 11 | SRH2500-40 | 3 | 2500 | 40 | 0-32 | 37 | 1800 | 1.2×0.8×1.4 |
| 12 | SRH3000-25/30 | 3 | 3000 | 25/30 | 0-20/24 | 30 | 1600/1800 | 1.3×0.9×1.5 |
| 13 | SRH3000-40 | 3 | 3000 | 40 | 0-32 | 37 | 1800 | 1.7×1.1×1.5 |
| 14 | SRH3000-55 | 3 | 3000 | 55 | 0-44 | 55 | 2800 | 1.6×1.1×1.6 |
| 15 | SRH3000-70 | 4 | 3000 | 70 | 0-56 | 75 | 3000 | 1.7×1.5×1.3 |
| 16 | SRH3500-40 | 3 | 3500 | 40 | 0-32 | 45 | 2800 | 1.6×1.1×1.6 |
| 17 | SRH3500-50 | 3 | 3500 | 50 | 0-40 | 55 | 2800 | 1.6×1.1×1.6 |
| 18 | SRH4000-25/30 | 3 | 4000 | 25/30 | 20/24 | 37/40 | 1800 | 1.7×1.1×1.5 |
| 19 | SRH4000-40 | 3 | 4000 | 40 | 0-32 | 55 | 2800 | 1.6×1.1×1.6 |
| 20 | SRH4000-60 | 3 or 4 | 4000 | 60 | 0-48 | 75 | 3000 | 1.7×1.5×1.3 |
| 21 | SRH4000-70 | 4 | 4000 | 70 | 0-56 | 90 | 3000 | 1.7×1.5×1.3 |
| 22 | SRH5000-25/30 | 3 | 5000 | 30 | 0-20/24 | 45/55 | 2800 | 2.3×1.1×1.4 |
| 23 | SRH5000-45 | 4 | 5000 | 45 | 36 | 75 | 4000 | 1.7×1.5×1.3 |
| 24 | SRH5000-70 | 4 | 5000 | 70 | 56 | 110 | 4500 | 1.8×1.5×1.4 |
| 25 | SRH6000-25/30 | 3 or 4 | 6000 | 25/30 | 0-20/24 | 55/75 | 4000 | 1.7×1.5×1.3 |
| 26 | SRH6000-40 | 4 | 6000 | 40 | 0-32 | 75 | 4500 | 1.7×1.5×1.3 |
| 27 | SRH6000-55 | 4 | 6000 | 55 | 0-44 | 110 | 5000 | 1.8×1.5×1.4 |
| 28 | SRH7000-25/35 | 3 or 4 | 7000 | 25/35 | 20/28 | 55/75 | 4000 | 1.7×1.5×1.3 |
| 29 | SRH7500-30 | 4 | 7000 | 30 | 0-24 | 75 | 4500 | 1.7×1.5×1.3 |
| 30 | SRH8000-25/30 | 3 or 4 | 8000 | 25/30 | 0-20/24 | 75 | 4000 | 1.7×1.5×1.3 |
| 31 | SRH8000-40 | 4 | 8000 | 40 | 0-32 | 110 | 5000 | 1.8×1.5×1.4 |
| 32 | SRH10000-25 | 4 | 10000 | 25 | 0-20 | 90 | 4500 | 1.8×1.5×1.4 |
| 33 | SRH10000-35 | 4 | 10000 | 35 | 0-28 | 110 | 5000 | 1.8×1.5×1.4 |
| 34 | SRH10000-40 | 4 | 10000 | 40 | 0-32 | 132 | 5000 | 2.2×1.6×1.4 |
| 35 | SRH10000-45 | 4 | 10000 | 45 | 0-36 | 132 | 5000 | 2.2×1.6×1.4 |
| 36 | SRH12000-30 | 4 | 12000 | 30 | 0-24 | 110 | 4500 | 1.8×1.5×1.4 |
| 37 | SRH12000-40 | 4 | 12000 | 40 | 0-32 | 132 | 5000 | 2.2×1.6×1.4 |
| 38 | SRH14000-30 | 4 | 14000 | 30 | 0-24 | 132 | 5000 | 2.2×1.6×1.4 |
| 39 | SRH15000-23 | 4 | 15000 | 23 | 0-18 | 110 | 5000 | 2.2×1.6×1.4 |
| 40 | SRH16000-40 | 4 | 16000 | 40 | 0-32 | 200 | 5500 | 2.2×1.8×1.4 |
| 41 | SRTH20000-30 | 4 | 20000 | 30 | 0-24 | 200 | 5500 | 2.2×1.8×1.4 |
Applications
1. Food and Drink
Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.
2. Chemical
Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.
3. Biotechnology
Cell disruption of yeast, E.coil other bacteria and algae.
4. Pharmaceutical
Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes
5. Cosmetics
Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
Types of Homogenizer
1. Manual Operating Homogenizer
Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.
2. Hydraulic Operating Homogenizer
The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

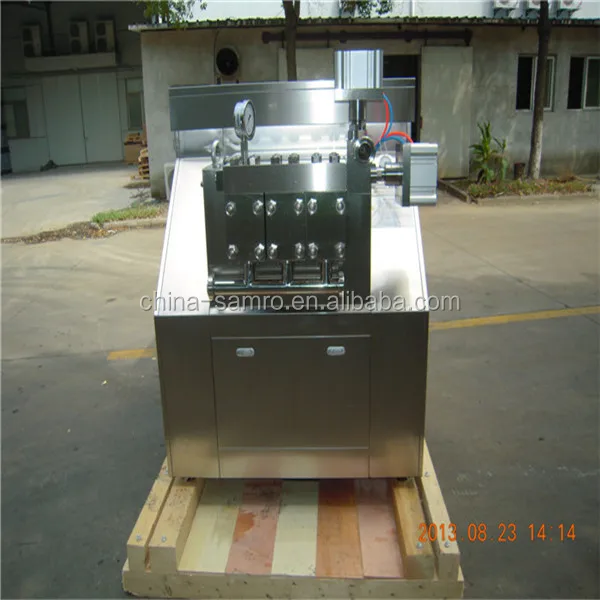

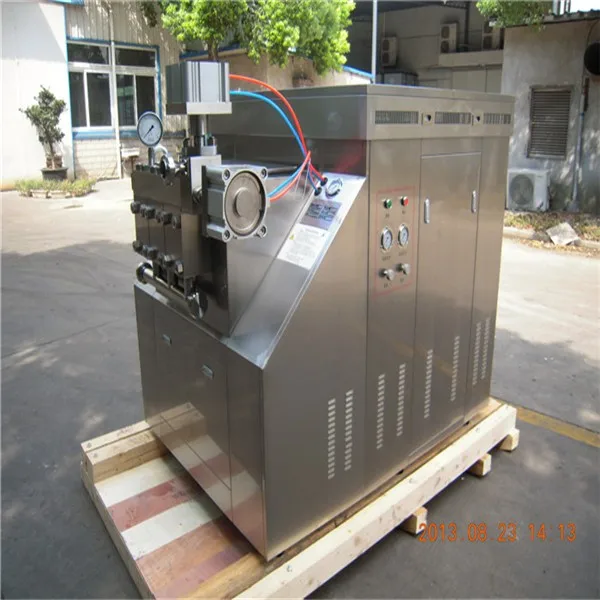

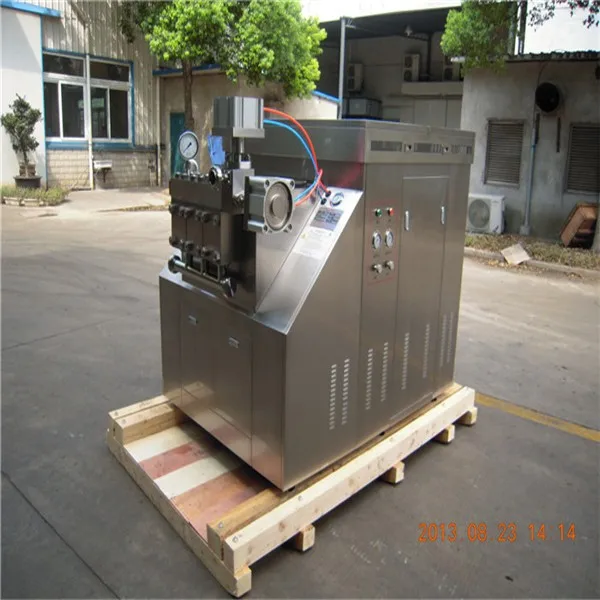

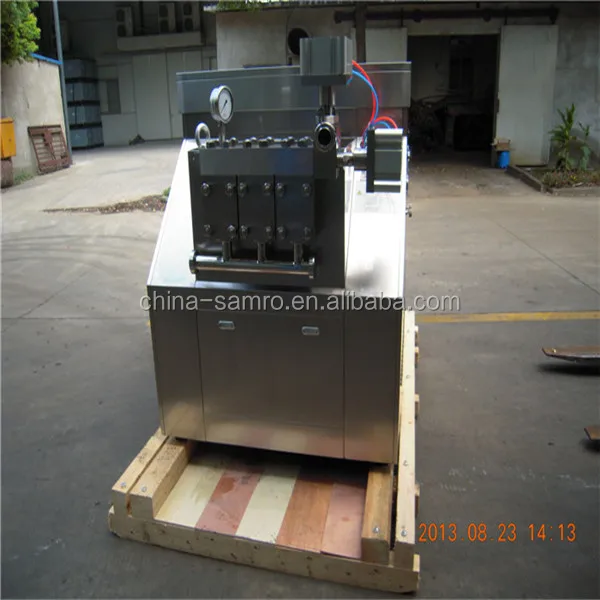

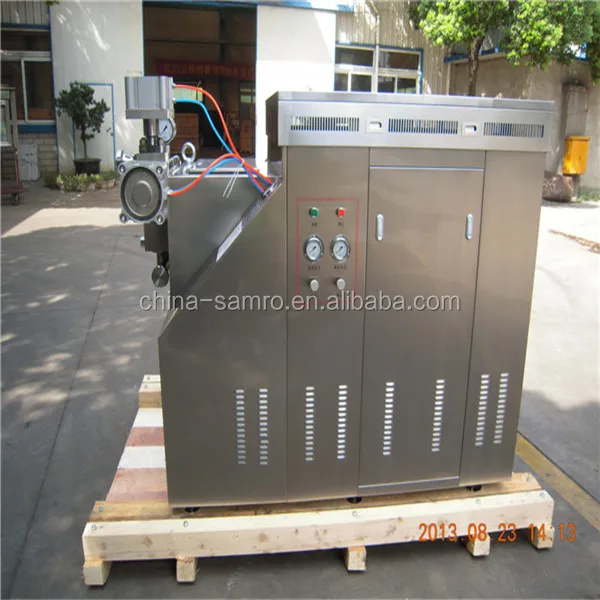

3. Pneumatic Operating Homogenizer
The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.
4. Large Capacity Homogenizer
This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.
5. Laboratory Homogenizer
Capacity: 60L/H Max Pressure</=70MPa
Minimum Sample Volume: 200ml
Two-stage Homogenizing
Colloid Grind Conveyer pump High pressure pump
Packaging & Shipping

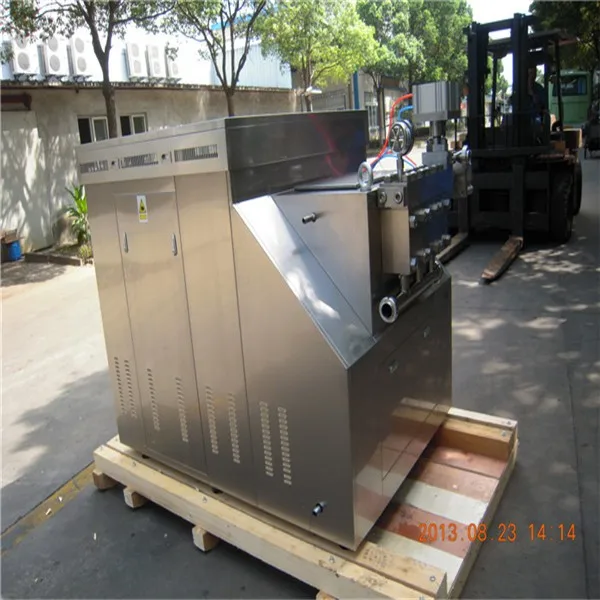

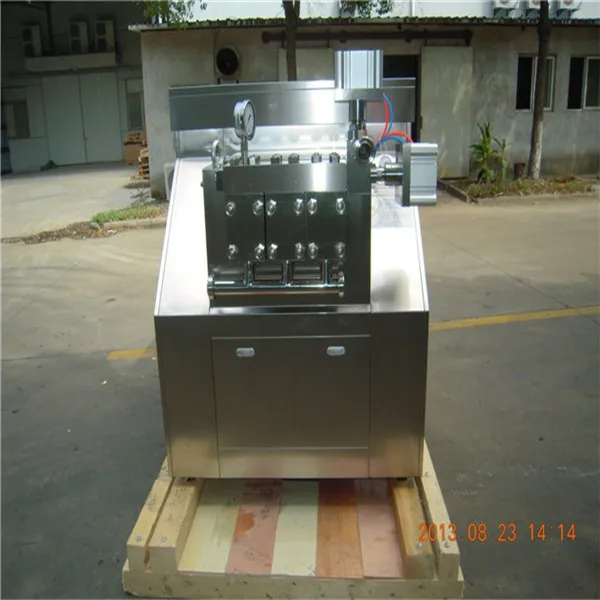

We pack all our machine in wooden box. It's very stable and safe.
Our Services
1. If you have special request, please kindly let us know. We will try our best to meet your demand.
2. We provide you free service of one year (under the normal operation). The additional fee (the tickets, the fee of living and eating for our engineer, etc) shall be charged if you need overseas service.
Company Information
Factory:
Certificate:
Exhibition:
FAQ
1. Why we are the 3 years gold supplier on Alibaba?
You may think we are a young company when you see we are 3 years gold supplier on Alibaba. Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer to overseas.
2. Do you have different pressure from the mentioned one?
Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.
3. What’s the meaning of your Model No.?
We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.
We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
