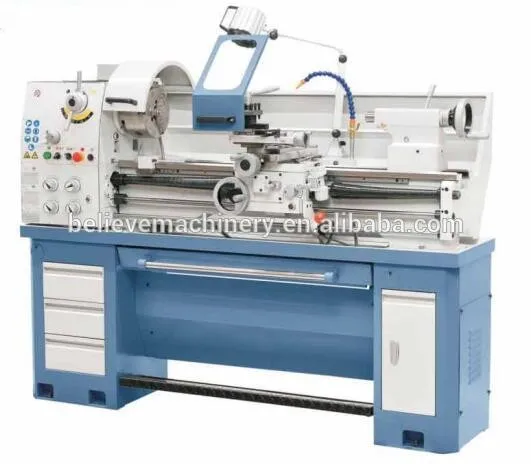

CQ6236G Engine Metal Lathe Machine for Processing Metal Machinery

CQ6232G/36GFeatures

Precision ground and hardened bedways

The spindle is supported with precision roller bearings

Head stock gears are made of high quality steel ground and hardened

Three different length beds are available

Spindle speed range 70-2000r/min

D1-4 cam lock spindle nose

51mm Spindle bore for optional

Two speed motor for optional

Specifications

Items

Specification

Models

CQ6232G                                CQ6236G

Swing over bed

330mm(13")                           360mm(14")

Swing over cross slide

198mm(7-25/32")                 212mm(8-1/6")

Swing in gap diameter

476mm(18-3/4")                   491mm(9-1/3")

Swing in length of gap

210mm(8-1/4")

Center height

166mm(6-1/2")                          179mm

Admits between

550mm(22")750mm(30")        1000mm(40")

Bed width

187mm(7-3/8")

Bed length

1248mm(49-1/8") 1655mm(65-1/8") 1363mm(53-2/3")

Spindle bore

38mm(1-1/2")&51mm(2")

Spindle nose

D1-4" or A2-4"

Taper in sleeve

NO.3 Morse

Speeds number

8 or 16(pole changeable motor) (optional)

Speeds range

70-2000r.p.m.or 35-2000r.p.m.(2 speed motor)

Cross slide travel

160mm(6-5/16") 118mm(4-5/16")

Compound rest travel

68mm(2-11/16")

Standard accessories

Special accessories

Three jaw chuck

Coolant system

Four jaw chuck

Brake

Steady rest

Driving plate

Follow rest

Living center

Face plate

Taper turning attachment

Dead center

Drill chuck

Thread chasing dial

Stopper

Chip tray

QCTP

Splash guard

DRO

Toolbox & tools 1set

Chuck cover

Leadscrew cover

Tool
