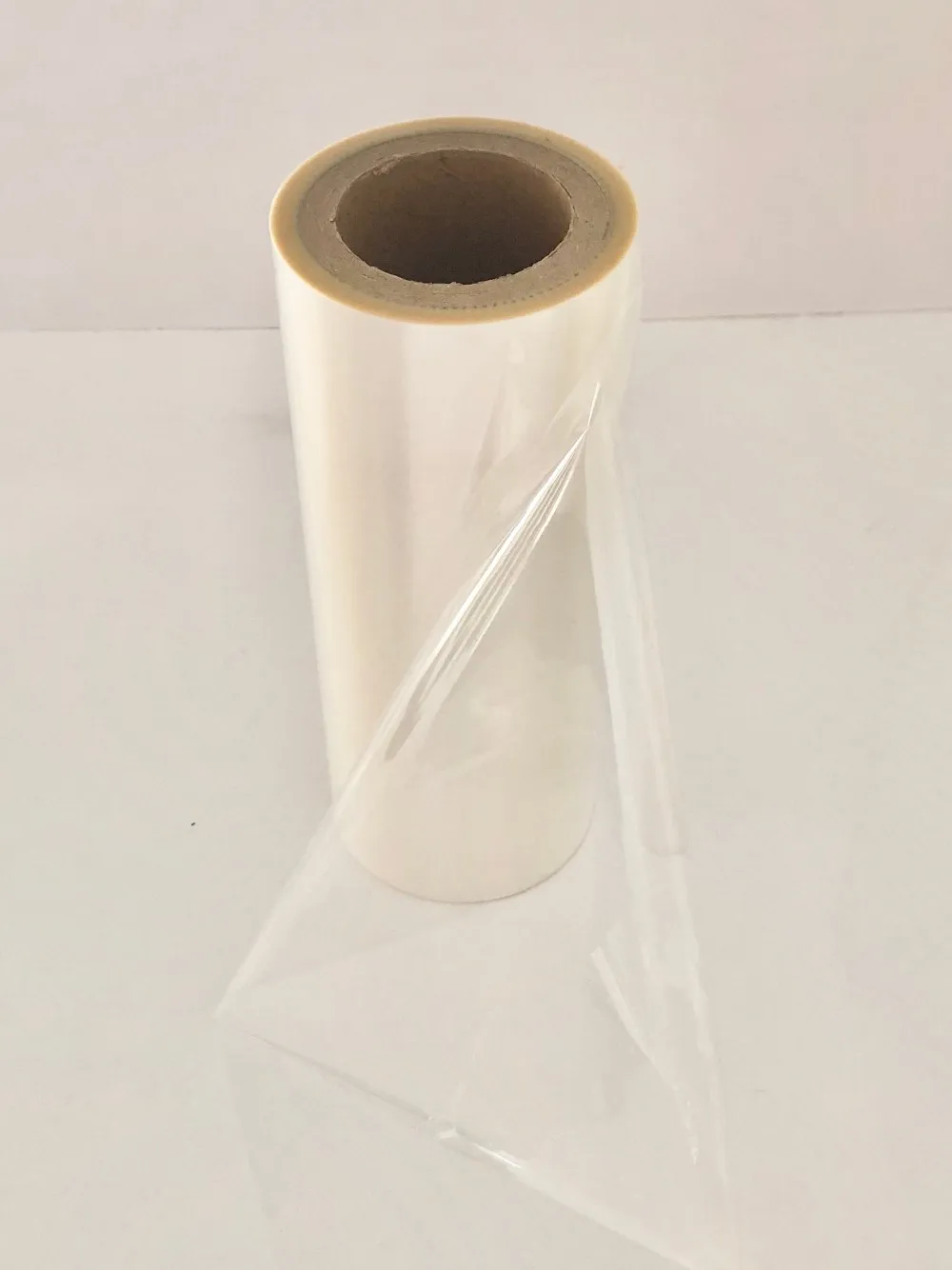

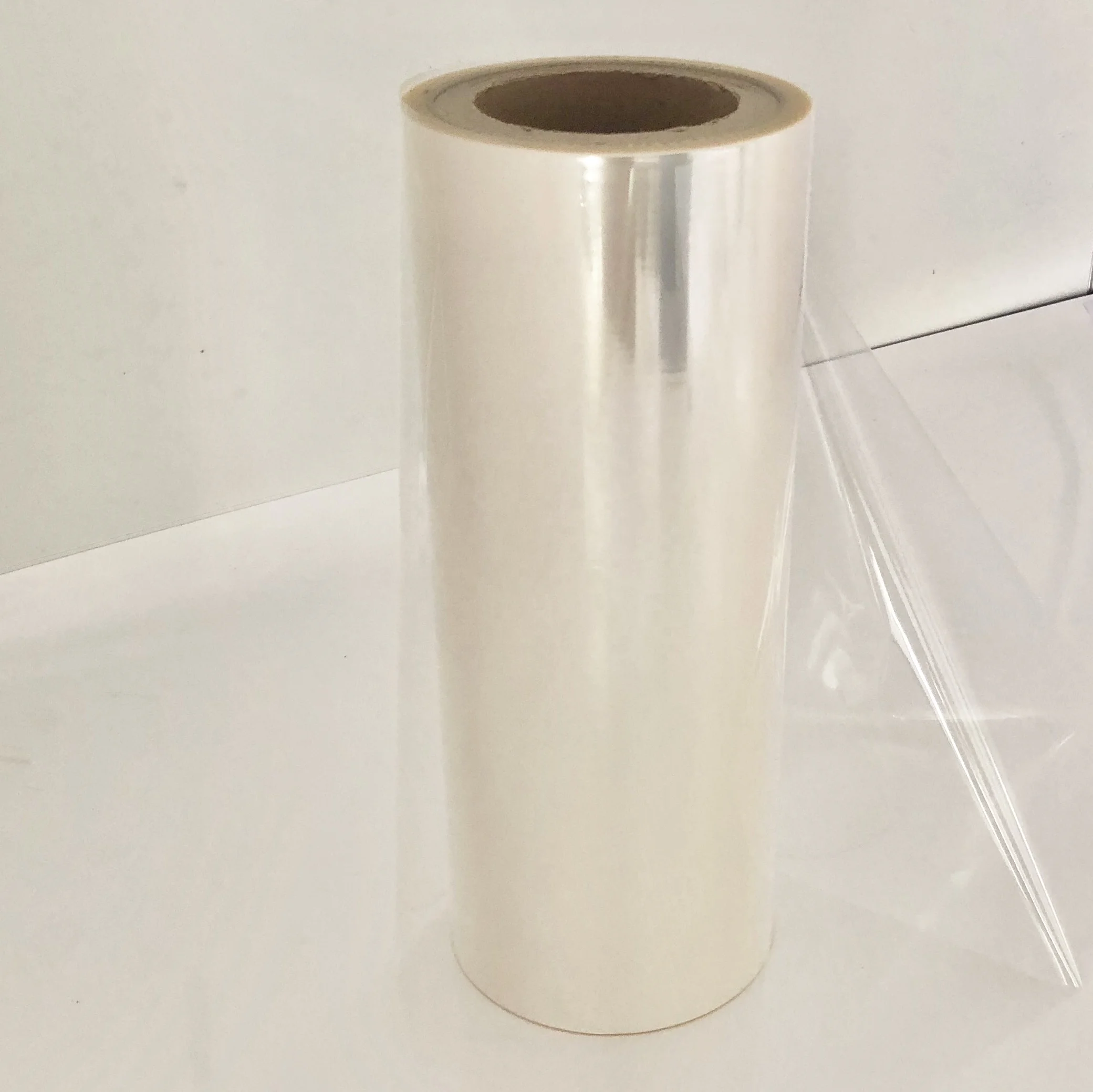

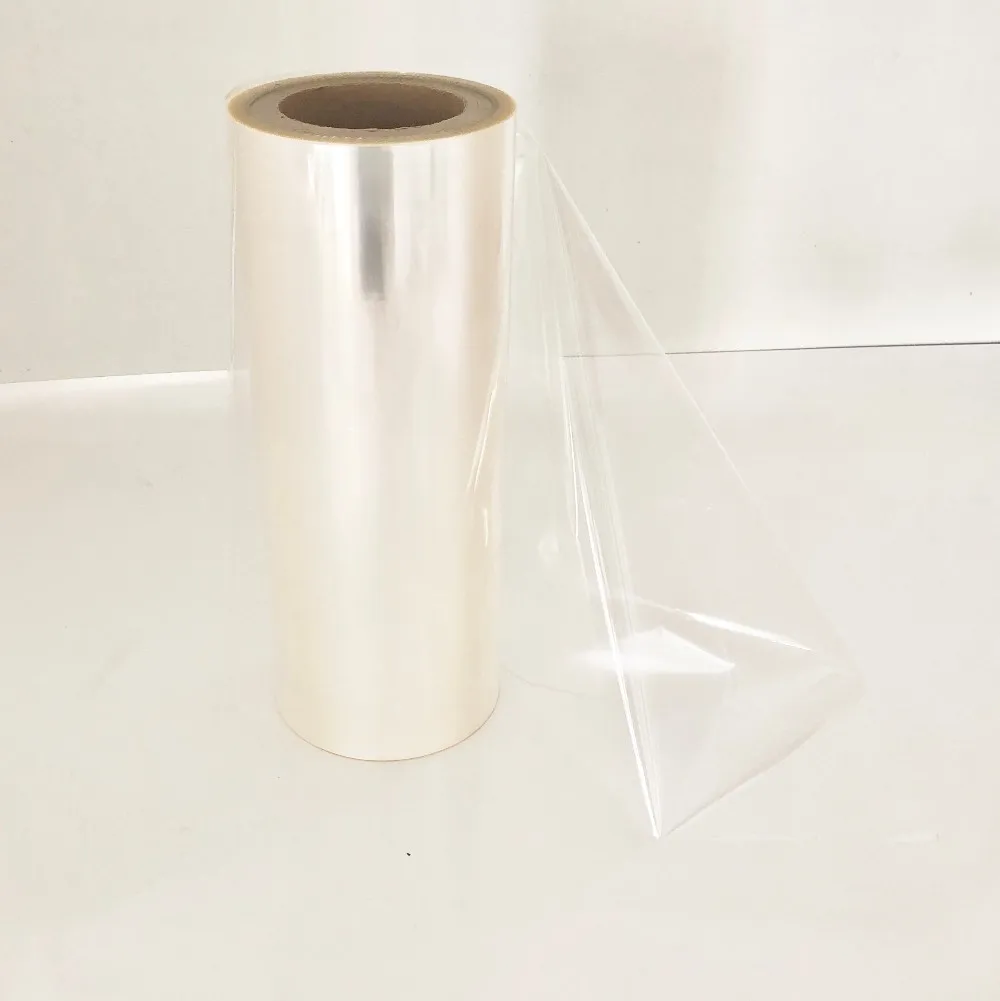

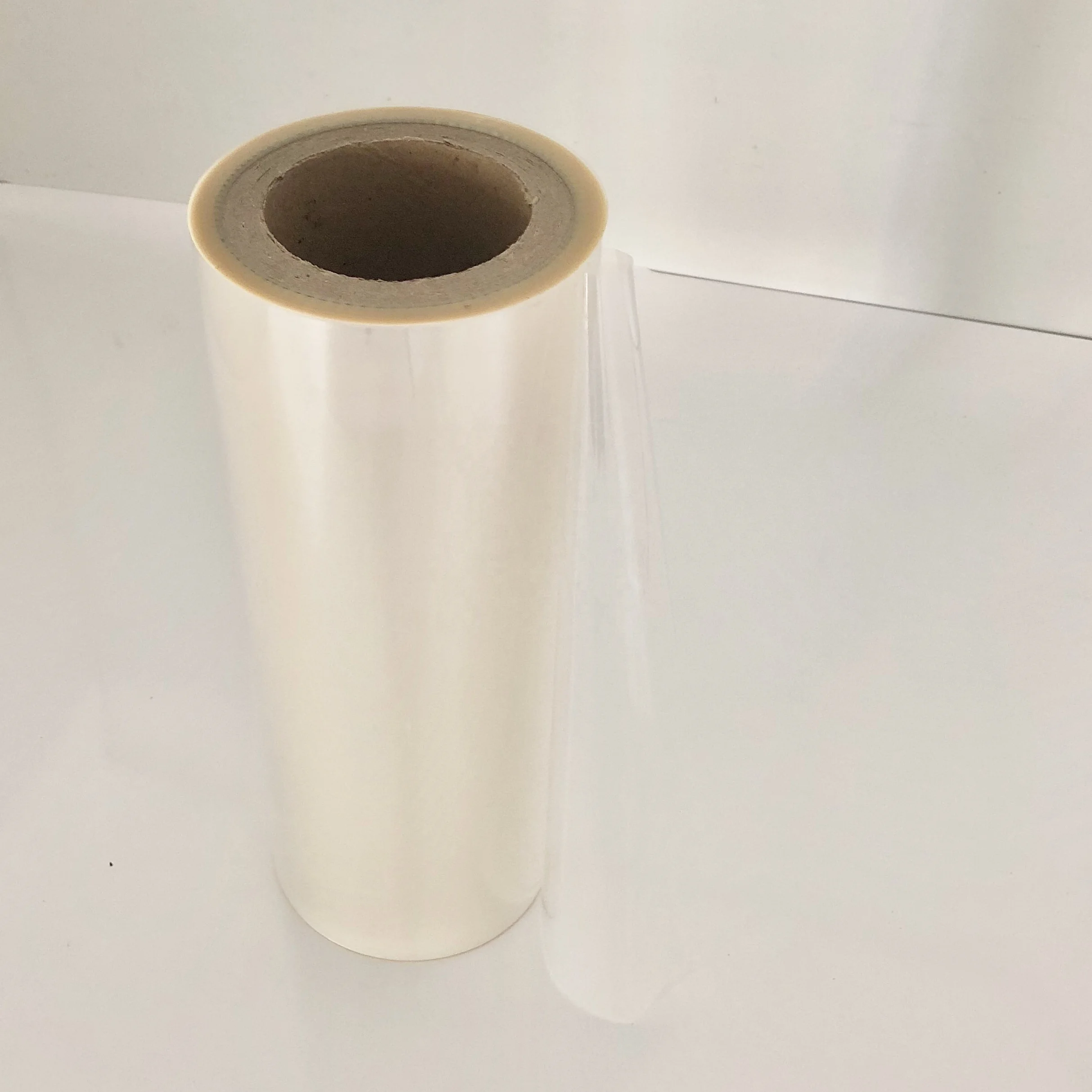

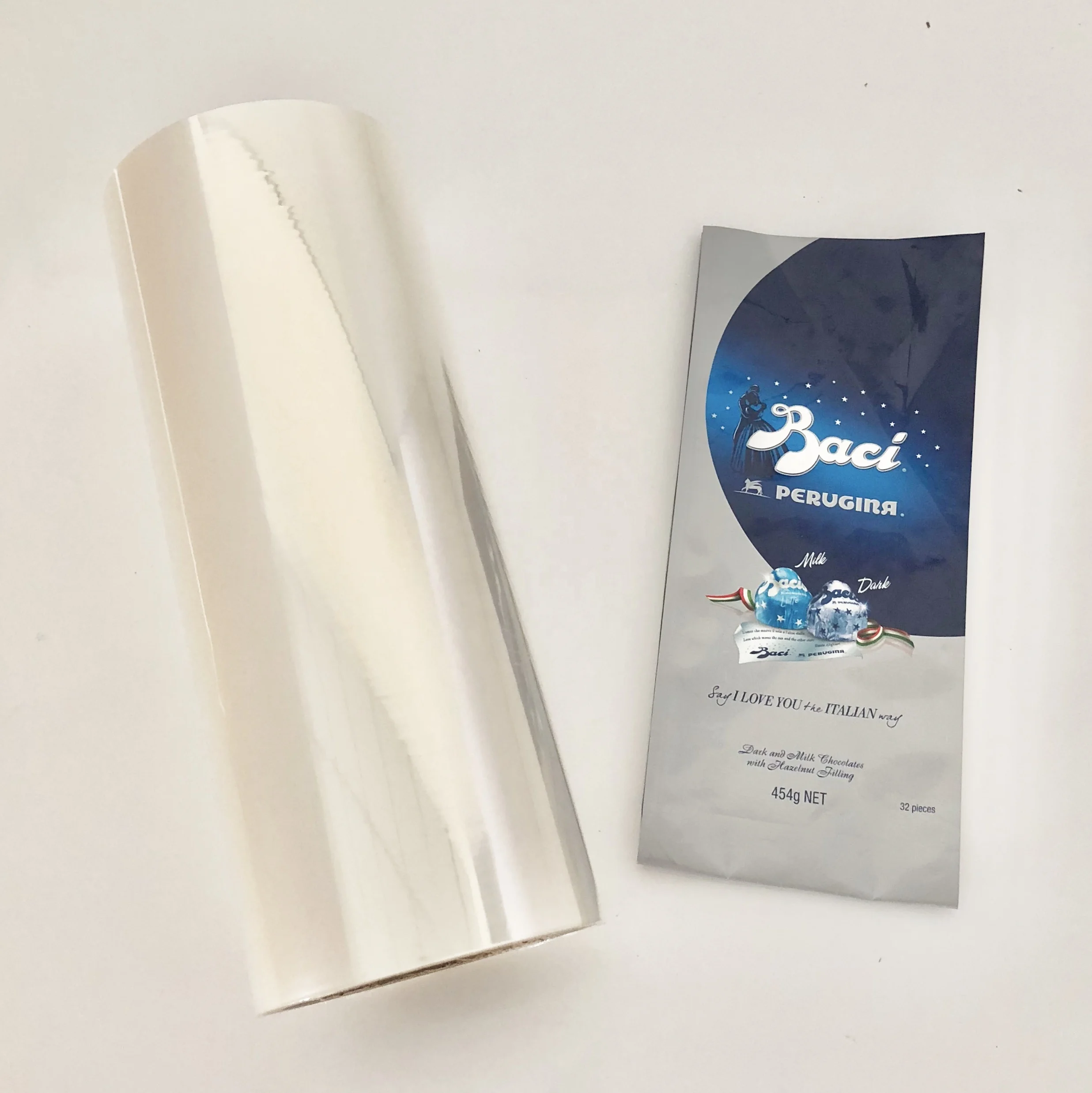

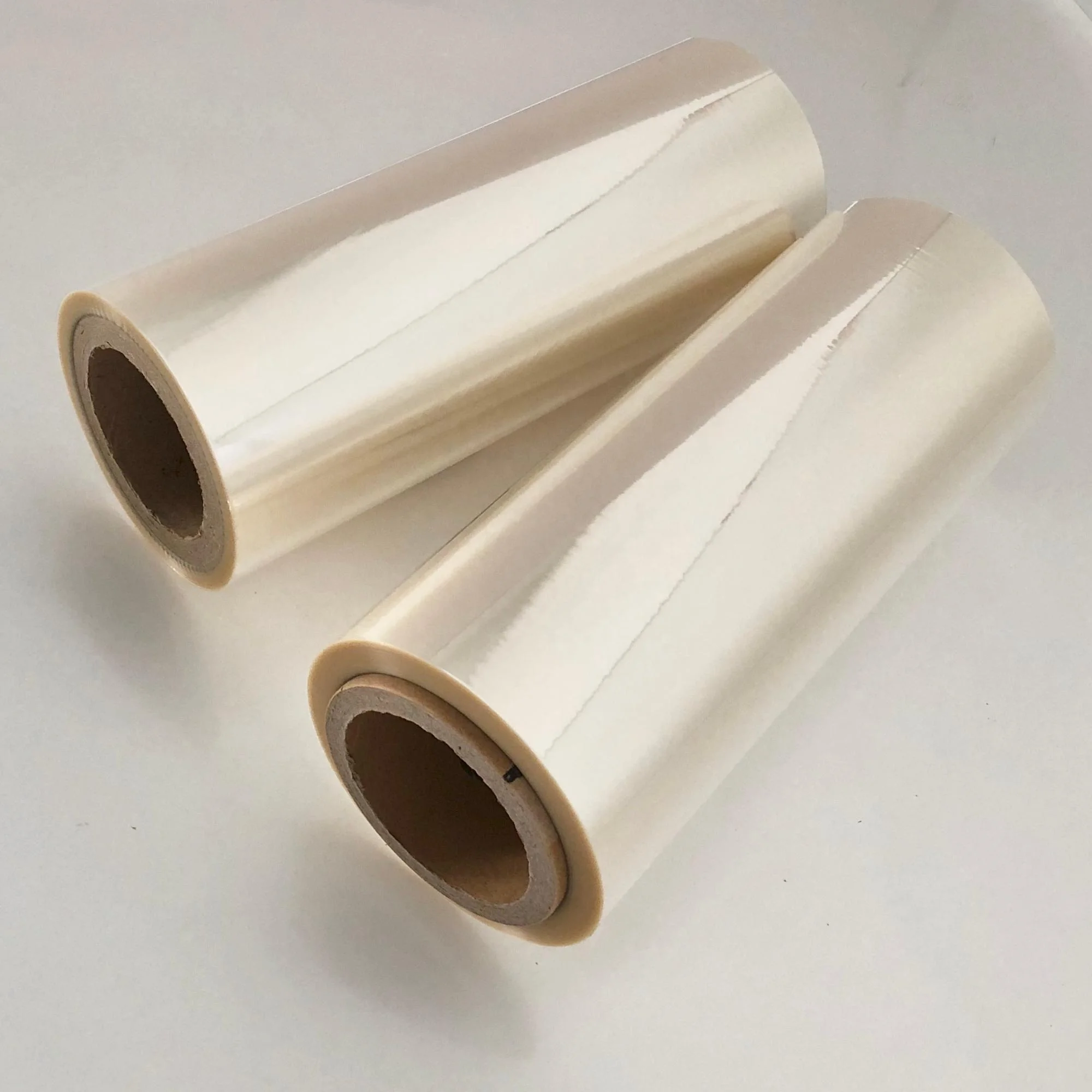

Use PET as the backing material, single coating ultra high barrier PVDC, can do direct printing, laminating, and compositing.
| TECHNICAL DATA SHEET | |||
| ITEM | UNIT | TYPICAL VALUES | |
| Thickness | Mic | 12 | |
| Tension Strengrth | MD | Mpa | 150 |
| TD | Mpa | 170 | |
| Elongation Break | MD | % | 95 |
| TD | % | 92 | |
| Haze | % | ≤5.5 | |
| Wetting tension of Coating layer | mN/m | 52-54 | |
| Moisture-Vapor Transmission Rate | g/(㎡ ·24h) | 5 | |
| Oxygen Transmission Rate | cm³/( m² ·24h·0.1MPa) | 5 | |

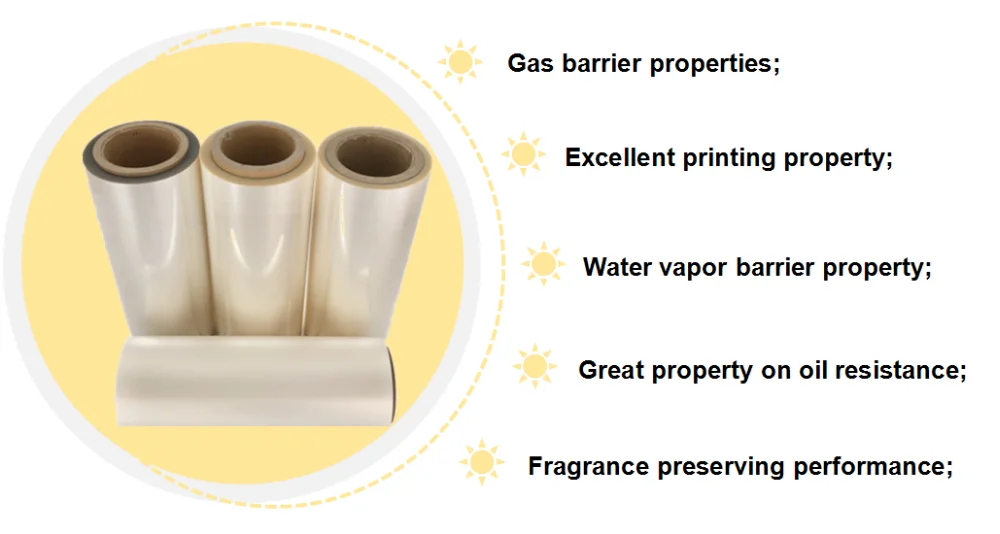

PVDC coated film is an ideal packaging material with high barrier properties, high toughness and good low temperature heat sealing, heat shrinkability and chemical stability. It is unique in the packaging industry, especially its resistance to moisture, oxygen, moisture, acid and alkali, and oil. It has been widely used in the packaging of food, medicine and military products for 50 years due to its properties such as dip and resistance to various chemical solvents.


Application
It is suitable for high barrier packaging:

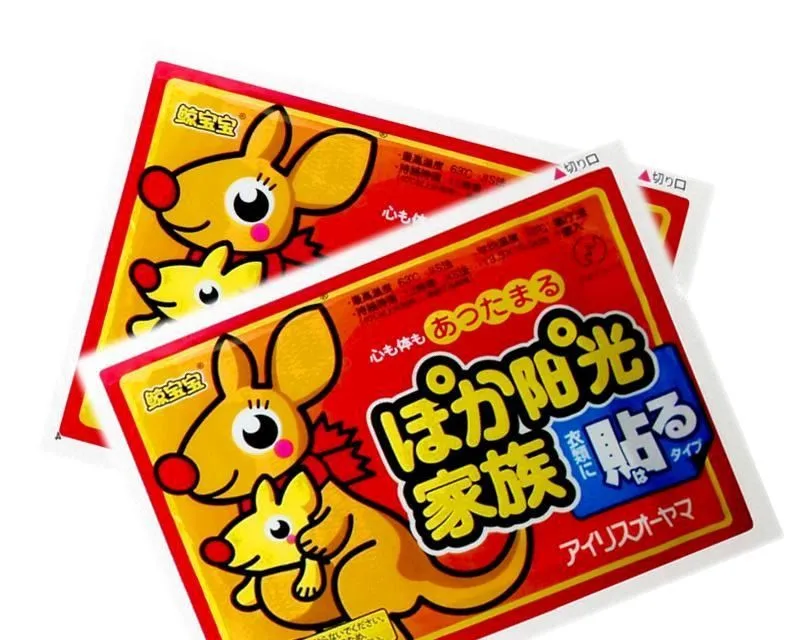

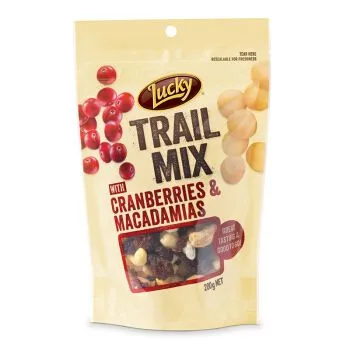

Nuts, cooked food, spicy strips, warm stickers and pet food.

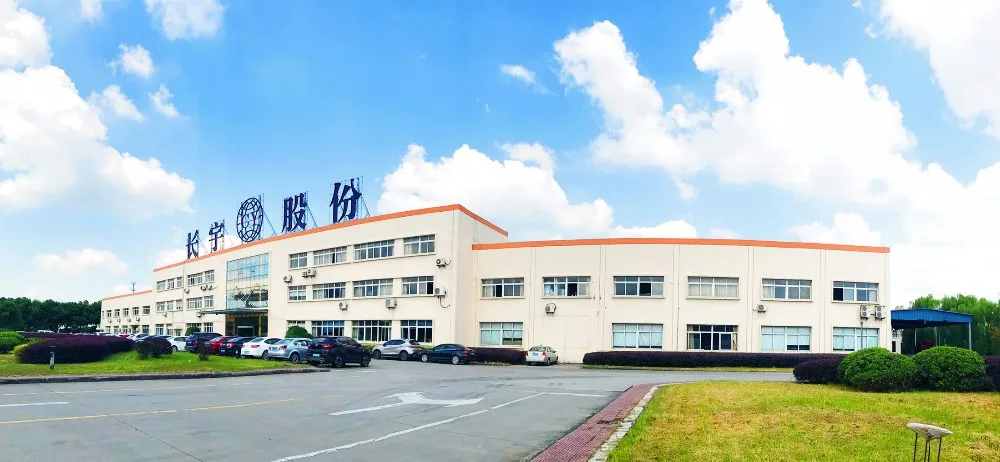

Established in 2000, Zhejiang Changyu New Materials Co.,Ltd. is a leading manufacturer keeps innovating high barrier films for flexible package. We attained ISO9001, EU, ROHS certificate, all our products reach food and drug standard. With 18 years experience, we could support you customized solution for specific requirements.

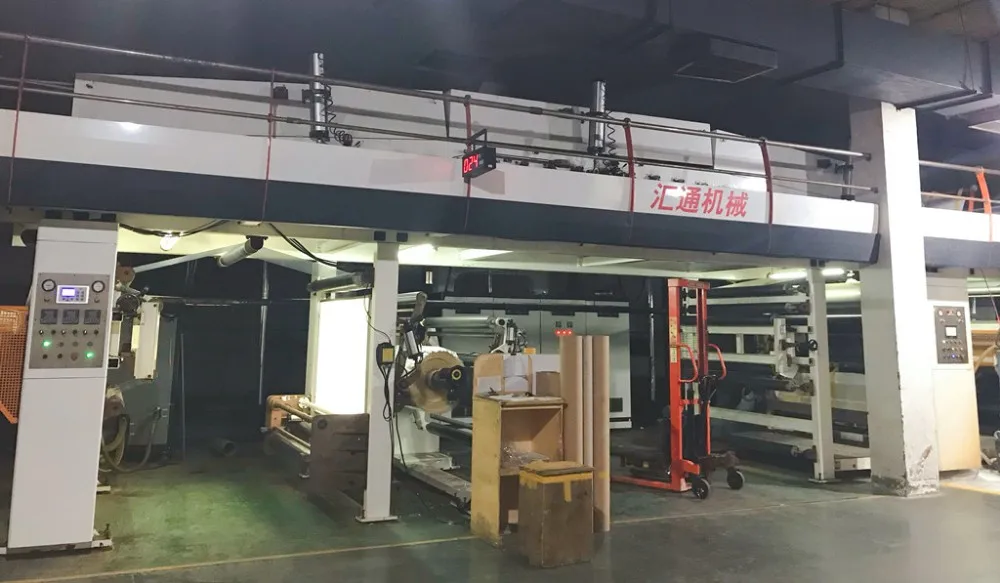

Updated coating machines

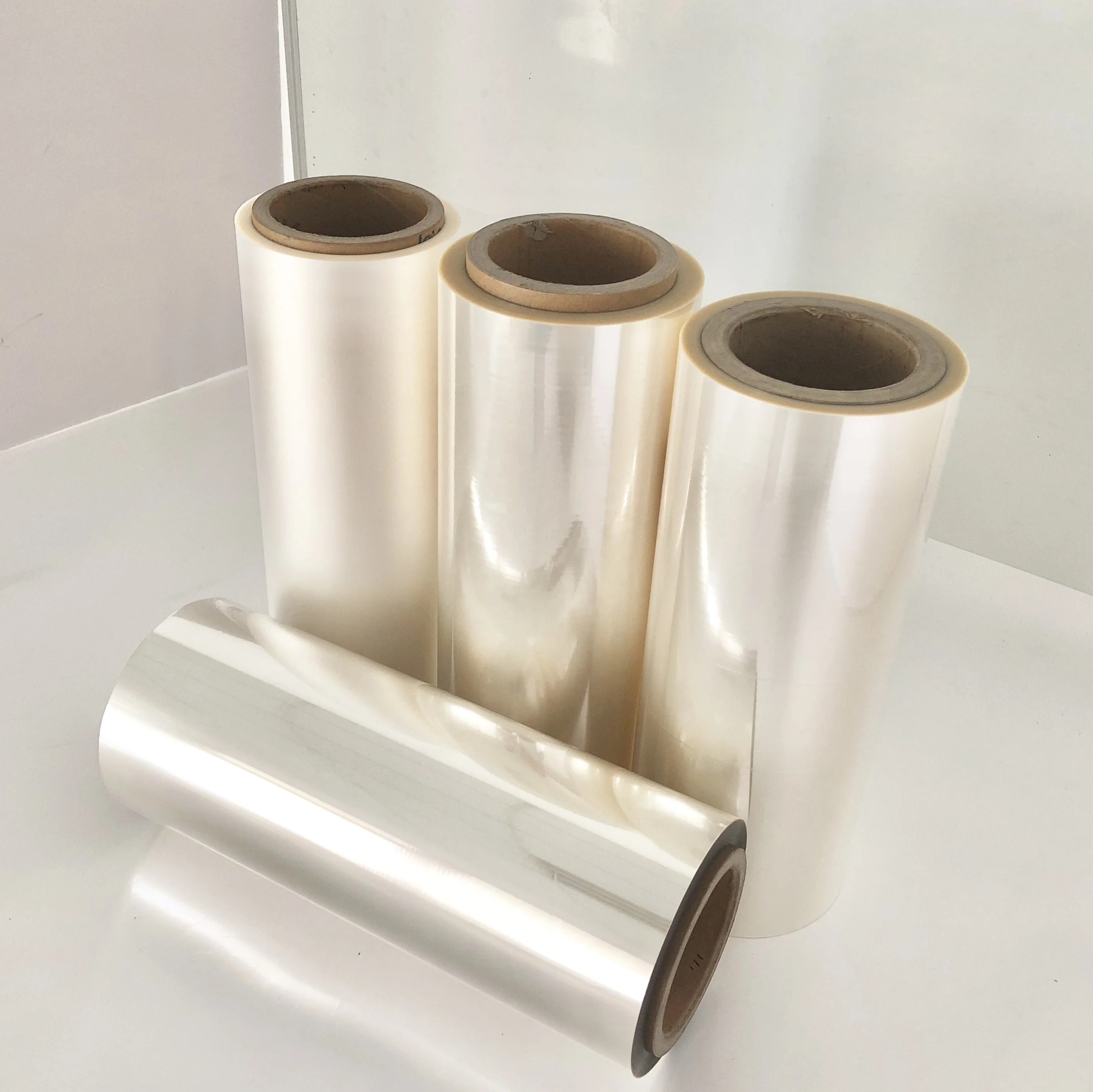

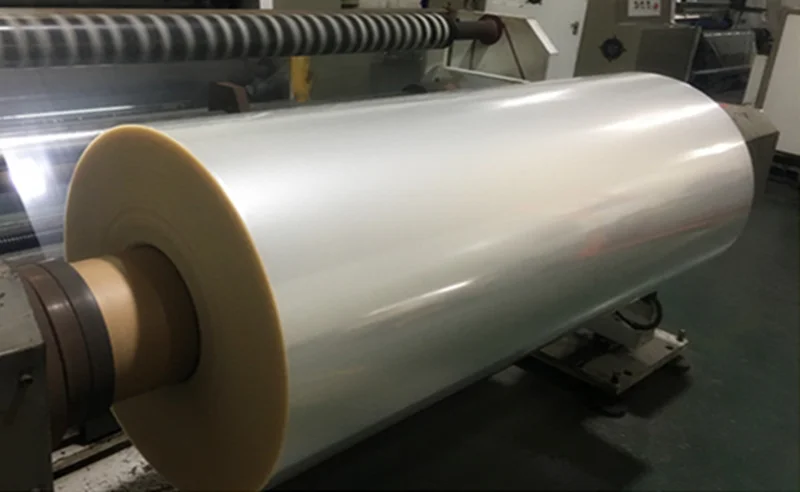

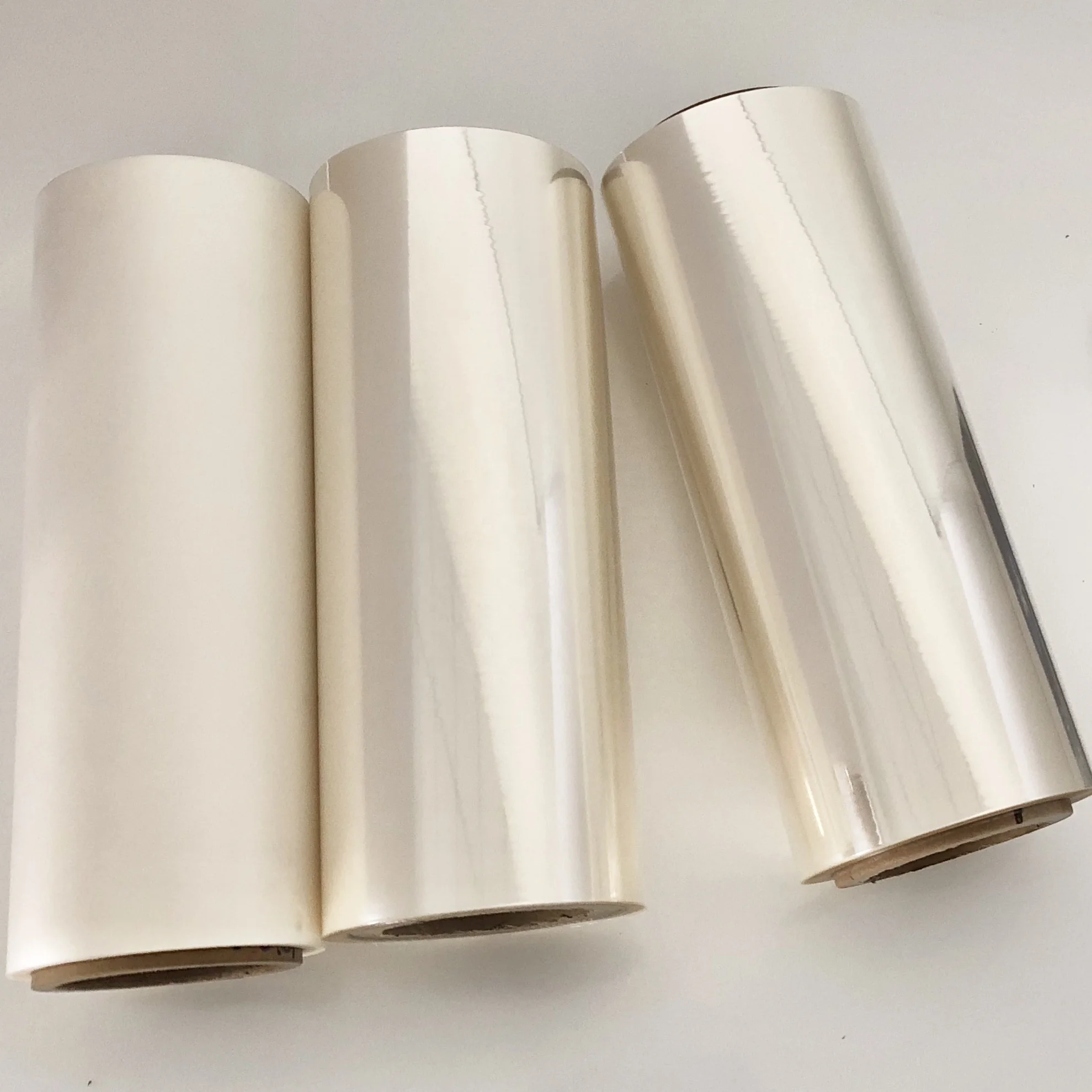

Finished products



Transparent KPET
Transparent KOPP
Transparent KNY






-Our team offer you customized product.

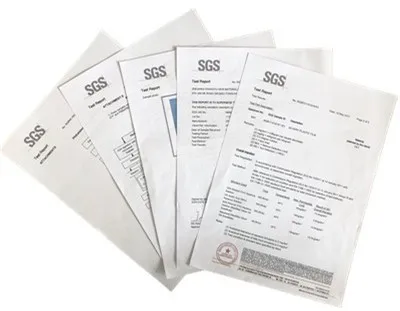

With EU, ROHS, FDA certification, our products has gain good reputation around the world. All our films are safe for food and medical package.
1. Are you a trading company or factory?
Established in 2000, we are a manufacturer keeps innovating high barrier metallized film, PVDC coated film, ALOX film.
2. Can you offer free sample?
Absolutely, free A4 cut samples are available. If you need sample roll for testing, please let us know your dimension and fully address.
3. What about delivery?
We will load within 15-20 days after confirming the relevant orders .
4. Can you accept mixed products in one container?
Sure. All our work are providing customers better soution. Let us know your detailed requirements.
5. How can I get a detailed quotation?
Contact me online, Send us inquiry, Send me e-mail.
