Product Overview

Description


Product Description

Cold forming elliptical head asme dish head for pressure vessel


Special tolerances, trimming or machining can be supplied as required.

da\t= Outer diameter

di\t= Inner diameter

h1\t= Stepped-edge height

h2\t= Dish height

h3\t= Total height inner

r1\t= Dish radius

s\t= Wall thickness

Produce Capabilities

Process

1,Cold Formed

2,Hot Formed\tWelded (U stamp  partial data report)

Heads can be fabricated in configurations such as,

•\tASME F&D

•\tStandard F&D

•\tASME 2:1 Elliptical

•\tFlat heads

•\tHigh Crown

•\tShallow F&D

•\tDished only

•\tFlanged Only

•\tToriconical / Cones

•\tHemispherical

•\tReverse F&D

•\tCustom Dimensions

Welding Processes

Stick-Electrode    Semi-Automatic    Submerged Arc    Gas Shielded

 Edge Prepped

Trimmed /Untrimmed /Beveled / Tapered



Material

carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, Aluminum, Tantalum etc.

Testing & Inspection

1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests 6,Brinell Hardness



1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests

Partial Data Report

ASME U

Heat Treatment

1,Normalized

2,Annealed

3,Quenched and Tempered

4,Normalized and Tempered

Surfacce Treatment

 Carbon Steel---Sand Blasting     Stainless Steel----Acid Pickling

Industry Standards

ASME Section VIII, Division 1 (U stamp)

GB/T25198-2010

DIN28011 28013

Diameter

Manufacturing CONVENTIONAL TANK HEADS Com--- Diameter from 89mm to 7000mm，thickness from 3 to 40mm

SEGMENTS HEADS ----Diameter from 3000—20000mm, thickness from 4 to 300mm

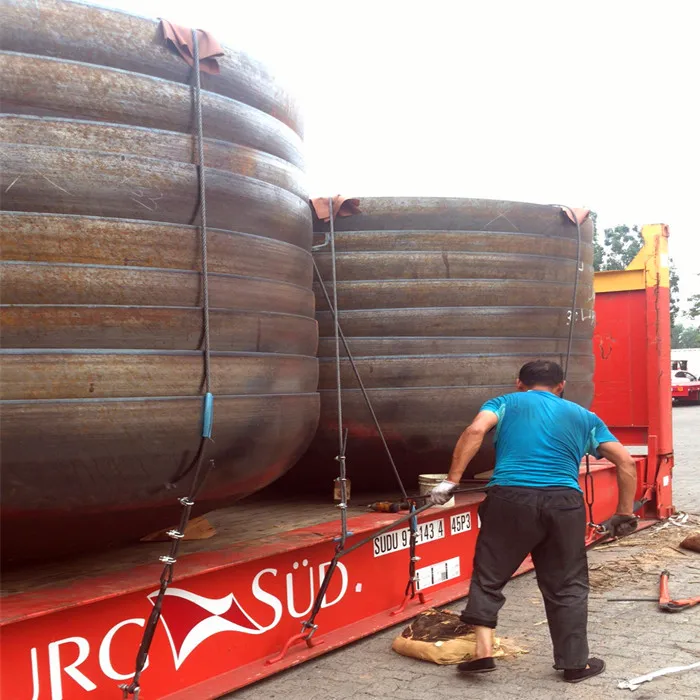

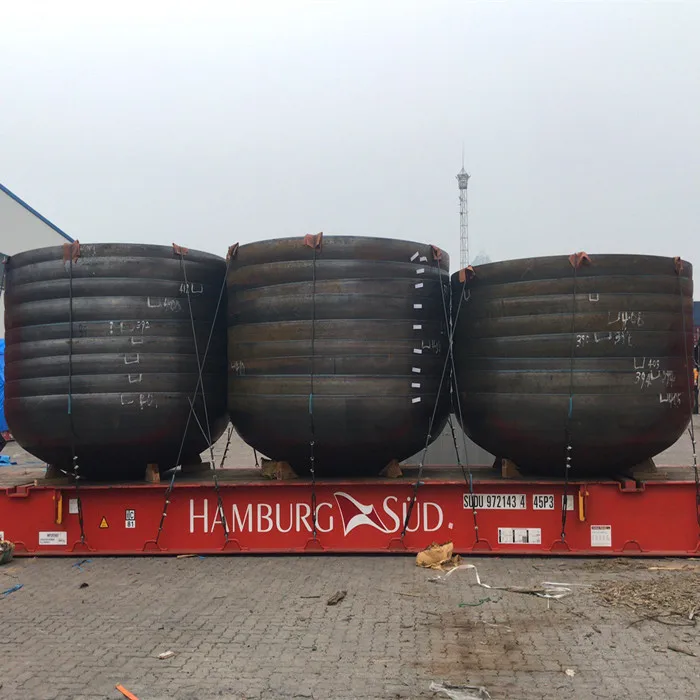

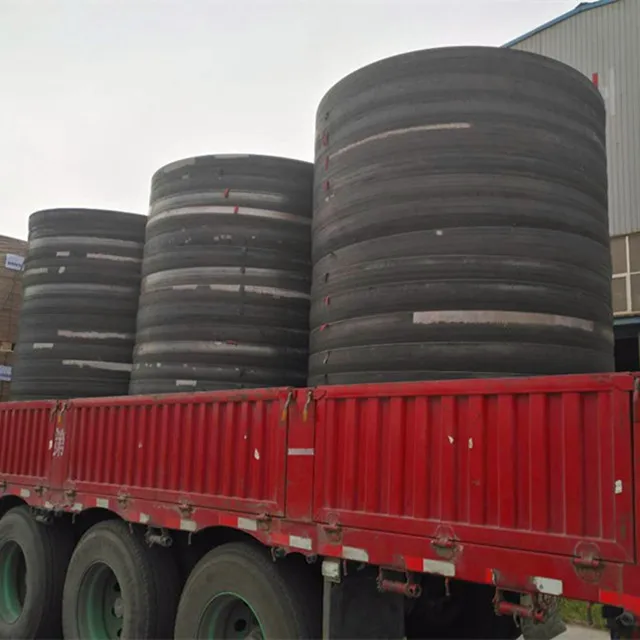

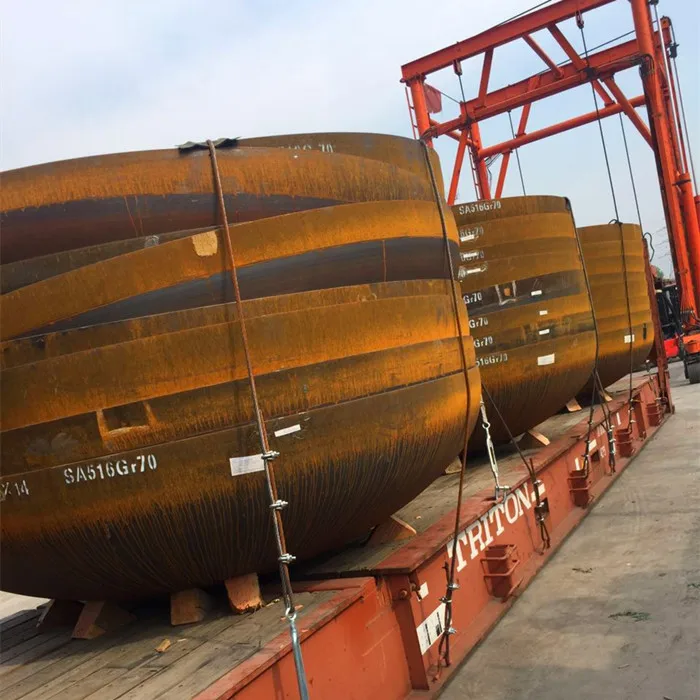

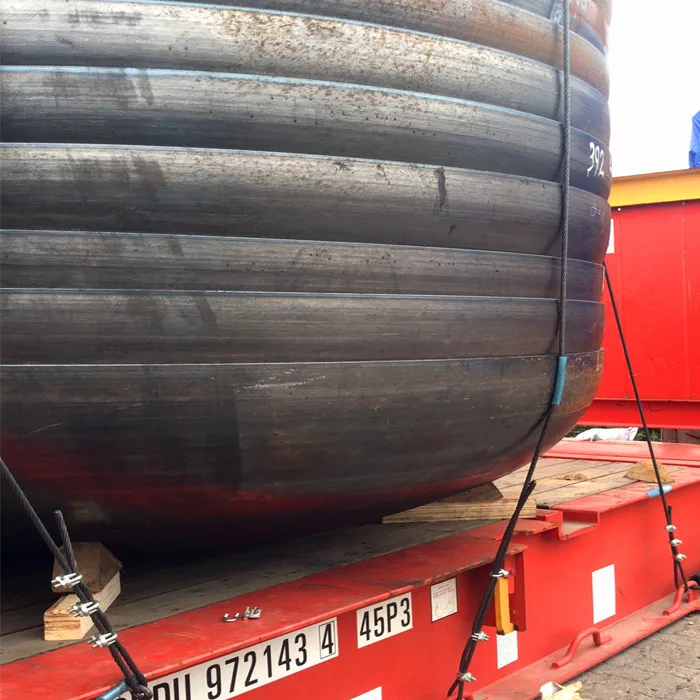

Packing & Delivery




Professional Team
Main Clients

Fluor,HITACHI,ANDRITZ,Cameron,Saipan,Toyo,Mitsubishi Chemical, Petro China, Sinopec,BP,Dow Chemical,BASF,Bayer and other engineering companies.
