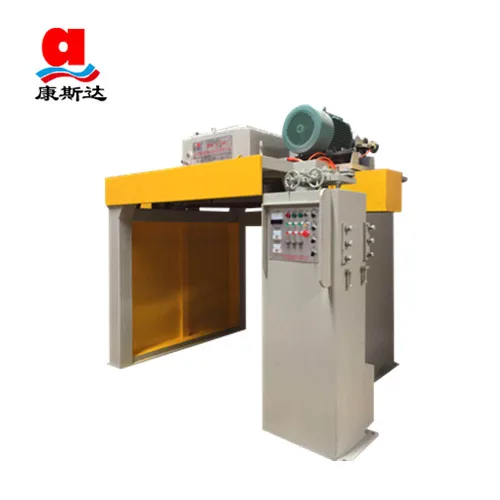

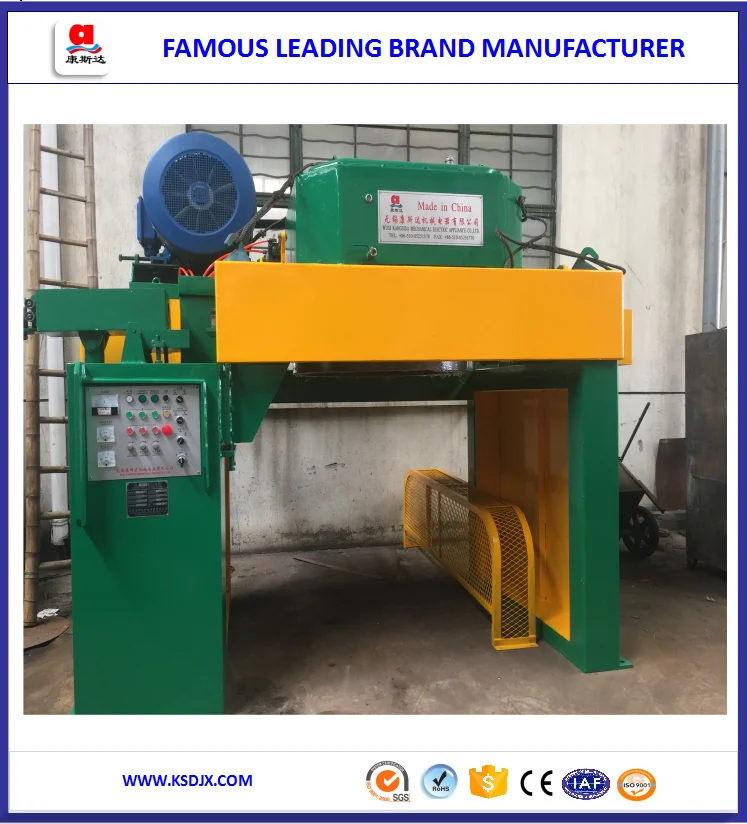

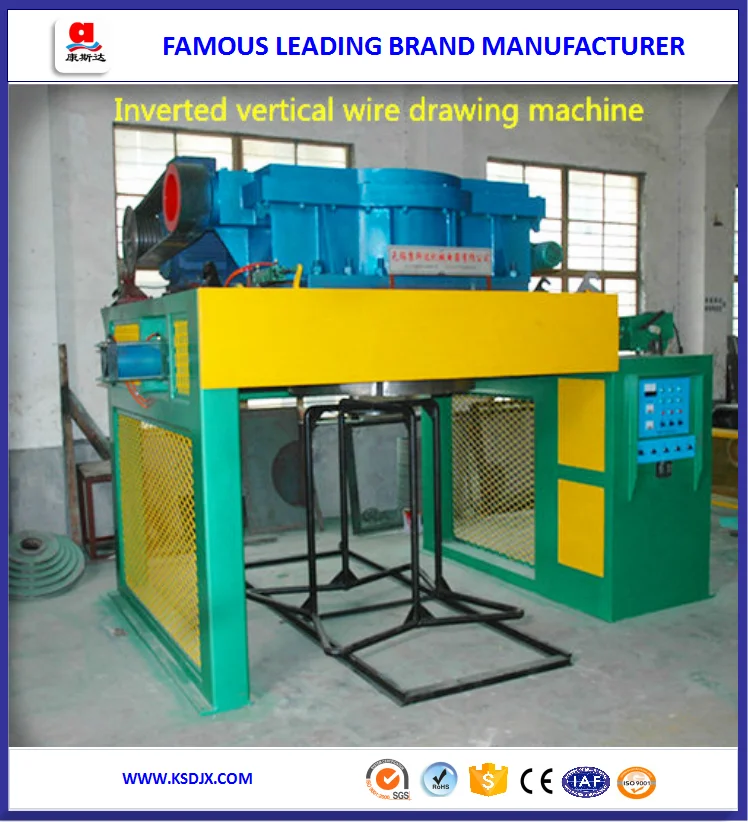

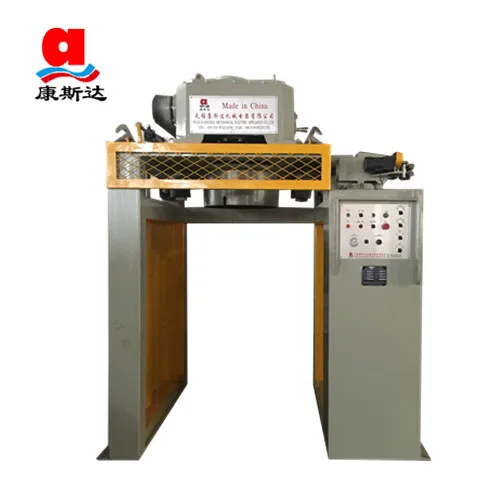

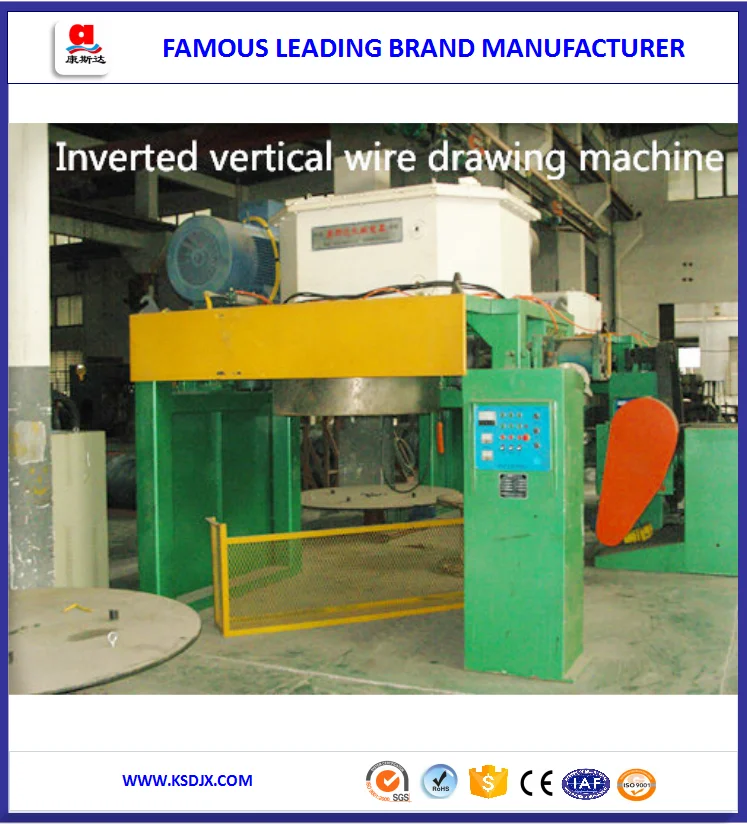

Chinese brand Great quality Easy to use DL1000 inverted vertical wire drawing machine

All the Inverted vertical wire drawing machines improved via our company are designed with breaking the traditional concept.It won’t feel shake when you touch the body of running machine.It is difficult for many other same industry manufacturing enterprises to do it and it is one of biggest industry highlights.

This machine has multifarious models which can draw high,medium and mild carbon steel wires rod and non-ferrous metal wires with the diameter below Φ38mm. Discharging the wires with a big weight of call.The machine mainly applies to standard parts cold heading,automobile and motorcycle,industry material,standard high carbon steel wires and cables, etc.

Frequency control,drawing smoothly,high automation level,one person can operate several machines at the same time.

Features of the machine:The driving system use a combination of first grade strong narrow V-belt with a hardened reducer or a swing ring reducer,big take-up weight of coll,capstan coerces air cooling;pneumatic pinch rollers;off line plate autonomous power and ring’s diameter adjustable;AC variable adjust speed , easy to operate,safe ,reliable and energy saving 10%-30%.

Main Technical Parameters

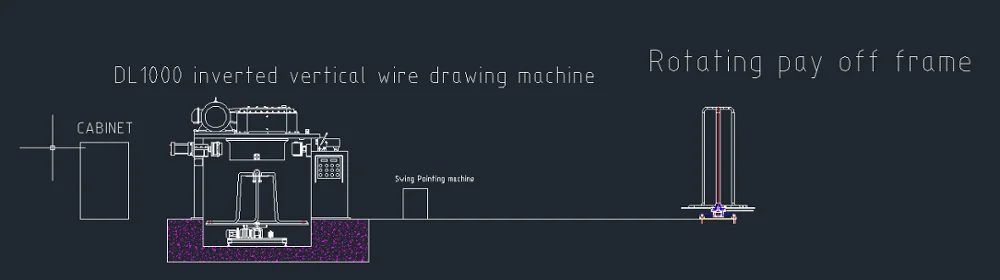

Whole Line Flow



Finished Products





Production Flow





Certifications





Advantages





Packaging & Shipping
