HK 100 Swing Type Automatic Magnetic Rail Welding Carriage
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60640968351):
Product Overview
Description

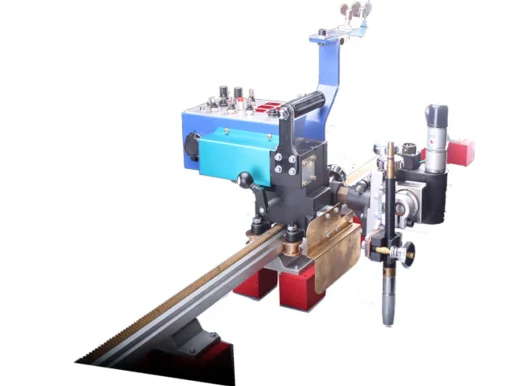

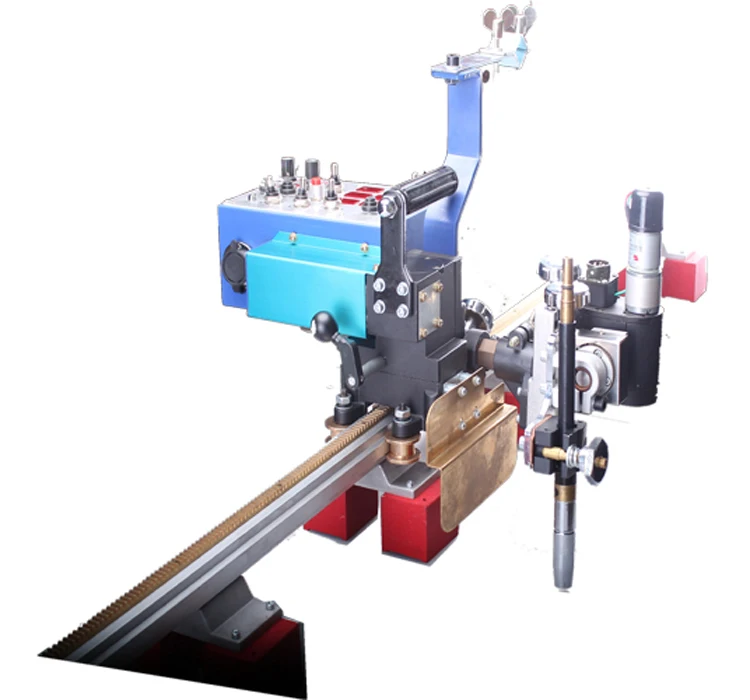

- HK-100 Swing Type Automatic Magnetic Rail Welding Carriage
Product Description
* HK-100 swing welding trolley is automatic.
* It can gain more wide welded seam at a time.
* It can adjust swing speed, swing angle, offset position of centre and length of stay.
* It suits for vary specs beads.
* It is convenient to clear iron waste and moving trolley.
Detail Description

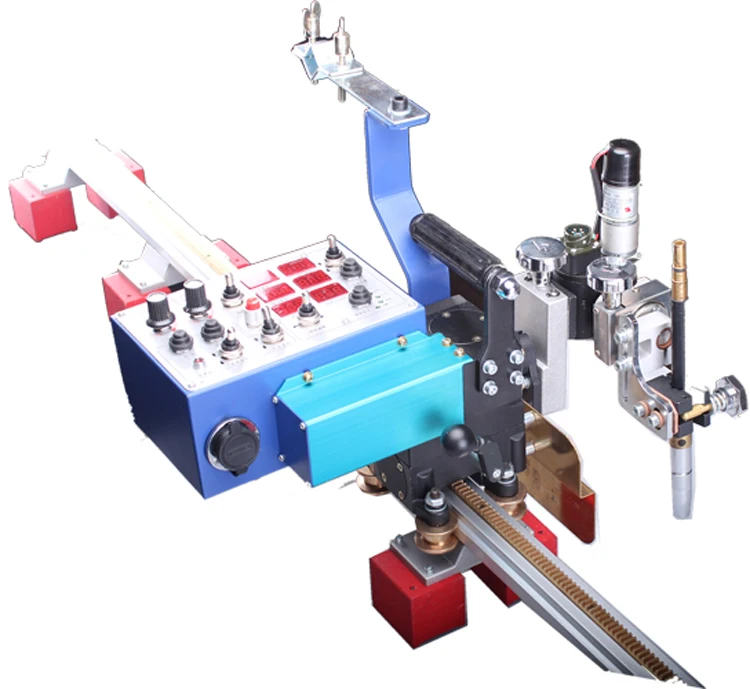

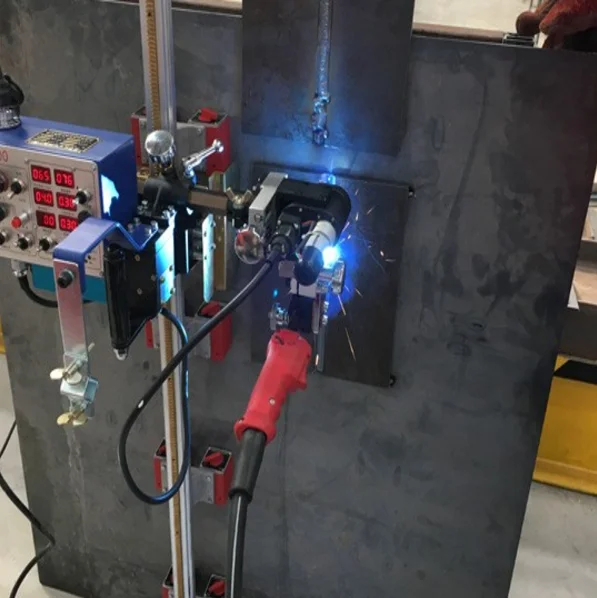

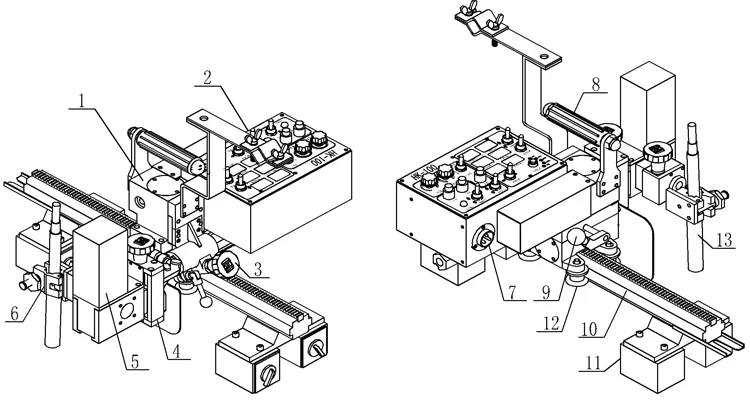

1)Little car owner's body: BE also a small car to drive device, include electrical engineering, the planet decelerates a box, driving wheel gear and leading to an etc..

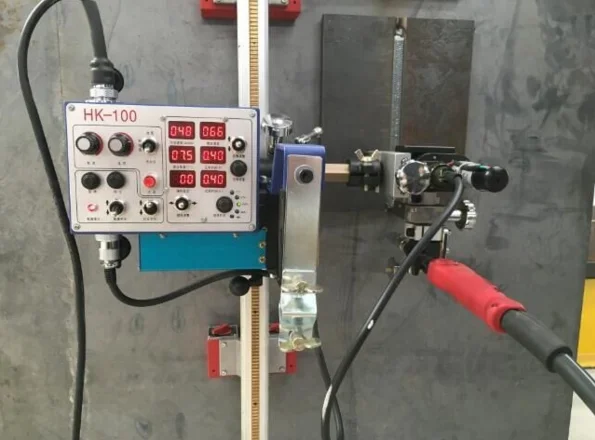

2)Control a box. Can regulate all actions of the small car, the detailed contents makes reference to follow-up "the control panel elucidation"
3) The Horizontal move device: the Be welding to keep to sew(the if gather to pack) to make use of this device to adjust the torch position, avoid multifariously ambulation leading a track.
4) The torch is tiny to adjust a slippery piece. BE the device that regulates the gun position, weld in the middle can carry on a top and bottom or so tiny adjust.
5) Swing a machine: Weld process in various weld mode to need him to carry out.
6) The gun clips to hold a machine. BE the device of the fixed gun, maintain and the adjustment is a convenient gun to dismantle to unload. The torch must clip tightly, notice and clip Be conducting electricity part, then will cause short-circuit or electric shock.
7) AC outlet: In order to circumscribe the electric cable electric outlet, this the machine connects a ground of line to also connect with each other with this electric outlet. This electric cable electric outlet is responsible for a small car and sends the conjunction and the electricity supply of the silk machine.(Electric cable of another on carrying two branches, a connects to send the silk machine, the another connects power supply.)
8) Hand handle: The ambulation equips originally, please fist this hand handle.
9 ) Leaving to match the hand handle, pulling to move this hand handle can let very conveniently the small car move freely on the orbit.

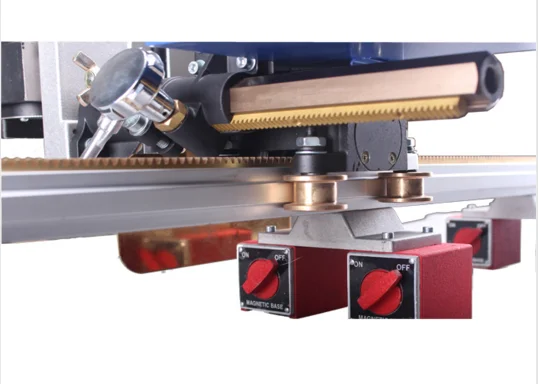

10) Lead a track straightly. The convenient and small car runs about route. The gearing has strong dint always the magnetic iron, letting to lead a track to adsorb the work piece firmly on, the orientation is various to weld a need.

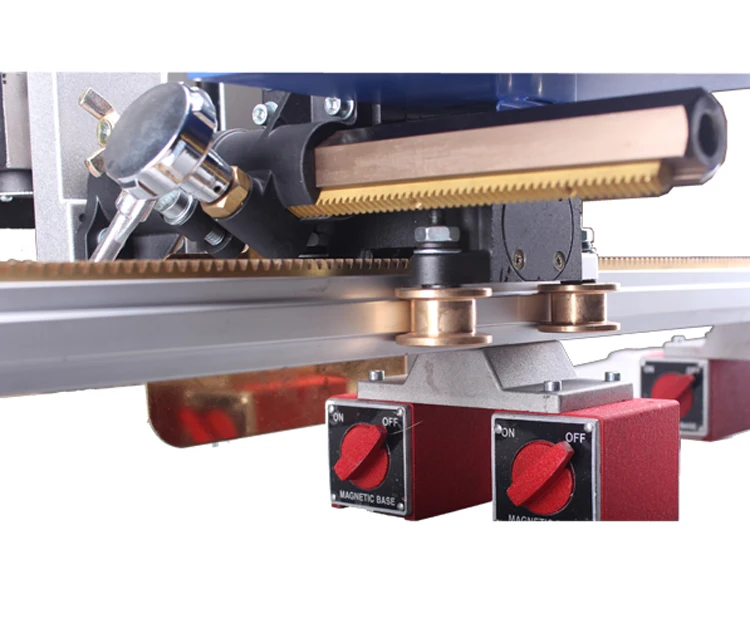

11) The Magnetic iron: The strong dint leaves the match type magnetic iron, the please control all the switch to go to "OFF" while moving to lead a track.
12) Lead to a round: Along the female material noodles roll over, guide accurate weld the device of the part.
13) The Gun: the Keep the gun or curved gun, the customer make choice of purchase.
Specifications
Main technical parameters
1.Weight | 8.4Kg (Included swing device) | |
2.Outline dimension | 430 mm x 280 mm x 290 mm | |
3.Driving mode | Four rims driving (Rubber rim) | |
4.power | DC 24V | |
5.Swing motor | DC24V | |
6.Speed | 30~~800 (mm/min)( Display by nixie tube) | |
7.Tracking mode | Rail | |
8.Range of adjusting welding torch | Up and down:40mm Front and rear:60mm. Range of working angle:±45° Range of adjusting angle: 10° | |
9.Operation function | Choose walk direction | Left and right |
Swing speed | 0~100 | |
Swing angle | ±15° | |
Adjust walk speed | 0~130cm/min | |
Length of stay on left or right | 0~2.5 s | |
Set position of deviation | 0~±8° | |
10.Choose swing model |
| |
Welding processing parameter
welding parameter | Φ1.2mm | Φ1.4mm | Φ1.6mm | |
current(A) | Down hand welding | 120-300 | 150-380 | 180-430 |
flush fillet welding | 120-280 | 150-320 | 180-380 | |
horizontal welding | 120-280 | 150-300 | 180-330 | |
voltage(U) |
| |||
distance between nozzle and workpiece(H) |
| |||
welding extension length(L) | The length is about 10 times welding wire diameter. It is L=10d | |||
