portable gas sensor handheld Ethylene Oxid ETO C2H4O leak detector applied to chemistry

Product Overview

Description

  Portable gas sensor handheld Ethylene Oxide ETO leak detector applied to chemistry





PG 610-ETO portable gas detector is designed for personal usage to detect the concentration of ETO. It adopts electrochemical sensor, has high sensitivity. Big OLED display the concentration, time, battery capacity. Sound, light, vibration alarm.

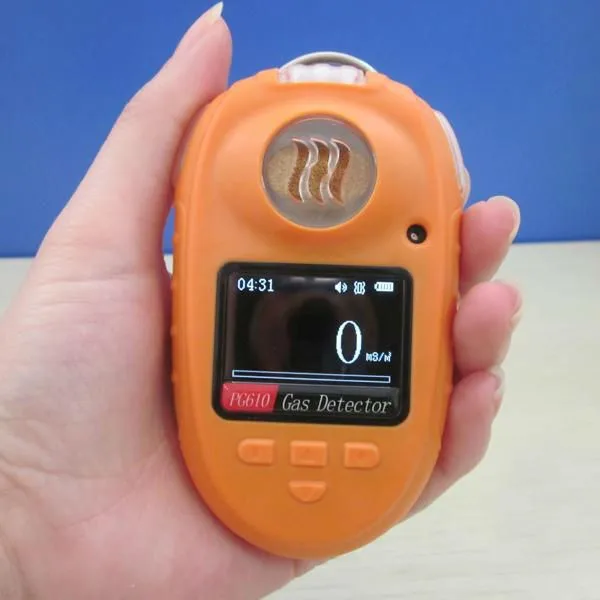

l   Big OLED display, Highlighted, read 5 meters away

l   save 5000 records

l   Data progress bar display mode, can learn about the state of concentration

l   Low power consumption

l   Real-time clock display function

l   The key operation needs to input password to prevent wrong operation.

l   Automatic calibration function

l   Recover key data, avoid the loss of data

l   Battery power real-time display, under-voltage hint, low pressure automatic shutdown

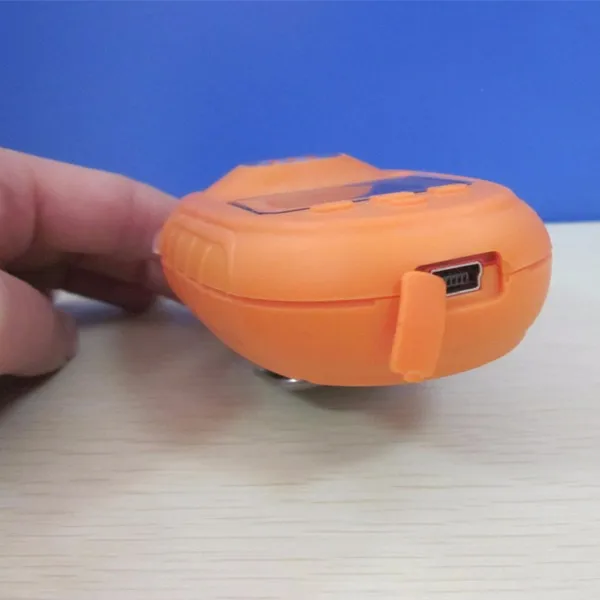

l   Standard MINI-USB charging interface; charger is compatible with computer and cell phone's

l   Charging protection function;

l   Computer connection function;

l   audible and visual alarm, vibrating alarm

l   STEL and TWA alarm function

l   Power on self-test function

l   Adjustable high and low alarm level

l   Replaceable modularized sensor





Detecting Gas	ETO
Measuring Range	0-100PPM
Sampling Method	diffused or pump suction (external electric sampling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	- 20 °C ~ + 50 °C
Working Humidity	< 95% R.H. no condensation
Sensor service life	≥5 year
Display Mode	OLED screen shows density, time, battery power, Alarm state, percentage progress bar
Data Storage	5000 records
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode Sound: 90 Db humming; when concentration increased, frequency increases Vibration: oscillator speed of 1300 r/min
Working Voltage	DC3.6 V lithium ion battery, 1000 mAh
Charging Time	4 h ~ 6 h
Working Time	more than 72 h (continuous)
Protection Class	IP66
Weight	140 g
Appearance Size	98 mm × 60 mm × 24 mm



Standard configuration:

instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood







Product Model	Detected Gas	Measuring range	Resolution	Respond Time	Sensor life
PG610-CO	CO	0-1000ppm	1ppm	≤20 s	2-3 year
PG610-O2	O2	0-30%VOL	0.1%vol	≤20 s	2-3 year
PG610-O3	O3	0-10ppm	0.1ppm	≤30s	2-3 year
PG610-H2S	H2S	0-100ppm	1ppm	≤30 s	2-3 year
PG610-H2	H2	0-1000ppm	1ppm	≤30 s	2-3 year
PG610-CL2	CL2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NH3	NH3	0-200ppm	1ppm	≤30 s	2-3 year
PG610-SO2	SO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NO	NO	0-250ppm	1ppm	≤30 s	2-3 year
PG610-NO2	NO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-CH2O	CH2O	0-50ppm	0.01ppm	≤30 s	2-3 year
PG610-HCL	HCL	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-HCN	HCN	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-ETO	ETO	0-100ppm	1ppm	≤30 s	2-3 year
PG610-CLO2	CLO2	0-10ppm	0.1ppm	≤30 s	2-3 year
PG610-CO2	CO2	0-5.00%vol	0.01%vol	≤30 s	≥5 year
PG610-EX	Combustible gas	0-100%LEL	1%LEL	≤30 s	3-5 year
As for unlisted detected gas and measuring range, please contact with our company





• Professional gas detection products and solution manufacturer


• Factory competitive price


• Many years exporting experience


• Own R&D team


• Strictly test and inspection system


• Fast delivery, usually in 2 days after order confirmed


• 12 months warranty, if there is any quality problem within 1 year, we will give solutions without delay


• Passed CE certificate, confirmity cert of explosion-proof, calibration cert, pattern approval of the measuring instrument



FAQ

Q1. Can it applied to other gases?

A: PG610 series can detect a wide range of gases, but one device is designed for one gas. For multi-gas detecting, pls enquiry our PG810 4 gas detector.

Q2.What certificate can you support?

A: Our products have passed CE, Calibration Cert, Confirmity Cert of Explosion-proof, Pattern Approval Cert of the Measuring Instrument.

Q3. How is the calibration be done?

A: To keep the high sensitivity, please calibrate it at least once a year .

Q4. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.

Q5. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.



Please send your enquiry to us, we will reply you without delay. Click "SEND" now!
