Ручная гидравлическая медная шина, гибочная машина для распределительных панелей

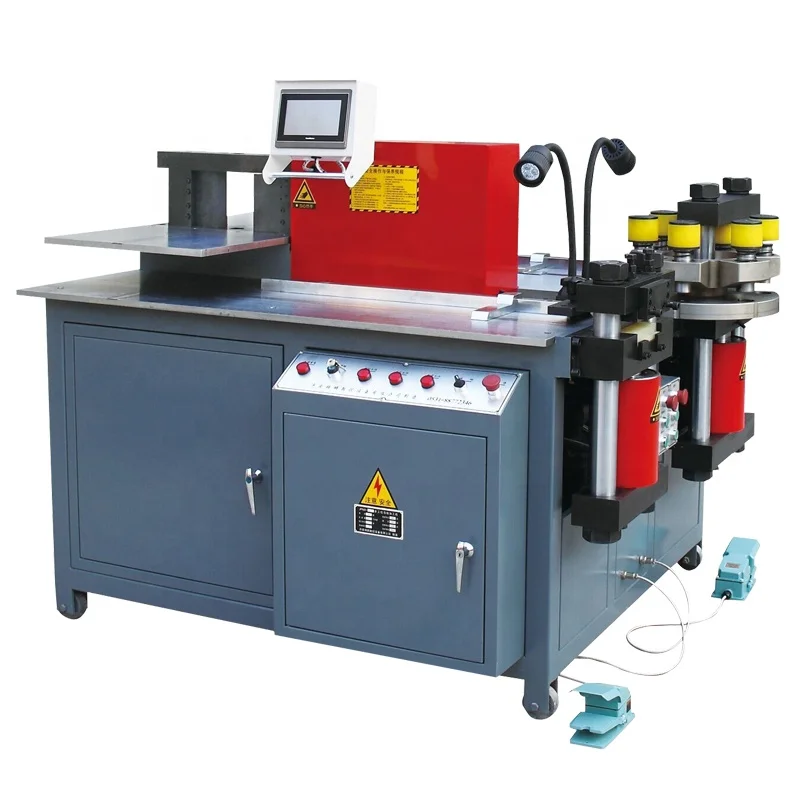

This series Manual Hydraulic Copper Busbar Bending machinery for Switchboards has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency. It is used to process copper and aluminum busbars in different specification.By relative operation unit It can easily and quickly do all kinds of processing to copper and aluminum busbar,such as shearing, punching (circular hole and oblong hole), flat/honrizental bending, vertical bending and knurling.Change differentmold to do special processing to copper bar,such as flat press,embossing,cable connector process,and can do cutting,flat crushing,pushing,and bending.

Work Unite:

Bending cutting punching independently .

Metal Processed on :

Brass/Copper and Alumimum Busbar.

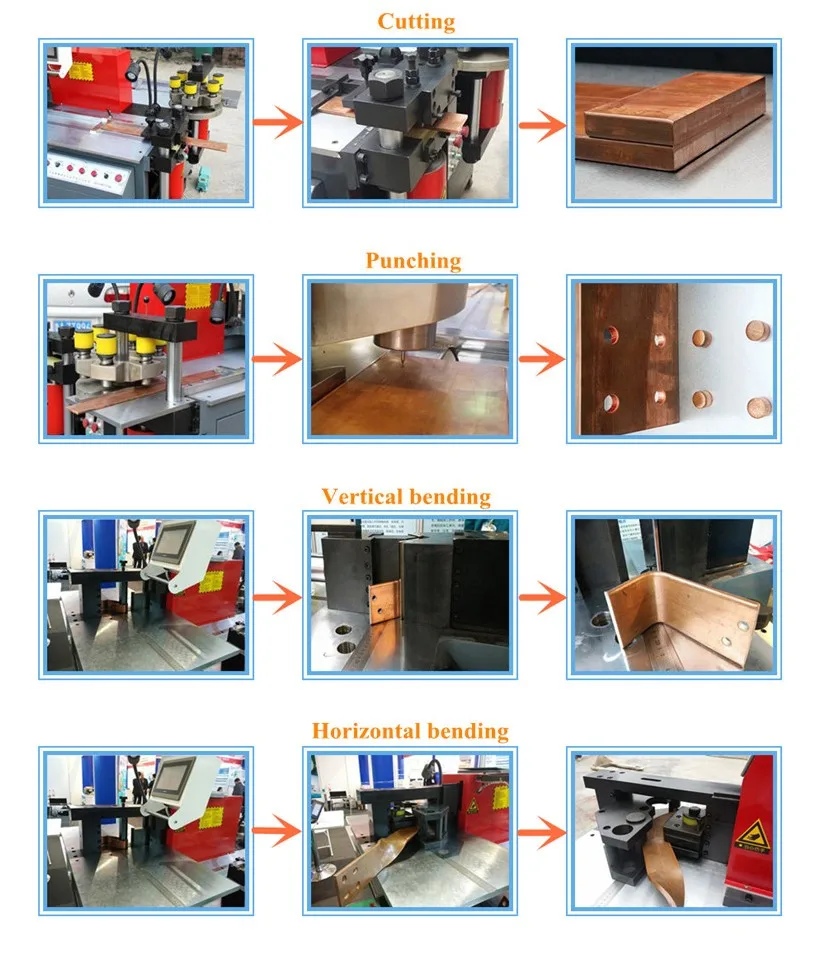

Functions:

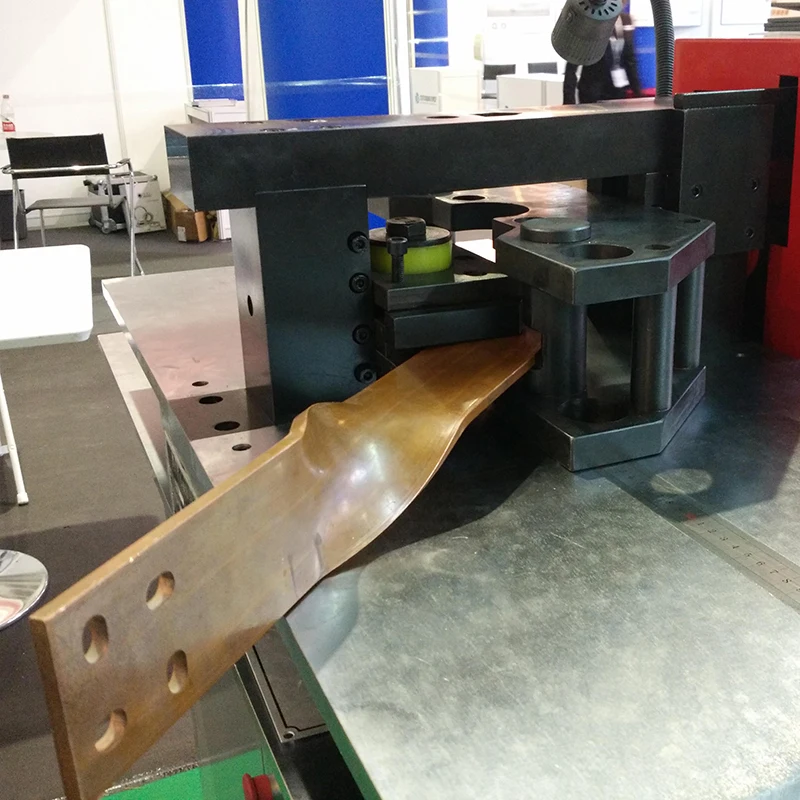

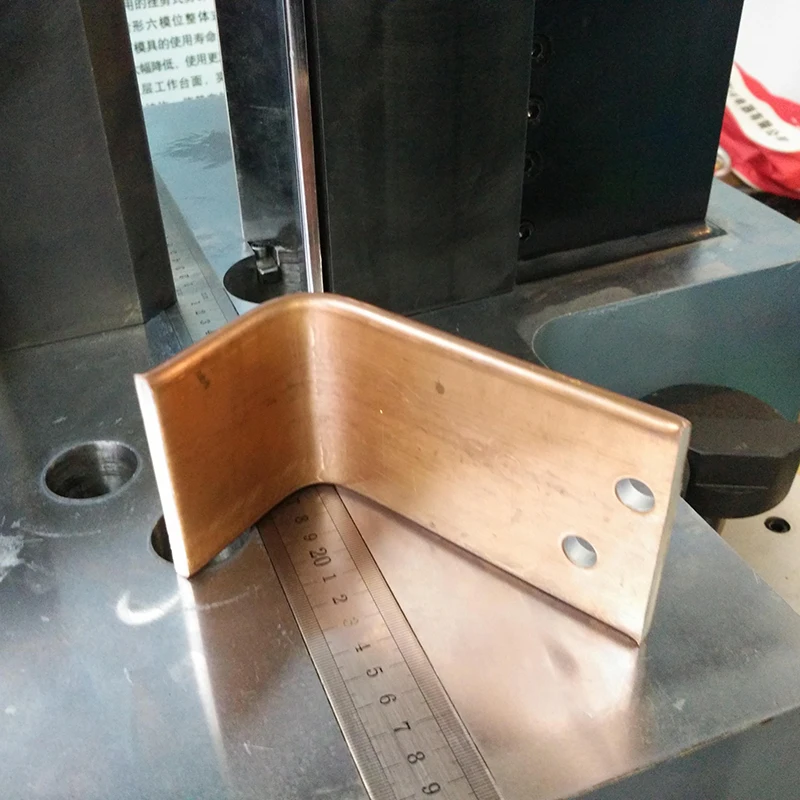

       1.  bending at vertical and horizontal direction.

       2.  punching for round and oblong hole.

       3.  cutting busbar.

       4.  special for embossing, knurling, twisting, cable joints pressing.

Main Features:

        1.  The cut surface is smooth and neat, no droop, no burrs, no waste

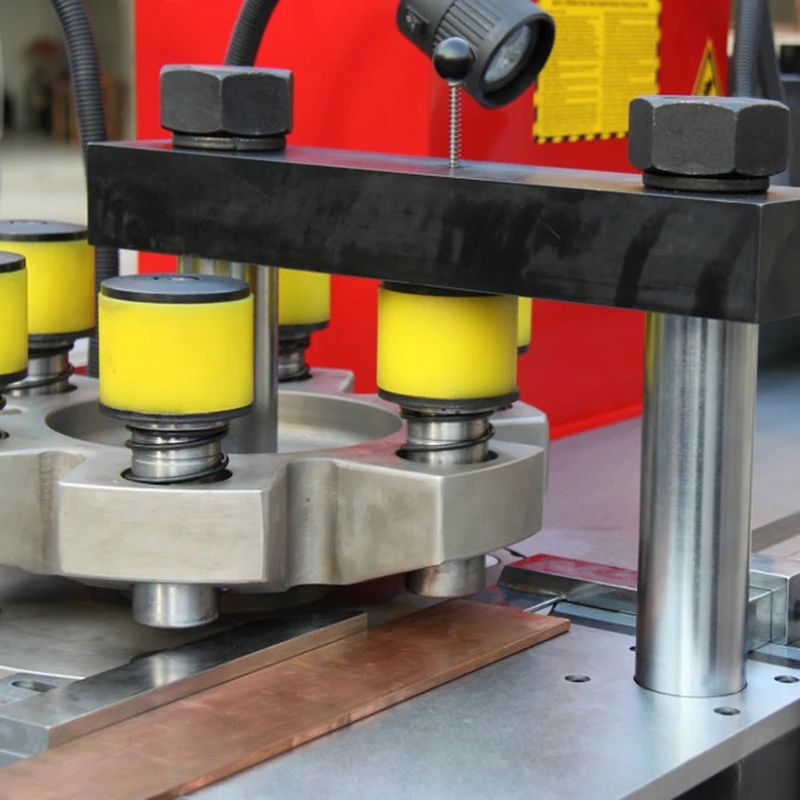

        2.  Rotary turret punch unit installed 6 dies, less replacing, high efficiency

        3.  More work space added by double work table, three work positions can be used at the same time.

        4.  Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree

        5.  Easily to be moved with four castors

        6.  Manual button and foot switch are optional

        7.  Adjustable working stroke

        8.  on users requirement, special mold for special shape

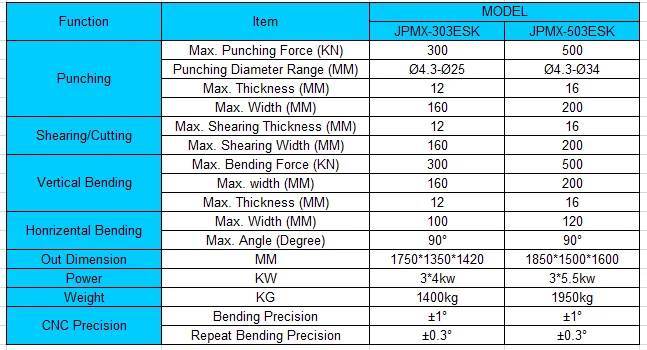

Parameters Of  Busbar bending cuting / Shearing Punching Machine

The Packing of Busbar bending machine is plywood case .

 Customer Reference:

advantage of the busbar machine:

1.  Warranty : one year guarantee for whole machine ( not including spare part)

3.  Our PLC are from Siemens.

     Our thermal relays, AC contactors, circuit breakers are from Schneider.

4.  We are factory. we can do OEM as per clients request.

5.  We have strong after-sales services team and professional technicians who can gurantee

     professional guidance after sales.

6. With Certification of CE&ISO 9001 .

 Usually within 15-20 days after the deposit.

 3.  What is your power supply?

We will adjust according to your countries power supply. No problem.

4.  What is the language of the manual and instructions on machine ?

All in English language .

You deserve the best Busbar machining Machine!

Jinan Jingpeng CNC Machinery Co.,Ltd
Amanda Ren  Sales Manager
