Magic Flexible Cuttable Led Module 36W 24V High Brightness SMD2835
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (60641218461):
Product Overview
Description
Product Description

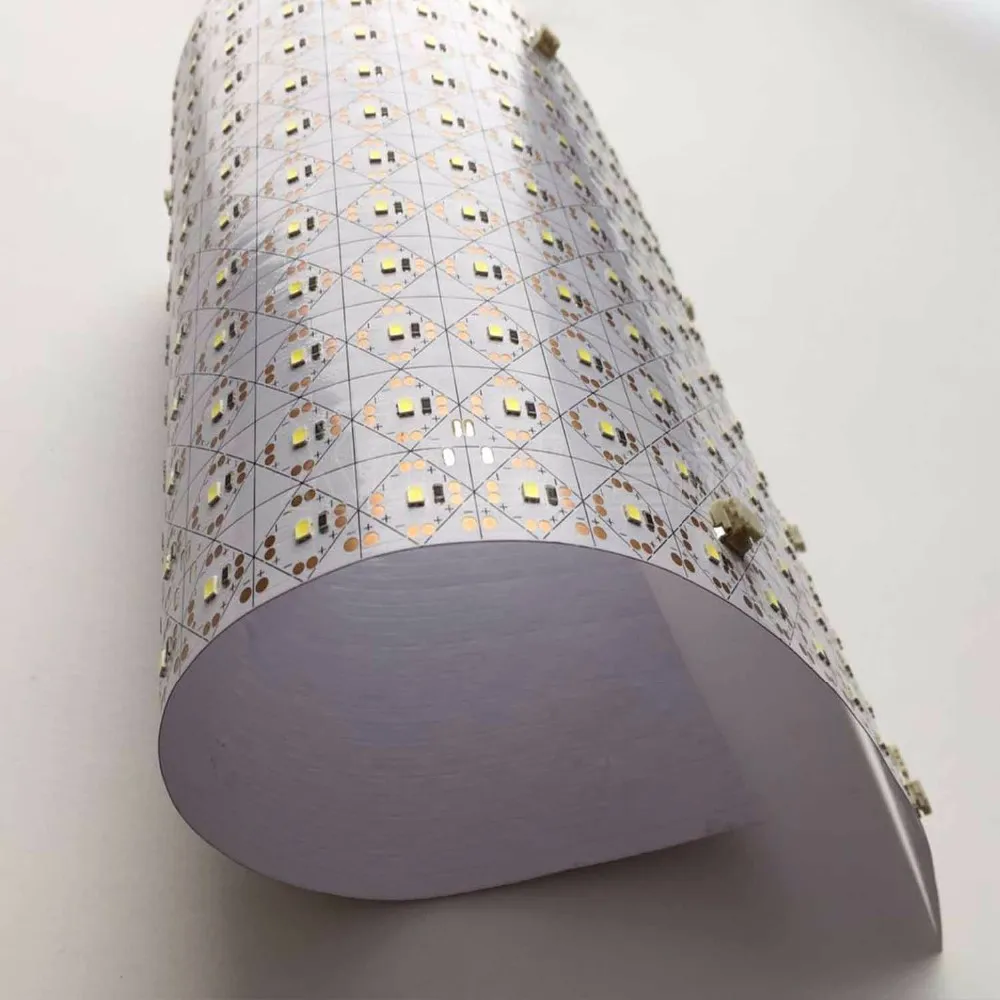

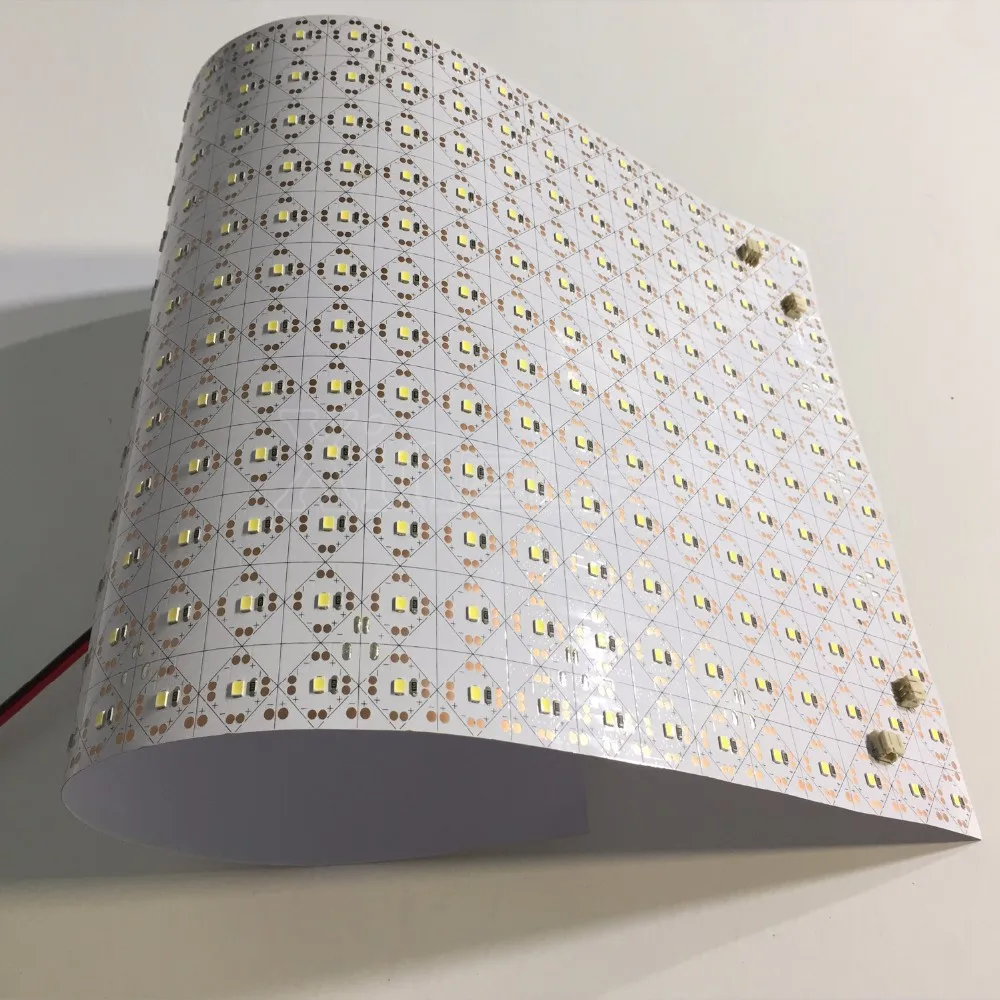

Magic Flexible Cuttable Led Module 36W 24V High Brighness SMD2835
main figure
1.One LED cut, It can be cut into any shape!
2.Slim light box LED sheet module, depth 30mm
3.High efficiency 108Lm / W DC24V Input
4.High CRI > 80 (Optional: > 90)
5.Size 500x240mm, LED spacing 20mm
6.Patent: ZL201420249938.2
7.CV input DC24V(Optional: 12V), Easy to expand installation
8.Warranty 3 years
9.CE RoHS FCC PSE
Model | Dimension Net weight | Power Test & Luminous Flux | Efficacy Typ |
RX-BKT28-500240 | 500x240mm 110g 300LED 0.5W SMD2835 18V | 69W DC24V 6929Lm | 100Lm/W |
RX-BKT28-500240L | 36W DC24V 3802Lm | 103Lm/W | |
RX-BKT28-500240 -CC | 1A @18V 2567Lm | 143Lm/W |
Detailed Images
with lens version:
application
Advertising light boxes
Sign cabinets, billboards
Curved, column displays
Bigger channel letter sign
Shopping mall
Hotels
Restaurants
Grocery Stores
Retail Stores
Airports
Train & Subway Stations
Exhibitions,Trade Shows, Etc.
Our Company
Xinelam start in 2003, specialized in various LED products for outdoor and indoor adversting signs/lightbox backlight application.
Our Service
Small and sample orders accepted
Response your inquiry within 12 hours
Good after-sales service
Fast delivery after the order confirmed
Payment term: TT, Western union, Paypal
