BL 1 Automatic wave winding machine for alternator stator
- Category: >>>
- Supplier: Zhejiang Great Dragon Automation Equipment Co. Ltd.
Share on (60641219252):
Product Overview
Description

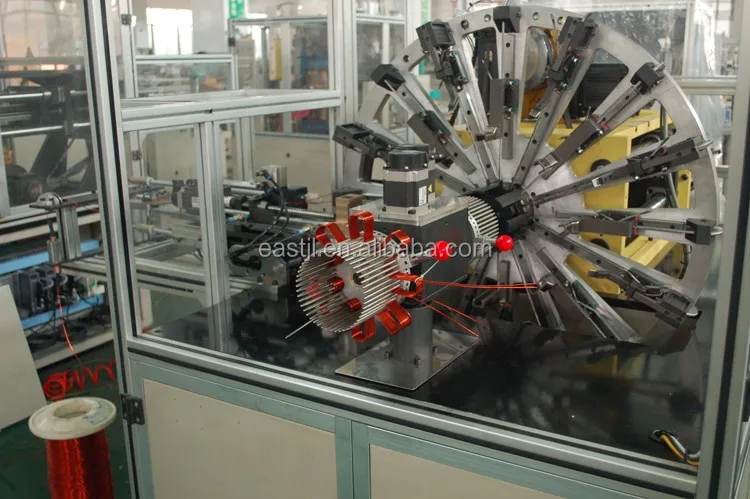

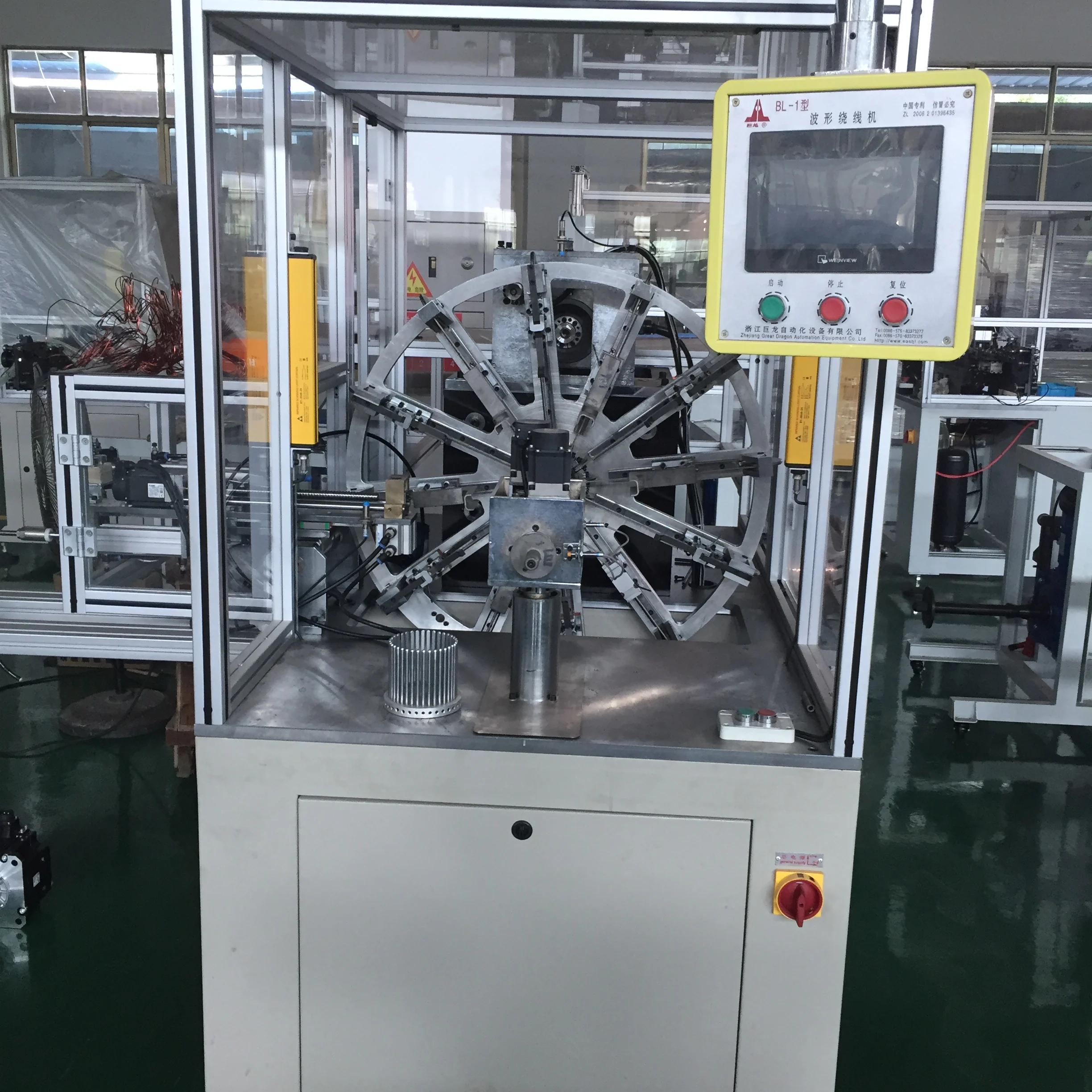

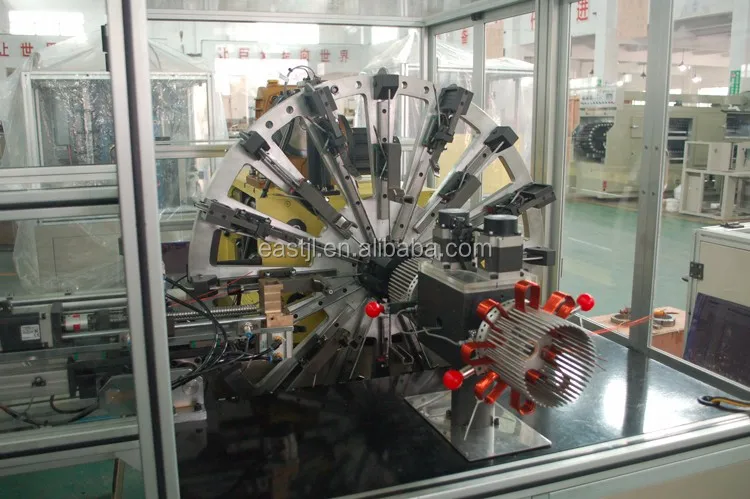

Automatic wave winding machine for alternator stator
Product Show

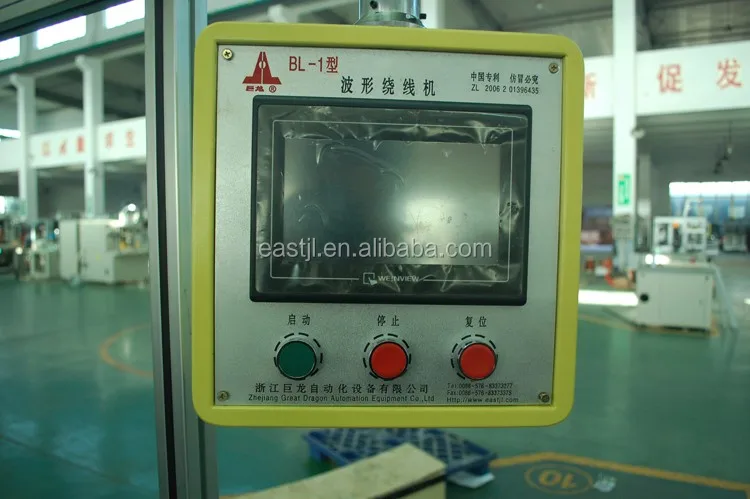

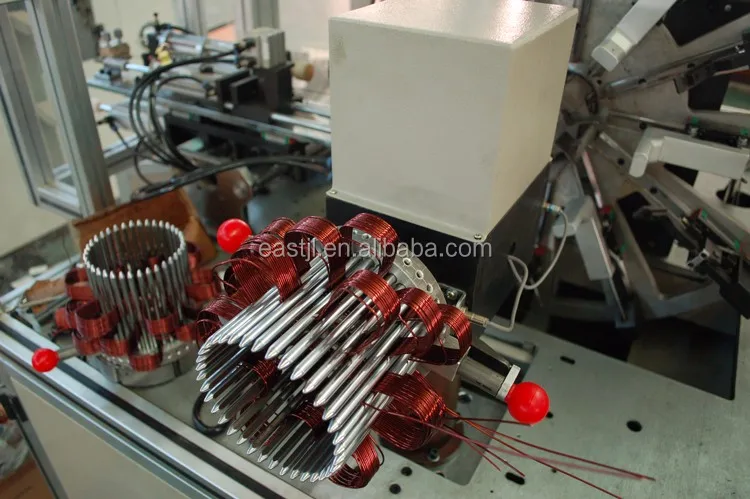

This machine is suitable for automatic winding of the three-phase stator wave windings of the automobile generator and automatic multi-times pushing coils to claw. Adopting international advanced double pulley double steel wire design, the steel wire has long service life. This machine is suitable and reliable for winding thick wire. It adopts PLC program control, color touch screen for setting parameters, servo motor for winding and arraying. It has functions of automatic multi-times pushing into tooling, automatic cutting, automatic turning, automatic winding and automatic pushing into the claws, and fault self-diagnosis display. It can complete of two three-phase stators coils at one time.
Technicai Parameters
| Supply voltage | AC380V±10%50Hz |
| Air pressure | 0.5~0.7MPa |
Total power | 3kw |
| Wire diameter | ≤Φ1.7mm |
| Wire Range | 0.5~3mm |
| Stator ID | Φ70~Φ150mm |
| Stator thickness | 5~100mm |
Detailed Images
Features
Features:
1. More suitable for winding the stator coil embedded in a longer line, after a good embedded coil windings arranged in neat rows.
2. Coil winding wire is not easy to injury, the machine uses a needle to thread embedded insulating paper and disposable embedded in the stator coil, high-speed embedded line efficiency.
Main Technical Parameters:
1. Power Supply Voltage:
AC2200V±10% 50Hz
2. Rated frequency: 50Hz
3. Addition :counting
4. Speed : frequency conversion stepless adjustment
5. Display: LED
