Airport Security Checking Explosive Detection Baggage X Ray Machine Screening Scanner in India
- Category: Electronic Measuring Instruments >>>
- Supplier: Shenzhen MCD Electronics Co. Ltd.
Share on (60641247812):
Product Overview
Description

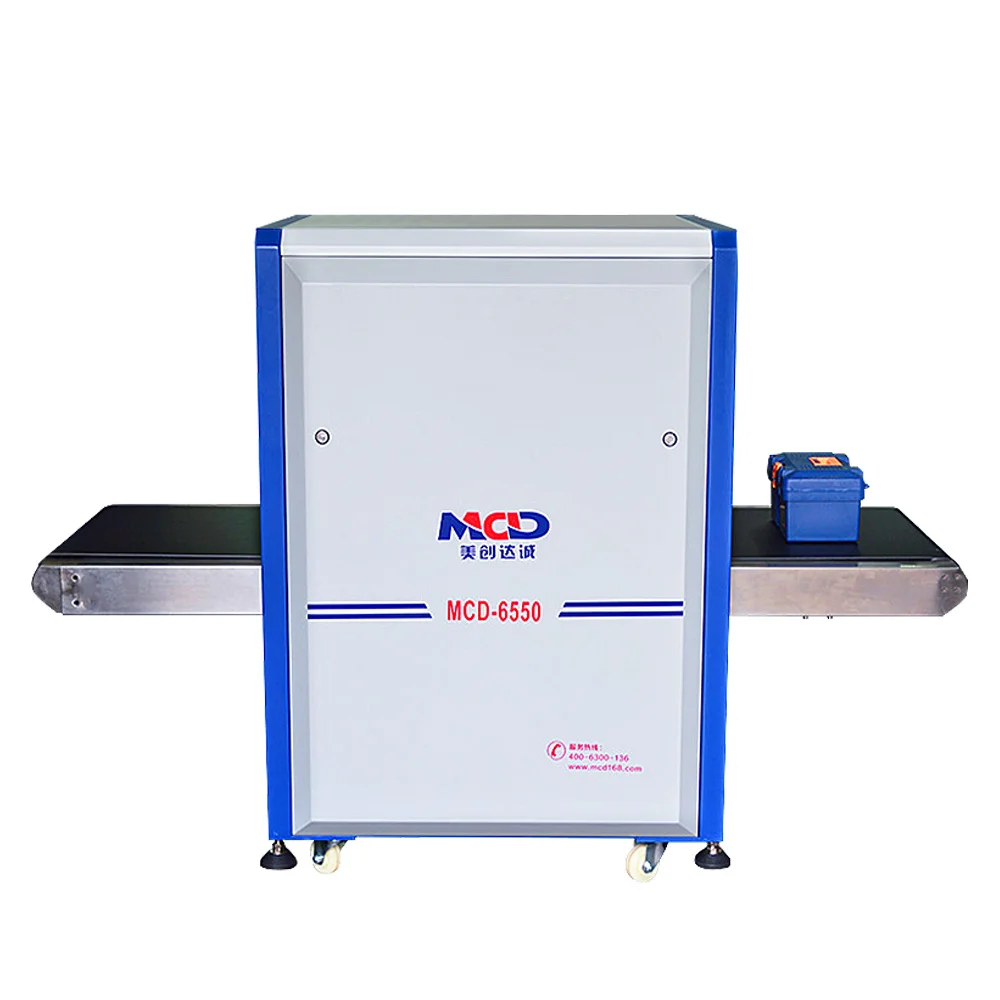

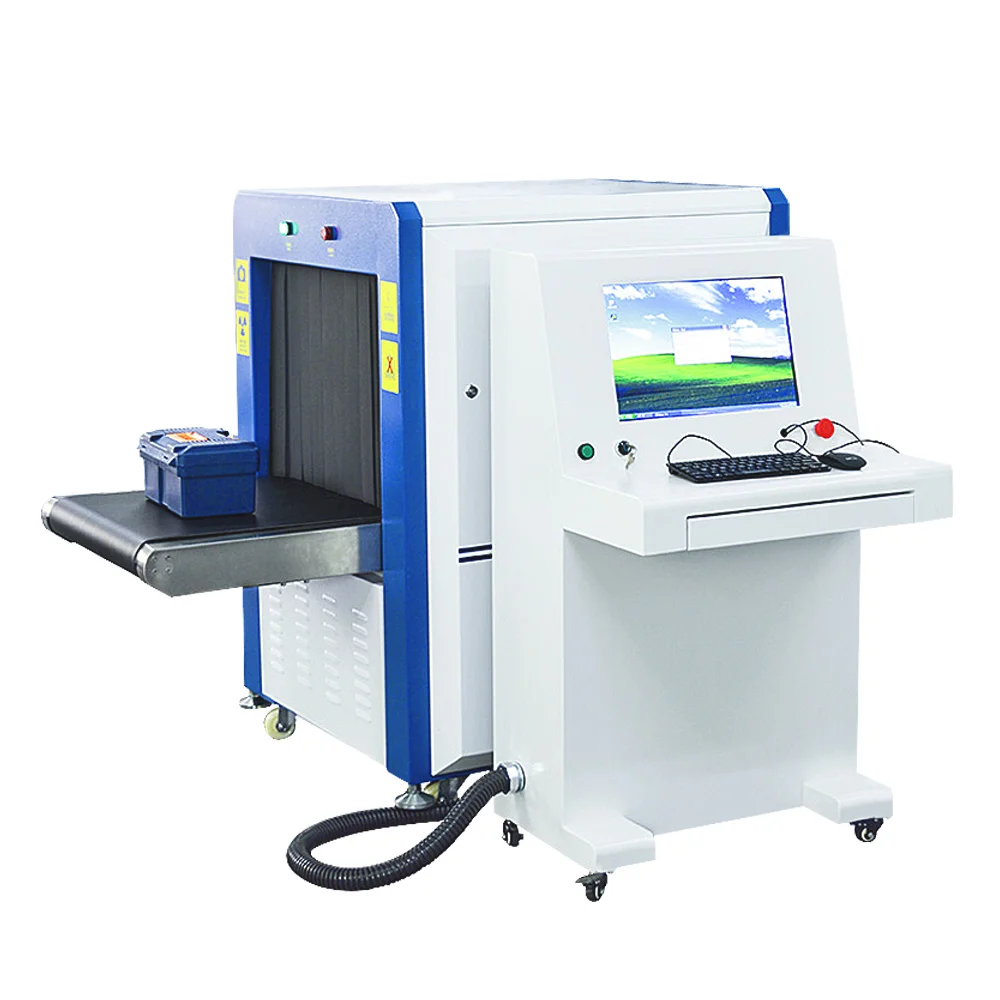

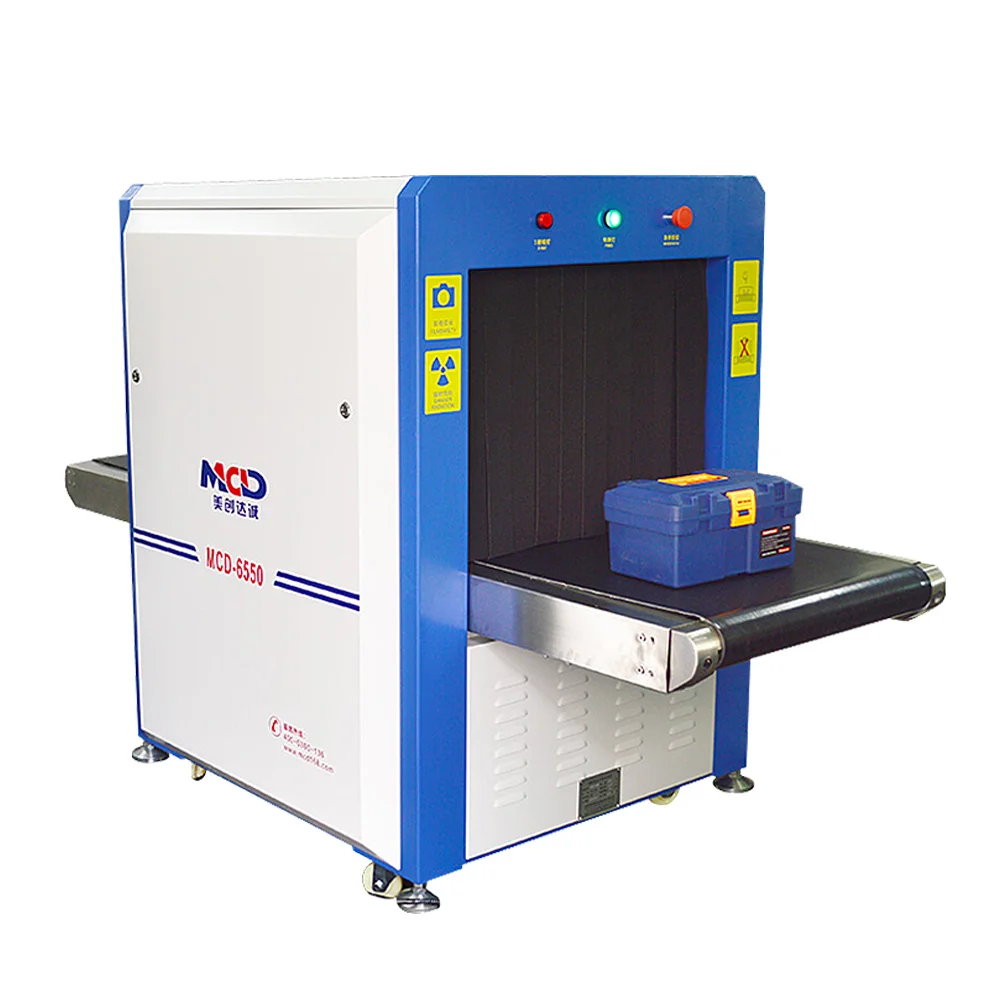

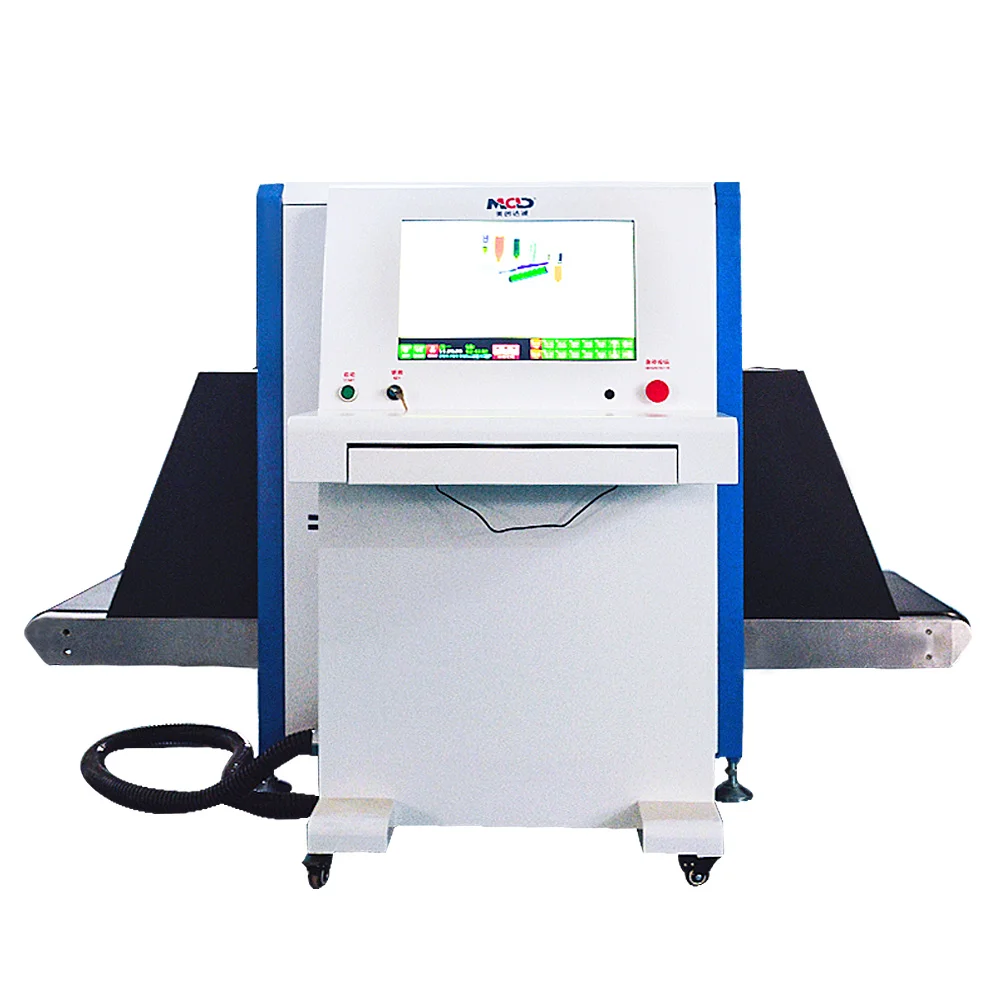

Airport Security Checking Explosive Detection Baggage X-Ray Machine Screening Scanner in India
Features:
- Sound and light alarms
- Network Interface: Can connect local area networks, multiple terminals can check luggage’s at the same time.
- Safer-ray: Ray fired automatic control, to avoid misusing launching.
- Simple mouse control: can directly control the equipment without the keyboard and the working table.
- One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.
- Eagle eye: Current region can be reviewed conviently in enlarged status.
- Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.
Specification:
| Tunnel Size | 650(W)*500(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | <1.4Gy/h |
| Resolution | < 0.0787mm Copper Wire |
| Spatial resolution Level | dia1.0mm |
| Vertical | dia1.0mm |
| Penetrate resolution | dia 0.254mm |
| Penetration | 34mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.05 μGy/h (at a distance of 5cm From external housing) |
X-ray Generrator:
| Generate direct | Upward |
| Generate anger | 80 degree |
| Anode Voltage | 100~160Kv |
| Anode power | 0.4 to 1.2mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Installation Data:
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max), 0.7KW(working) |
| Noise: | <58db |
Certifications
Our Services
Company Information
*Established in 2005
*With more than 300 people, among of which R&D 15 staffs, QC 22 people
*Main products: X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground .Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.
*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.
*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP
*Area: 12,000 Square meters
Welcome to contact us!Safety future, stability world
