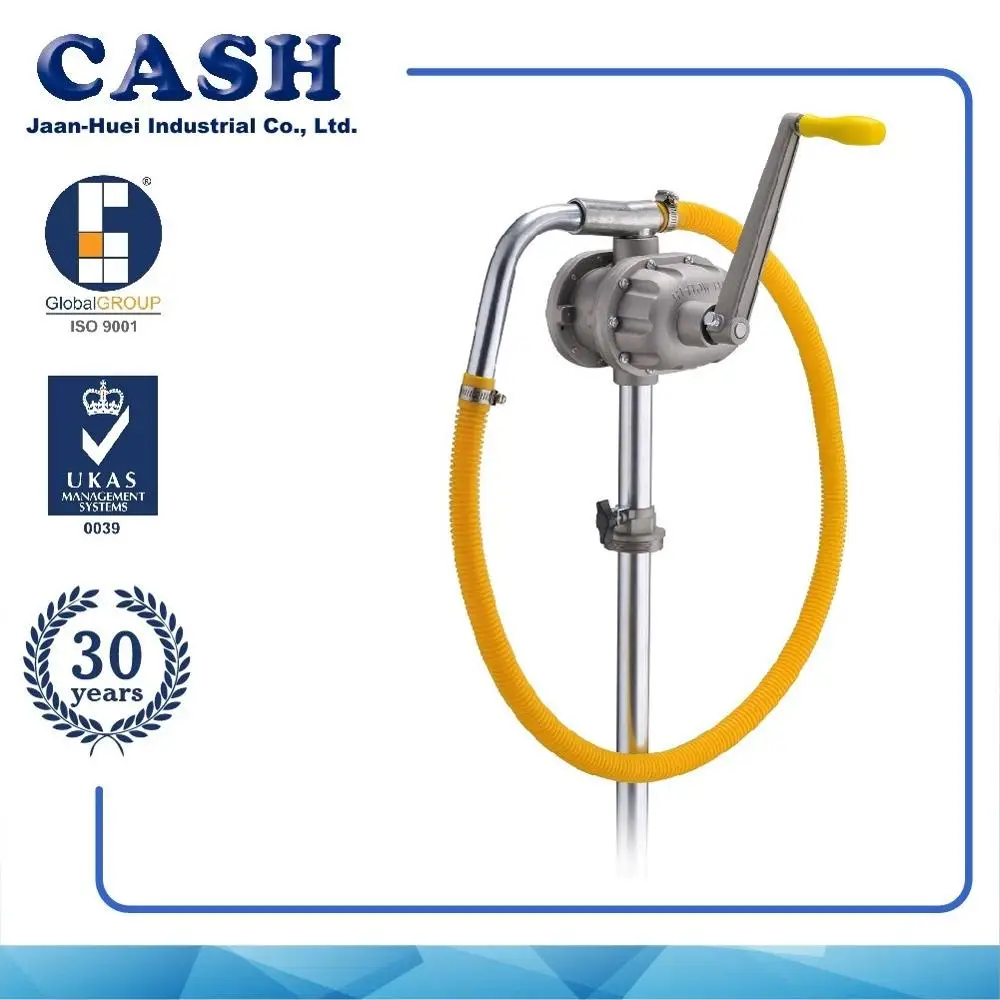

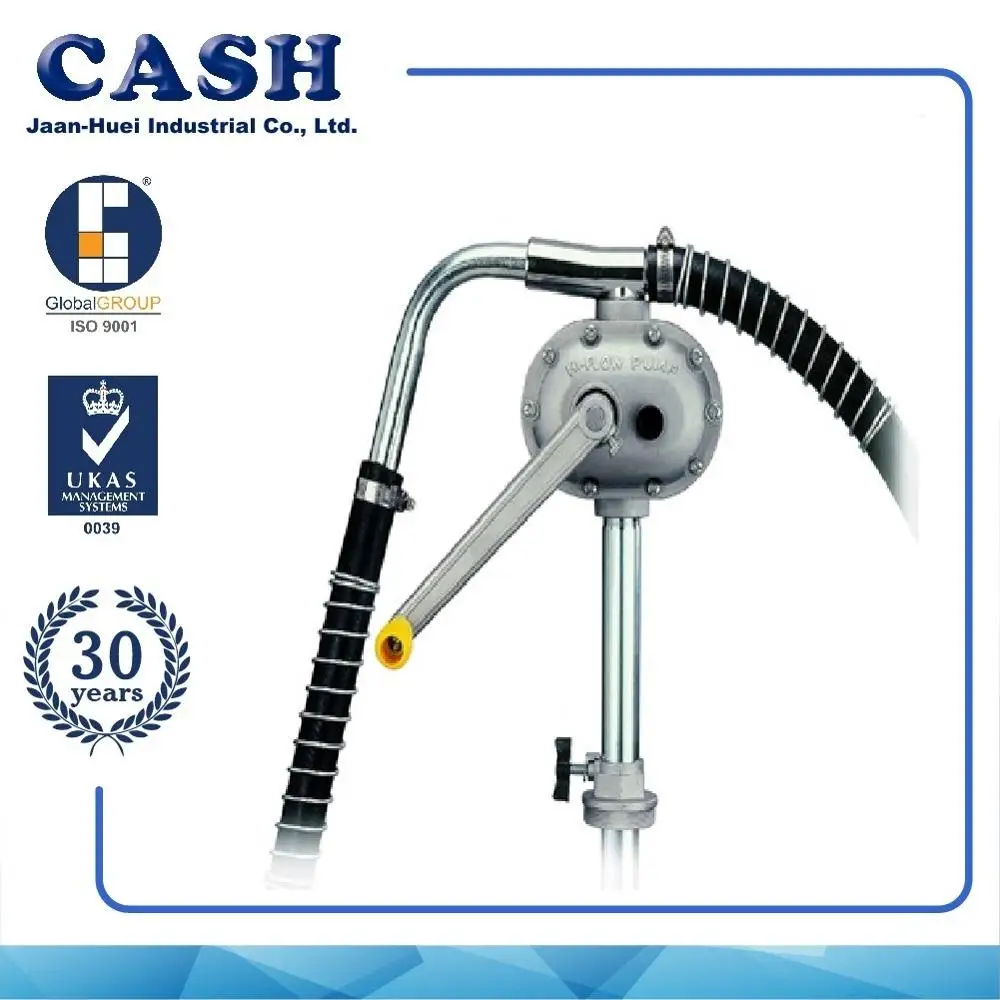

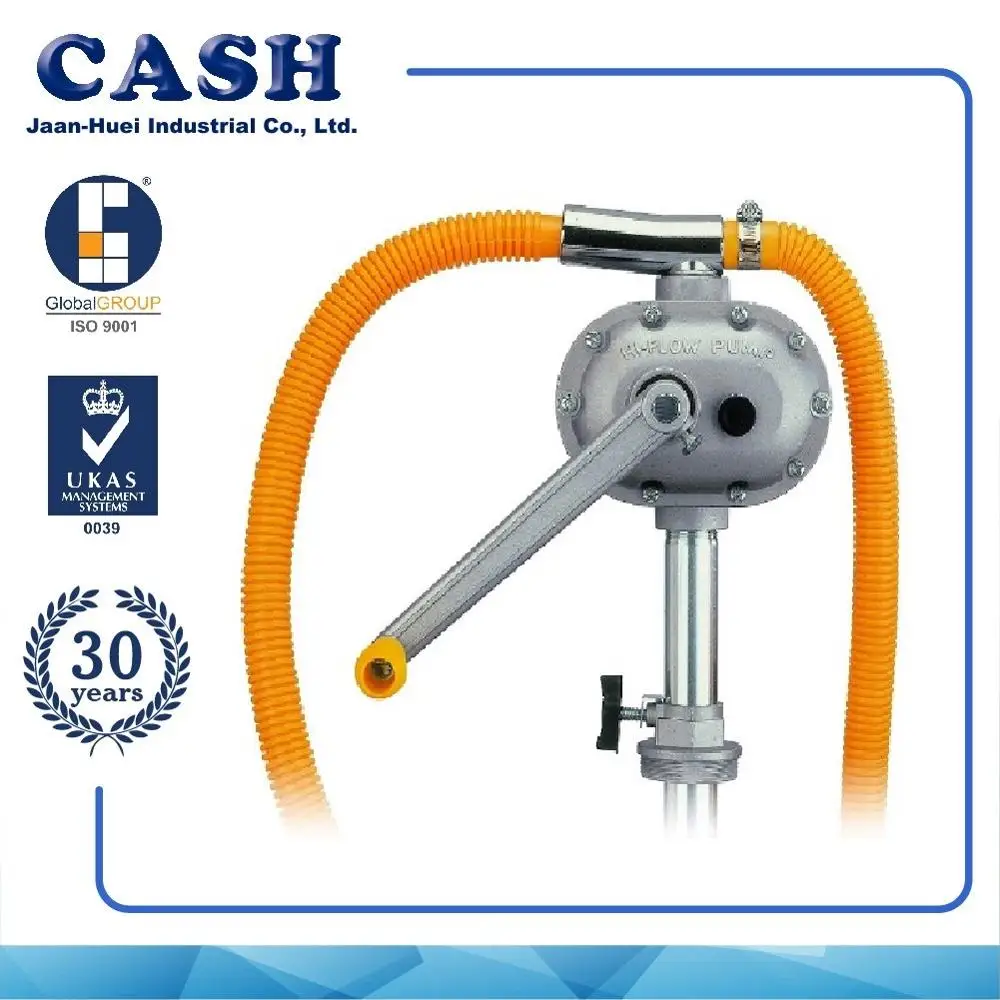

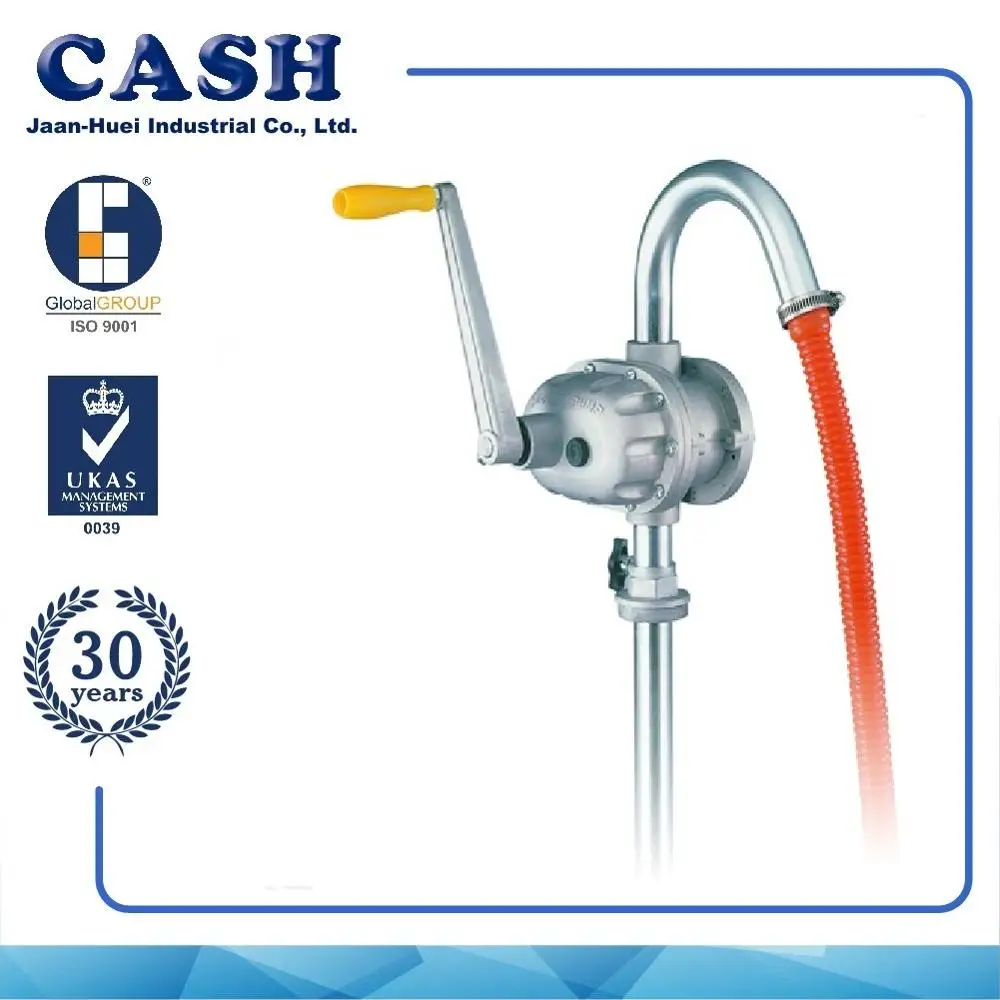

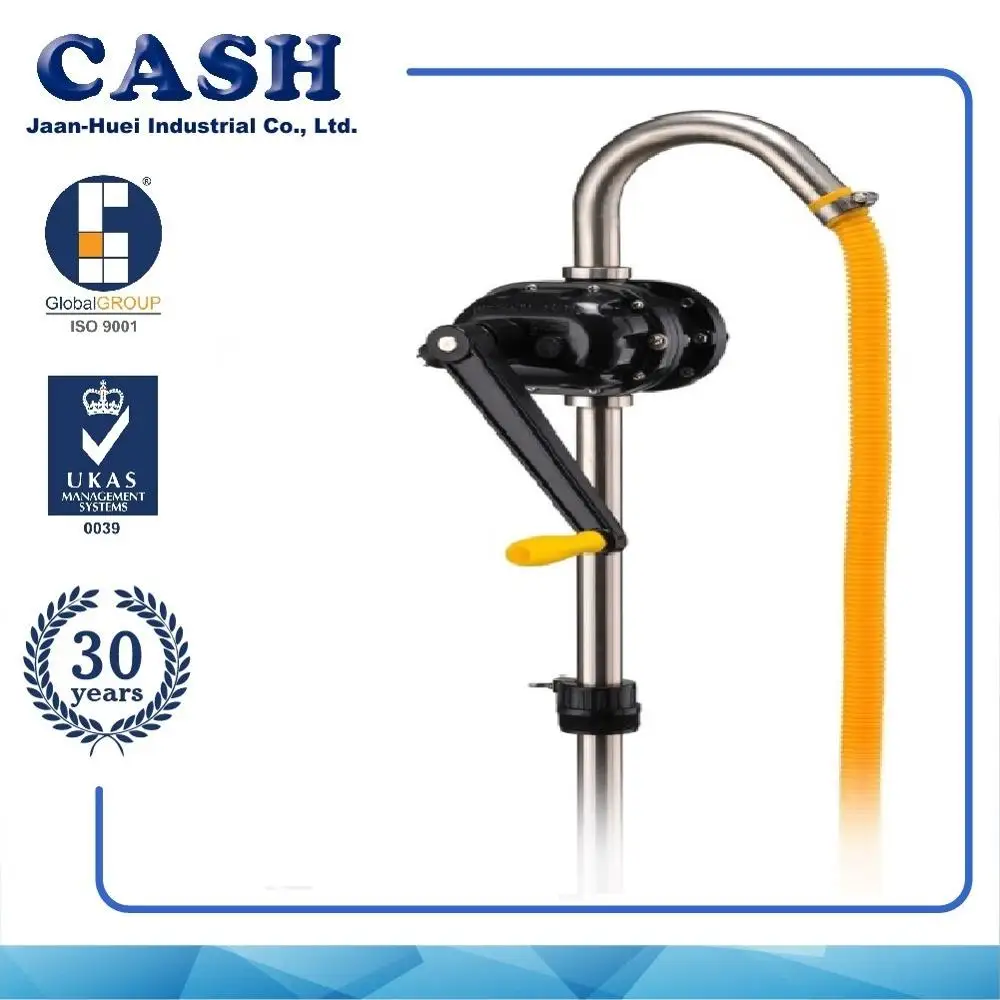

jaan huei high flow pump oil rotary drum pump
- Category: >>>
- Supplier: JAAN-HUEI INDUSTRIAL CO. LTD.
Share on (60641298696):
Product Overview
Description
Product Description
jaan huei aqua flow pump chemical oil rotary drum
Hand pumps are manually operated pumps; they use human power and mechanical advantage to move
fluids or water from one place to another. They are widely used in every country in the world for a variety of
industrial, marine, irrigation and leisure activities. There are many different types of hand pump available,
mainly operating on a piston, diaphragm or rotary vane principle with a check valve on the entry and exit
ports to the chamber operating in opposing directions. Most hand pumps have plungers or reciprocating
pistons, and are positive displacement.
Specifications:
Material: PPS, 304SS spout, tube.
Capacity: 1 Liter per stroke.
Applicable Drum: 5,15,30,55 gallon containers.
Applicable Liquids: Used for weak / strong-base acid and alkali liquids-a model providing the highest oil-pumping volume amongst models of kind (one liter per rotation; not designed for viscous liquids).
Packing: 4 pcs/ctn, N.W: 19kgs / G.W: 21kgs / CUFT: 2.7'
Product ID | RP-32 / RP-32H |
PR-32-1 / RP-32-1H | |
RP-32-2 RP-32-2 / RP-32R | |

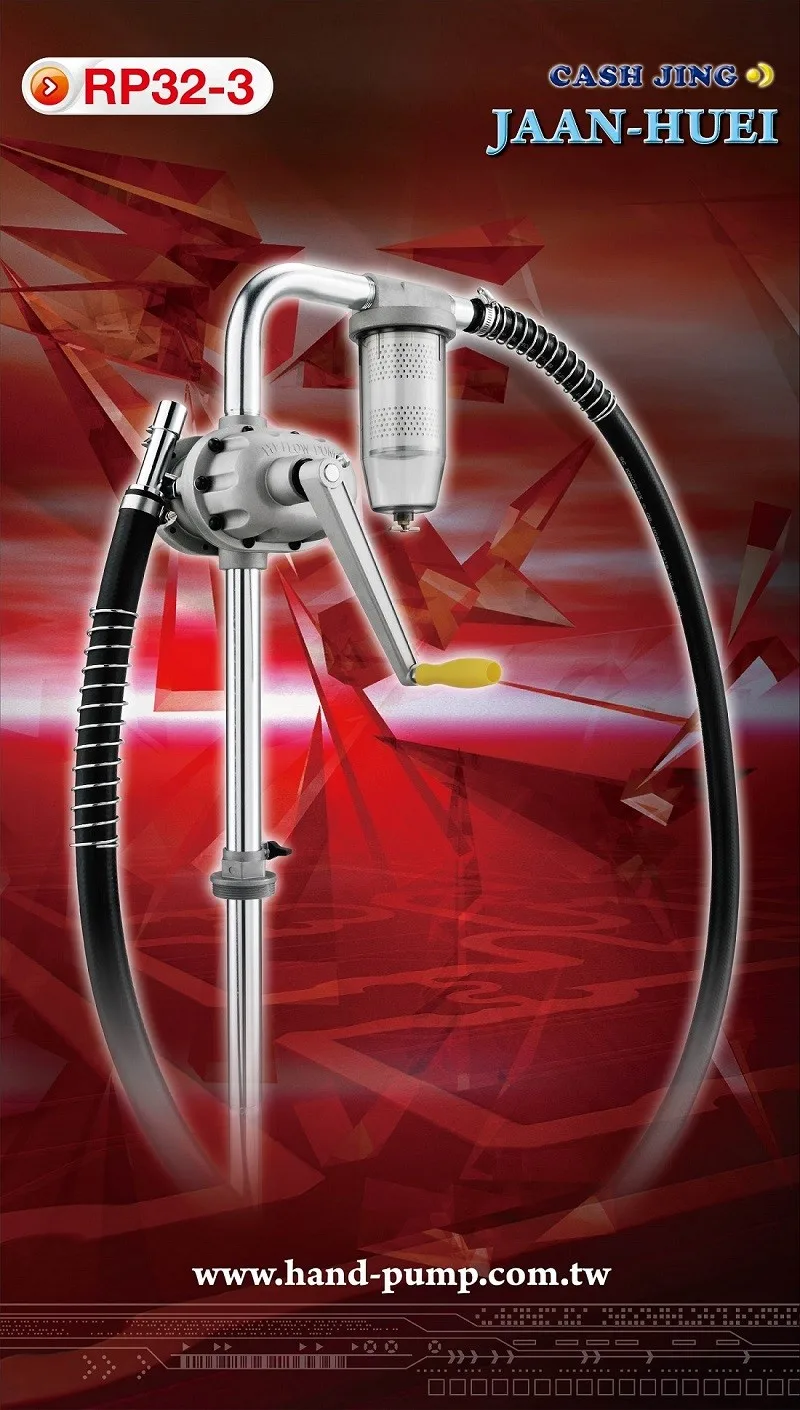

RP-32-3 | |
Name | High Flow Pump |
Specifications | PR-32: Vertical conveying distance 15M PR-32-1: Vertical conveying distance 15M, horizontal conveying distance 50M. PR-32-1H: Vertical conveying distance 15M, horizontal conveying distance 50M. PR-32-2: Vertical conveying distance 15M, horizontal conveying distance 50M. RP-32: With 1 meter tube, PE hose RP-32H: With 1 meter tube, PE hose, Zinc Alloy nozzle. Fastener features. PR-32-1: With 1 meter tube, PE hose, level spout RP32-1H: With 1 meter tube, PE hose, Steel level spout *Package: 5 pcs / ctn / 27.5 / 29 kgs / 3.2' PR-32-2: with 2 suction tubes, a black rubber hose, a level spout. *Package: 3 pcs / ctn / 23 / 25 kgs / 4.7' PR-32-3: with 1 filter, 2 suction tubes, a black rubber hose, a spout. *Package: 3 pcs / ctn / 24 / 26 kgs / 4.7' *Applicable Drums: 15, 30, and 55 gallon containers. *These versatile drum pumps are suitable for the Transfer of low viscosity fluids such as Gasoline, Kerosene, Diesel Fuel, Lubricant, Machine oil, etc. ---------------------------------------------------------------------------------------- PR-32-R: with 304 SS spout, 3 suction tubes, a PE hose. 4 pcs / ctn / 19 / 21 kgs / 2.7' *Applicable Drums: 5,15, 30, and 55 gallon containers. *This pump is suitable for the Transfer of low viscosity fluids such as gasoline, kerosene, diesel Fuel, lubricant, machine oil, chemical, acid & alkaline, etc. |
Features | Large Capacity: 1 liter / rotation. Sweet Design: a hook to avoid the liquids contaminate the floor or dirty environment.Counterclockwise or clockwise for discharging or suctioning freely. |
Order Information | Minimum Order: Negotiable EXW TAIWAN |
ITEM\t | PCS/CTN | N.W.(kgf)\t | G.W.(kg) | CUFT\t | C.C/ Rotation | Available/Gallon Drum |
RP-32 | 5 | 29 | 31 | 3.2 | 1000 | 15,30,55 |
RP-32H | 5 | 29 | 31 | 3.2 | 1000 | 15,30,55 |
RP-32-1 | 5 | 29 | 31 | 3.2 | 1000 | 15,30,55 |
RP-32-1H | 5 | 29 | 31 | 3.2 | 1000 | 15,30,55 |
RP-32-2 | 3 | 29 | 26 | 4.7 | 1000 | 15,30,55 |
RP-32R | 4 | 19 | 21 | 2.7 | 1000 | 5,15,30,55 |
