Product Overview
Description
Embedded System Cortex A53 Octa Core Development Board S5P6818 SoC Supports MIPI LVDS Display Output
OK6818 is an Cortex-A53 development board designed by Forlinx based on S5P6818 which is an Octa core CPU with main frequency of 1.4GHz, 1G DDR3 and 8G eMMC, on-board SPI, RS485, CAN, UART, LVDS,MIPI, Gigabit Ethernet are all ready-to-use for developers. What's more, expand modules like MIPI camera, DVP camera, WIFI&BT, 3G/4G are also available. Sleeping and waking up modes are more conveniently to users. This item is totally pin to pin compatible with S5P4418. They share a same PCB layout.

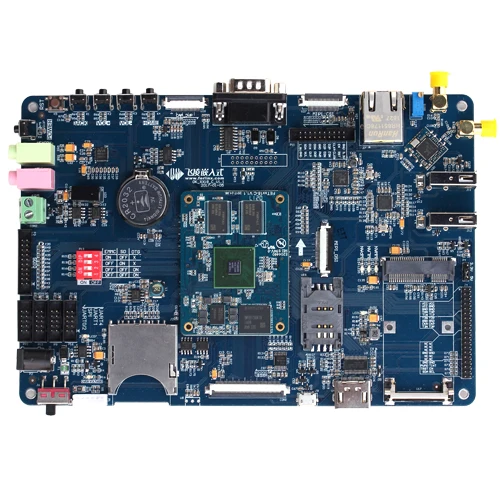

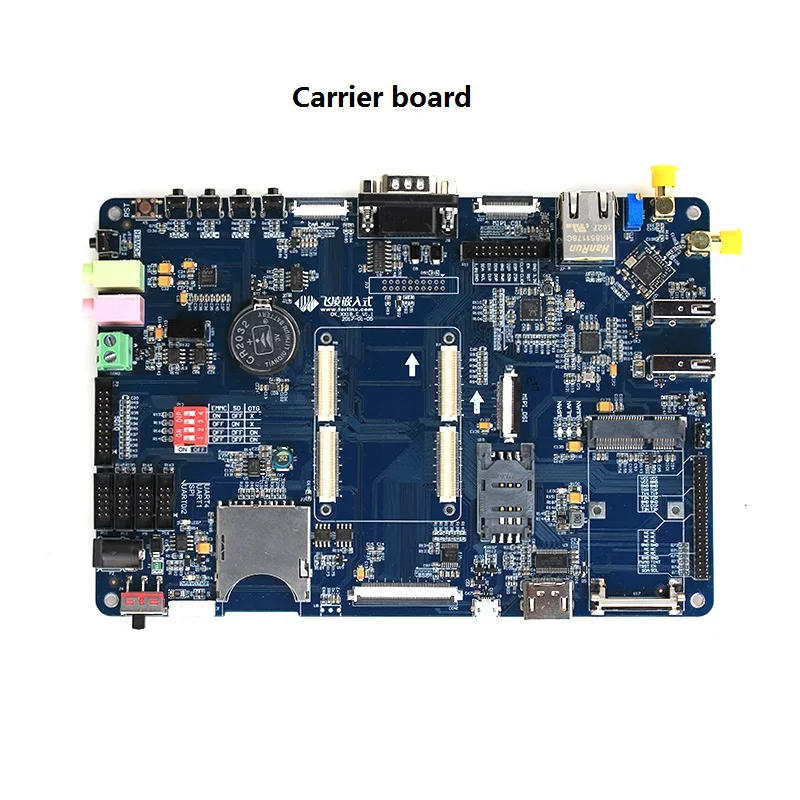

Below is a layout picture of this board, on this picture the CPU is S5P4418, All conponents and connectors of S5P6818 are totally the same with S5P6818
Applications:
Multi-media, digital signage, security, car electronics, financial, educational, power system, communicating, smart home, commercial electronics, intelligent transportation, portable device, etc.
At last, let's have a look at its product features both hardware and software

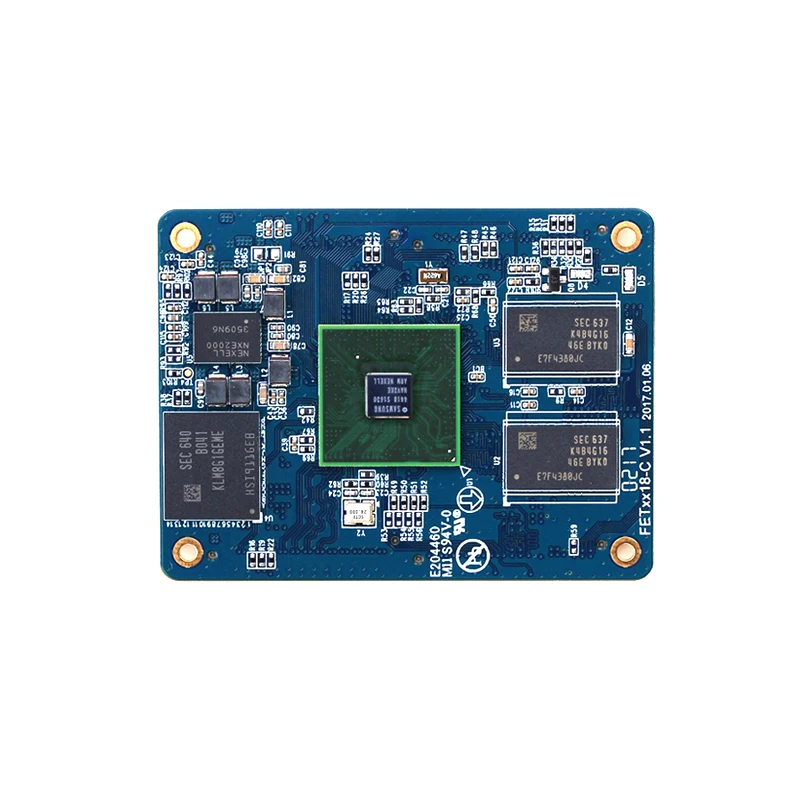

| SoM FET6818 Features | ||||
| CPU | S5P4418XCO-LA40 | Architecture | Cortex-A9 | |
| Main Frequency | 1.4GHz | Core | Quad-core | |
| Working Temp | 0-70℃ | Working Humidity | 10%-90% none condensing | |
| SoM Function Parameters | |||||||
| Function | Number | Parameters | |||||
Display | LCD | 1 | RGB 888, maximum resolution supporting: 2048*1280 | ||||
| LVDS | 1 | supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting: 2048*1280 | |||||
| HDMI1.4 | 1 | HDMI1.4, maximun resolution supporting: 1080*1920 | |||||
| MIPI_DSI | 1 | MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200 | |||||
| Camera | MPEG | 2 | 8-bit parallel interface, pixel up to 5-Megapixel | ||||
| MIPI_CSI1 | 1 | D-PHY spec V1.00, pixel up to 5-Megapixel | |||||
| SD/MMC/SDIO | 2 | 3-ch supported by CPU, and 2x SD/MMC drawn out by SoM, while the eMMC channel was not drawn out | |||||
| USB Host | 1 | USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy | |||||
| USB OTG | 1 | USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy | |||||
| UART | 6 | each transferring rate up to 5.0Mbps | |||||
| IIC | 3 | supporting 100kbit/s and 400kbit/s | |||||
| IIS | 3 | supporting up to 3x IIS | |||||
| SPI | 3 | supporting up to 2x SPI | |||||
| Ethernet | 1 | 10/100/1000Mbps adaptive | |||||
| PWM | 4 | 4x PWM output | |||||
| SPDIF | 1 | SPDIF interface | |||||
| ADC | 7 | 12-bit resolution, maximum input frequency 100KHz, power input range: 0-1.8V | |||||
| EBI | 1 | Maximum data bus width: 16-bit, maximum address bus: 14-bit | |||||
| JTAG | 1 | standard JTAG port | |||||
| OK6818 Single Board Computer Features | ||||
| Dimensions | 130mm x 190mm | Thickness | 1.6mm | |
| PCB Layer | 4-layer | Power Input | DC 5V/3A, with overvoltage protection | |
| Working Temp | 0-70℃ | Working Humidity | 10%-90% none condensing | |
| OS | Android5.1.1, Linux3.4.39, QT4.8.6 | |||
| Development Board Function Parameters | |||||||
| Function | Number | Parameters | |||||
Display | LCD | 1 | RGB 888, maximum resolution supporting: 2048*1280 | ||||
| LVDS | 1 | supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting: 2048*1280 | |||||
| HDMI1.4 | 1 | HDMI1.4, maximun resolution supporting: 1080*1920 | |||||
| MIPI_DSI | 1 | MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200 | |||||
| Camera | DVP | 1 | 8-bit parallel interface, pixel up to 5-Megapixel | ||||
| MIPI_CSI1 | 1 | D-PHY spec V1.00, pixel up to 5-Megapixel | |||||
| Audio | 1 | 1* MIC, 1*Phone | |||||
| SD/MMC | 1 | 1x SD, compatible with SDHC, SDXC (UHS-I) | |||||
| SDIO | 1 | pitch of 2mm and drawn out by dual-row pins(20pin) | |||||
| USB Host | 2 | USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy | |||||
| USB OTG | 1 | USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy | |||||
| UART | 5 | 4x TTL, 1x RS232 (UART5), 5.0Mbps, 4x 3-wire, 1x 5-wire | |||||
| IIC | 3 | IIC1 and IIC2 are CPU native IIC, IIC3 is an IO analogy IIC | |||||
| SPI | 1 | ||||||
| Ethernet | 1 | 10/100/1000Mbps adaptive | |||||
| WIFI | 1 | RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN | |||||
| BT | 1 | RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN | |||||
| RS485 | 1 | with isolation desgin | |||||
| Mini-PCIE | 1 | for 3G, 4G modules | |||||
| IrDA | 1 | empty solderred | |||||
| User Key | 6 | 1x power switch, 1x reset, 4x user key. sleeping/waking up and powering off modes are supported by power key. screen scraping is supported by volume (power)key in OS Android | |||||
Android 5.1.1 | ||
Cross-compiler | arm-eabi-gcc-4.8,OpenJDK 7.0 | |
OS image flashing | flash OS image via SD card | |
U-boot | booting mode selection (eMMC) | |
Kernel version | Linux 3.4.39 | |
Android version | Android 5.1.1 |
|
Drivers | eMMC | UART/RS232 |
SD card | RS485 | |
LVDS displaying | ADC | |
LCD displaying | accelerator sensor | |
MIPI displaying | IrDA | |
HDMI1.4 displaying | RTC | |
LCD/MIPI/LVDS capactive touching | IO | |
PWM | LED | |
LCD/MIPI/LVDS back ligth driver, 255-class adjustable | keyboard | |
parallel camera OV5640 | I2C | |
MIPI camera OV5645 | SPI | |
Gigabit Ethernet | USB HOST: mouse, keyboard | |
4G module | USB DEVICE | |
BT module | WM8960 audio driver | |
WIFI module | sleeping mode waking up | |
Linux QT 4.8.6 | ||
| Cross-compiler | arm-cortex_a9-eabi-4.7-eglibc-2.18 |
|
OS image flashing | flash OS image to eMMC via SD card | flash OS image to eMMC via USB |
UBoot | booting mode selection (eMMC) |
|
Linux kernel | version:linux3.4.39 | LCD backlight driver, 255-class adjustable |
file system: EXT/NFS/VFAT | LCD (7") | |
eMMC | USB Host: U-disk, USB Hub, USB mouse and keyboard | |
watchdog | USB Device | |
RTC | TF/SD/MMC card | |
IO | serial interface | |
| user keys | WM8960 audio | |
SPI | Ethernet | |
I2C | 3G | |
camera OV5640 | USB to serial interface | |
PWM | Mipi 7'' display | |
capactive touching | LVDS | |
Utility Testing APP | GPS | SDIO WIFI |
RTC | GPRS | |
camera testing | audio recording and playing | |
IP/MAC address setting | ADC | |
| touching/mouse mode switching | watchdog | |
TTL converted to RS232 | lighttpd Web Server | |
| serial interface | display backlight | |
audio recording/playing | video playing and mp3 file testing | |
3G MF210 | 4G HUAWEI Me909s821 module testing | |
MIPI OV5645 photo taking & previewing |
| |
Packing & Shipping
Our Superiority
1. Original factory designing, we have a professional R&D capability and after-sale technical support team
2. Top product quality and stable product supplying capability
3. we kindly provide all necessary technical files to users including datasheet, schematics, user manuals, driver source code
4. customize service
