57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
Brand new micro mini stepper motor with high quality
- Category: Stepper Motor >>>
- Supplier: Changzhou,Goot,Motor-Tech,Co.,Ltd.,[Jianfsu,China]Changzhou
Share on:
Product Overview
Description
Brand new micro mini stepper motor with high quality
Product Description
Application :
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
General Specification:
| Item | Specification |
| Step Angle Accuracy | ±8%(full step, no load) |
| Resistance Tolerance | ±10% |
| Inductance Tolerance | ±20% |
| Temperature Rise | 80.C Max.(rated current,2 phase on) |
| Ambient Temperature | -20.C~+50.C |
| Insulation Resistance | 100MΩMin. ,500VDC |
| Dielectric Strength | 600VAC , 1s , 3mA |
Specification:
| Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (VDC) | Current/Phase (A) | Resistance /Phase(Ω) | Holding Torque (gf.cm) | Detent Torque (gf.cm) | Weight (g) | Wire Diagram |
| PM35S-048-01 | 7.5 | 4 | 24 | 0.48 | 50 | 480 | 45 | 60 | B |
| PM35S-048-02 | 7.5 | 2 | 24 | 0.6 | 7.5 | 400 | 45 | 60 | A |
| PM35S-024-01 | 15 | 4 | 12 | 0.43 | 28 | 200 | 45 | 60 | B |
| PM35S-024-02 | 15 | 2 | 24 | 0.5 | 4.7 | 140 | 45 | 60 | A |
| PM35L-048-01 | 7.5 | 4 | 24 | 0.8 | 30 | 700 | 100 | 82 | B |
| PM35L-048-02 | 7.5 | 2 | 24 | 0.5 | 5.5 | 500 | 100 | 82 | A |
| PM35L-024-01 | 15 | 4 | 24 | 0.24 | 100 | 350 | 100 | 82 | B |
| PM35L-024-02 | 15 | 2 | 24 | 0.5 | 12 | 500 | 100 | 82 | A |
Dimension:
Wire Diagram:
Customization On Call
Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.
Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors, End of motion detection sensors.
Wire Harness - connectors, pins, lead length, shrink tubing.

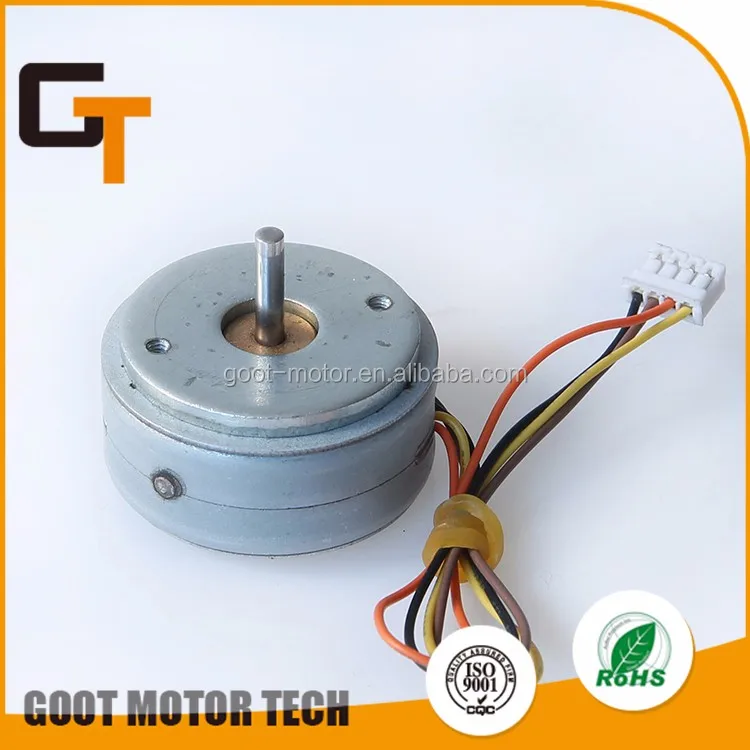

Picture of micro mini stepper motor:
