ZOOY Z 6900 Cheap GPRS 3G guard tour patrol monitor

Benefits:

GPRS Guard Tour System , work with cellphone card to transfer patrol data remotely . The patrol site officer no need to install computer but can also send data out to server in real time.

	RFID Reading:RFID reader does not need to touch the checkpoint, proximity sensor. Checkpoint can be installed in the wall. Waterproof and long-lasting.
	GPS Tracking:The biggest advantage for tracking the guards is eliminating time wastage. GPS gives you the ability to closely monitor employee behavior and find opportunities to improve employee efficiency.
	LED Lighting:A bright flashlight can help identify threats in a low-light environment and eliminate the dangers hiding in the shadows. SOS lighting mode gets you rid of troubles.

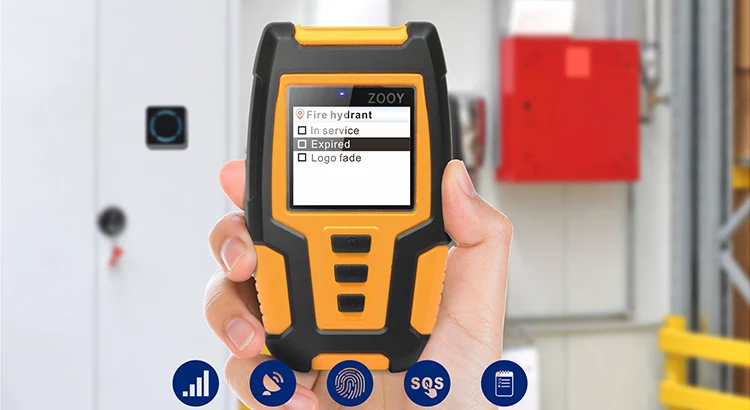

	Event Records:Events increases the work efficiency of employees, so that their work is more specific, for example, you can let employees to check and record the door if is closed, the room if is clean, and etc.,

Hardware

1 LED indicator

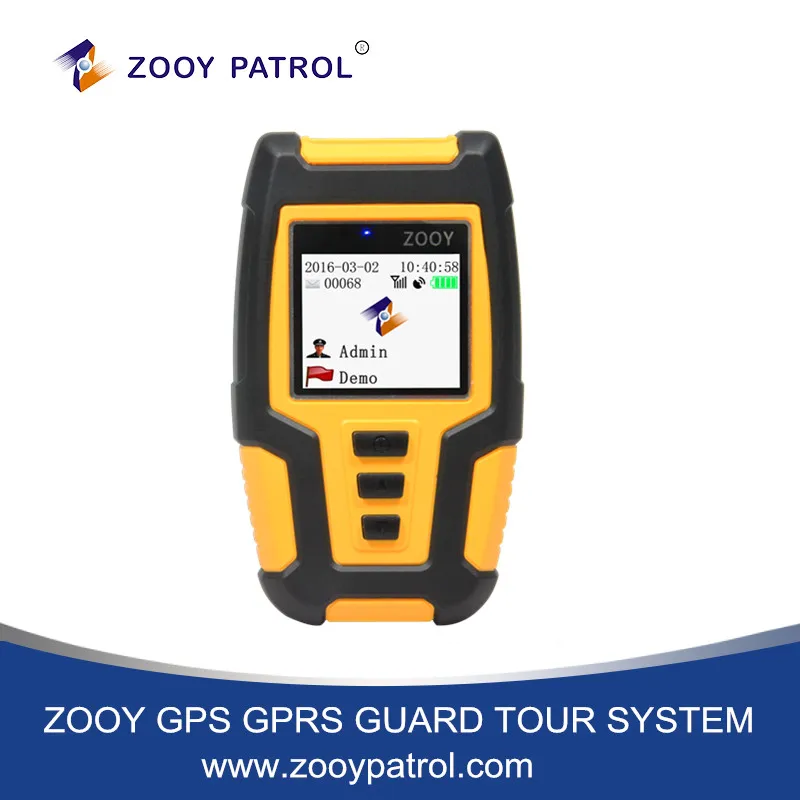

2 Display

3 Power and OK button

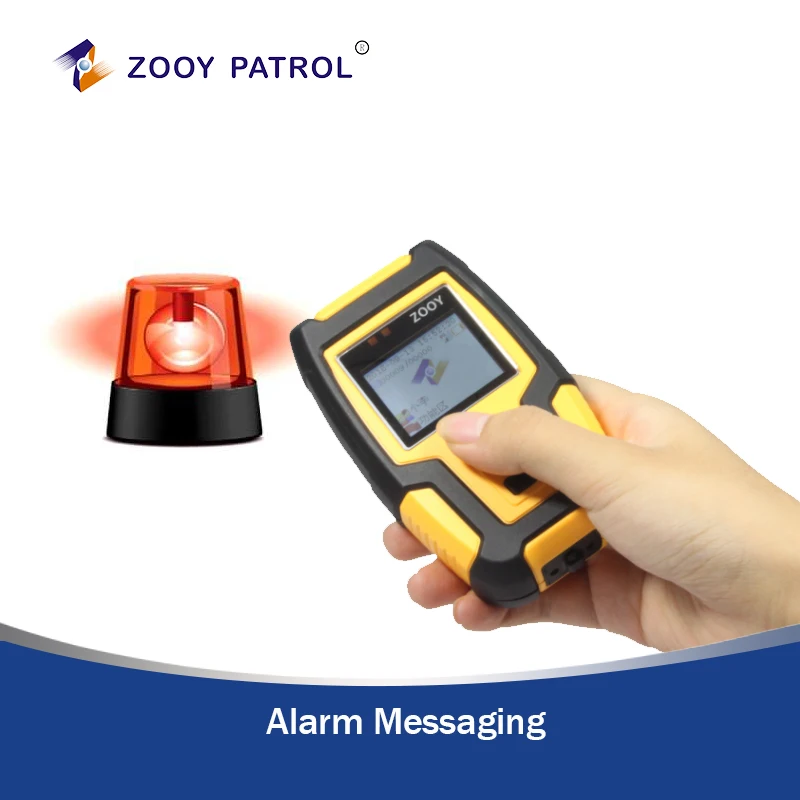

4 “Up ”button, can send SOS alarm by long pressing

5 “Down”button, can use as torch switch at main interface

6 Torch/Camera module/RFID senor area

7 Label area

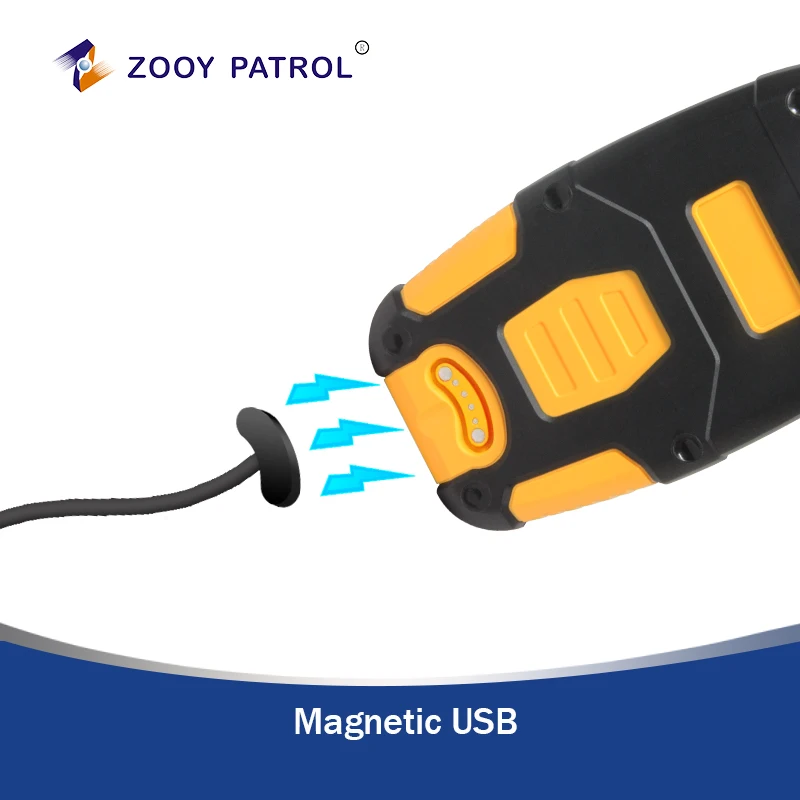

8 Magnetic type pogo pin USB port

9 SIM card socket

Parameters

Read data: Auto-induction, no need to press any button

LCD screen: TFT1.8 inch high image screen

Workable card: 125kHz EM ID card

Working indication: Vibration + LED+ LCD

Event capacity: 500pcs

Memory capacity: 80,000logs

Impact record capacity: 32,000logs

GPS location: GPS+ Live map monitoring

SOS alarm: Press “up” key to send alarm signal

Communication: GPRS/magnetic type pogo pin USB cable. No need USB driver

Camera: 2.0 Mega take site photo

LED lighting: LED 5 modes lighting

Battery: 3000mAh built-in rechargeable lithium battery

Power consumption: 60~80mA

IP grade: IP65

Operation diagram

Content
