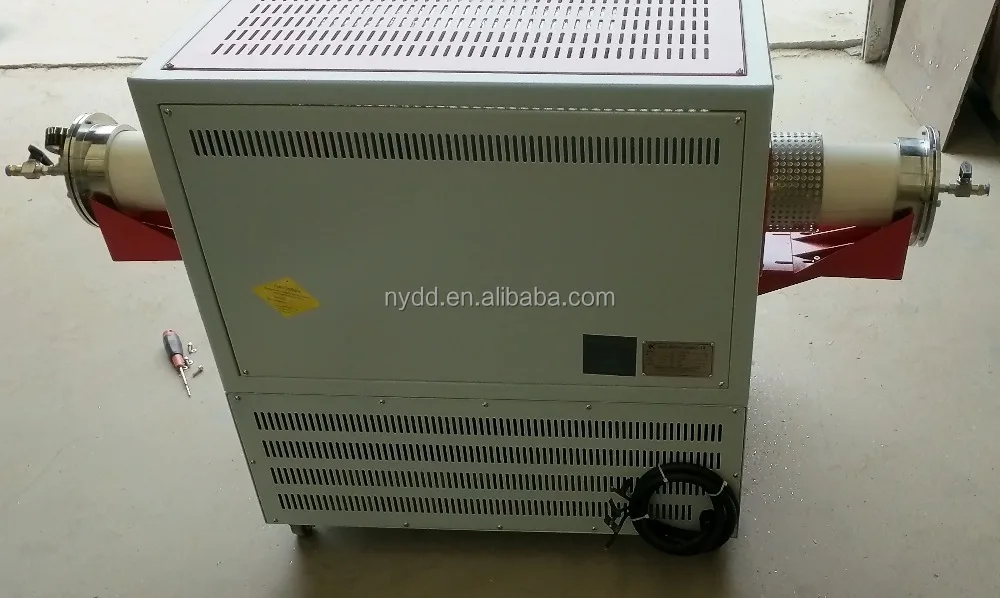

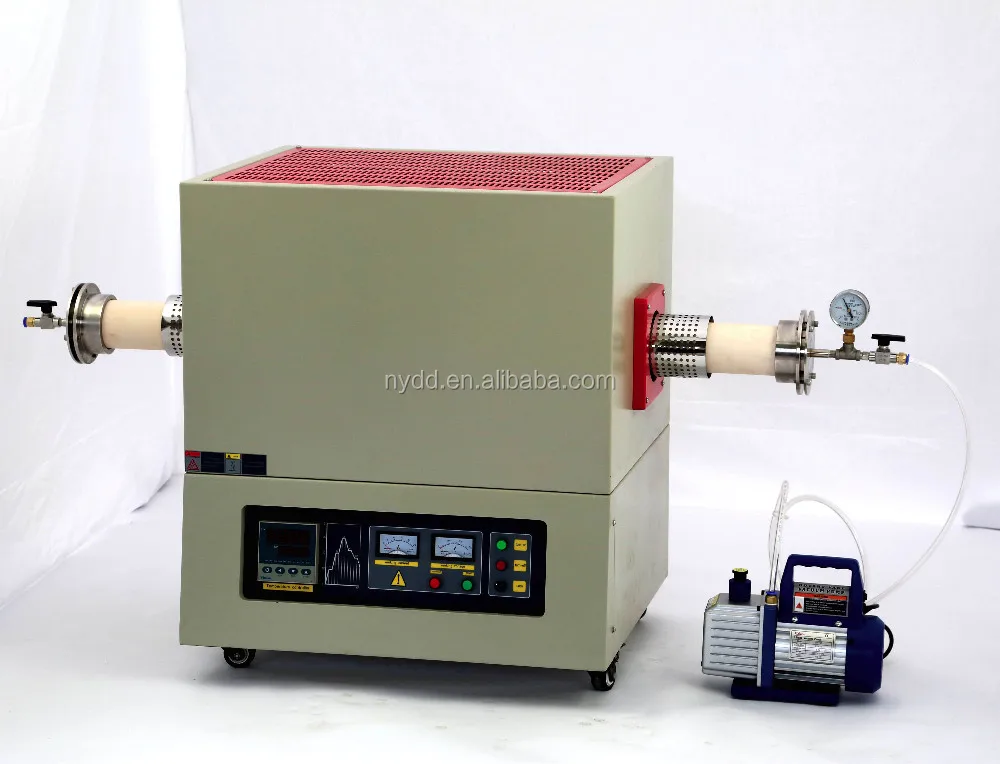

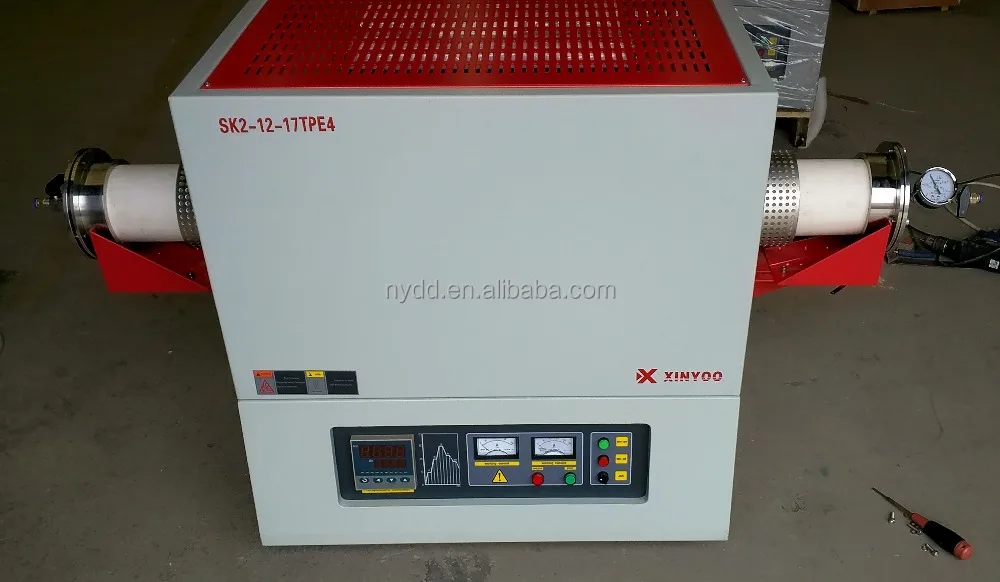

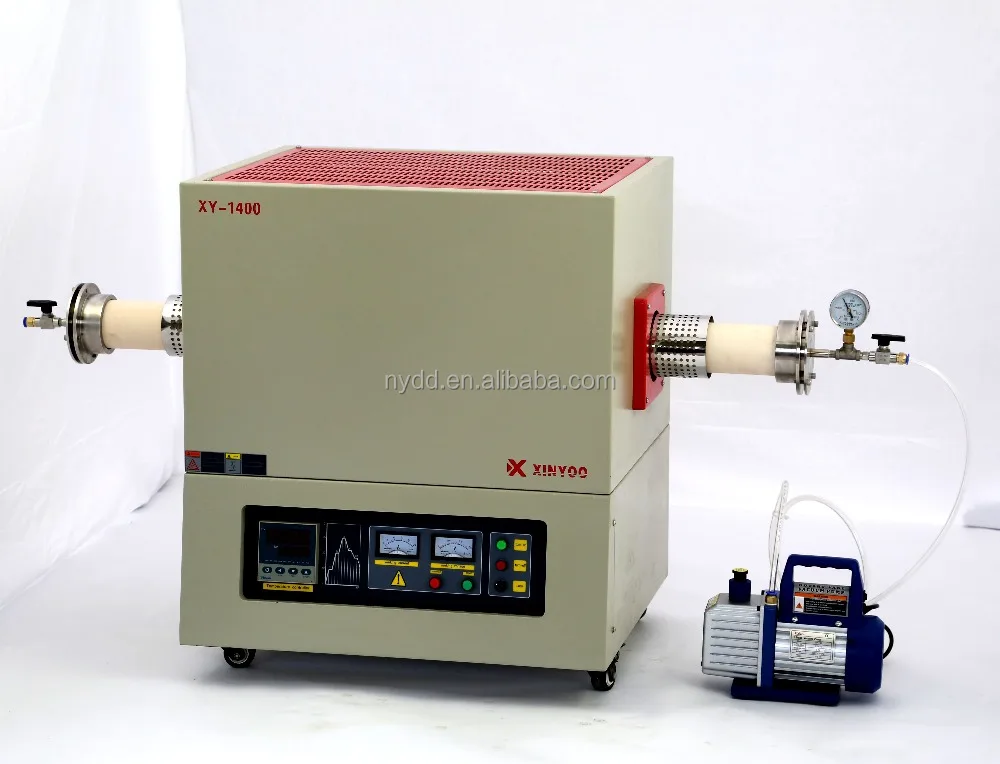

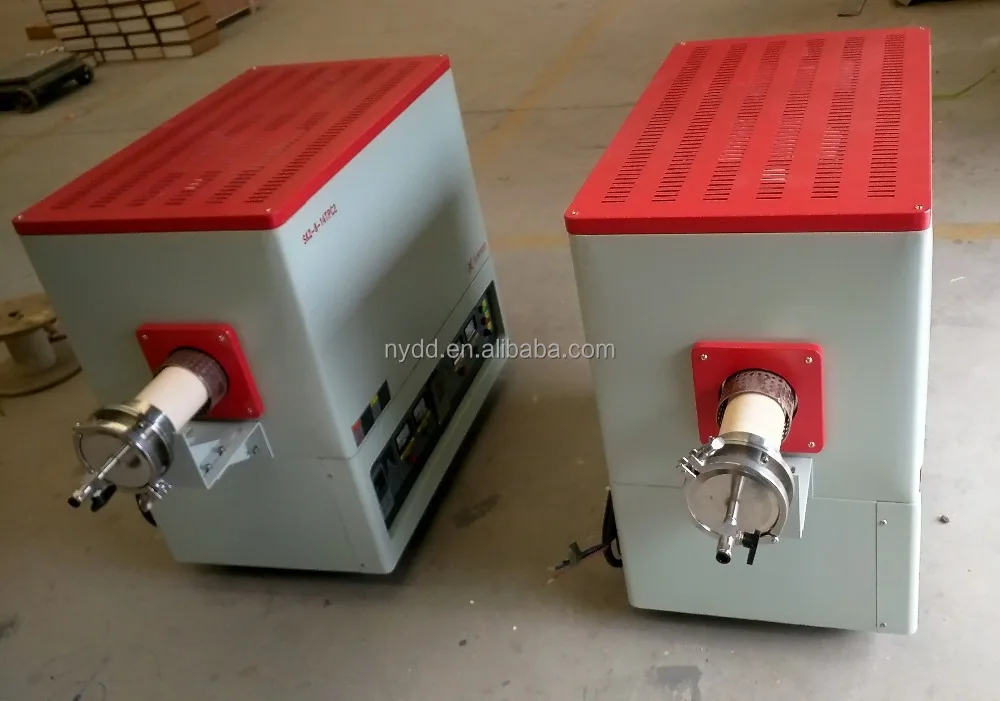

1700 Deg. Horizontal Vacuum Tube Furnace Used For Laboratory Pyrolysis
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60641591319):
Product Overview
Description
1700 Deg. Horizontal Vacuum Tube Furnace Used For Laboratory Pyrolysis
Laboratory Electric Tube Furnace, Split Vacuum Furnace, 2 Heating Zone Tube Furnace Application:
Tube furnace mainly used in chemical analysis, physical decomposition and synthesis,
super hard materials (such as ceramic), Rare and precious metal smelting and purification,
metal heat treatment of sintering process research and other scientific experiments.
Universities and colleges, scientific research institutes, medical and health, petroleum chemical
industry, mining enterprise, quality and technology supervision agencies,
and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Product Description
Furnace Structure & Chamber:
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than old style.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Vacuum tube furnace details specification :
| Rated Voltage & Power: | AC 220V 50/60Hz, 3kw |
| Tube Size: | Alumina tube Dia. OD40mm ID30mm, heating zone:200mm |
| Max. Temperature: | 1700.C for short time ; |
| Continuous Working Temperature: | 1600.C Max. |
| Max. Heating Rate: | 0-30.C /min, suggest to be 10.C/Min; |
| Temperature Controller: |
PID automatic control and auto-tune function. Each heating zone with one controller. |
| Temperature Accuracy: | +/- 1 .C. |
| Heating Element: | MoSi2 heater . |
| Vacuum: | rough vacuum -0.1Mpa, 5000pa,10Pa, 1.33x10^-1Pa, 1.33x10^-3Pa optional; |
| Atmosphere | Inert gas,N2,O2,CO2,Air gas available. |
| Thermocouple : | B type |

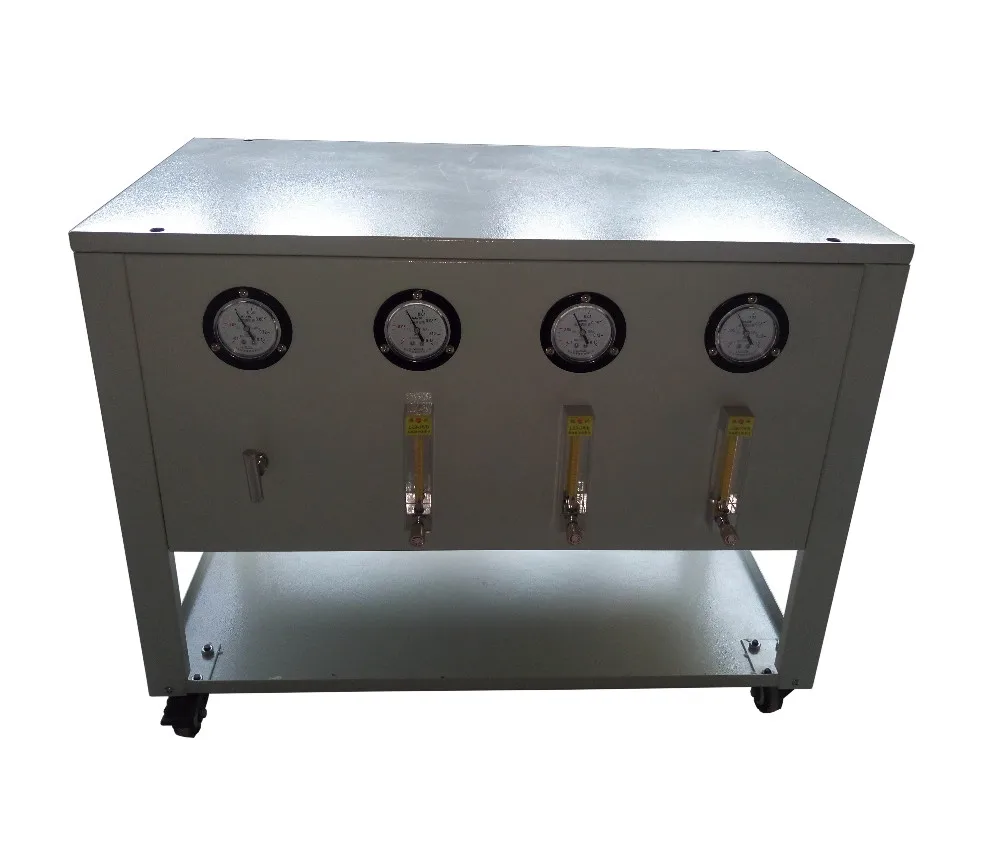

| Gas mixing system: | 2/3/4/5 Float flowmeter gas control/MFC gas control system; With One mixing tank; flowmeter range: 0.03-0.3SLM,10-100SCCM,16-160ml/min,25-250cc/min optional; For precision gas control, you can choose digital mass flow Control system instaed of float-meter. SCCM 0~5,10,20,30,50,100,200,500 SLM 0~1, 2, 3, 5, 10,15, 20, 30 |
| Standard Parts: | Crucible tongs 1pc, high temperature gloves 1 pair , one user manual. |
| Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop. |
Warranty: One year limited warranty with lifetime support, excluding heating element,cooling fans, thermocouple and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Some spare parts & External devices/parts :

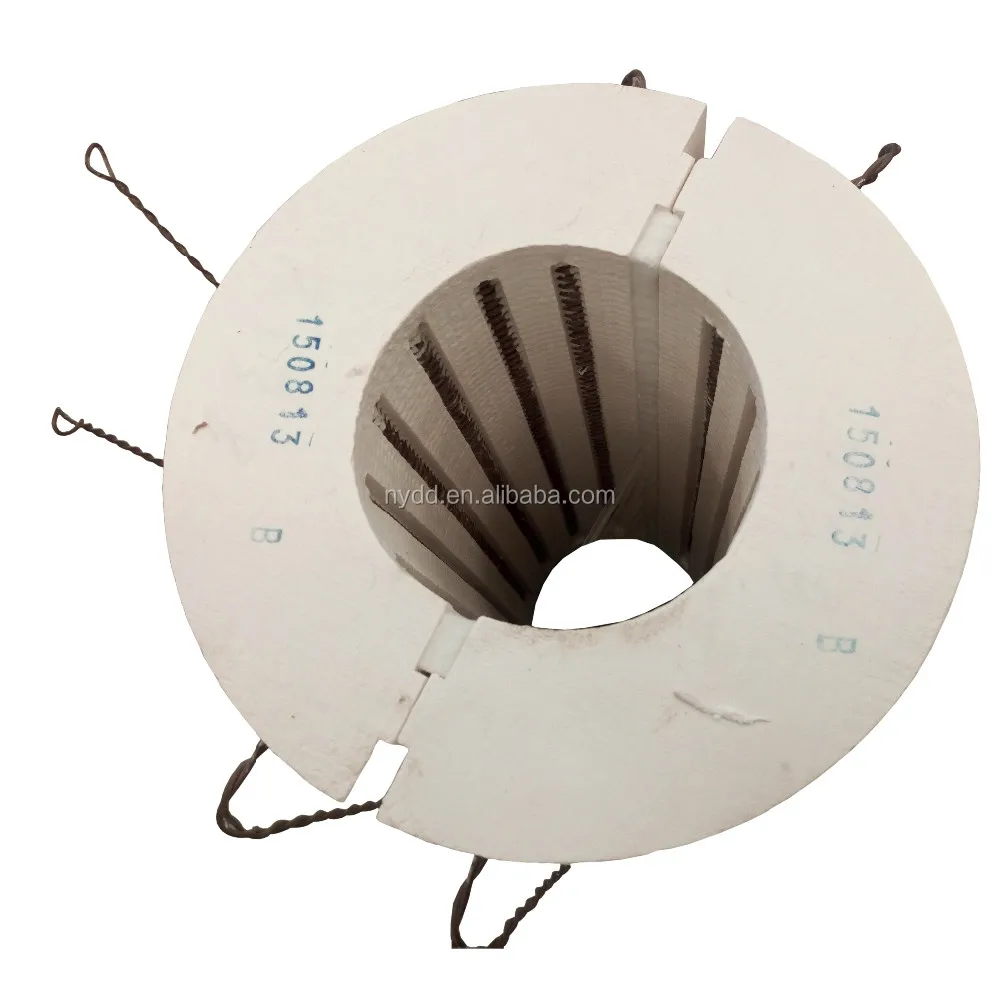

 | Chamber | Size depend on the chamber |

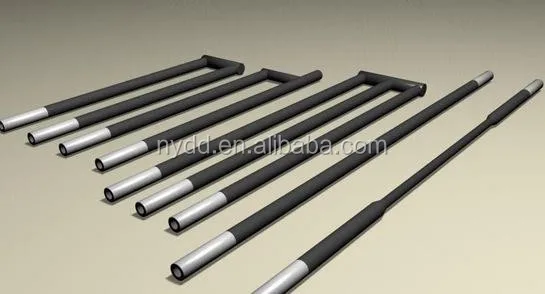

 | Heating elements | size: |

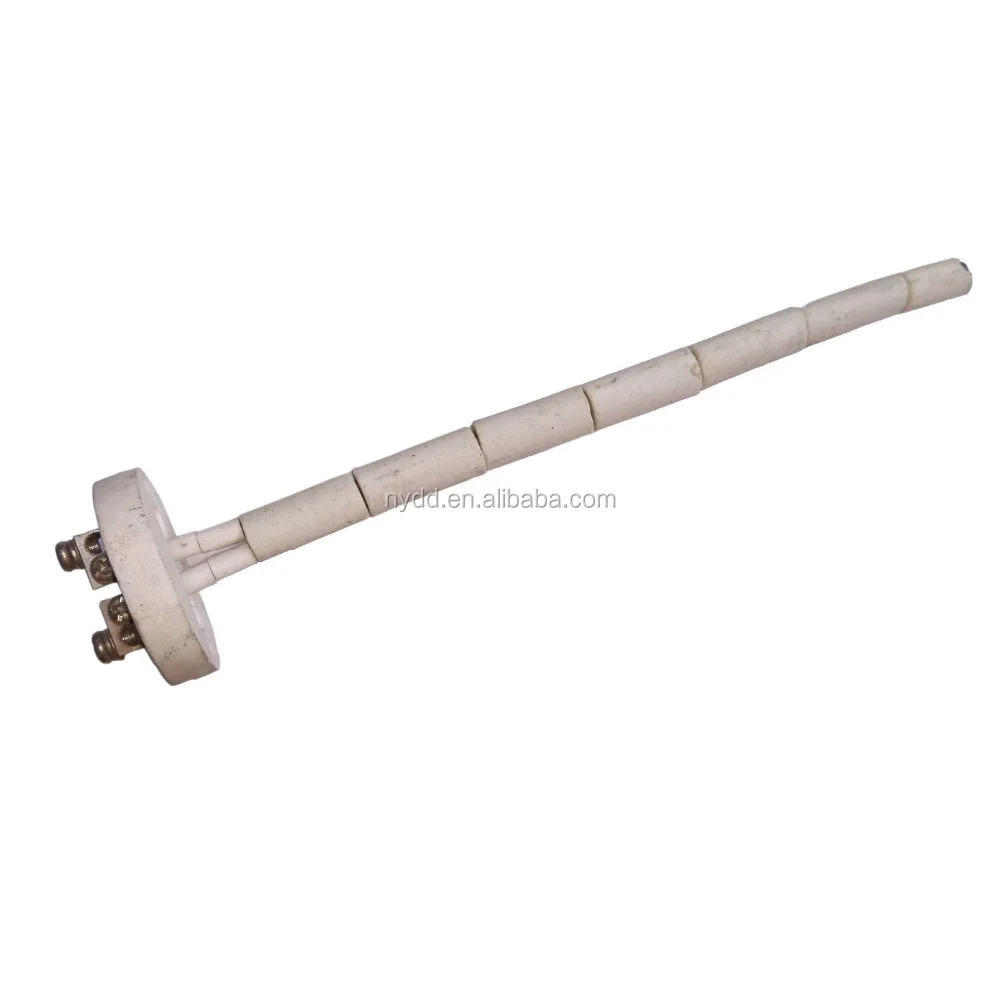

 | Thermocouple | B type |
| Alumina Crucibles | Size depend on clients' needs | |
| furnace tube (quartz/alumina/S.S) | Size... | |
| Touch screen controller | Available | |
| Paperless recorder | Available | |
| Remote communication control system | Available | |
 | 2/3/...9 gas channels mixing system desktop | Flow rate depend on clients' needs |
Packaging & Shipping
Shipping way : By Courier / By sea / By Air /By Train Optional, depend on clients' demad of time and cost.
Shipping terms: Support EXW /FOB/C&F /CIF/ CPT/CIP /DDU /DDP terms...
Even for some countires with high taxes and some Remote areas, we can ship goods to your Door address and including taxes.
