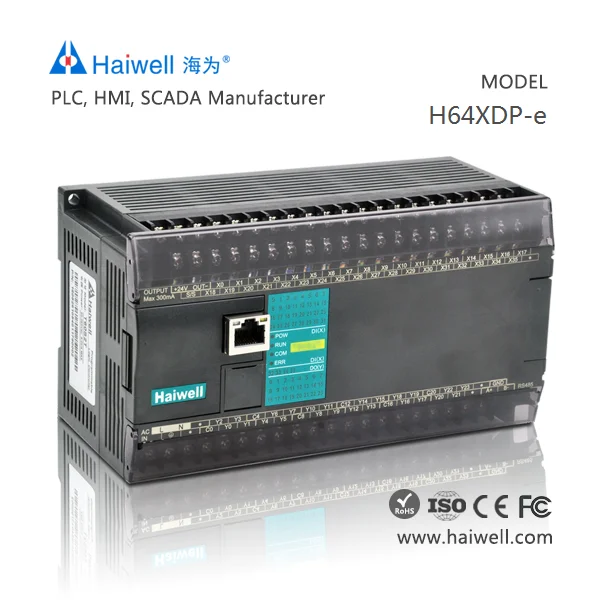

New design Haiwell H64XDP-e digital module for PLC controller automation with Ethernet port
Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator in China.
Very easy to study and use! It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.
Haiwell PLC Ethernet + : Host PLC and remote modules support Ethernet communication, host PLC support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support N:N network
type, support remote programming, debug, monitoring and data exchange. Easy to network with other PLC modules,HMI and PC via Ethernet port.
PLC Model Spec.
PLC Model | Power | DI | DO | Communication | Haiwell series |
H64XDP-e | 24V DC | 32 | 32 transistor PNP | 1*Ethernet port+ 1*RS485, supports remote IO functions | Digital IO module |
Haiwell PLC Digital Input (DI) Specification
Item | Digital Input DI |
Input signal | Non-voltage contact or NPN/PNP contact |
Action driving | ON: 3.5 mA above OFF: below 1.5 mA |
Input impedance | About 4.3KΩ |
Input maximum current | 10mA |
Response time | Default 6.4ms,Configurable 0.8~51.2ms |
Isolation mode | Each Channel optical isolation |
Input indication | LED light means ON, dark means OFF |
Power supply | PLC internal power supply: DC power(sink or source)5.3mA@24VDC |
Haiwell PLC Digital output (DO) Specification
Item | Relay Output-R | Transistor Output NPN-T | |
maximum load | Resistance load | 2A/1 point,8A/4 point per COM | 0.5A/1 point,2A/4 point per COM |
Inductive load | 50VA | 5W/DC24V | |
Light load | 100W | 12W/DC24V | |
Min. load | 10mA | 2mA | |
Voltage specification | Below 250VAC,30VDC | 30VDC | |
Drive capability | Maximum 5A/250VAC | MAX 1A 10S | |
Response time | Off-on 10ms,On-off 5ms | Off→On 10us, On→Off 120us | |
Leakage current when route opened | --- | Below 0.1mA | |
Isolation mode | Mechanical isolation | Each Channel optical isolation | |
Output indication | LED light means ON , dark means OFF | ||
Power supply | PLC internal power supply 24VDC | ||
Haiwell H64XDP-e PLC digital module terminal wiring diagram
Programming Software
HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users. All neccessary instructions are highly intergrated, Very easy to study and use.
It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.
Runing with Windows 98, Windows 2000, Windows XP and newer versions.
Totally free PLC software with all features.
PLC advantages
As for PLC advantages, We can visually feel them through the following Haiwell Cloud networking diagram.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades,monitoring and diagnosis etc.
Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.
