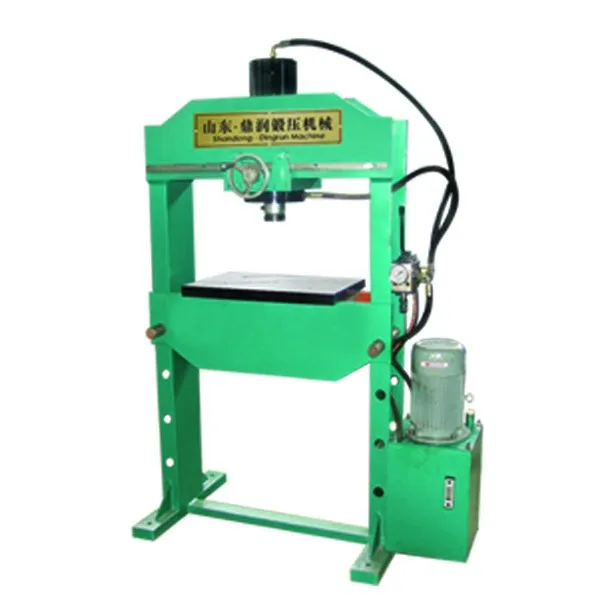

20 Ton Small Workshop Gantry Hydraulic Press Machine

Product Overview

Description

20 Ton Small Workshop Gantry Hydraulic Press Machine

Specifications:

20 ton small workshop gantry hydraulic press machine can be customized different tonnage different workstations according to customer request.

20 ton small workshop gantry hydraulic press machine ,the machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine. Machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.



Model	YM-20tA	YM-20tB
Max liquid working pressure (Mpa)	18	18
Stroke (mm)	200	200
Span length (mm)	420	420
Working table size (mm)	360x400	360x400
Motor power (kw)	2.2	3
Displacement oil pump (ml/r)	6	10
Descent speed (mm/s)	12	21
Return speed (mm/s)	19	32



Appliance field :

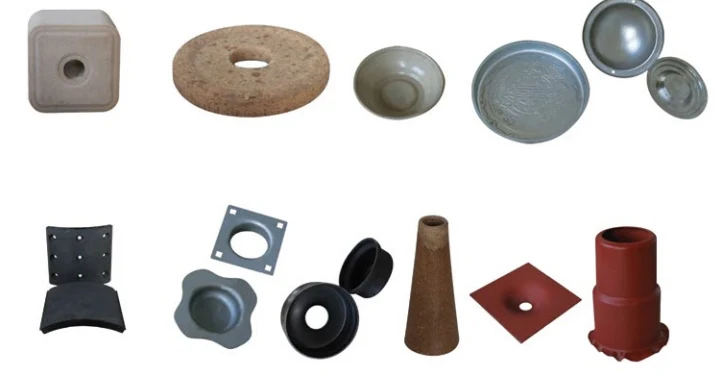

20 ton small workshop gantry hydraulic press machine is suitable for metal and non-metallic materials, the pressing process can also be used for plastic molding of the material. For example, watches, metal products, bicycles, motorcycles, tableware, electrical appliances, rubber, ceramics, powder metallurgy, etc.

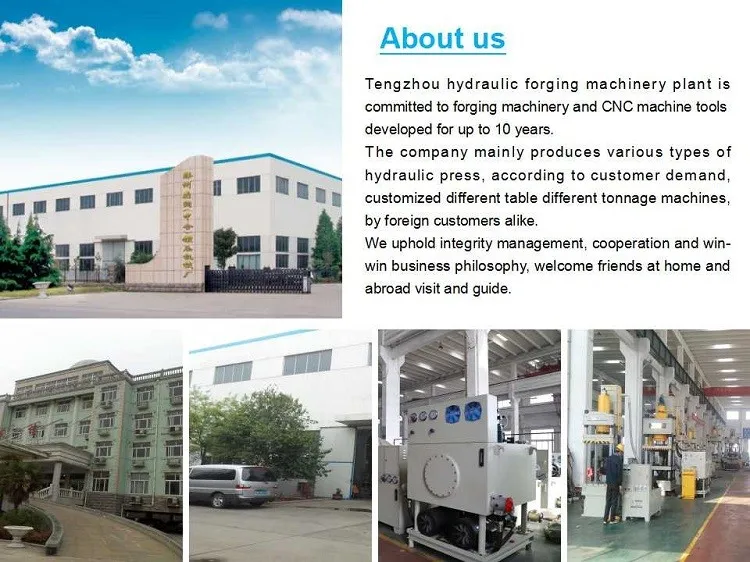

Company profile

Ding Run forging professional engaged in 20 ton small workshop gantry hydraulic press machine  and other hydraulic machines,CNC lathes and radial drilling machine, friends from all walks of life at home and abroad affirmed, welcome to visit our company.



Packing & Delivery

Precise packaging ensures that 20 ton small workshop gantry hydraulic press machine is safely transported to your destination
