China factory supply Ni hard 4 wear plate, chute wear liner, Nihard 4 billets

Typical applications of Wear Plates include Discharge Chutes, Hoppers, Rock Boxes, Excavator Buckets, Loader Buckets, Dragline Buckets, Face Shovel Buckets, Spider Arm Guards on Crushers.

\\

Hyster produce three kinds of wear plates to the mining and quarry market:

>> White iron laminated wear plates/Domite wear plates

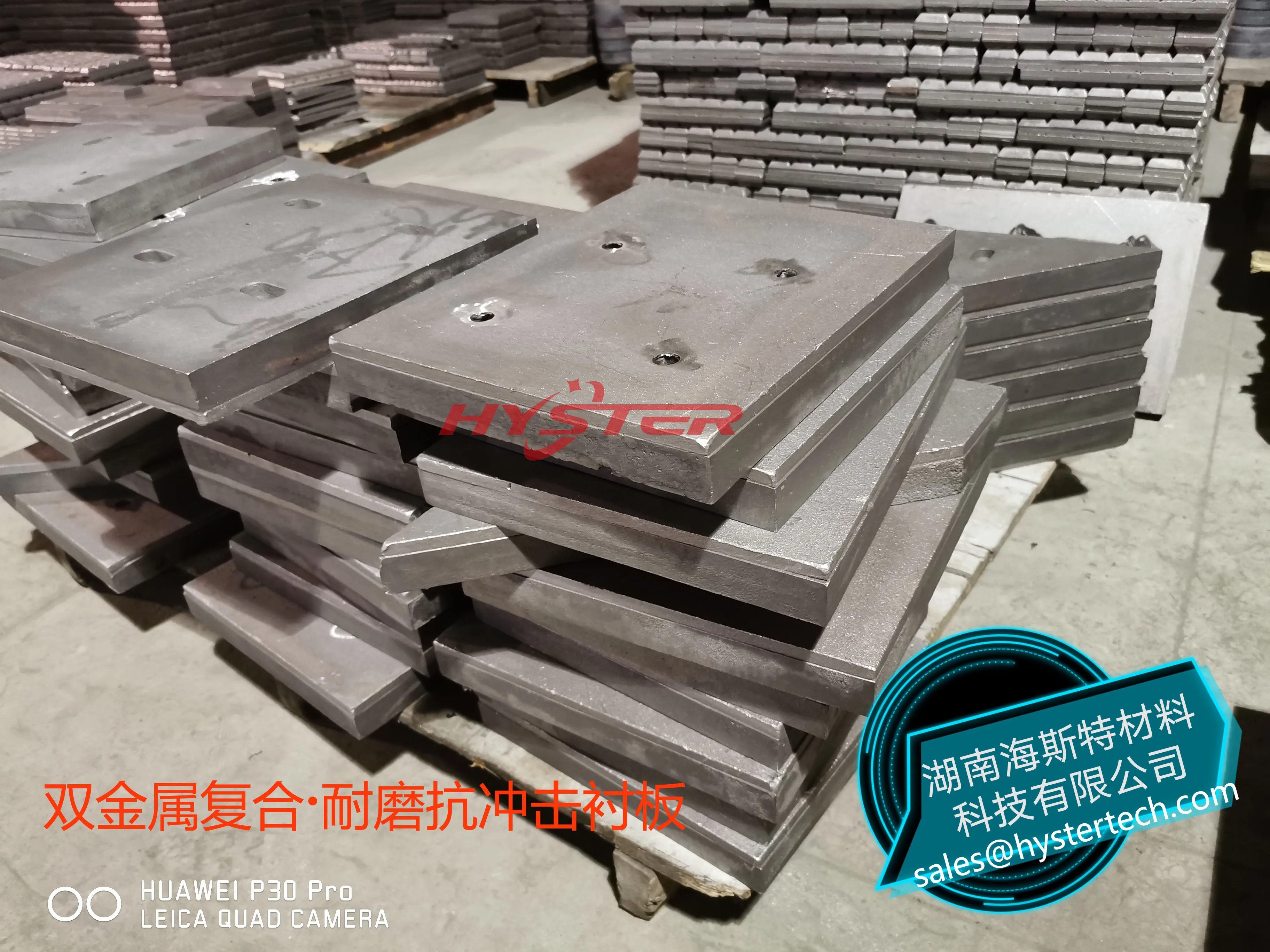

They combine very high wear resistant qualities of a high white iron plate(ASTM A532 15/3CrMo, 700BHN-63HRC) with a weldable & high impact toughness mild steel plate through vacuum brazing to create a product that is exceptionally resistant to impact and abrasion while retaining.

For different work conditions, we can control the thickness of the layer to reach the overall performance requirements, thus, at the same time, satisfy the abrasion-resisting demand and structural requirement of the wear-resistant parts, then to realize the efficient use of the scarce resources. Most usual thickness ranges from 15mm to 90mm.

>> Nihard Wear Plates/liners

NiHard is a well-established white iron product alloyed with nickel and chromium to give significant abrasion and impact resistant properties. The structure of NiHard is composed of iron and chromium carbides, fixed in a matrix rendered martensitic by the nickel content. This structure allows NiHard to be utilised in abrasive and high impact conditions found throughout the construction, mining, manufacturing and mineral processing industries.

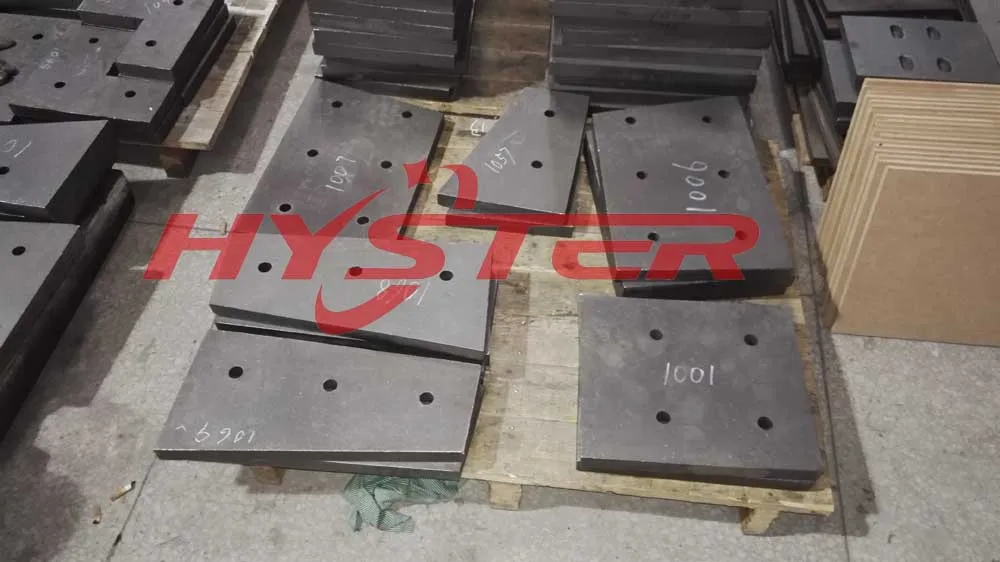

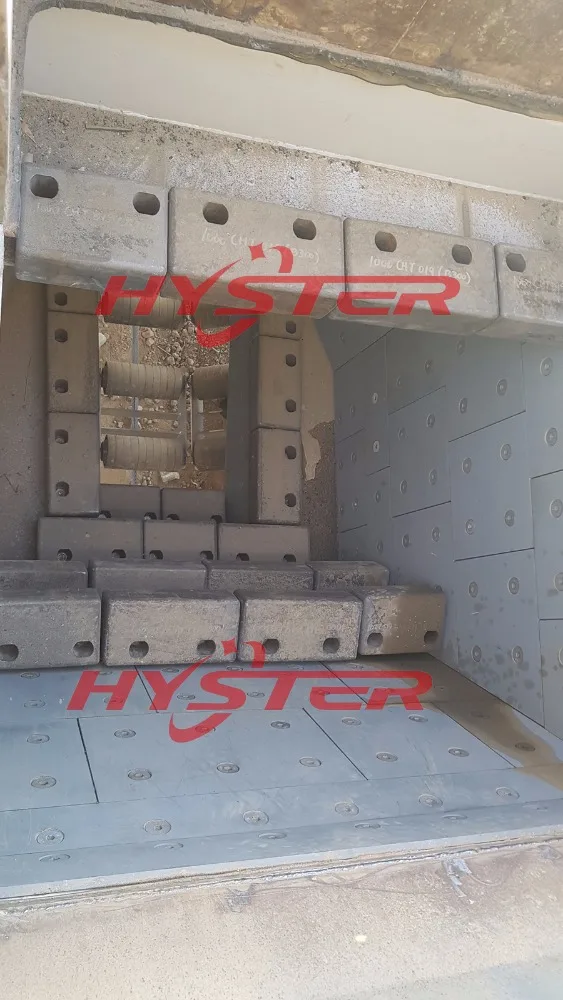

Our NiHard products include billets and liner plates that can be made to the customers' specification or supplied from our range of stock sizes. Our NiHard products can be custom designed to meet any situation regardless of any size and shape concerns. We can also supply cut and shaped liners to be strategically placed on fixed plant equipment so that a unique wear package can be created, maximising wear life. This makes NiHard the perfect material for chutes, drop boxes, bin and hopper liners.

We primarily supplies cast billet and liner plates produced to the NiHard 4 specifications.

However, we can produce billets and liner plates from the following alloys on special request:

   > NiHard 1 & 2

   > 27 Chrome Alloy

   > 15/3 White Iron

>> Chromium Carbide Overlay Wear Plates

OVERLAY-PLATE is welded by Chromium carbide overlay on a mild steel backing plate. Manufactured by our own design's welding machine with exclusive technique.

OVERLAY-PLATE has excellent performance in abrasion and impact.

Standard sheet size we can produce is 1500x3000mm, 1200x2400mm.

Thickness we can produce 4+4, 6+4, 6+6, 8+5, 8+6, 10+5, 10+9, 10+10, 12+12, 12+17, 10+20.

Note:

1. Other sizes can be made on request.

2. Liners can be cut to size on request.

3. Bolts/Nuts/Washers are available on request.

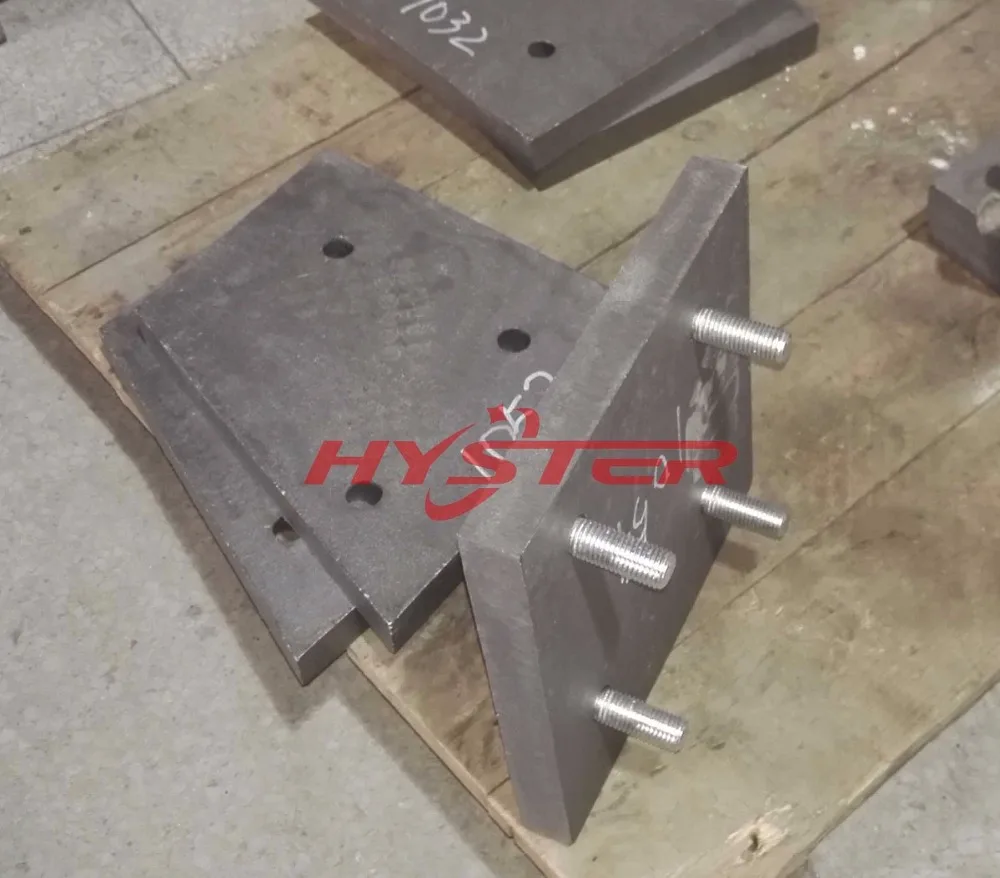

4. Holes are to suit M20 fishtail bolt

Hyster wear system is more than just a product. It is a combination of products, services and metallurgical expertise to provide superior wear protection for mining equipment and other industrial applications. A key part of this package is the Bimetallic Wear Products, a comprehensive offering of buttons, blocks, bars, runners, tiles and overlay plate to match any application.

Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.

Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.

Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.

Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.

Features and Benefits

Reduced Maintenance

• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate

• Lasts longer than other wear protection

• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity

• Reduced maintenance ensures maximum machine availability

• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow

Lower Operating Cost

• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit

• Bucket life is significantly increased, minimizing repair and new bucket orders

Typical Data Numbers:

>white iron wear blocks life is 50% greater than that of Ni Hard Irons.

>At least 7 times longer than A.R. type steels 360/400 BHN

>5 times the wear rate of Manganese Steel

>3 times the wear rate of Tapco Weld Hardfacing

>4 times the wear rate of Astralloy-Vulcan

>16 times the wear rate of Carbon Steel

>3 times the wear rate of 500 BHN A.R. Plate

Q: Are you a trade company or a manufacturer?
A: We are ISO9001:2015 Certificated factory with more than 25 years of production experience. .

Q: Where is your factory located ?

We are located in Changsha city, Hunan province. where is 2 hour flight away from Shanghai/Guangzhou.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or 15 days if the goods are not in stock. For customized products, it will take about 25 days.

Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free(usually 5KG maximum), but we will not undertake the cost of freight.

Q: What is your terms of payment?
A: 30% in advance, balance against copy of BL, payable via TT. Or Negotiable.

Q: Is the price Competitive?

We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q: Are the products High Quality?

Yes. All products will be checked before bulk production, and we will submit a Quality Report which include: the chemical composition, hardness, microstructure, dimension, UT ahead of delivery, this can be considered as our quality gaurantee.

Q: How to place an order?

 1. Please contact our salesperson by E-mail / Skype / Whats App below.

 2. We will make a feedback to you ASAP after receive your order list.

Q: How we can trust your company ?

We support Aliababa trade insurance , 100% products quality protection, 100% on -time

shipment protection, 100% payment protection for your covered amount.

Mrs. Shing Xiao | technical sales manager
