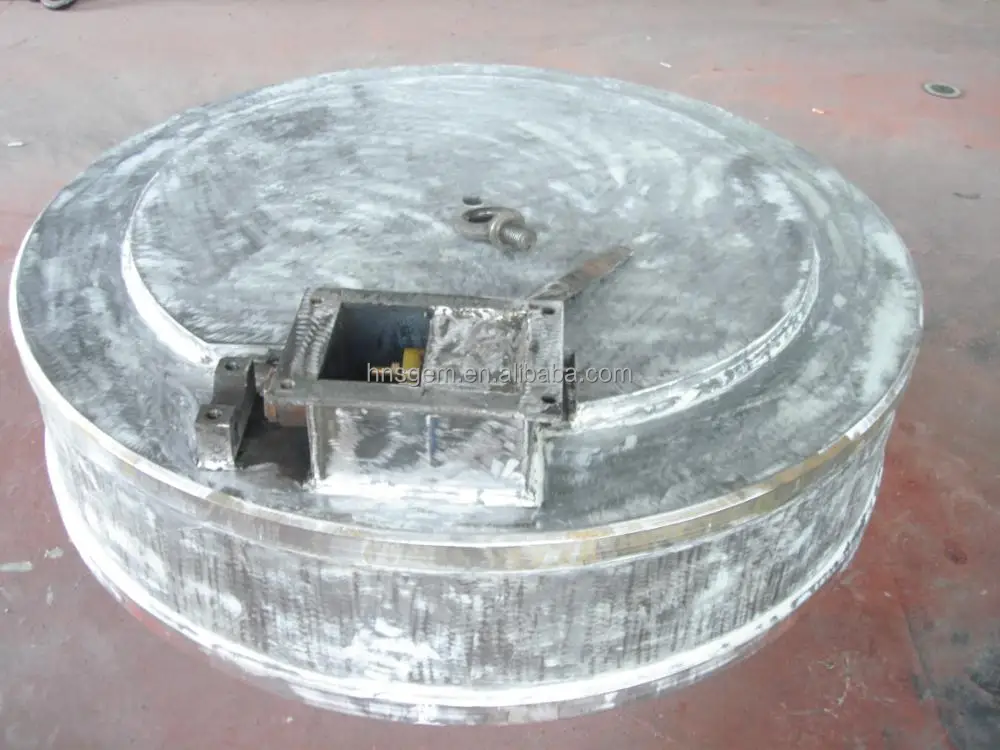

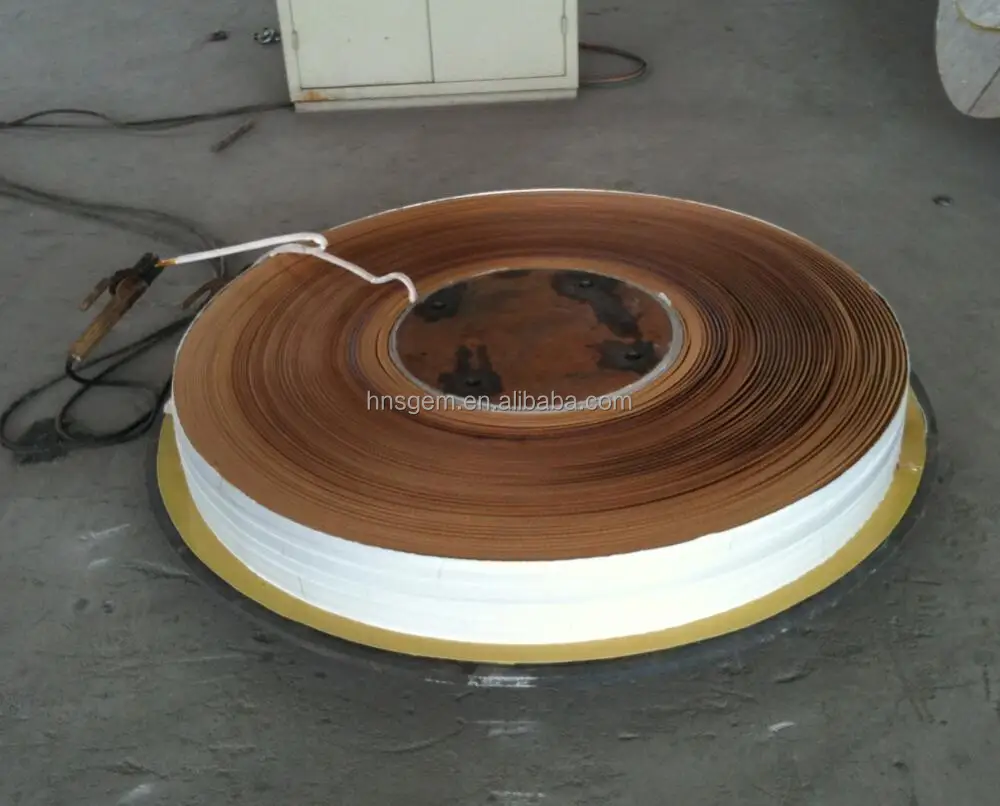

1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.
2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.
3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments
Product Name
Magnetic Separators & Lifting Magnets
Series No.
MW5
Diameter
800mm
Current
18A
Cold State Power
3.96KW
Rated Voltage
DC-220V
Duty Cycle
60%
Weight
620KG
Composite
Iron core, aluminum coil,,Q235 steel plate,carbon steel,mica sheet,ethoxyline resin,etc.
Application
Magnet used for lifitng and transporting magnet-conductive materials such as steels in metallurgy industry, mine industry, machinery industry,communication and transportation industry,etc.
Pakaging of Magnet
fixed iron frame with five-plywoodboard and no need fumigation
Lead Time
within 15 work days after deposit cofirmed
Payment
T/T, Western Union, LC at sight
Warranty
12 months
Notes
1. Please let us know your lifting capacity, we can make different diameter magnet based on your different requirements. 2. Our MOQ is 1pc. (Different quantity will with different price.)
Series No.: MW5

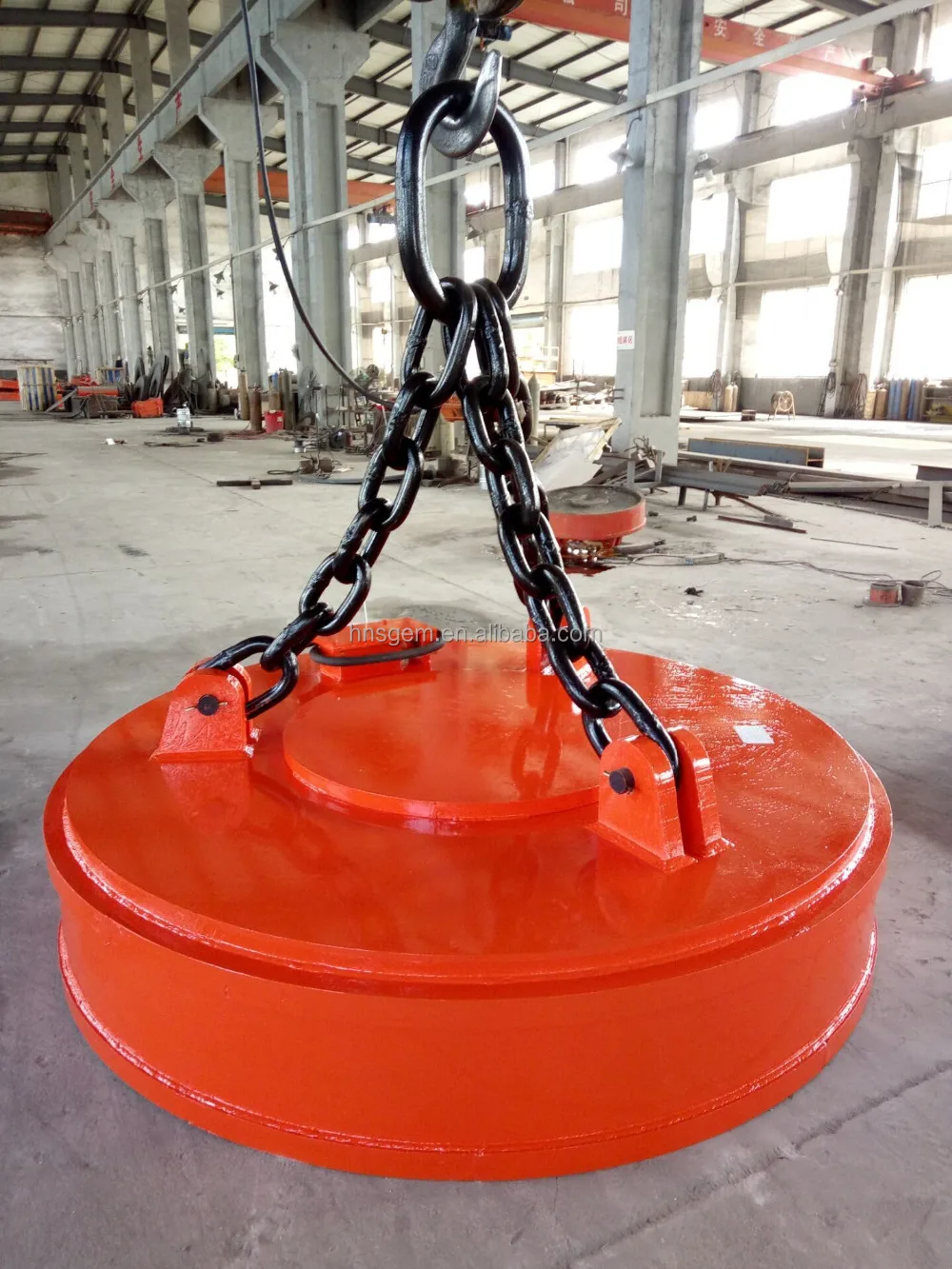

Product Name: Magnetic Separators & Lifting Magnets for Scraps

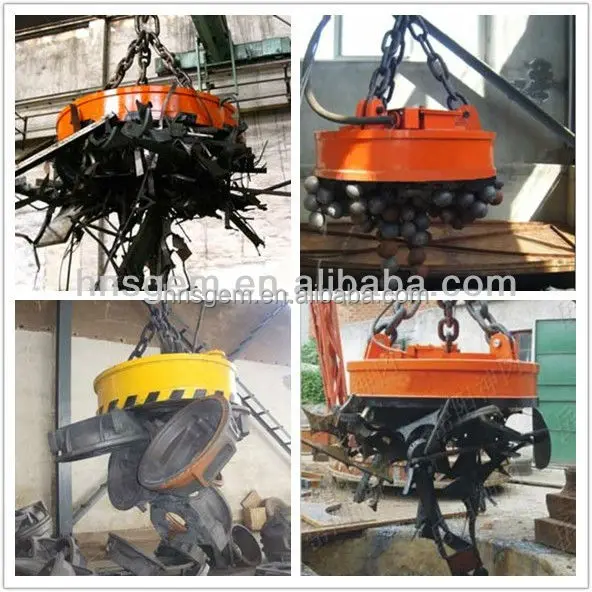

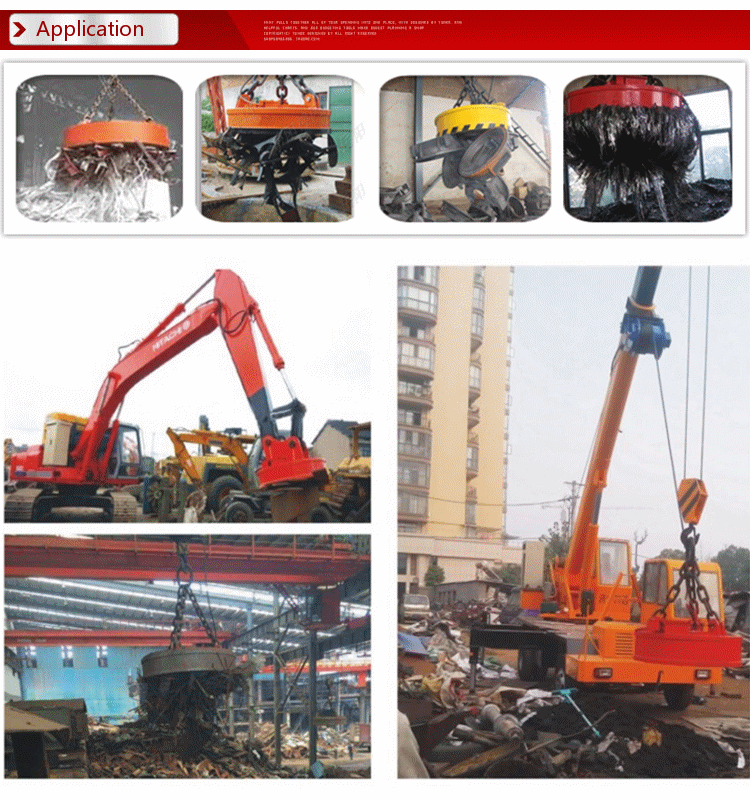

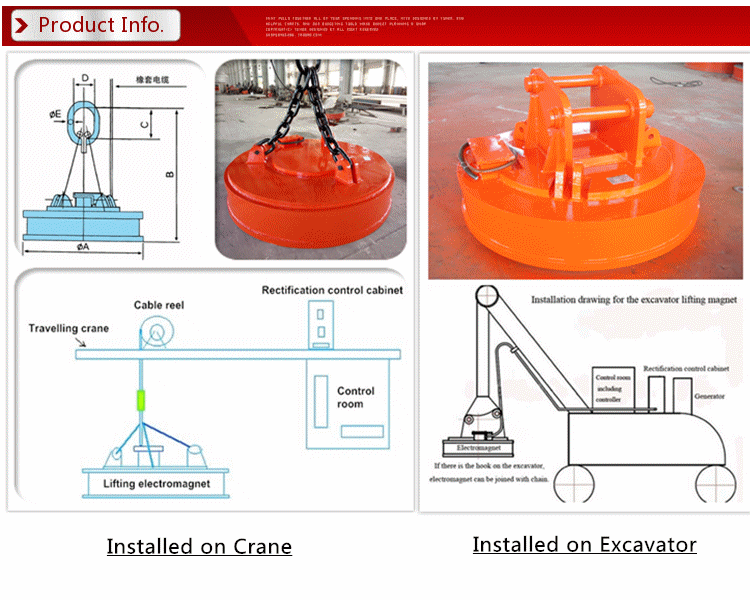

Application: MW5 series lifting magnet used to transporting cast iron, steel ball, and various kinds of steel scraps on crane,forklift and excavator,etc.
Classification: --Normal Temperature --High Temperature --High Frequency (75%) --Diving Type
Coil Type: --Aluminum Coil --Copper Coil

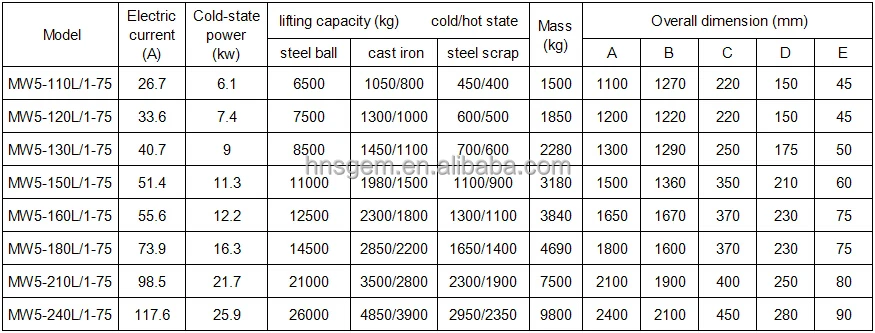

(DC-220V, Duty Cycle:75%, Normal Temperature Type,Aluminum Coil)
Company Information
We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.
We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.

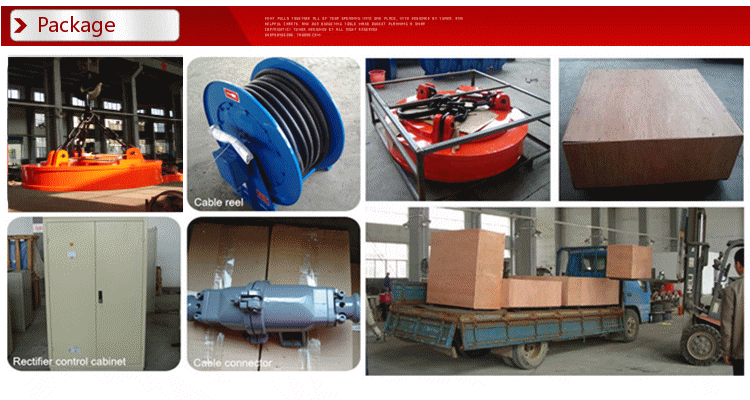

Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep Small Lifting Magnet Electric with a safety and long-distance transportation and no needfumigation when clear custom)

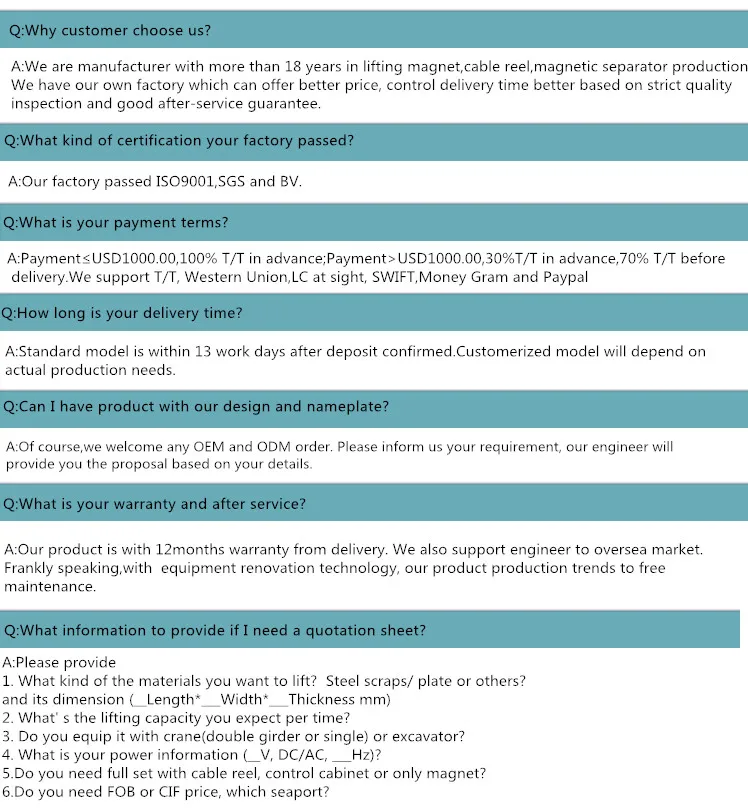

FAQ
