Автоматическая машина для резки бумажных трубок, машина для изготовления бумажных трубок в форме свечи, Упаковочные Трубы из крафт бумаги

Автоматическая машина для резки бумажных трубок, машина для изготовления бумажных трубок в форме свечи, Упаковочные Трубы из крафт бумаги

Category: Paper Processing Machinery >>>
Supplier: Jinan,Chengdong,Machinery,Manufacture,Co.,Ltd.

Price:8 500,00 $ - 9 200,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Product Application

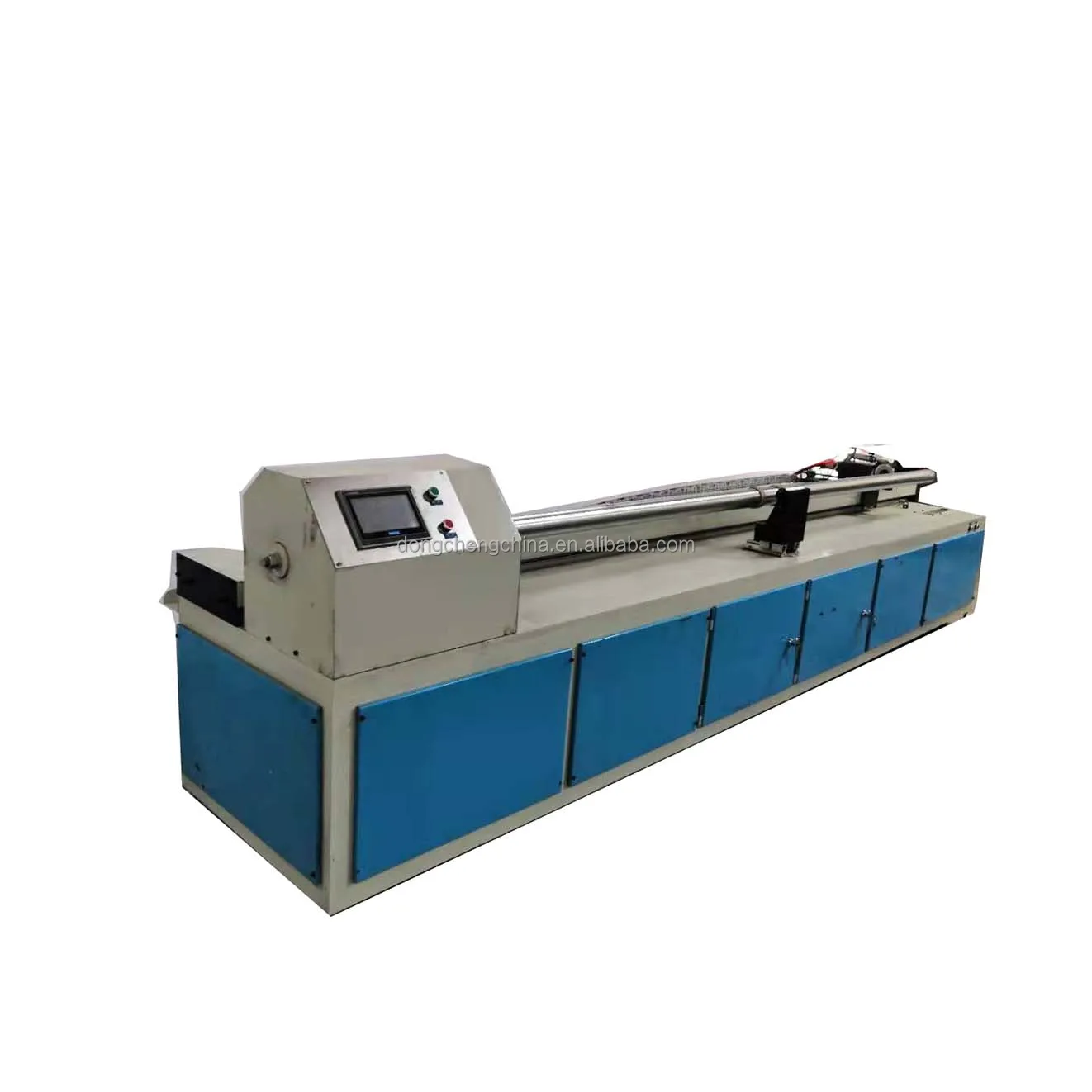

The machine is mainly used for cutting spiral paper tube into setting length. Adopt circular knife, made fracture surface smoothly. it can be set the cutting length freely, to cutting different length at one time. Adopt PLC controlling, human-computer interface. Automatic knife return device, cutting knife touches the rotary shaft, automatic return back to avoid damage.

SPECIFICATIONS FOR Automatic Paper Core Cutting Machine
Process Tube size	Papaper Tube Diameter		50~152mm or customized
		Paper Tube wall thickness		2~20mm
		Paper Tube length		3000mm or customized
Main performance parameters	Servo Motor power		2KW
		Rotary motor power		1.1KW
		Production efficiency		3~6 pcs parent tube /min
Machine structure	Electric system		PLC contrl,HMI input
		Positioning contol		Servo motor positioning

Main Features

1) Simple structure in linear type ,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Servo Motor control positioning with high accuracy

4) PLC Control,HMI input

5) Could equipped with tube pushing device

Detailed Images

Machine Parts

Name: Cutting Unit

Brand: Servo control

Servo control cutting unit with higer accuracy,move fast and automatic quickly return after paper tube finish cutting

Machine Parts

Name: Tube unloading device

Automatic unloading paper core from cutting shaft

Machine Parts

Name: HMI Input

Easy operation,input any required length,the machien will automatically running

Main Parts

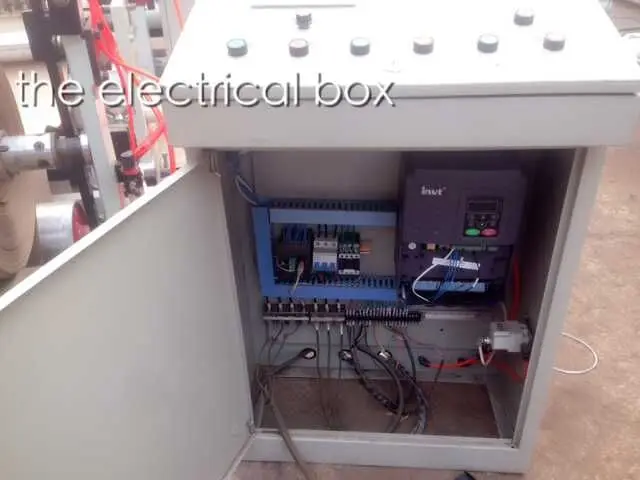

Name: Electric box

Domestic famous engines, strong driving force, low fuel consumption, high economic
