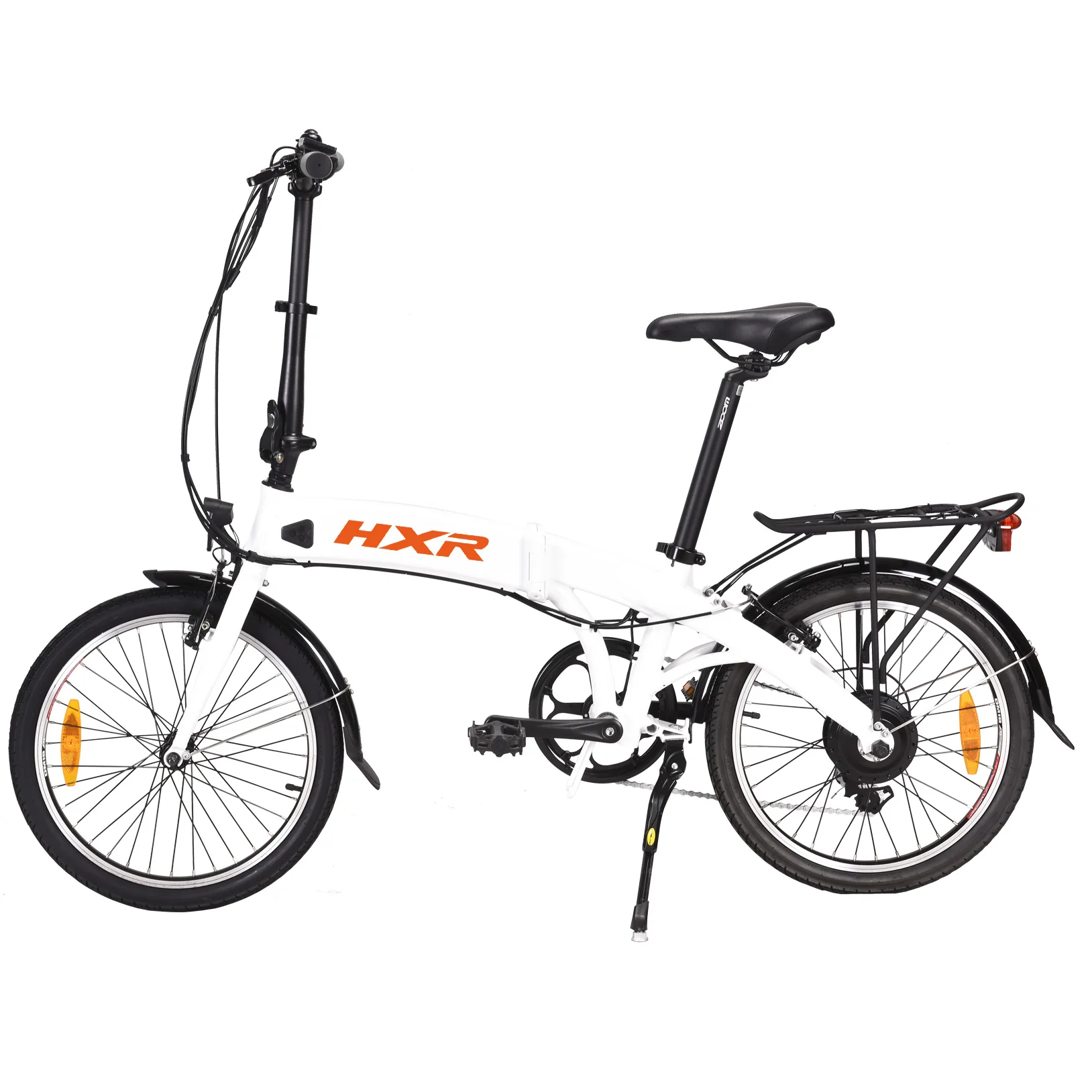

20 inch 36v 250w new style folding electric bike

Product Overview

Description

20 inch 36v 250w new style  folding electric bike

 what is the specialty?how about the warranty?

 Warrant Warranty Period



1.36 months for the Frame.
2.24 months for the electric motor.
3.12 months for the Li-ion battery.
4.12 months for the controller.
5.12 months for the charger .



Model:TDN04Z

Electric System



1)motor:250W Brushless (XOFO)

2)Battery:King-Co,Li-Poly (NMC),36V,10Ah

3)charger:AC110V--240V,47-63Hz (ABT)

4)PAS:1:1 Intelligent pedal assistant system 4-level option (neutral gear,1,2,3)

5)Controller:Intelligent controller (LSW)

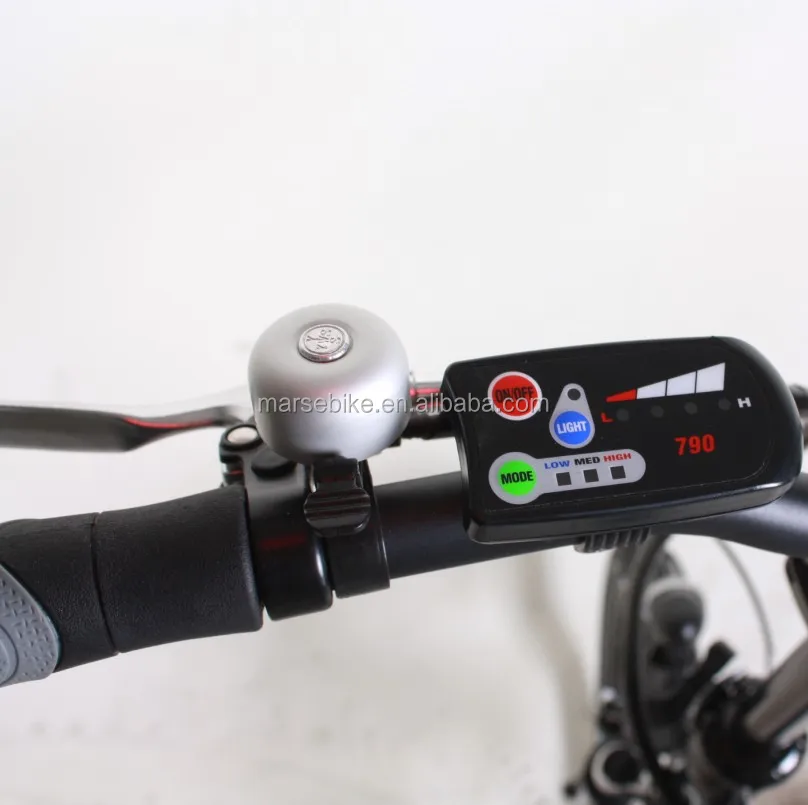

6)DISPLAY:JIATE,LED,790,4 assistant model

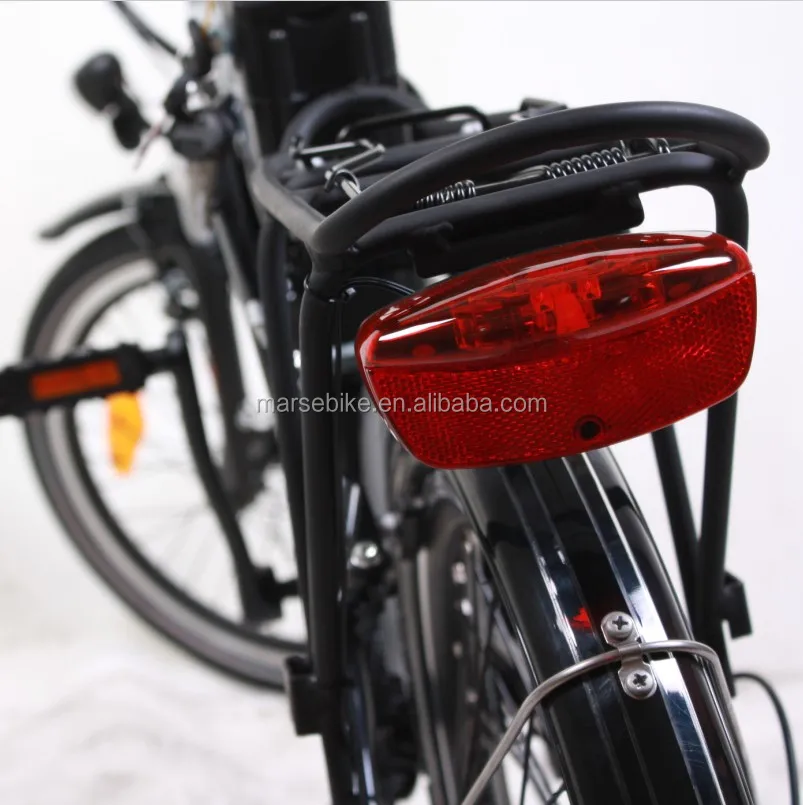

7)Front Light/rear light:LED



Performance & Paking





8)Max speed:25km/h-32km/h



9)Driving distance:45-70KM



10)Charging time&life:6-8 hours,>500 times



11)Max loading:95kg-125kg



12)G.W./N.W.:29/23Kg



13)Product size:1620×640×1165mm



14)Packing size:1300×270×640mm



Main Cable System



Main Components



15)frame:6061 Aluminum alloy (PSJ)

16)front fork:Al alloy Suspension (ZOOM)

17)rim:Al alloy double wall

18)tyre:KENDA  20"×1.75

19)spokes:Steel spokes

20)handlebar:Al alloy, MTB(ZOOM)

21)stem:Al alloy, TR(ZOOM)

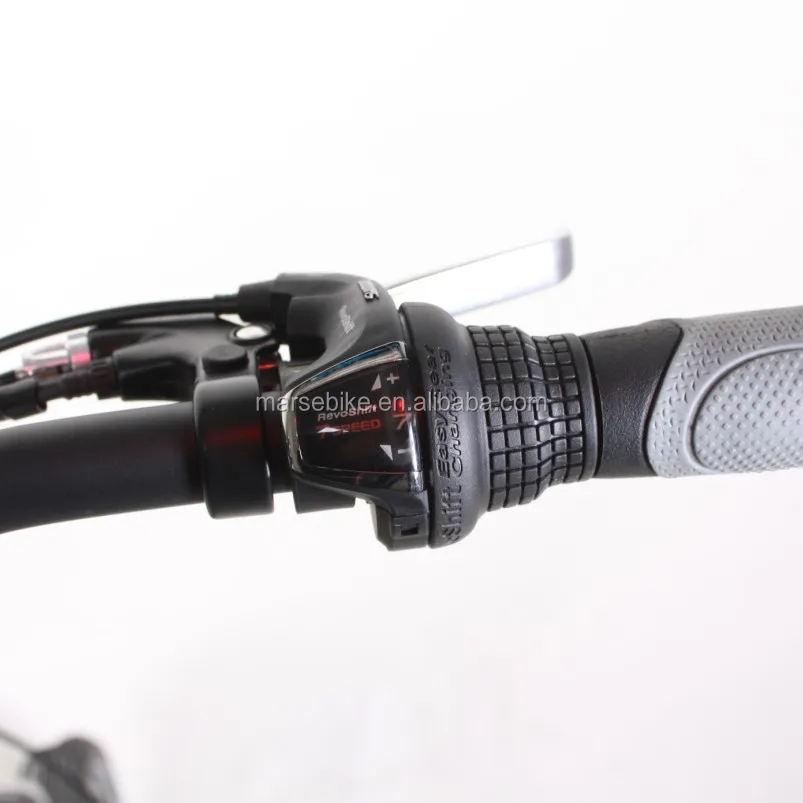

22)Derailleur:SHIMANO RS35-7 speed

23)Rear derailleur:SHIMANO TY21D

24)Brake level:Al alloy (WUXING)

25)F/R brake:V-brake,WINZIP

26)Grip:DC

27)Throttle:Optional

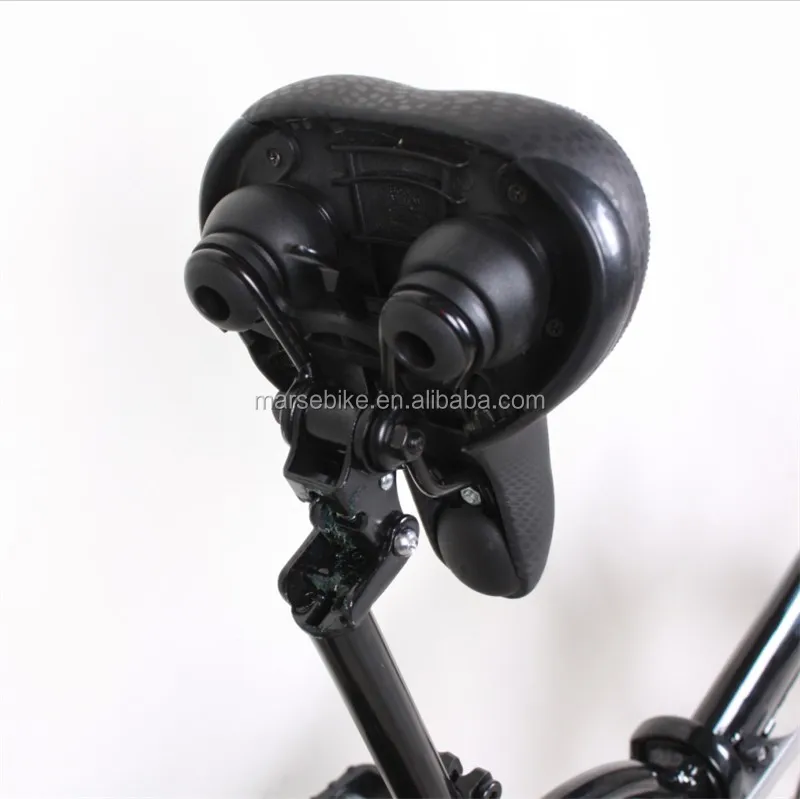

28)sadddle:GRAND STAR,908 (GS)

29)Seat post:Al alloy (ZOOM)

30)Crank Set:PROWHEEL 52T

31)chain:Rust resistant chain,Z33,KMC

32)Pedal:YH-99X

33)Freewheel:SHIMANO,7R

34)Mudguard:PC (Bikeman)

35)rear rack:MASSLOAD
