Простая установка, цифровой Удлинительный контроллер для конференц связи, беспроводная система видеоконференций, хост
- Category: Video Conference System >>>
- Supplier: Guangzhou Baolun Electronics Co. Ltd.
Share on (60642012287):
Product Overview
Description
Flexible price mcu conference room audio system
Product Description
ITC™ TS-0604 Series Intelligent Conference System adopts tech. of digital audio transmission. With the help of official software, users could manage the whole system and control the schedule easily. Multiple functions is available, such as discussion, telephone conference, voting, camera tracking, simultaneously interpretation, etc. It mainly consists of highly integrated system host, conference microphone, and management software.
Features

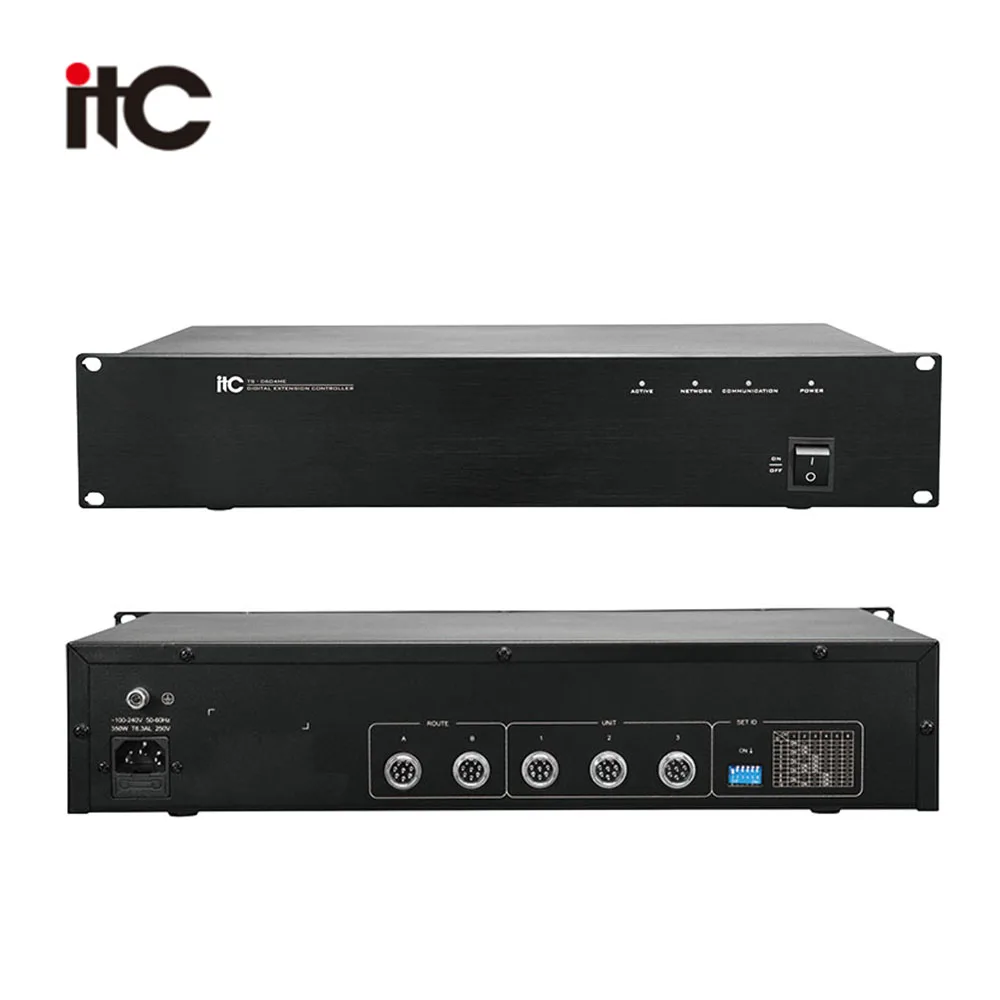

1. Use together with the Standard Digital Conference System Controller to expand system capacity by connecting more units.
2. Each Extension Controller can connect 128 units after connecting to system.
3. Can cascade up to 32 pieces Extension Controller.
4. It passed the high voltage (3500V ) test when leaving factory to meet safety standard.
5. Metal chasis and internal circuit have strengthened the connection with the ground to ensure the 8000V antistatic ability.
6. 2U metal case can be mounted in standard 19-inch rack, easy to place and maintenance.
7. Built-in universal power supply.
Specifications
Model | TS-0604ME |
Power Supply | ~90-132V/180-264V 50/60Hz by switch |
Static Consumption | 10W |
Output Power | 340W |
Audio Output | Level 2Vp-p Impedance:100Ω Unbalanced |
Frequency Response | 60Hz-16KHz |
SNR (S/N) | >75dB |
THD | < 0.5% |
Over Carrier Distortion | <1% |
Crosstalk Attenuation(1KHz) | >50dB |
Interface | 8-pin plug × 5 / three-core AC main power socket |
Color | Black |
Weight | 2Kg |
Dimension (L ×W×H) | 484×305×88mm |
Digital Desktop Discussion Conference Microphone TS-0602
System Diagram

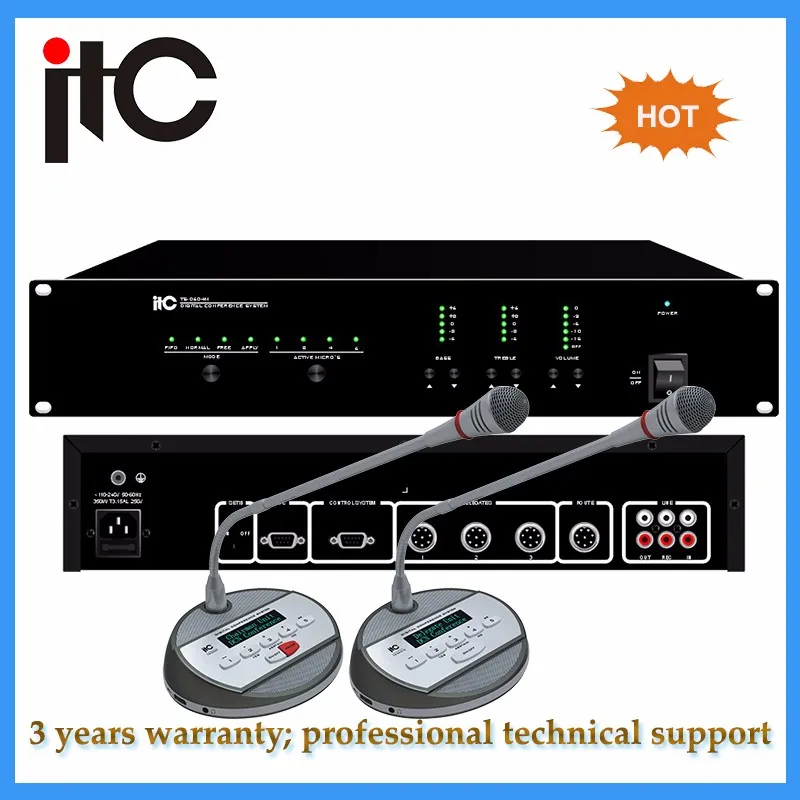

Product List
1) TS-0604M Intelligent Conference System Controller
2) TS-0602/TS-0602A Chairman/Delegate Conference Microphone
3) TS-16P-4 Series Audio Mixer
4) TS-200PI Precise Series Professional Amplifier
5) TS-8A Series Professional Speaker
Function
1) When participants want to speaker, they just need to press the button named “MIC”
2) Chairman unit has the highest priority
3) 4 modes of conference management: First-in-first-out (FIFO)/Normal/Free/Apply
4) The host is with audio output for sound reinforce devices
5) Up to 128 speaking units are allowed, and if users want more, just add a expansion host so that the capacity of speaking units is up to 4096
Application
Main Product
Company Information
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as conference system, video conferencing, professional sound system, multimedia central control system,IP System,Public Address System,Evacation System, etc. What's more, our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou Asian Games, etc. For now, we have up to 200 thousand successful cases in China and in worldwide.
Our products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
