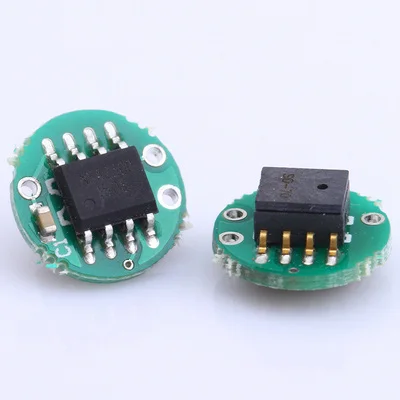

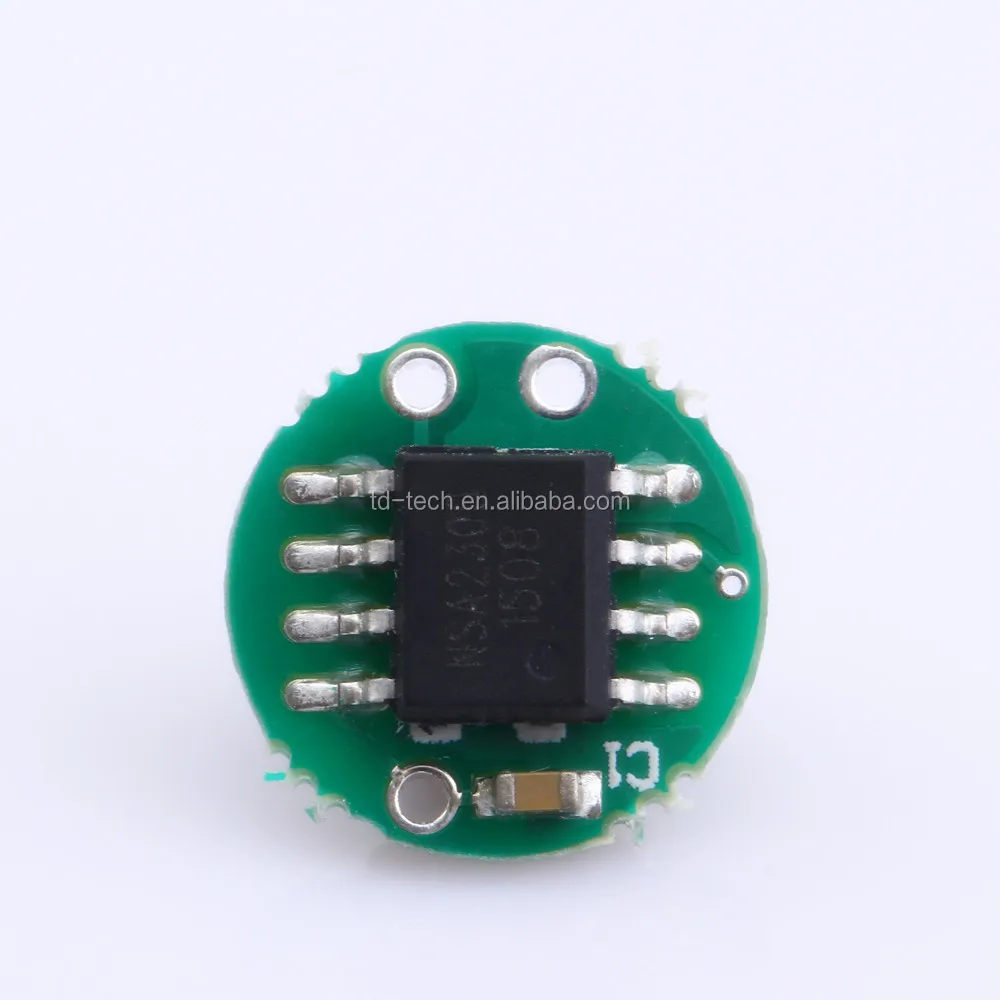

Taidacent XGZP6848 700Kpa Steam Pressure Gauge Pcb Pressure Sensor Electronic Differential Pressure Transmitter
- Category: Pressure Sensors >>>
- Supplier: Shenzhen,Taida,Century,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Taidacent XGZP6848 700Kpa Steam Pressure Gauge Pcb Pressure Sensor Electronic Differential Pressure Transmitter
| Product Item | Mini Pressure Sensor Absolute Type Oil Sensors |
| Product Type | XGZP6848 Pressure Sensor Module |
| Advantages | Calibrated & Temperature compensated |
| Medium | Gas(Clean,dry air and Non-corrosive gases) |
| Pressure Range | 0kPa~110kPa...1600kPa(0PSI~16PSI...230PSI) |
| Pressure Type | Absolute Type |
| Power Supply | 5V(or 3V , 3.3v by custom) |
| Output Signal | 0.5-4.5V( Or by custom ) |
| Accuracy | ±1.0%Span |
| Working Temp | -30℃~+100℃(-22℉~+212℉) |
| Reponse time in milli second | <1ms |
| Temperature compensated range | 0-70℃(0-140℉) |
| Over Pressure | 2X |
| Sensor warm up period | 20ms |
