JP 350D Automatic Plastic Blister Packing Machine for Toothbrush
- Category: >>>
- Supplier: Huizhou Pingfang Trading Co. Ltd.
Share on (60642176950):
Product Overview
Description
JP-350D Automatic Plastic Blister Packing Machine for Toothbrush
Product Description
I. Introduction:
JP-350D series blister card toothbrush packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.
II. Features:
1) Mechanical transmission, servo motor driving, encoder control, reasonable Structure, easy operation.
2) Rotating table type heat sealing which will improve the sealing result, reduce the mould expense and help to change the mould conveniently.
3) 304 stainless steel frame, beautiful appearance, convenient for cleaning.
4) PLC control system, frequency speed adjust, which will help to reduce the noise And improve the running stability of the machine.
5) Photoelectrical control, auto detection.
6) The whole machine is separately designed, it is convenient to delivery with lift.
7) To design the mould and auto feeding method according to the product shape.
III. Technical diameters:
Maximum size of card | Width: 350mm, thickness:&nb sp;250-700g |
Maximum size of PVC | Width: 250mm, thickness:&nb sp;0.25-0.40mm |
Cutting frequency | 15-25 times/ minute |
Travel range | 225mm |
Max. Forming depth | Standard: ≤38mm, spec ial: ≤60mm |
Max. Forming area | 340*210*38mm |
Noise | 60-70dB |
Air pressure | 0.5-0.7Mpa |
Air flow | ≥0.3m³/min |
Total power | 380V 50Hz 9kW,& nbsp;3-phase, 4-wire |
Main motor power | 1.5kW |
Overall dimension | 5300*840*1670mm (L*W*H) |
Machine weight | 2500kg |

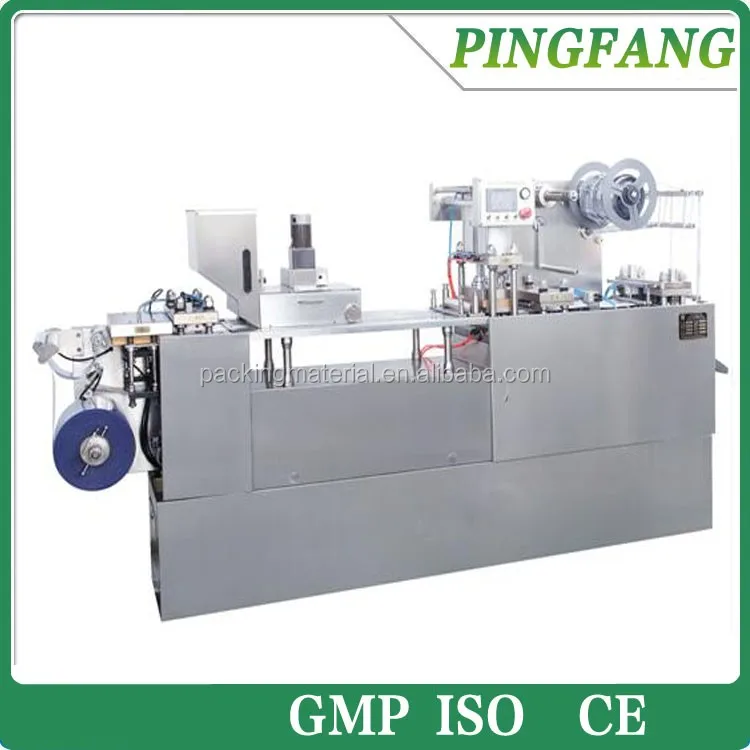

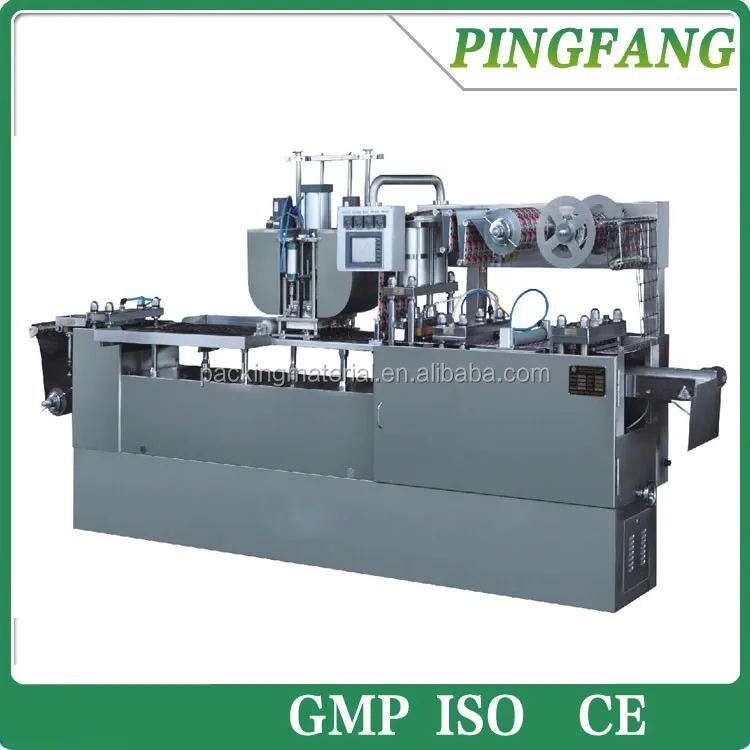

other machines

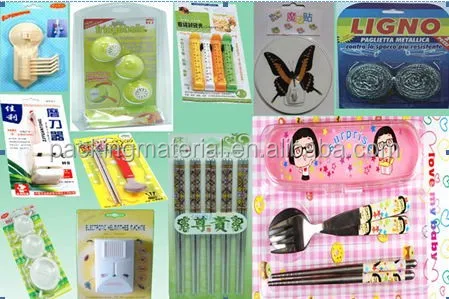

product samples
Packaging & Shipping
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Company Information
Our Customers:
Our Certificates:
FAQ
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Our Services
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
