3 lamps car shortwave infrared curing lamp,infrared paint dryer

Product Overview

Description

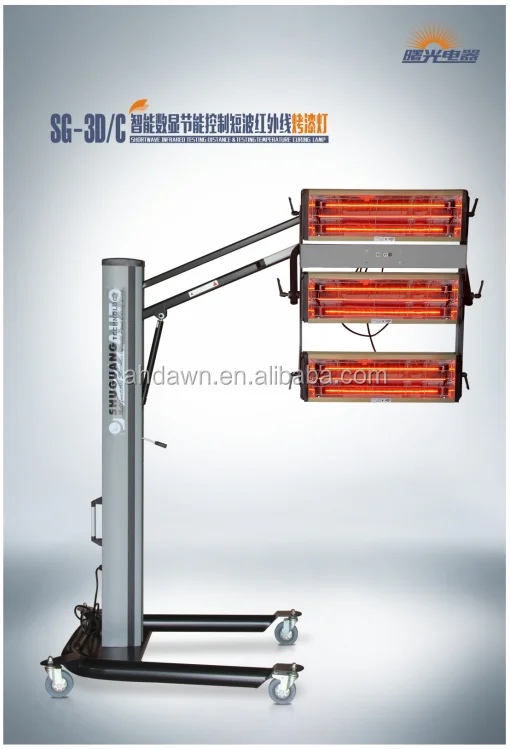

3 lamps car shortwave infrared  curing  lamp,infrared paint dryer

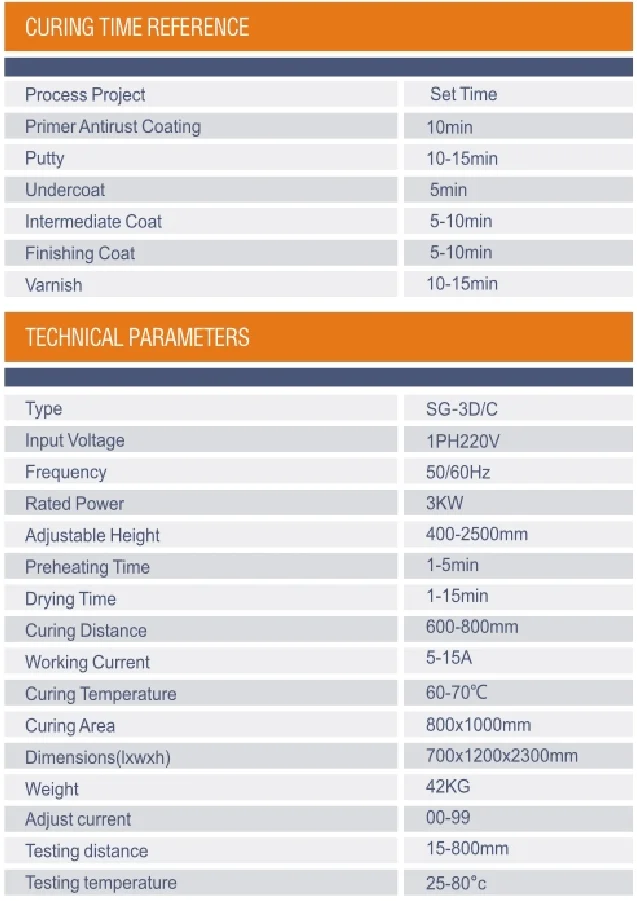

Technical parameters



Type:  SG-3D/C
Input voltage:1PH220V
Frequency:50/60Hz
Rated power:3KW
Adjustable height: 400-2500mm
Preheating time:1-5min
Drying time:1-15min
Curing distance:600-800mm
Working current:5-15A
Curing temperature:60-70℃
Curing area:800x1000mm
Dimensions(LxWxH):750x1200x2300mm
Weight:45KG

Adjust current:0-99

Testing distance:15-800mm

Testing temperature:25-80℃

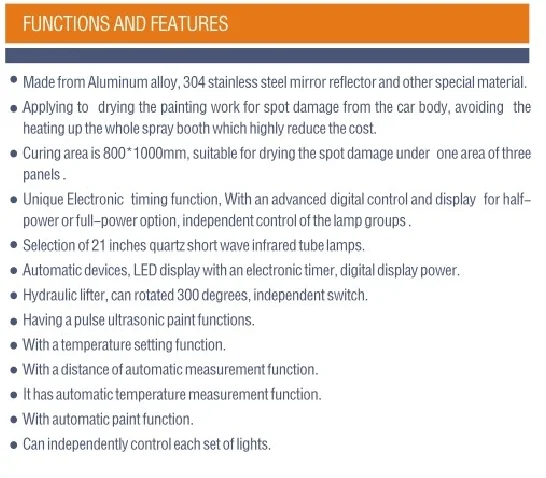

Functions and Features



Constructed specification





 3 lamps car shortwave infrared  curing  lamp,infrared paint dryer
