Polytunnel Garden High Quality Plastic Greenhouse For Agriculture
- Category: Single-Span Greenhouses >>>
- Supplier: Sichuan Baolida Metal Pipe Fittings Manufacturing Co. Ltd.
Share on (60642349597):
Product Overview
Description
Products Description

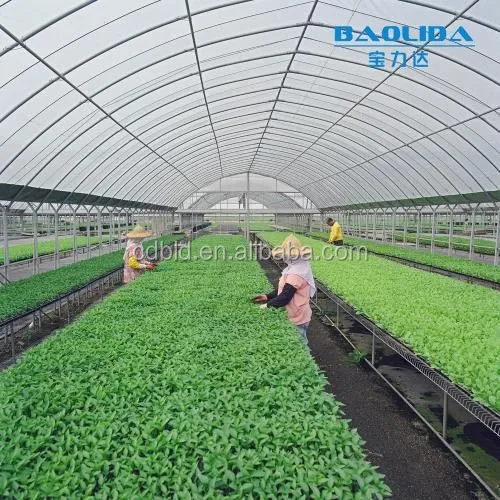

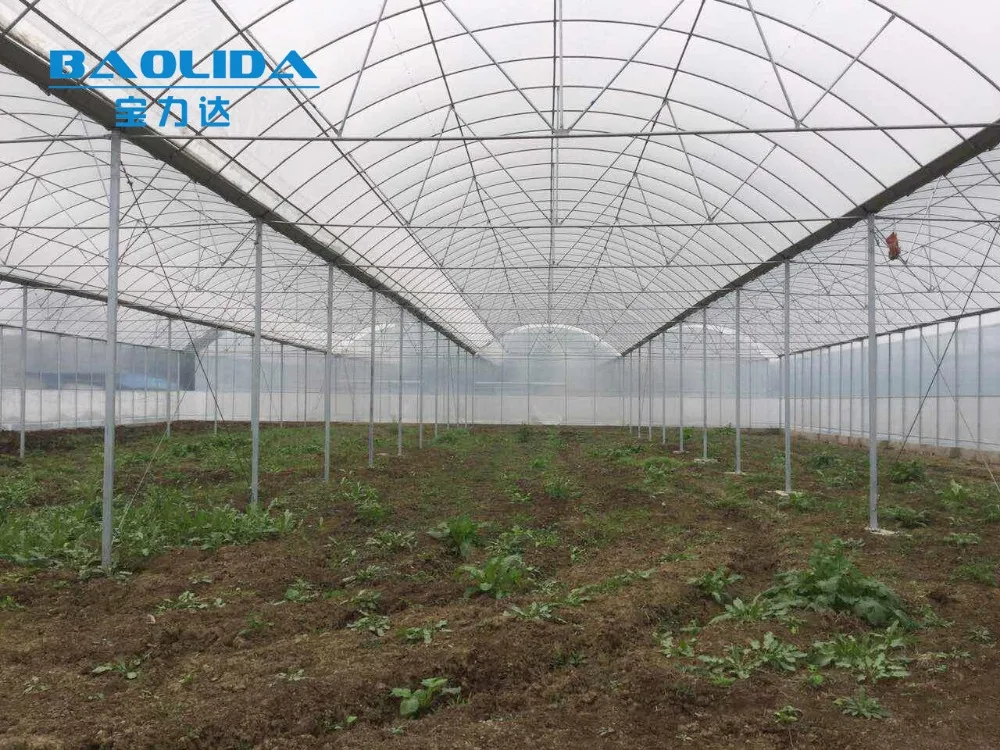

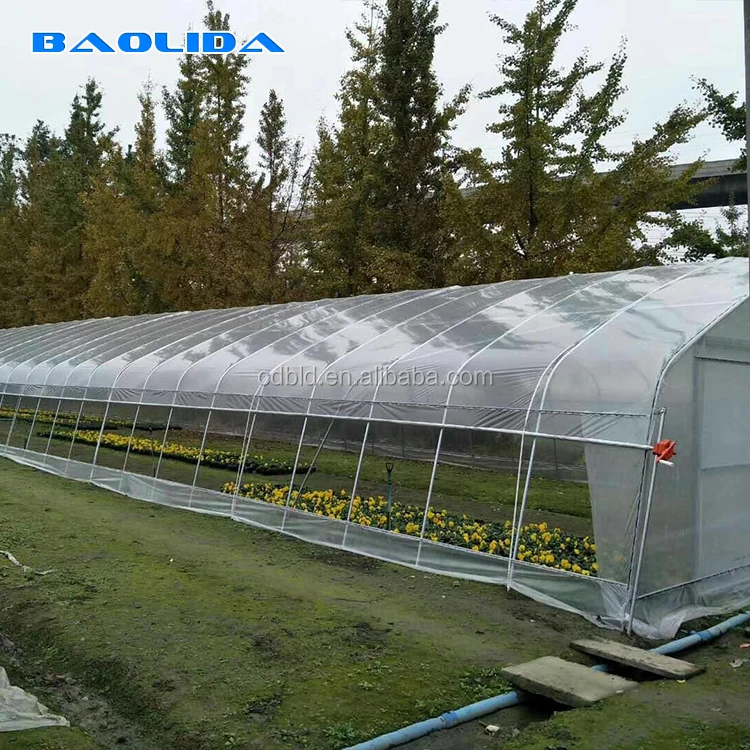

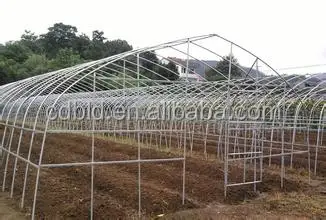

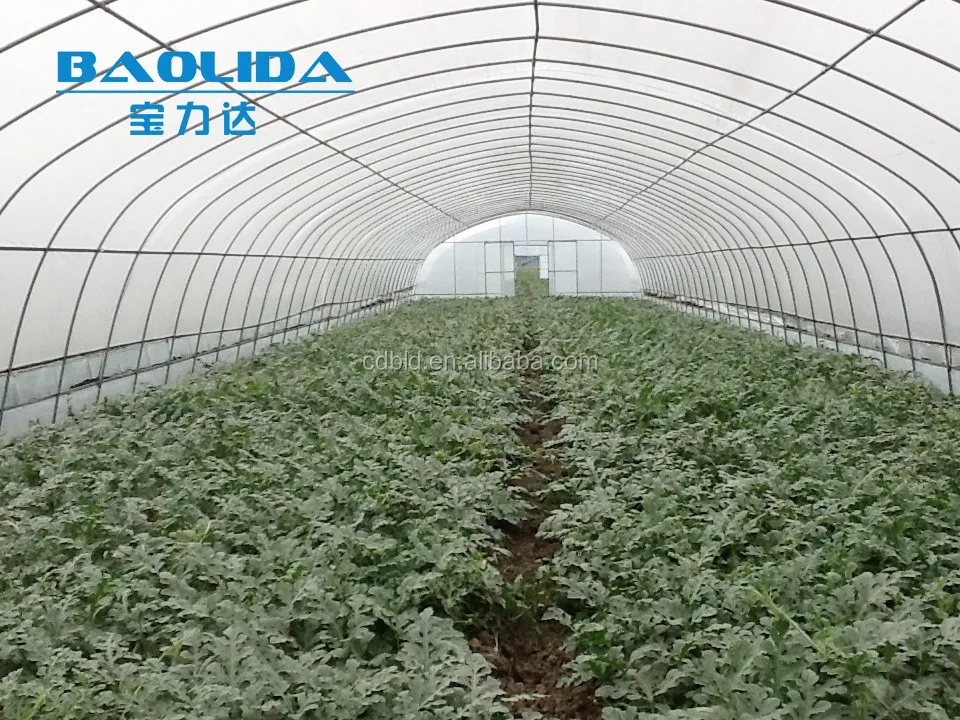

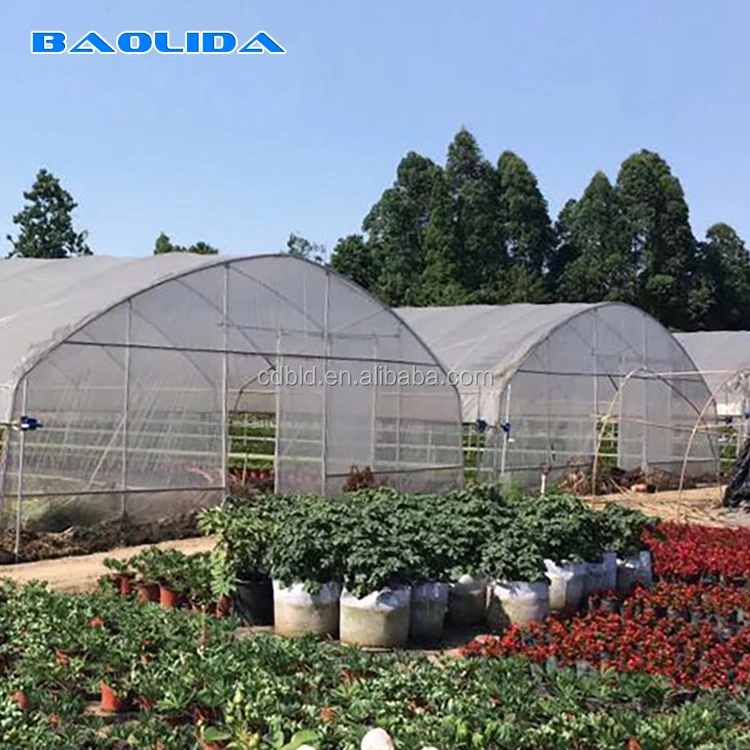

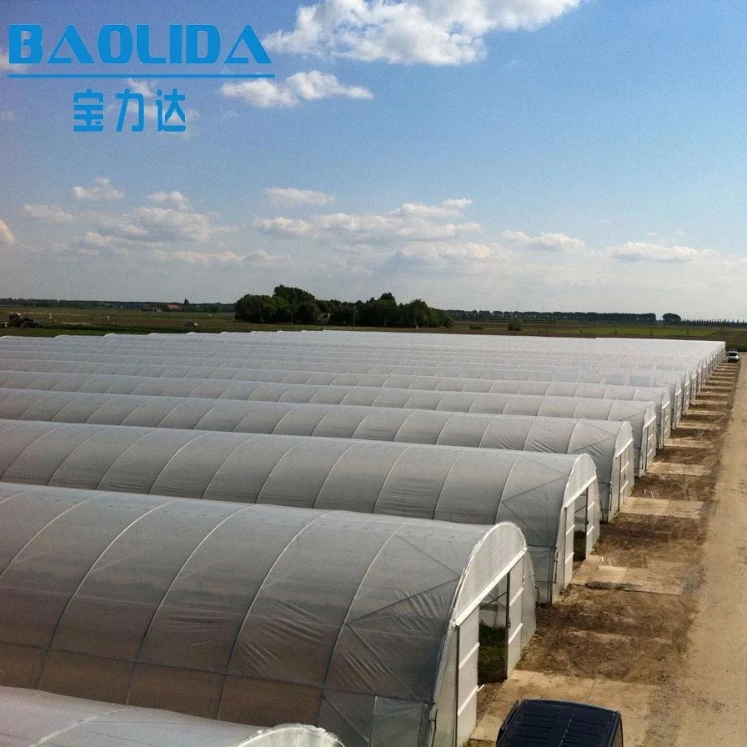

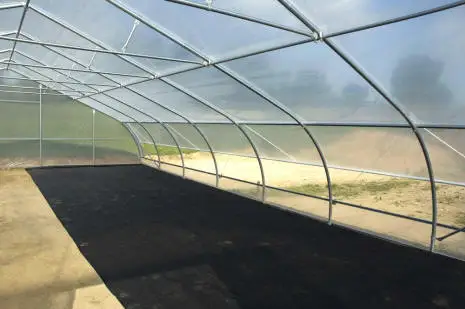

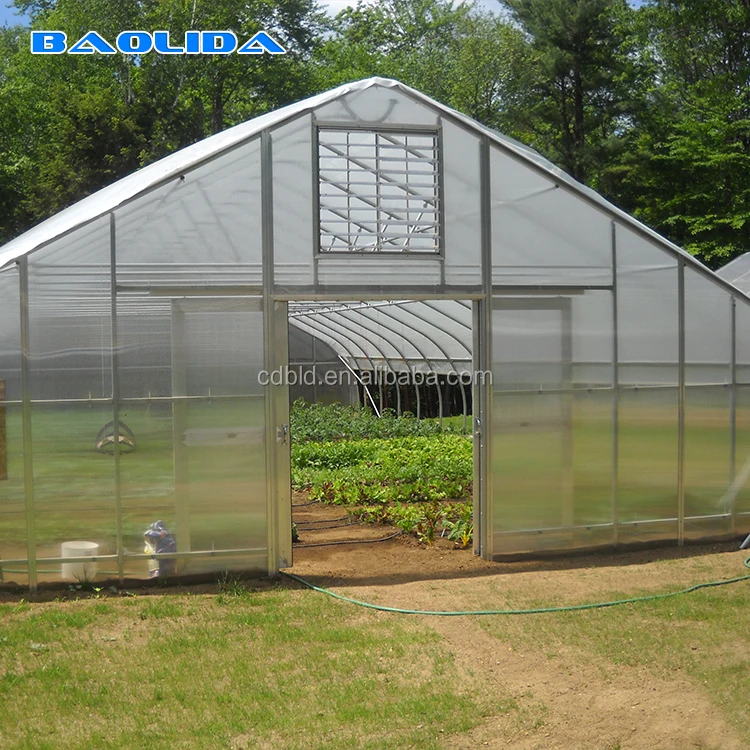

Tunnel Greenhouse
The tunnel greenhouse is a simplest structure greenhouse with the lowest cost and the most convenient installation. The purpose of our tunnels is to reduce the risk of lost crops from heavy rain and to also start the plants growing earlier in the spring giving farmers an earlier harvest.
Dimension | Related data |
Length | 10-100m |
Width | 6-12m |
Top height | 2.8-4m |
Shoulder height | 1-1.5m |
Arch diameter | φ20mm,φ25mm,φ32mm,φ48mm,φ60mm |
Covering material | PE film,PC sheet,ploycarbonate sheet,PEP film |
Tips | all size can be designed as your need |
Optional System
The most common use in this greenhouse is the irrigation system, cooling system and ventilation system. If you have additional needs, we can also provide you with heating system,seeding nursery system, shading system, hydroponic system, lighting system, intelligent environment control system,inflator system, etc.
Irrigation System
The irrigation system is the most effective way of water-saving for drought and water shortage area at present.The irrigation system has two methods: drip irrigation and spray irrigation. You can choose different irrigation methods according to the characteristics of the crop and the local water source.
Drip irrigation
Water pump 2.5kw, 50HZ,
with filter and relative accessories like ball valve, tee and angle etc.
Main water pipe 20m (could be adjusted as customer requirements )
Main water pipe: Φ50mm PE material
Inlet water pipe :Φ50mm PE material
Distributive pipe: Φ50mm PE material
Drip tape hole spacing is 30cm.
One greenhouse has 5-8 columns drip tapes
with filter and relative accessories like ball valve, tee and angle etc.
Main water pipe 20m (could be adjusted as customer requirements )
Main water pipe: Φ50mm PE material
Inlet water pipe :Φ50mm PE material
Distributive pipe: Φ50mm PE material
Drip tape hole spacing is 30cm.
One greenhouse has 5-8 columns drip tapes
Spray irrigation
Water pump: 2.5 kW, 50 Hz,
with filter and relative accessories.
Main water pipe: Φ50 mm PE material.
Distributive pipe: Φ32 mm PE material
Main Water Pipe thickness: 0.3 mm
Working pressure: 0.5-1.2 Bar
Flow rate: 1-3 L/H
One greenhouse has 3-5 columns sprayer pipe
Spray nozzle spraying distance 1.5m
with filter and relative accessories.
Main water pipe: Φ50 mm PE material.
Distributive pipe: Φ32 mm PE material
Main Water Pipe thickness: 0.3 mm
Working pressure: 0.5-1.2 Bar
Flow rate: 1-3 L/H
One greenhouse has 3-5 columns sprayer pipe
Spray nozzle spraying distance 1.5m
Cooling System
The cooling system is used to lower air temperature, enhanced air circulation to cool down the indoor air. It's applicable for hot condition area.
Cooling fan
Frame size: 1380*1380*400 mm
Voltage: 380 V, 1.1 kw,50 HZ,3 phase
Wind capacity: 22000 m²/h
Blade size: 710 mm
Blade speed: 440 r/min
Motor speed: 1250 r/min
Air quantity: 760 m³/min
Noise: ＜65 dB
Applicated within 50m length greenhouse
Voltage: 380 V, 1.1 kw,50 HZ,3 phase
Wind capacity: 22000 m²/h
Blade size: 710 mm
Blade speed: 440 r/min
Motor speed: 1250 r/min
Air quantity: 760 m³/min
Noise: ＜65 dB
Applicated within 50m length greenhouse
Cooling pad
Component: Inside pipe, Water pump 2.5kw 50HZ, Electric control box, accessories, etc.
Height/H: 1500 mm
Width/W: 5000 mm
Thickness/D: 100 mm (Customized)
Angle corrugation α(°): 45°
Angle corrugation β(°): 45°
Include inside pipe, water pump 380V,2.5kw 50HZ ,3 phase.electric control box and install accessory
Height/H: 1500 mm
Width/W: 5000 mm
Thickness/D: 100 mm (Customized)
Angle corrugation α(°): 45°
Angle corrugation β(°): 45°
Include inside pipe, water pump 380V,2.5kw 50HZ ,3 phase.electric control box and install accessory

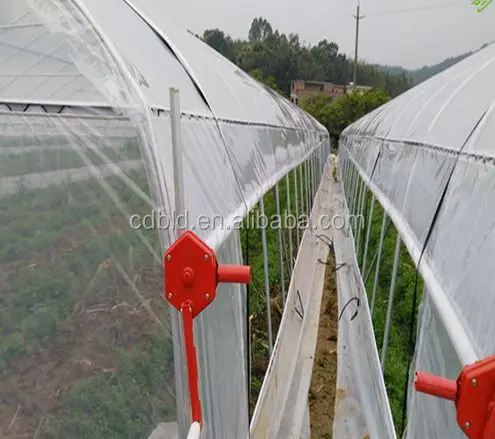

Ventilation System
The ventilation system can be the most necessary system of a greenhouse, it can keep air circulation in the greenhouse and will effectively prevent pests and diseases of the crops because of the anti-insect net.
