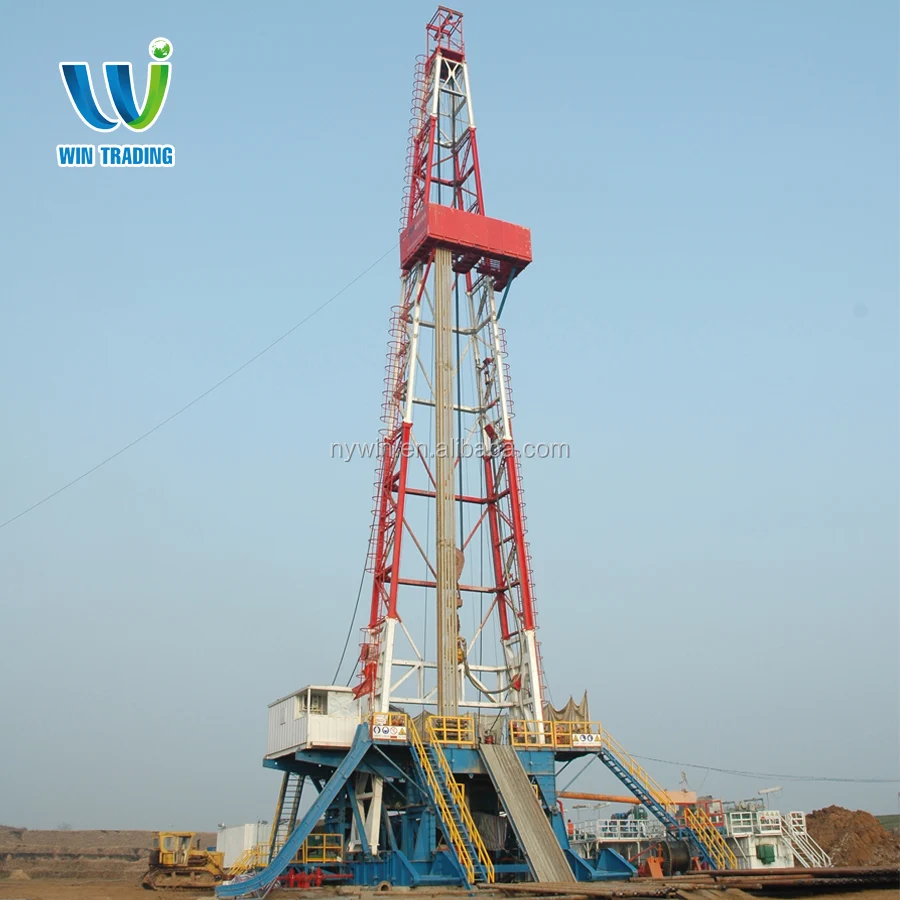

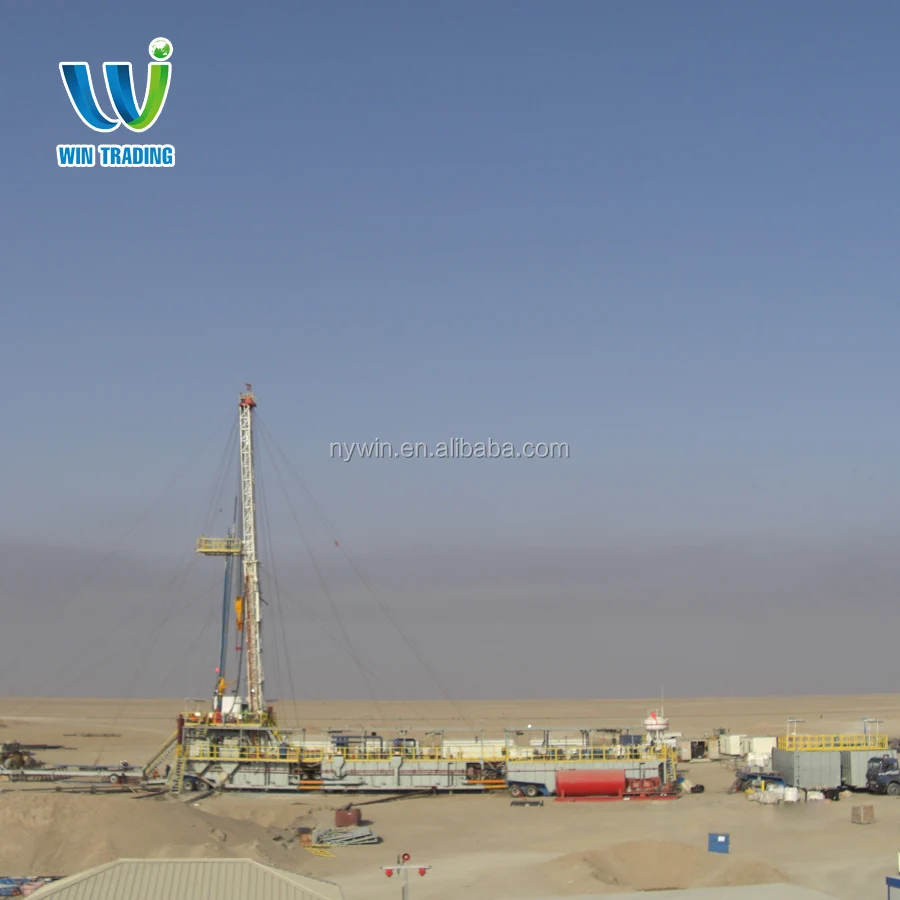

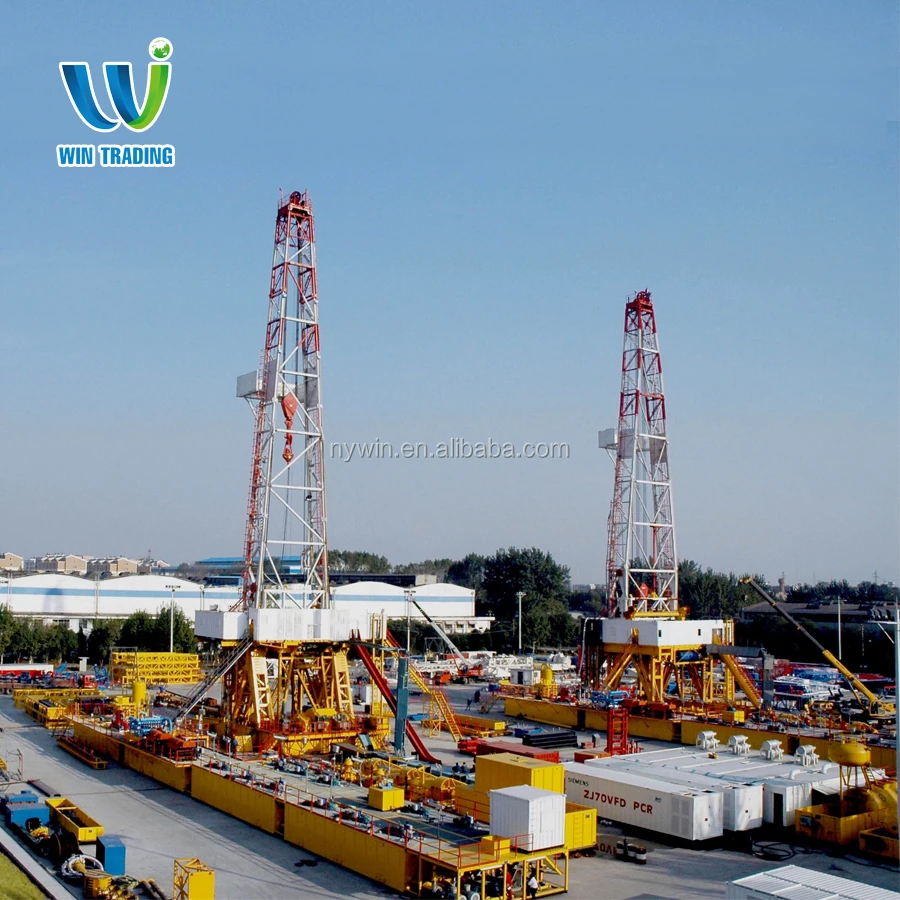

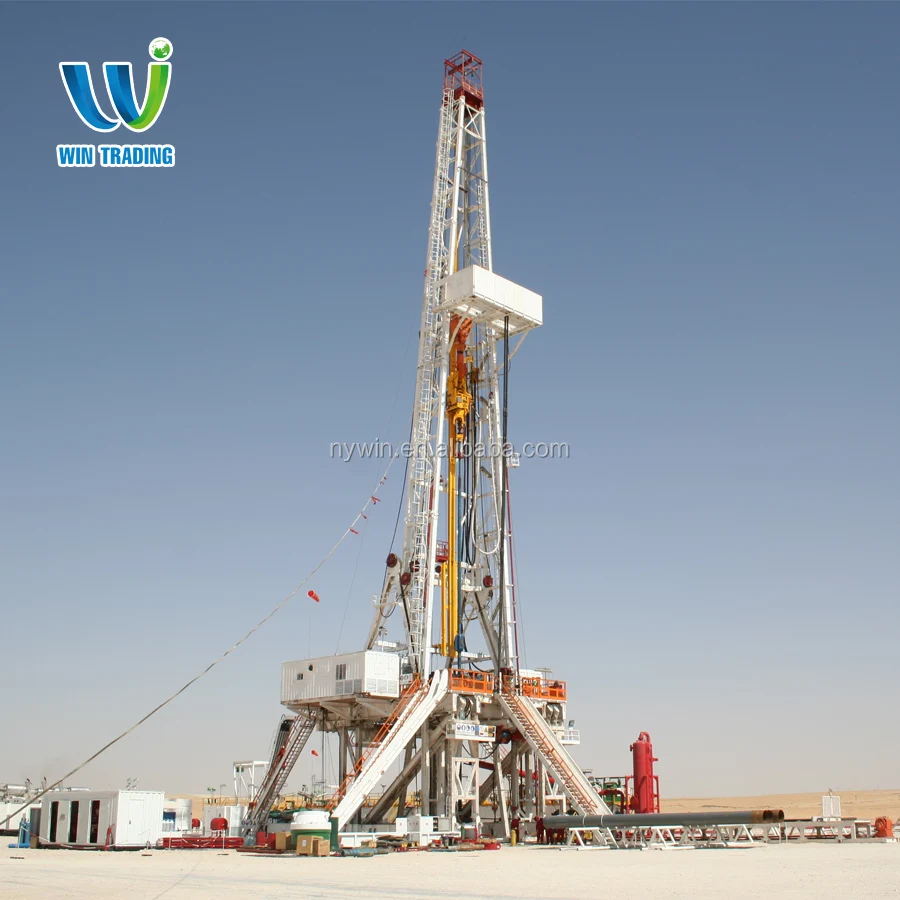

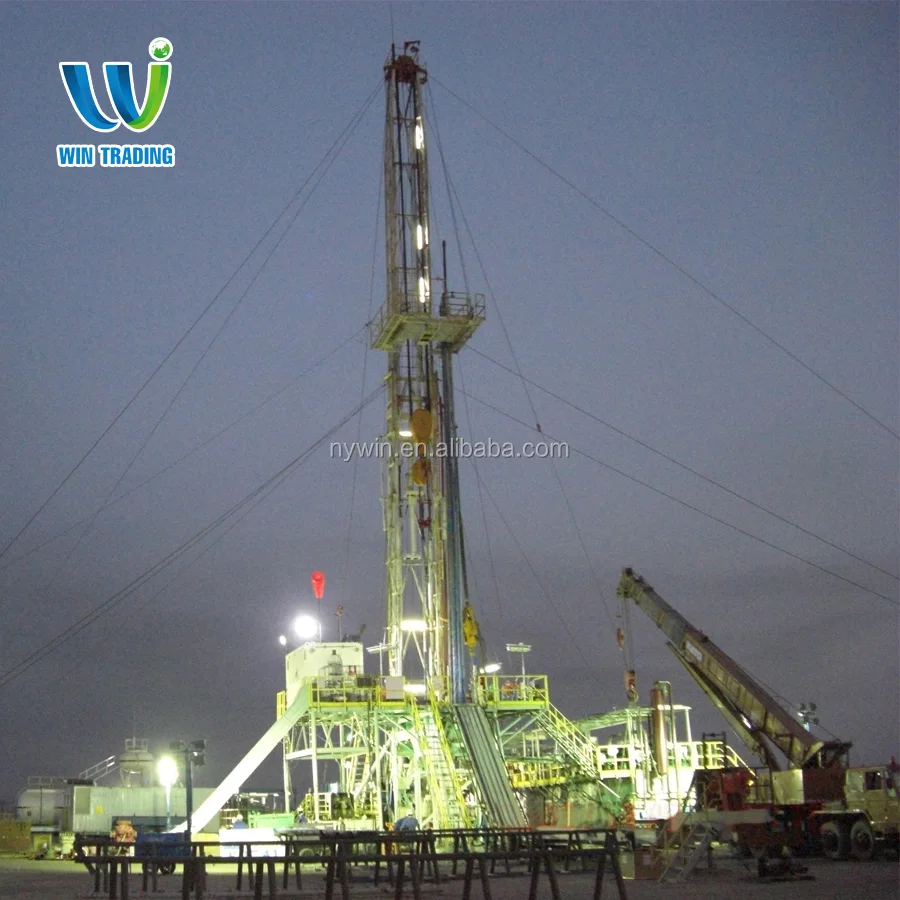

RG API Standard Oil Field Oil and Gas Well Bore Hole Skid Mounted 5000m 1500hp ZJ50DB Drilling and Workover rig

Norminal drilling depth:Φ127mm DP,4000m;

Max. hook load:3150KN;

Drawworks power:1100KW(1500hp)
Drawworks gears:Ⅰ+ⅠR AC motor drives, stepless speeding regulating;  Hoisting system:6×7 lines; Dia of drilling line: Φ35mm;
Dia of central pipe of swivel:Φ75mm; Rotary table:ZP375, Φ952.5mm(37 1/2"),2+2R gears, AC motor independent drive, stepless speed regulating;
Mast:suit assembly  type, 35m high; Substructure: 7.5m high; The clearance height below the rotary table beam:6.2m; Mud manifold:Φ103mm×35MPa
Drive mode:AC-DC-AC
Working enviroment:Humidity≤90%, 25℃, ambient temperature:-20℃~55℃
