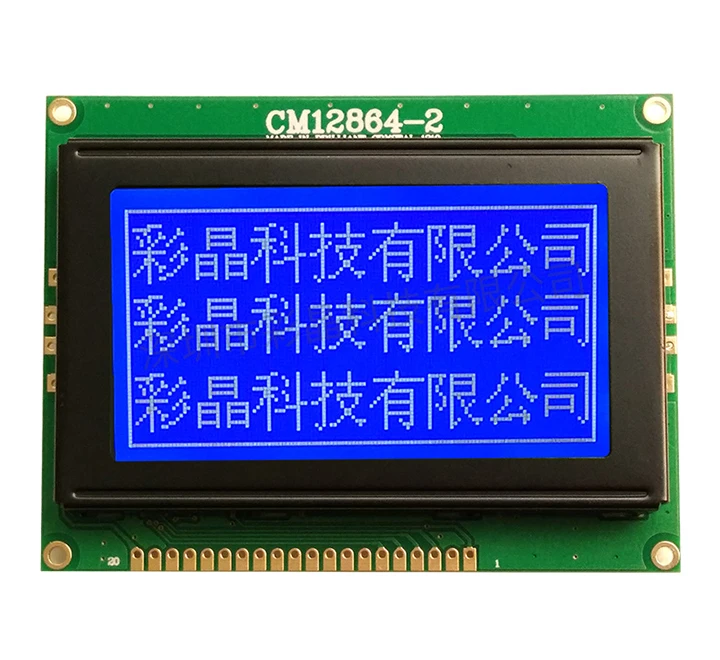

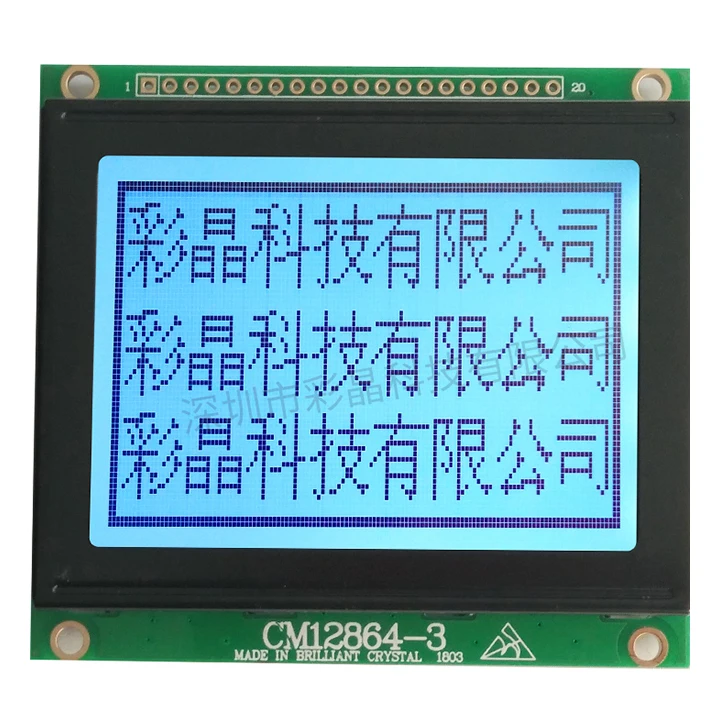

Rohs low consumption ks0108 controller 128x64 dots graphic lcd module for broadcasting equipment

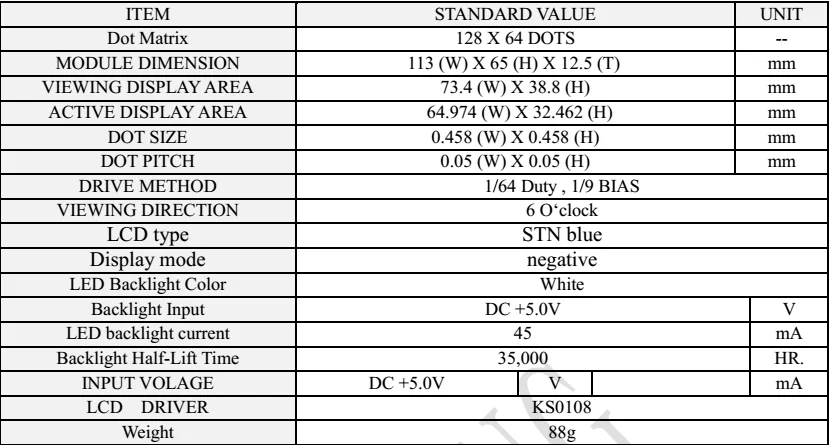

DOT matrix: 128*64 dots

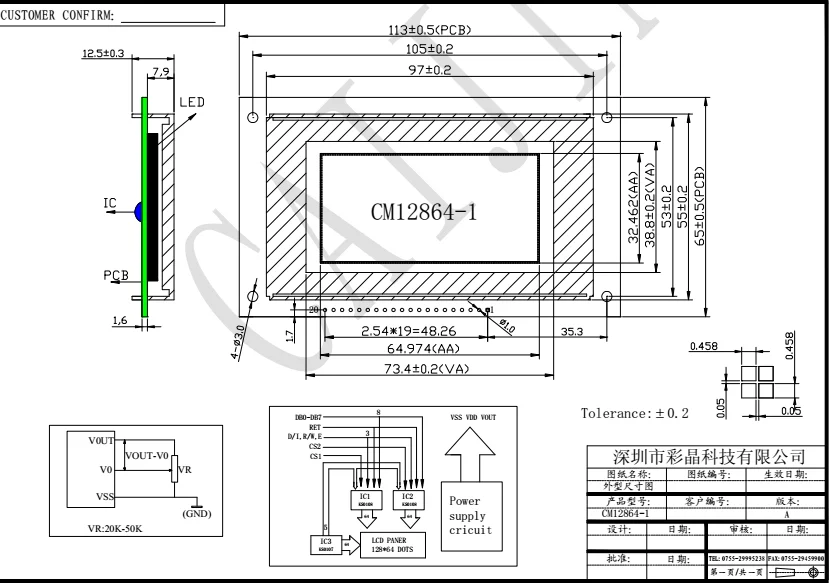

Size: 113*65*12.5mm

V.A: 73.4*38.8mm

Drive method: 1/64 duty, 1/9 bias

Viewing angle: 6:00

Display: STN Y-G or blue model/FSTN

Voltage: 3/5V

Controller: KS0108

Top: -20-+70ºC

TST: -30-+80ºC

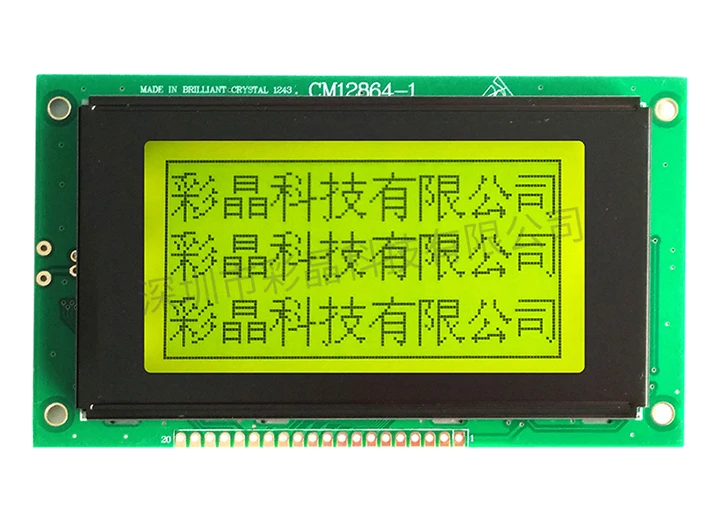

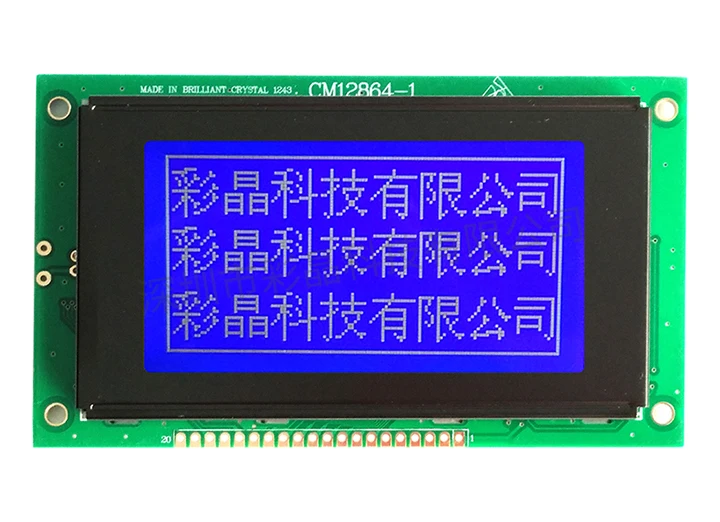

CM12864-10, size: 78*70*12mm

CM12864-11. size: 93*70*13.5mm

Rohs low consumption ks0108 controller 128x64 dots graphic lcd module for broadcasting equipment

Rohs low consumption ks0108 controller 128x64 dots graphic lcd module for broadcasting equipment

Rohs low consumption ks0108 controller 128x64 dots graphic lcd module for broadcasting equipment

Rohs low consumption ks0108 controller 128x64 dots graphic lcd module for broadcasting equipment

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

  About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,

192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display.
