Высокоскоростной ротогравюрный принтер с компьютерным управлением
- Category: Rotogravure Printing Machines >>>
- Supplier: Ruian Queensense Machine Co. Ltd.
Share on (60642680053):
Product Overview
Description
OVERVIEW

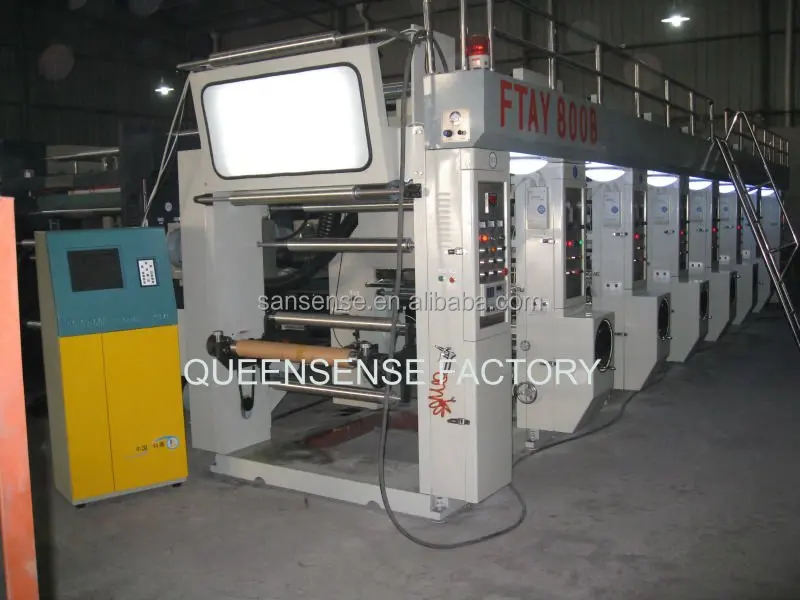

DFASY-600 Computerrized High speed Gravure Printing Machine/buy printing machine
This printing machine is suitable for printing roll plastic, film, OPP, nonwoven cloth, PVC, thin leather, paper, aluminum foil, cloth and various soft packages with excellent Performance and it is a kind of ideal printing equipment for wine box, shoe bag and vest bag.
Packaging & Shipping

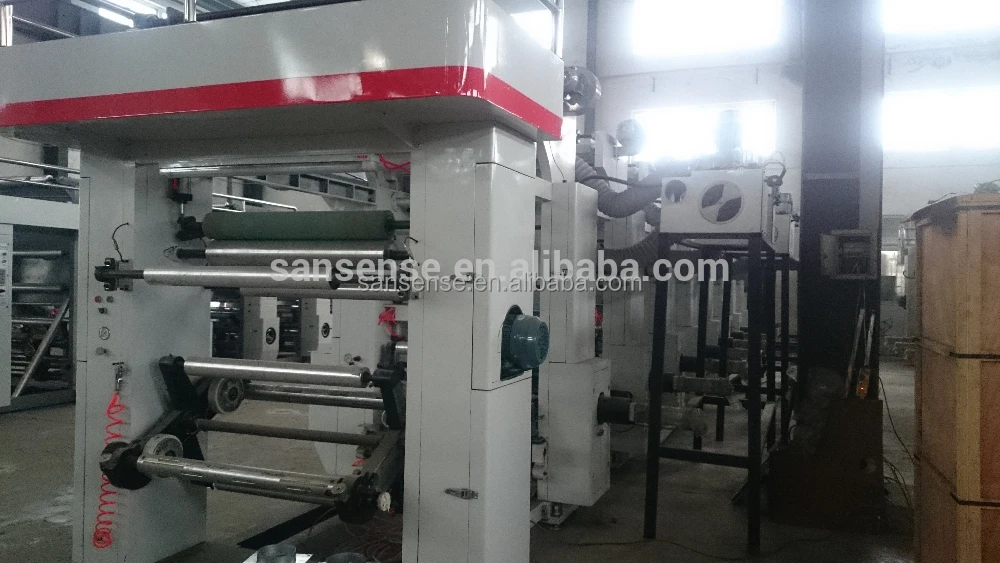

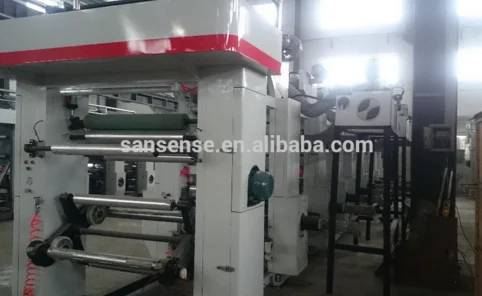

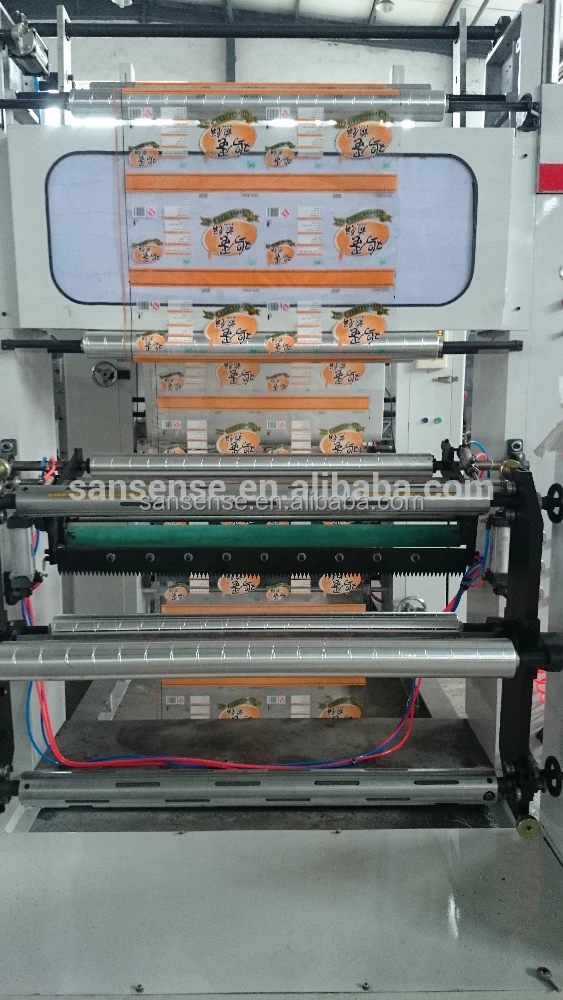

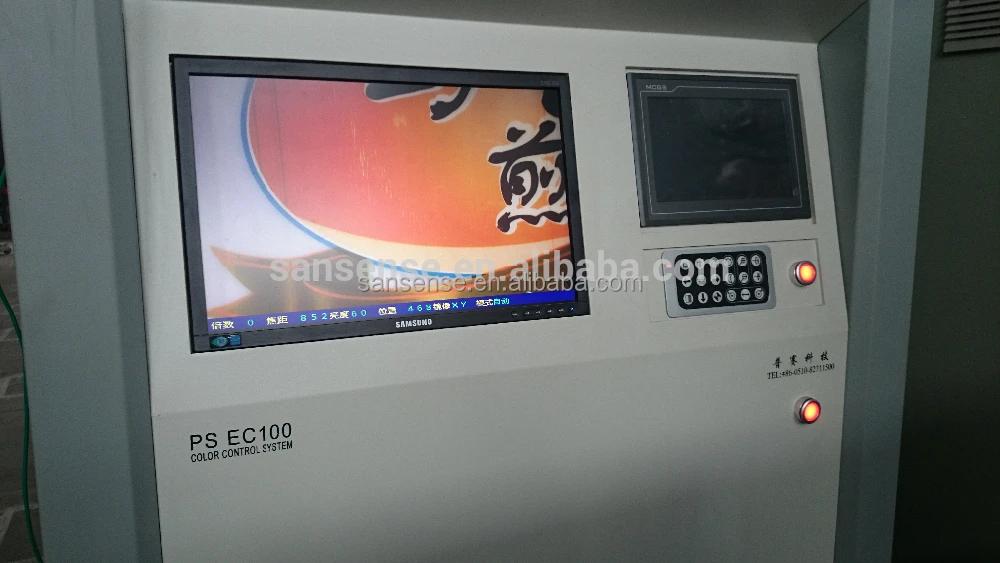

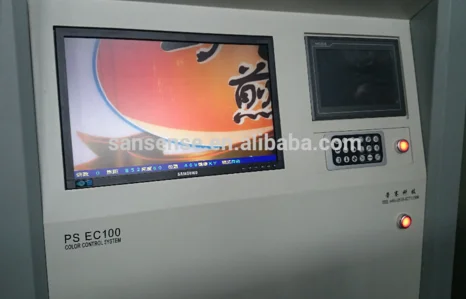

Detailed Photos
Product Description
Performance and Features:
1. The latest improved gear box, 360°non-stopping registration device.2. Movable type doctor blade, transverse reciprocating motion.
3. Far-infrared heating tube drying system can keep dry at a speed of 60m/min.
4. Unwinding and traction adopts magnetic powder brake to make material moving more stable.
5. Rewinding and traction adopt magnetic powder clutch to make color register accurate and rolling end face more neat and smooth.
6. Current output type temperature control system makes heating quicker and electricity saving.
7. Turnover double-station unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Obverse and reverse side once-through continuous printing.
9. Double-oven drying system and large plate device can print the pattern with 1200mm in girth
Main Technical Varia
Model of machine | DFASY-600 | DFASY-800 | DFASY-1000 |
Width of Printing | 600mm | 800mm | 1000mm |
Printing Speed | 10-120m/min | 10-120m/min | 10-120m/min |
Version Accuracy | <0.15mm | <0.15mm | <0.15mm |
Length of Printing | 200-1250mm | 200-1250mm | 200-1250mm |
Diameter of Roll | 600mm | 600mm | 600mm |
Total Power | 18kw | 21kw | 24kw |
Outline Dimension | 8800×1400×2000mm | 8800×1600×2000mm | 8800×1800×2000mm
|
Our Services
All of our goods are of CE & SGS & ISO 9001 standard
Machine with one year warranty, all spare parts will be given free within one year. Engineer dispatch is possible,the buyer must assume the cost of round-trip airfare and accommodation etc. Also the salary is 90 USD/Day.
Our contact Way
Welcome to contact us for further details and price!!
QUEENSENSE MACHINE CO.,LTD.
Whatsapp& Tel&Line: 0086-13567760591 (Cindy song )
Wechat&Skype&Facebook: 13567760591
QQ: 15804945
QQ: 15804945
FAX: 0086-577-65129055
WEB: www.sansense.net
