24 zones quality touch screen mold controller for tealight candles mould

Product Overview

Description

1. IBS DXC-HMTC touch screen system mould temperature controllers specification:







Ambient temperature :	32°F to 131°F(0°C to 55°C)
Relative humidity :	10%-95%
Delivery temperature:	-40°F to 158°F(-40°C to 70°C)
Power supply	AC185V-245V,50/60HZ
T/C type:	J/K
Temperature Unit:	°C/°F
Temperature control scope:	45°C to 550°C
Temperature test precision	+3%
Repeat temperature measure precision :	+0.1%
Repeat temperature measure precision :	+0.5%
T/C cooling compensation:	Dynamic tracking
Noise restrain:	common mode rejection ratio>100DB,
Sample frequency	10HZ(100mS)
One point load:	15A
F1,F2,F3,F4:	250V-15A(special fuse)







2. IBS DXC-HMTC touch screen system Mould temoerature controllers function details:





1. With FUZZY PIDD control technology, when not set PID parameters, it can auto induct to any heating models and greatly improve the work capacity
2. To prevent the influence of ambient temperature during measurement, Using inner and outer ring to dynamic tracking the ambient temperature. Cold compensation with thermostat of outer ring, Dynamical removing the ambient influence to measuring circuit by precision voltage of inner ring. make the control measure more precision
3. Controller can easy detect to T/C reversed or T/C Open, and will be operate according to error information and control mode when detected the problems.
4. Heater current monitor
5. Soft start function
6. Temperature Deviation Alarms
7. Manual output mode
8. Non-touch transfer
9. Overall error indicator, easy to find error reason
10. Output module rating 15A per Point
11. Simple intuitive and humanize operating interface

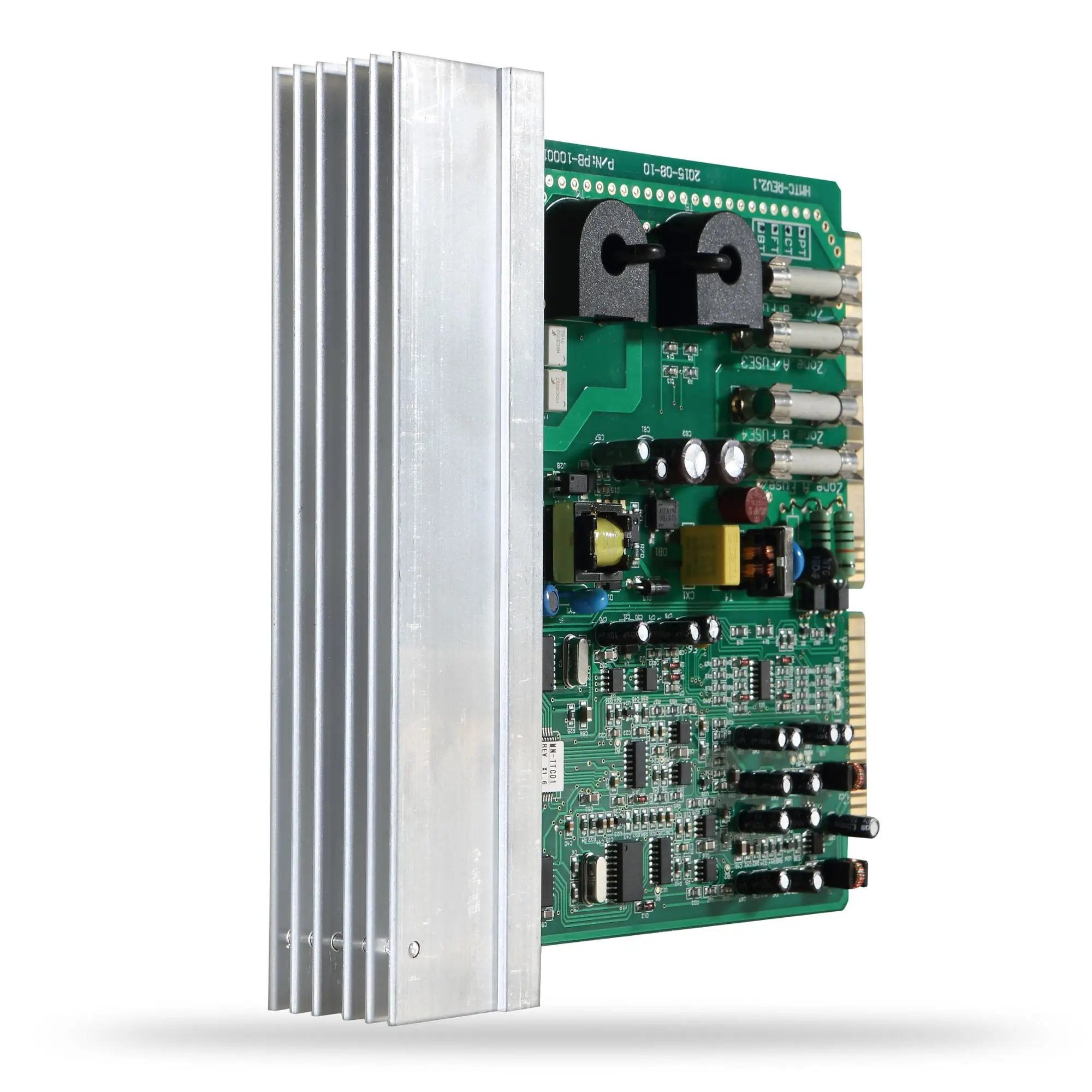

12. Plug module design for easy maintenance;
13. External radiator for high efficient dissipate heater

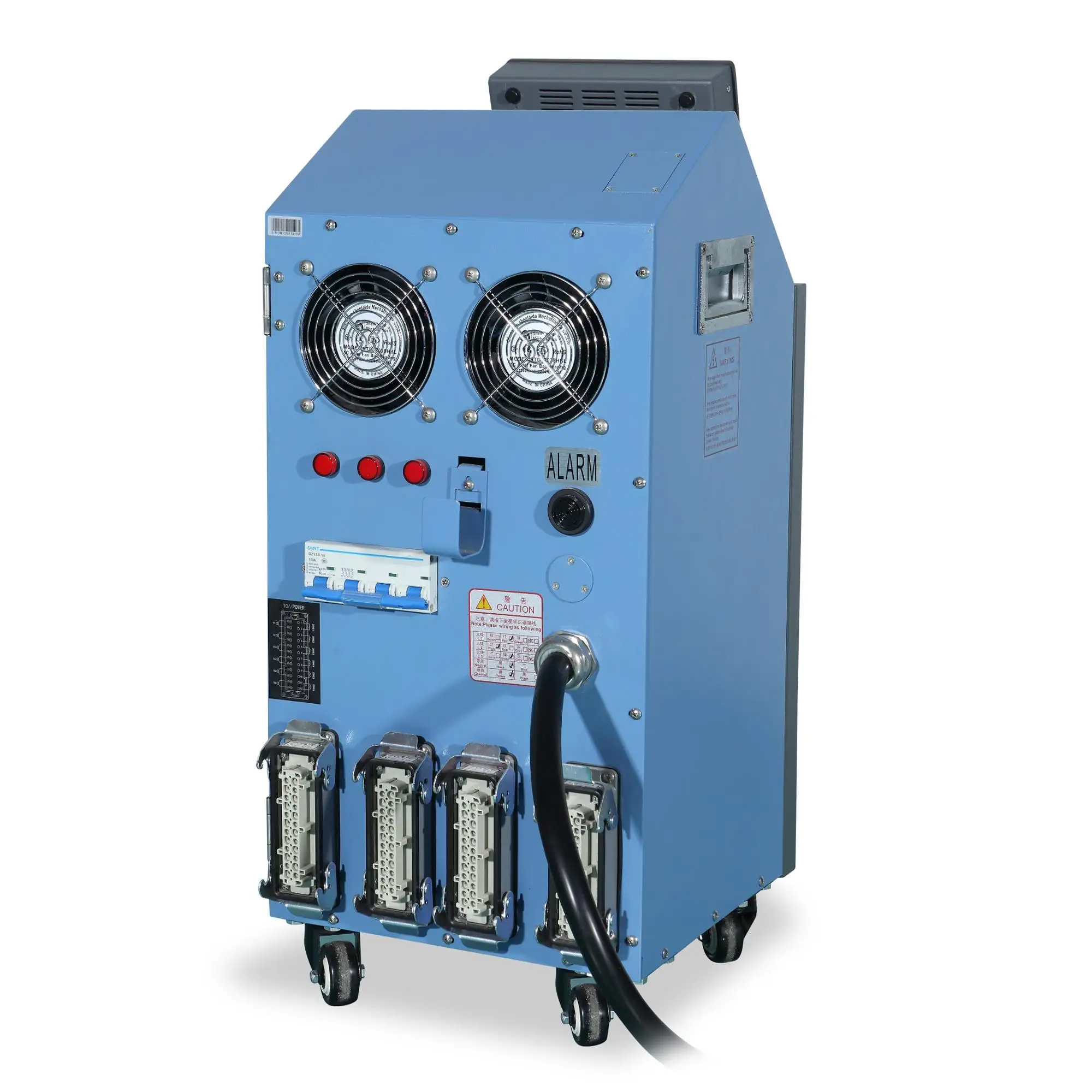

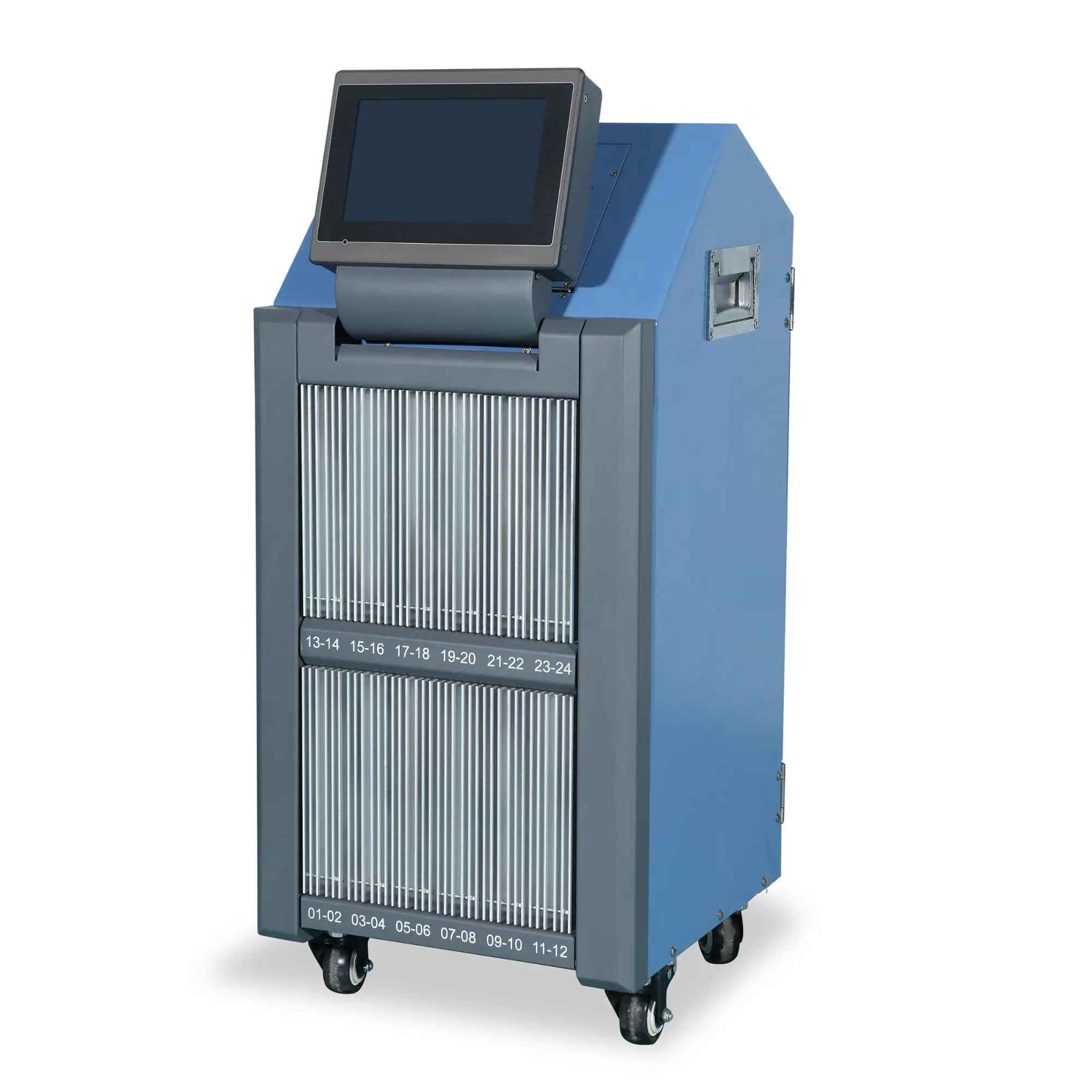

3. IBS DXC-HMTC touch screen system Mould temperature controllers picture:









4. IBS DXC-HMTC touch screen mould temperature system accessories and package:

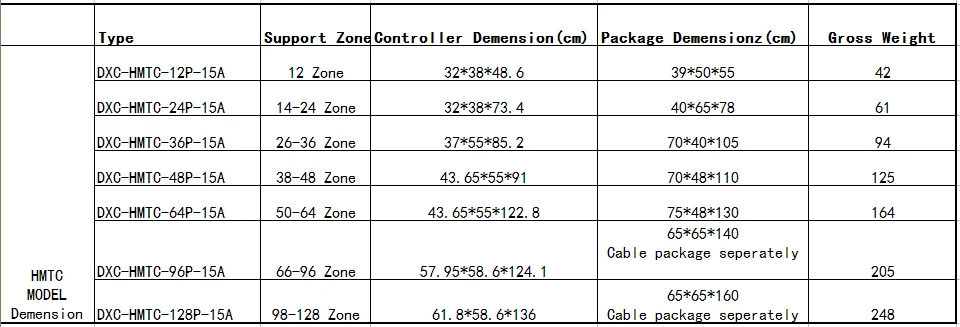

5. Dimensions and Weight of box





6. Certification





We stand behind you with our state-of-the-art-hot runner temperature control system that are performance driven, customized, designed to save you money made in china.



Welcome to contact us, we’re sure any of your inquiry will get prompt reply
