Стальная Телескопическая крышка с ЧПУ для защиты направляющего способа станка

Product Overview

Description

Machine Tool Guide Way Protection Cnc Steel Telescopic Cover



Features



1. Durable, smooth operation, low noise, beautiful appearance.
2. Steel plate telescopic cover is suitable for high speed machine guideway with stable and no vibration noise.
3. The service life of steel plate telescopic cover device not only protect guard board, more important  to guarantee the precision of machine tool.
4. Each section steel plate telescopic cover plate parallel to open at the same time, and parallel back, running freely.
5. The guard plate steel telescopic cover will not fall apart and have sound, beautiful and improve the service life of the guard.
6. On the basis of the original sealing strip and stamped with a layer of stainless steel plate, to prevent high temperature iron burns brush strip orbit plane strain guide rail.





Types of Steel Telescopic Coverlescopic Steel Guide Linear Rail



Design data for Steel Telescopic Cover



Code	Description	Date	Remarks	Code	Description	Date mm	Remarks
Le	Length after drawing			Bs	Contact supporting width
Lz	Length after compression			Bm	Slider supporting width
Lt	Travel range			α°β°	Bow-shaped dip
B	Width of guide			n	Estimated number of folds
Bc	Shield width			δ	Thickness of steel plate		Pre-selected by users
H	Toltal height of the shield				Assembing hole		By user
H1	Side height og guide			Steel plate mat’l	1Gr13	2Cr13	By user
H2	Upper part height of shield			Supporting manner	Pulley	Slidingpiece	By user
H3	Iustallation position width			Compount malline’s type
H4	Height of assembing plate			Entrusting party
H5	Height of contact rollar			Contact person		Tel
Note:1.The endusers select data and materials mentioned above and our company will talle care of the fabrication and dsign work. 2.If endusers have special requirements for shield type,please cet as know and we can achive for them. 3.One form for type of shield.

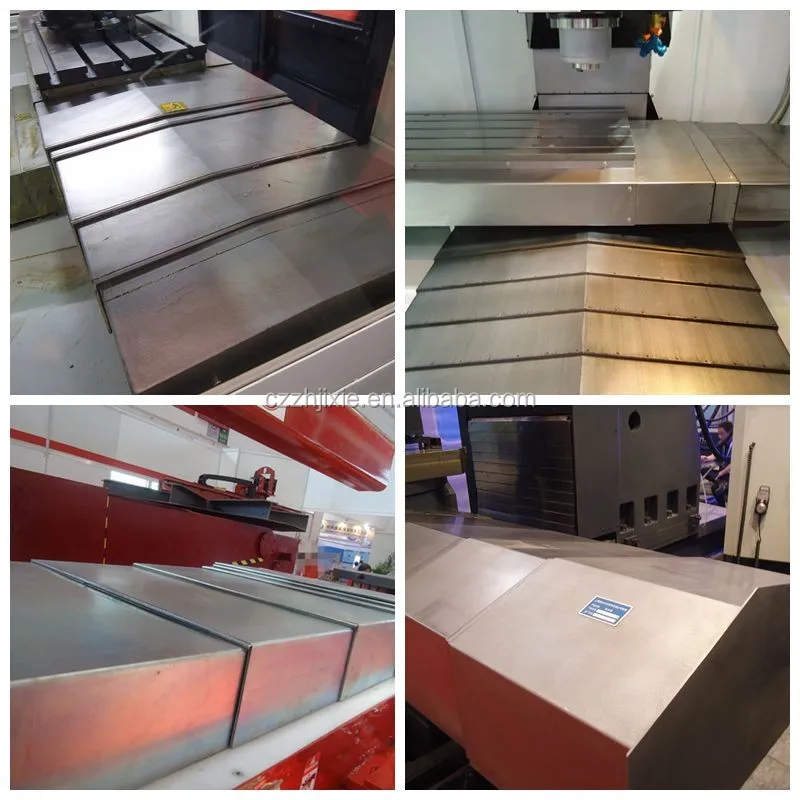

Application

Steel shield is mainly used in boring machine, milling machine, drilling machine, planer and other large-scale machine tools, effectively prevent iron filings.



 Packed by wooden case, pallet or carton. Careful packaging, ensure the steel machine cover well arrived in your hands~~

Transport by Express / Ship /Air , More safe and faster for you.

Our company has a high level of management, strong technical force, the detection means perfect, well-equipped, advanced manufacturing technology, non-standard products in accordance with the drawings production.



Welcome users around the world use our products, and would like to cooperate with customers to create bright future!





1. 24 HOURS SERVICE FOR YOU

Our service is available for seven twenry-four!  There will be a team at your service anytime.

2. We are a MANUFACTURER , and we strictly control the costs and expenses to ensure the low price as well as high quality.

3. OEM of customized products/ logo /btand/ Packing is accepted.



4. We have more than 20 production lines, and there are enough stocks for normal size products, Quick delivery.



Product display of Steel telescopic Cover
