International standards 6 zones temperature controller for vehicle mould product

Product Overview

Description

Hot Runner Temperature Controller



Shenzhen IBS stand behind you with our state of the art hot runner temperature control systems that are performance driven, customized, designed to save you money and made in China.



1.  Hot runner controllers specification:

Ambient temp:	32°F to 131°F(0°C to 55°C)
Relative humidity:	10%-95%
Transmit temp:	-40°F to 158°F(-40°C to 70°C)
System grounding insulation Voltage:	1200VDC.
Supply power:	AC185V-245V,50/60HZ
Sensor type :	J type or K type
Temp unit	°C or °F
Temp control :	45°C to 550°C
Temp test Precision:	+1%
Repeat test precision:	+0.1%
Temp stability	+0.5%
T/C cold junction compensation:	Dynamic tracking
Noise rejection	CMMRR>100DB,
Sampling frequency:	10HZ(100mS)
1 Point Load:	15A,3500W/220V or 1650W/110V
F1,F2:	250V-15A(Special fuse)



2. Hot runner controllers function details:



1)       With FUZZY PIDD control technology and having not set PID parameters, it can automatically adjusted to any heating models and greatly improve the work efficiency(The function can be closed by senior operate menu);

2)       T/C and Heater revise protection  (The function can be closed by senior operate menu) ;

3)       Auto compensation for ambient temp, Helps controller value more precisely;

4)       T/C cold junction compensation, To avoid the relative error by the change of ambient temp

5)       Sensor detect monitor (The function can be closed by senior operate menu);

6)       Controller can detect the T/C Revise and T/C open, When detected the problems, Control will operate according to the errors and control mode;

7)       Testing loop detective;

8)       Heater current detective(Can set max output current);

9)       Supply power frequency detective

10)   Card temp inside detective(can set Max temp inside card )

11)   Output break detective;

12)   Electric leakage detective;

13)   Tries short monitor(The function can be closed by senior operate menu);

14)   F1,F2 bad monitor;

15)   Heater open monitor;

16)   AL-L/AL-H alarm;

17)   Manual output mode;

18)   Non-touch transfer;

19)   Supply power frequency online tracking, When the frequency is not stable, it will auto shift to PWM output ;

20)   Trouble shoot indicator, helps user find error easier;

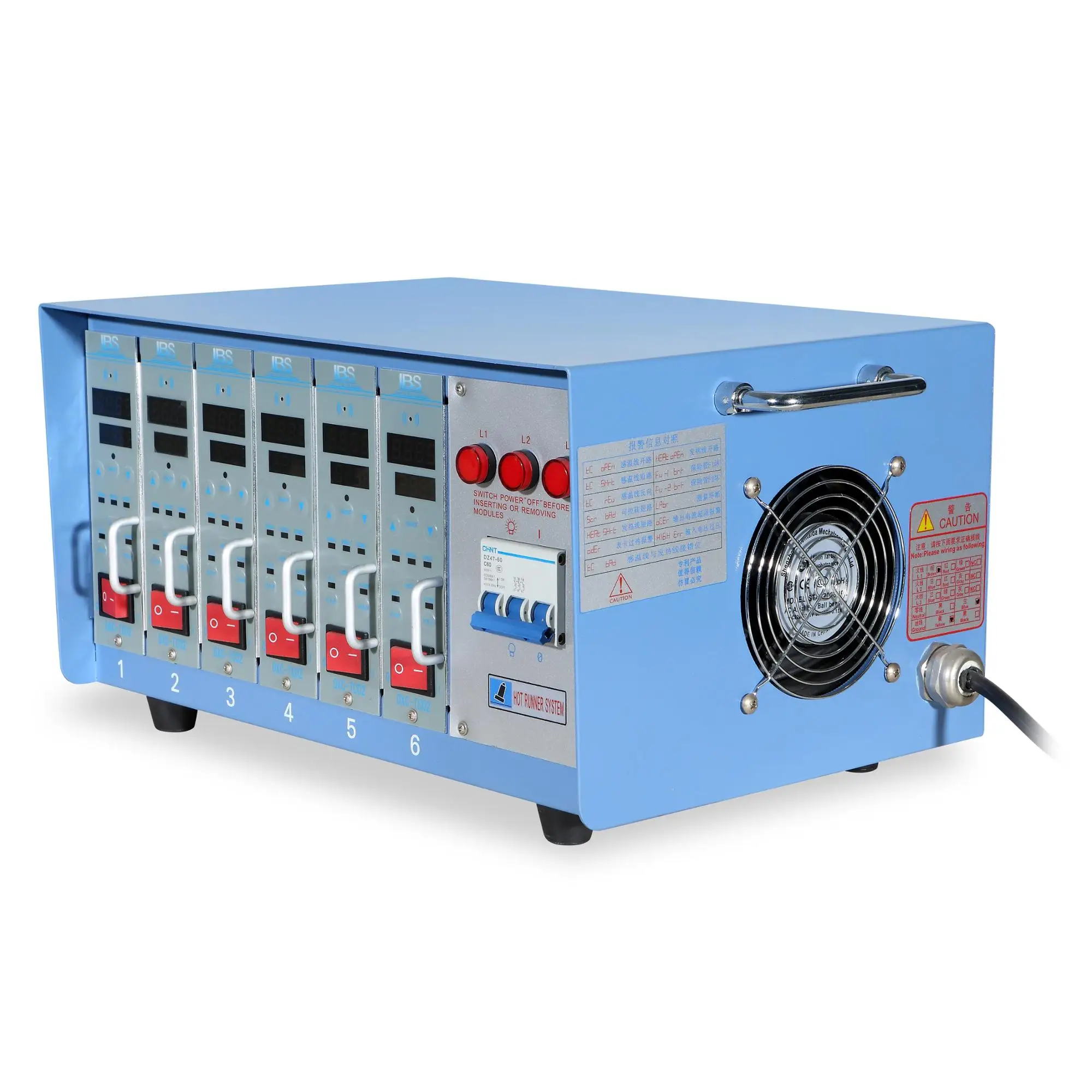

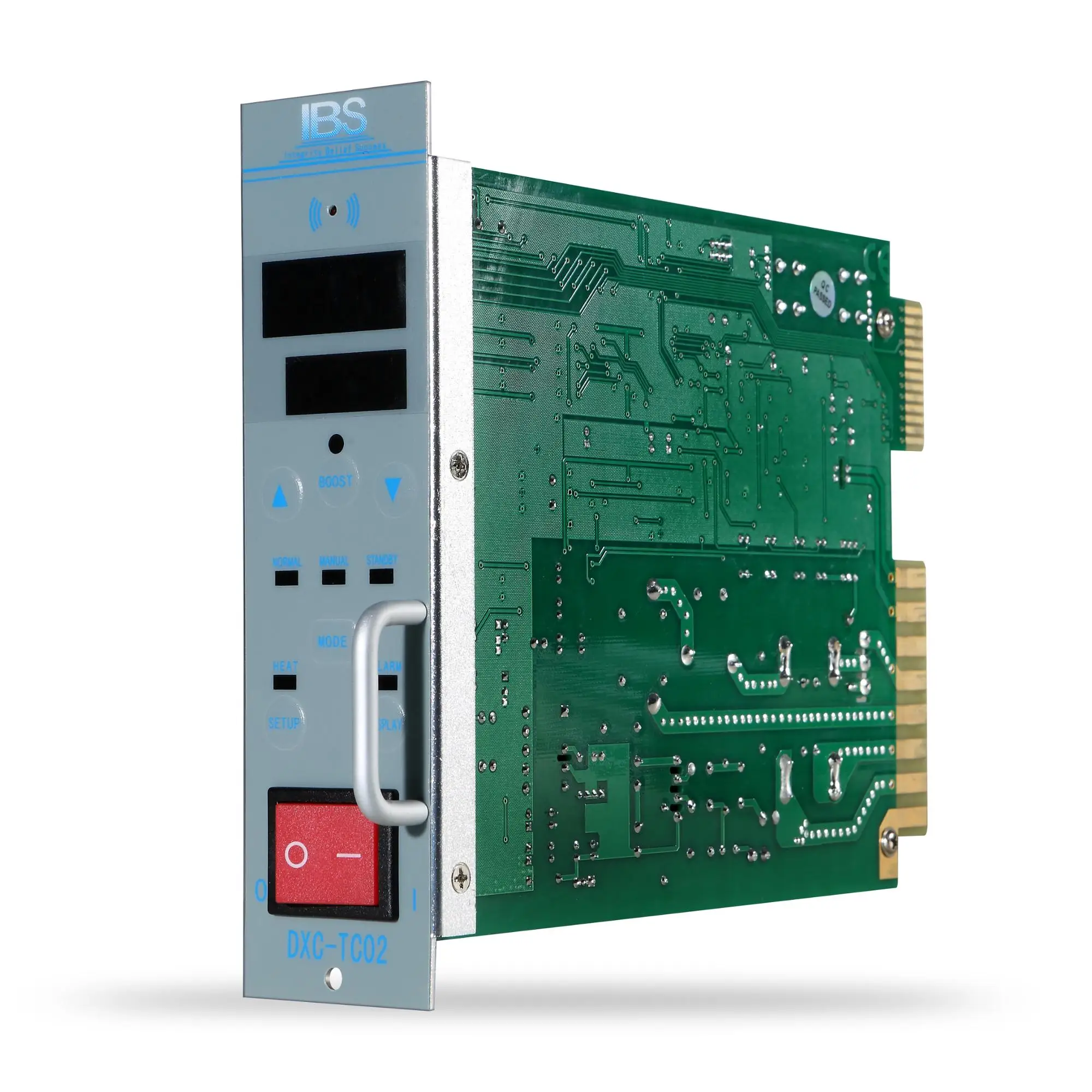

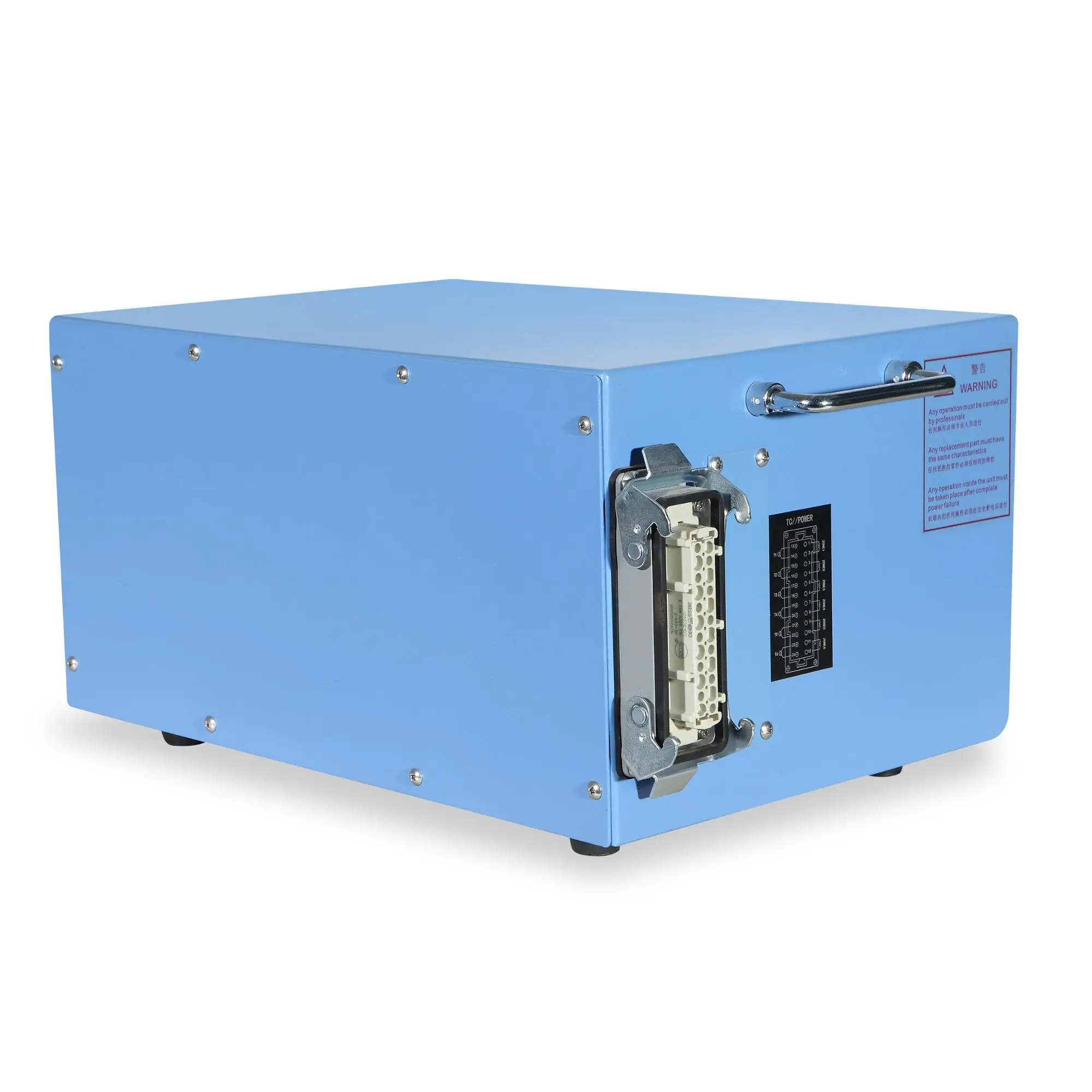

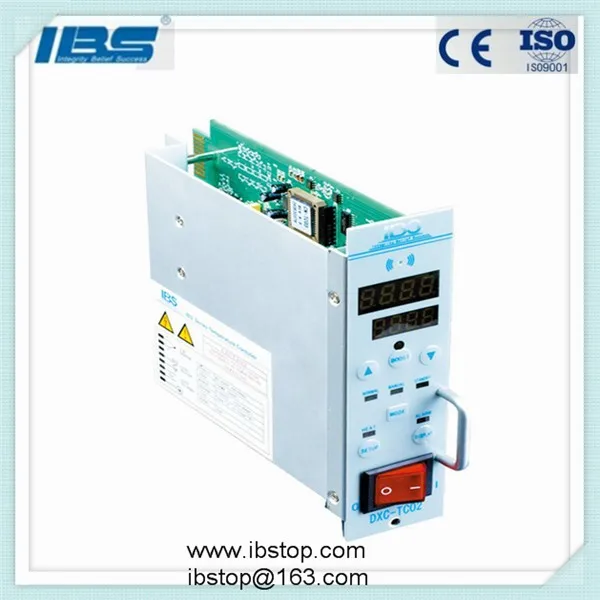

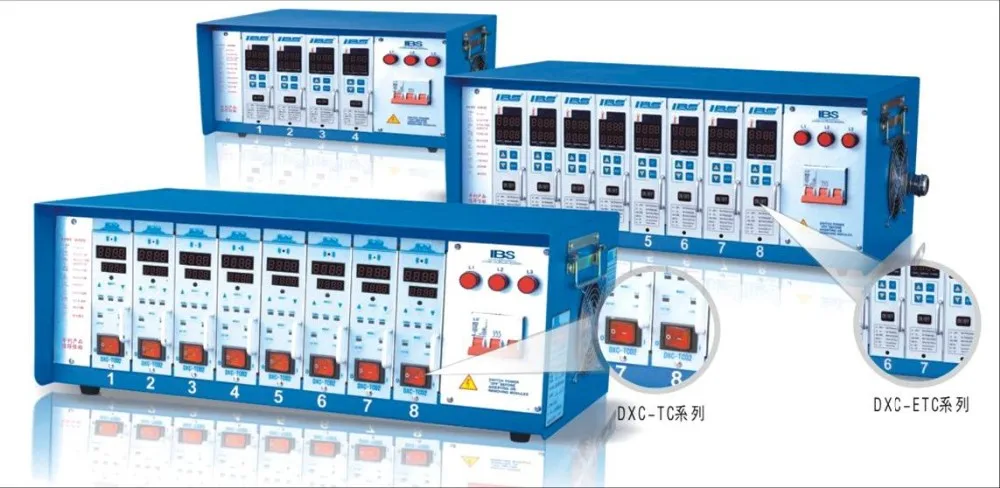

3.  Hot runner controllers picture:

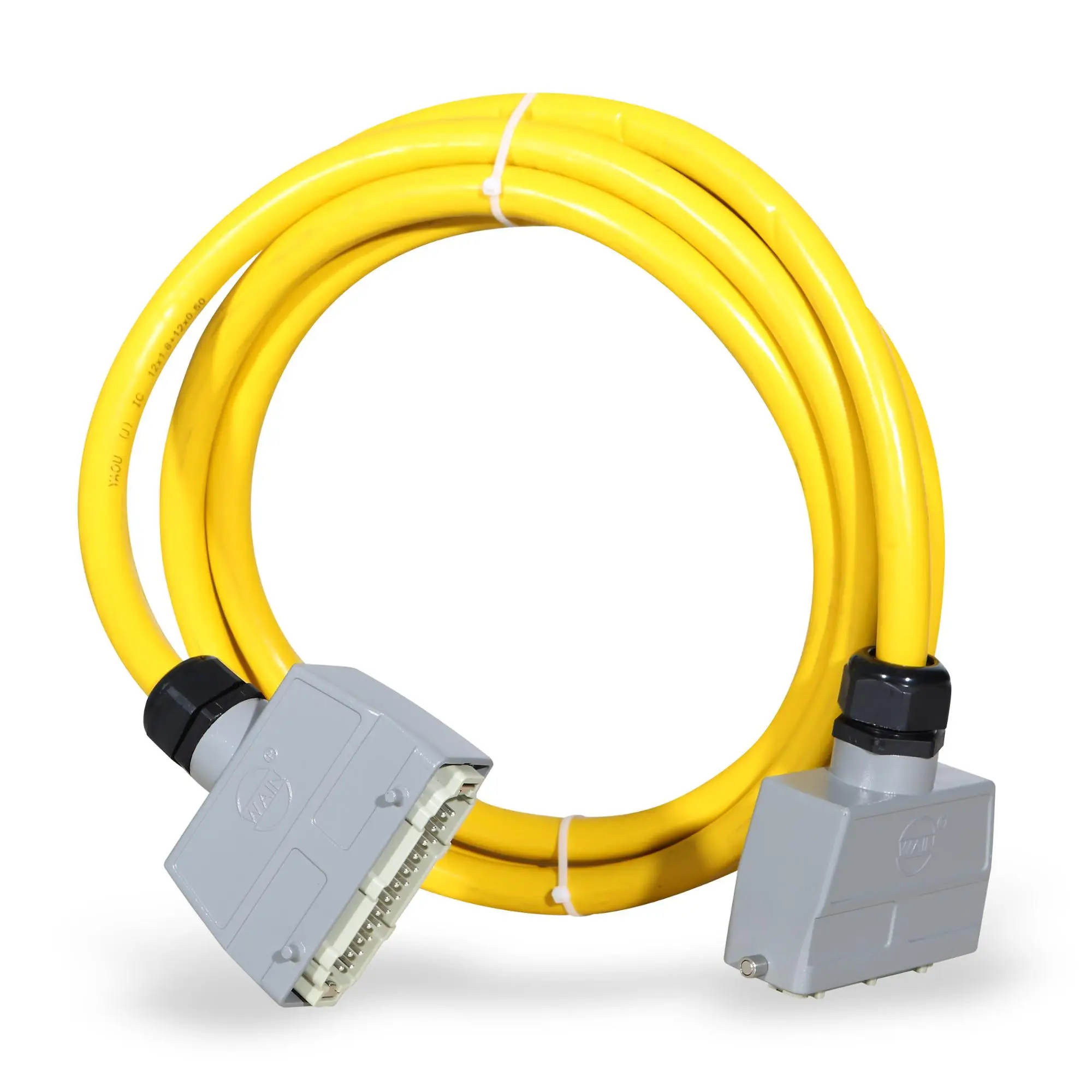

4. IBS DXC-TC Hot runner controllers accessories:





5.  Hot runner controllers packing details

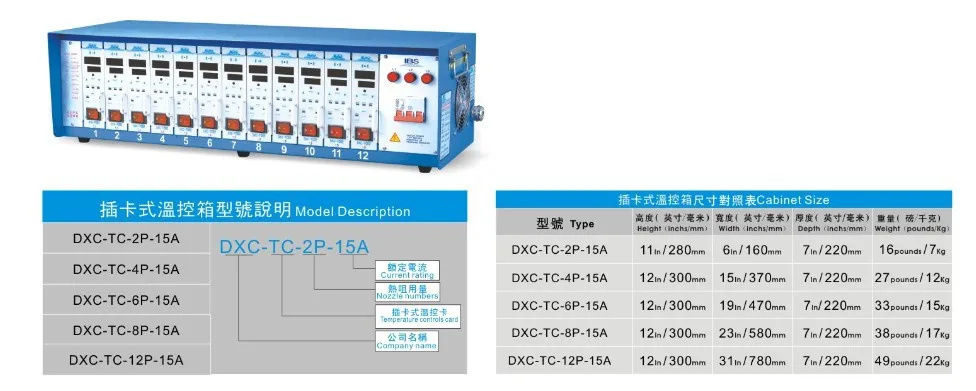

6. Dimensions and Weight for reference



Controller Model	Support Zones	GW/KG	Only Controller box demensions	Packaging dimensions
DXC-TC-2P-15A	2 zones	14	156*302*233MM	390*300*350MM
DXC-TC-4P-15A	3-4 zones	18	346*302*233MM	450*350*350MM
DXC-TC-6P-15A	5-6 zones	24	446*302*232MM	580*380*350MM
DXC-TC-8P-15A	7-8 zones	28	548*302*233MM	700*380*350MM
DXC-TC-12P-15A	9-12 zones	37	751*302*233MM	900*380*350MM





7.Certificate:





8. Our sales team





9. Chinaplas fair







10. IBS Service

1: 24 online service, email will get back in 24 hours.

2: After sale service available.

3:Have professional R&D group, all your technical requirement will be customized.

4, Research and develop state of the art hot runner controllers.



Welcome to contact us, we’re sure any of your inquiry will get prompt reply.
