Bubble cap

Bubble Cap is one of the devices in large-diameter fractional distillation columns that are designed to produce a bubbling action to exchange the vapor bubbles flowing up the column.

The gas-liquid contacting element for bubble cap tray is bubble cap, which has round and groove-shaped structure forms.The bubble cap is installed above the chimney, and will not leak in conditions of proper installation and gas-liquid load, so the bubble cap tray is featured by stable operation and great flexibility.

Application: preferred in low gas/liquid loading conditions.

Material:Plastic,Carbon steel,stainless steel,copper bronze,etc.

Technical Date of our standard bubble cap

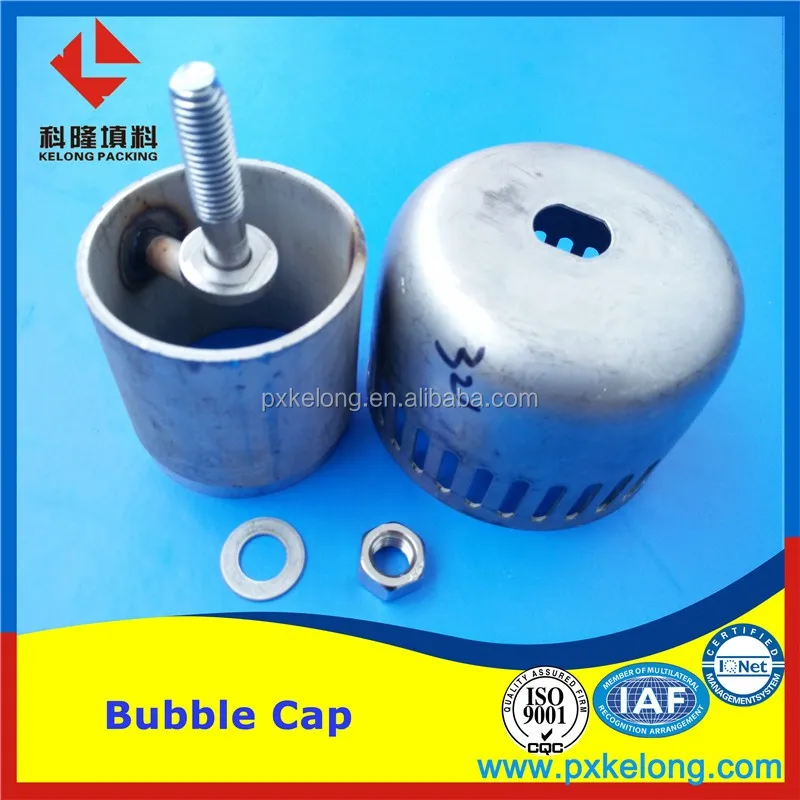

Bubble cap is consist of cap,riser,stud,nut,gasket.

Model	DN80	DN100	DN150
Noninal Diameter	80	100	150
outside Diameter and thinkness of cap	80×2	100×3	158×3
outside Diameter and thinkness of riser	57×3.5	70×4	108×4
Total Height	95	105	107
Height of Cap	65	75	73
Height of Riser	57	62	64

Size and structure can be customized according to customer's drawings.

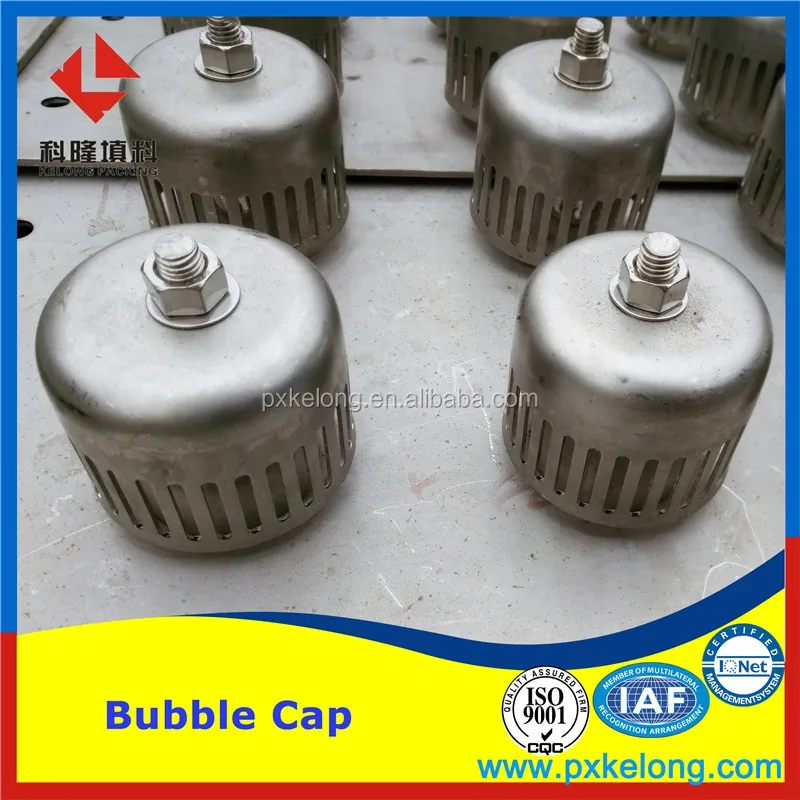

Detailed Images

Certifications

Packing

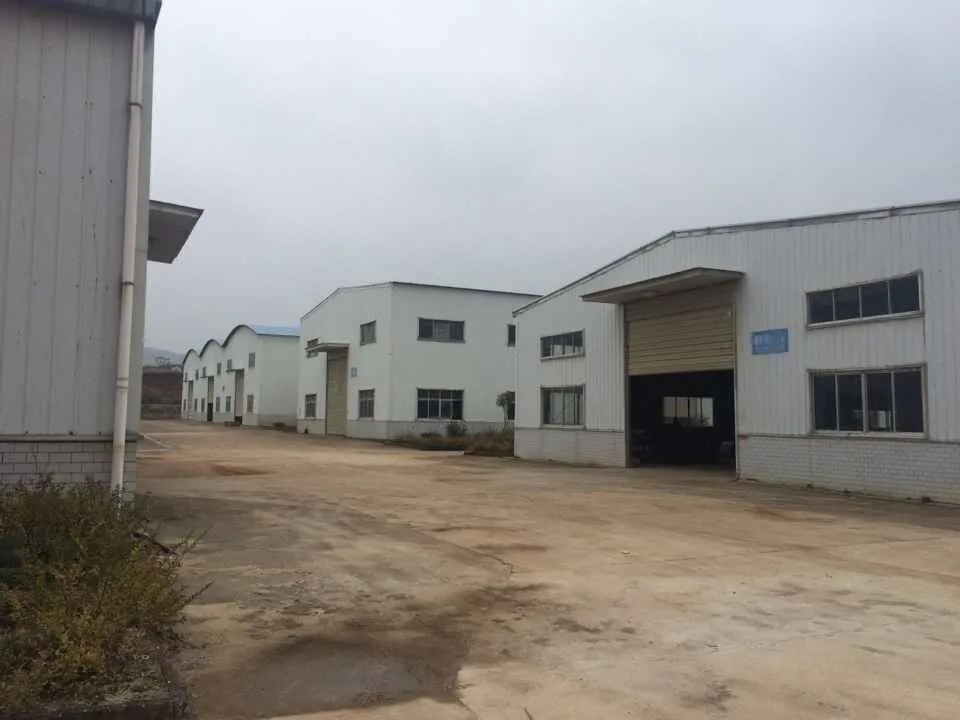

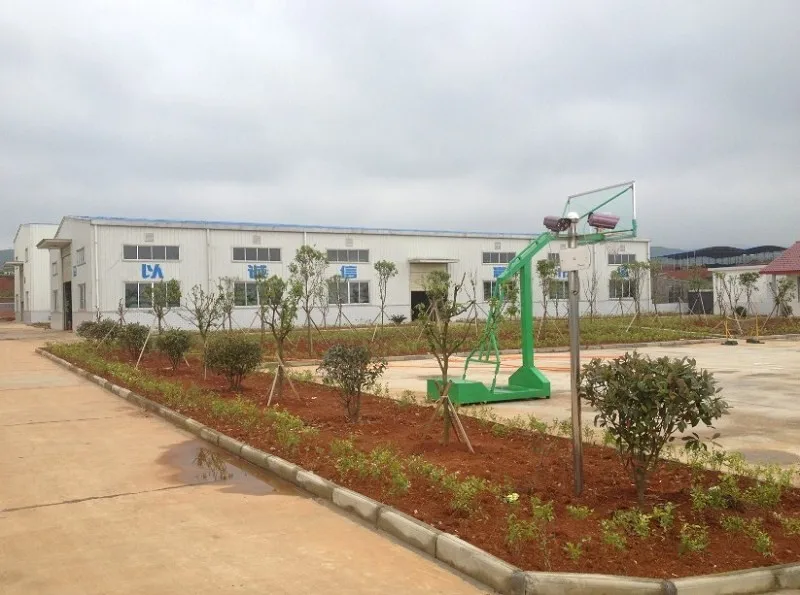

Our Company

Our Service

1.OEM Service: All details can be designed or changed according to buyer's requirements. The material and size can be customized.

2.Competitive Price: Direct factory price

3.Team Support: Professional sales and technology team provide service.

4.Good Quality: 6 years production experiences in tower packing and have strict quality control system.

5.Sample is free

6.If you have any question or advice, please feel free to contact us. We will do our best to meet your requirement.
