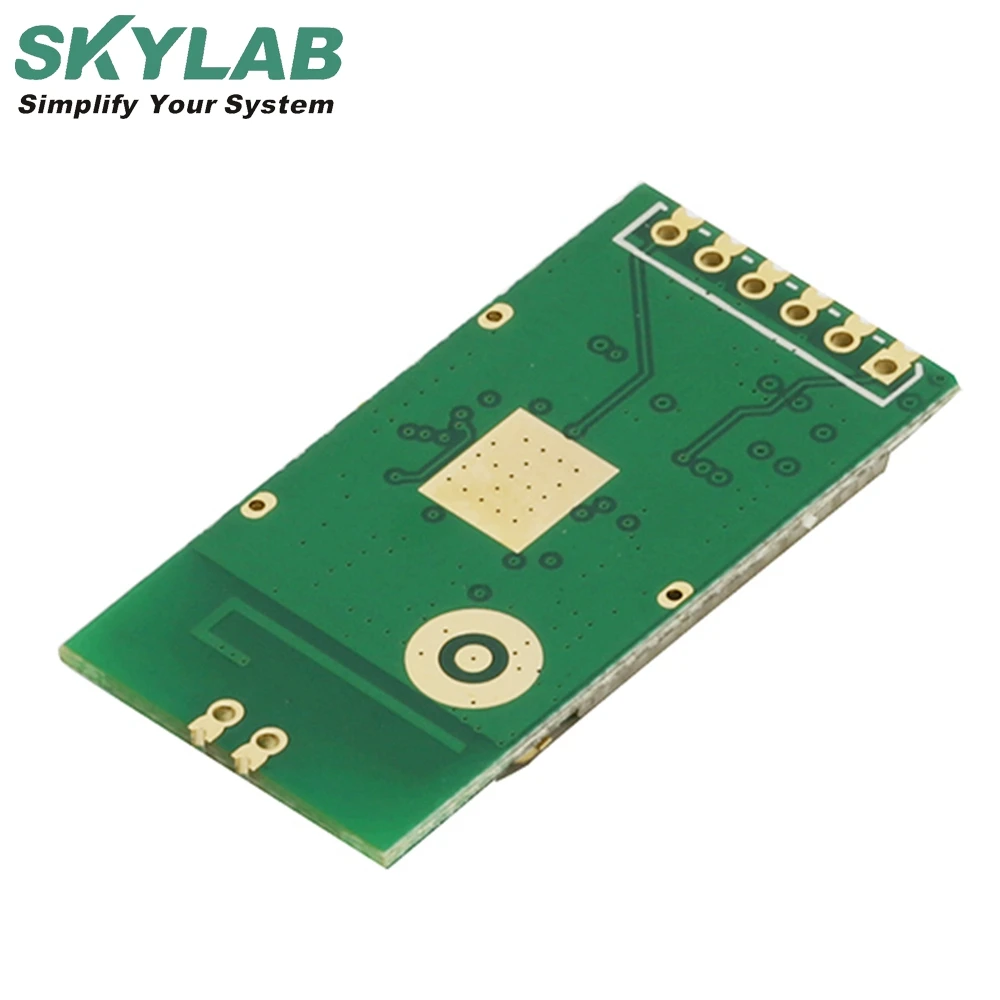

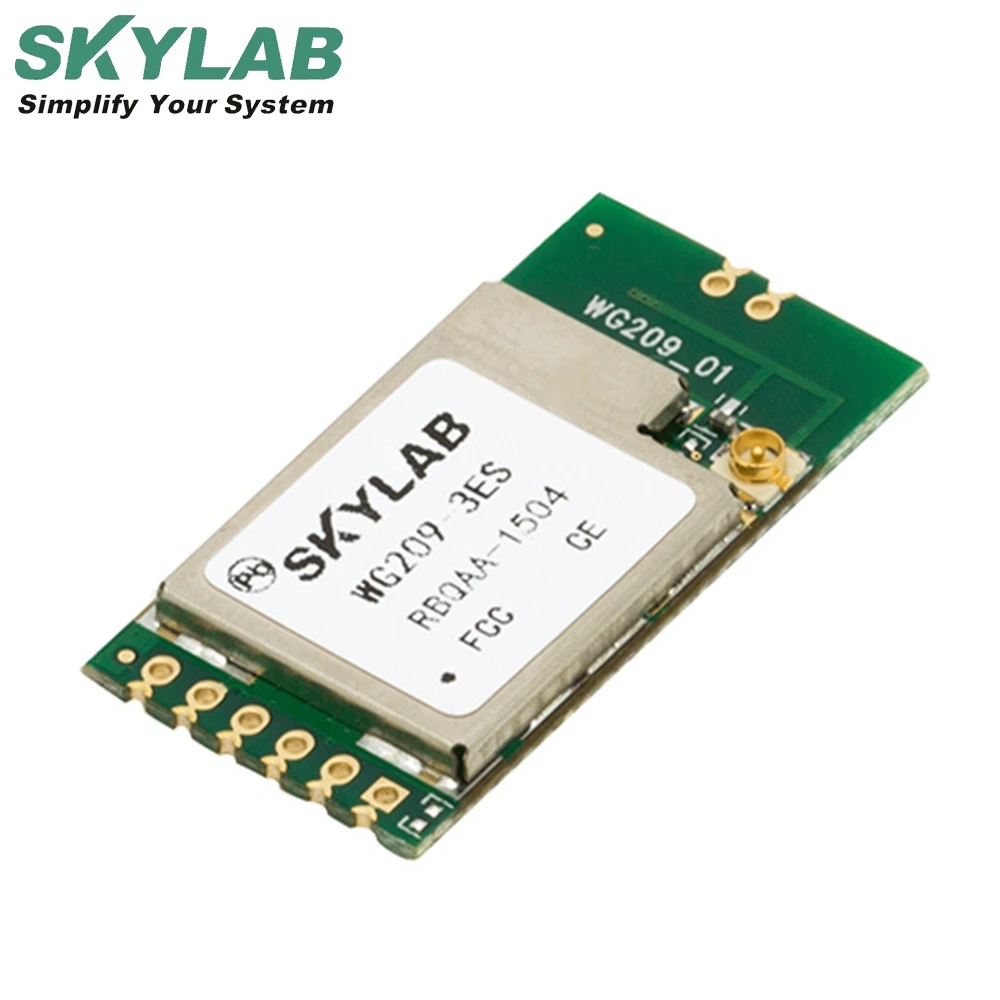

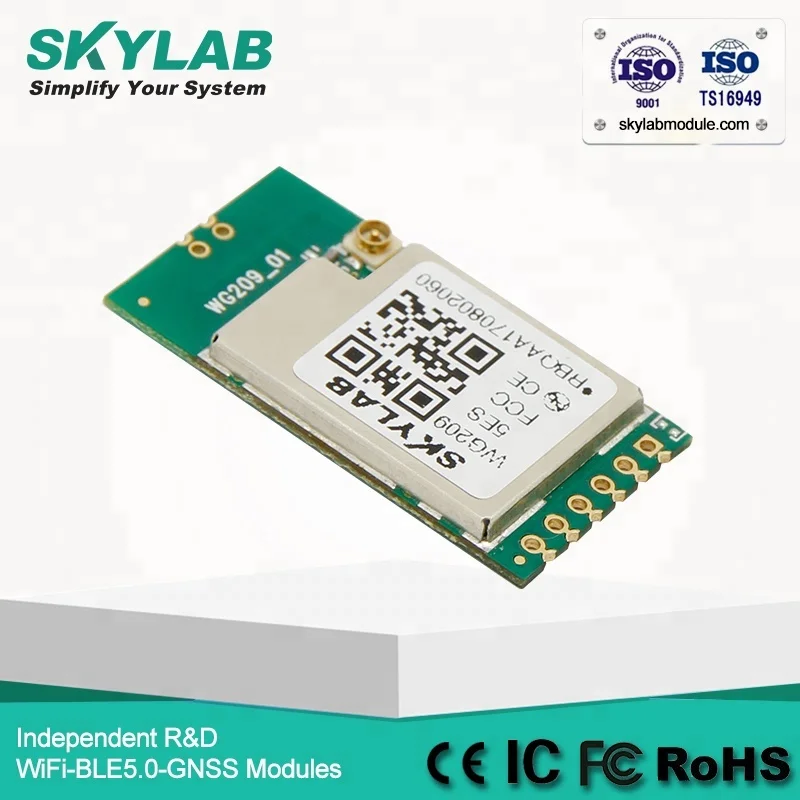

SKYLAB RoHS CE FCC certificate MT7601 4G WLAN MAC/BB Embedded SMD Linux Ralink USB WiFi Direct Module

    WG209 is a 802.11n/ b/g WiFi one-stream USB interface designed specifically to provide enhanced WiFi performance and value for home gateways, set-top boxes, gaming consoles, printers, IP cameras, and variety of other products that host processors not originally intended to support WiFi functions. WG209's MT7601 single-chip features a new architecture that integrates both a CPU and memory to run more of the WiFi function on-chip. The integrated CPU offloads the wireless processing overhead from the host appliance and enables consumer electronic devices to support WiFi functions seamlessly without change of original host processors.

Features

1.Compliant to IEEE 802.11b/g/n WLANs

2.2.4 GHz WLAN MAC/BB processing

3.Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

4.Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android.

5.Power Supply: 3.3V or 5.0V

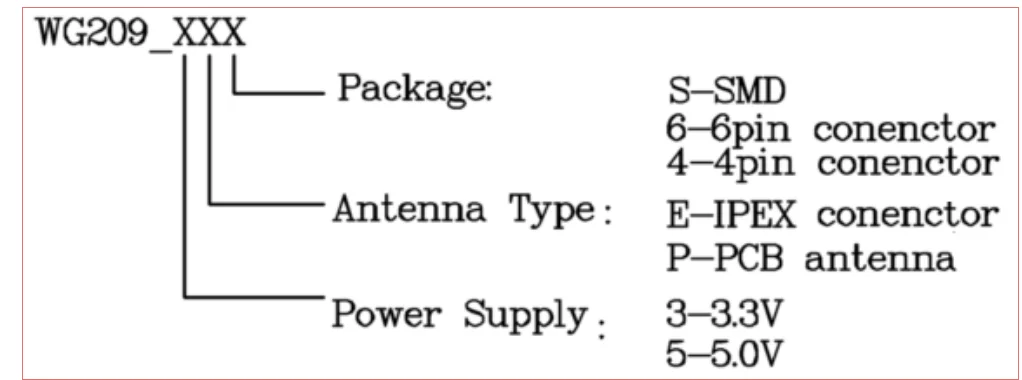

6.Package: SMD or 4pin/6pin Connector

7.USB 2.0 high speed interface.

8.Supports 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel operations.

9.Certificate: FCC,CE .

10.RoHS compliance meets environment-friendly requirement.

11.30(L) x 15(W) x 2.8(H) mm small dimension

Applications

1.Desktop Computer

2.Laptop Computer

3.IP Camera

4.IP TV

5.IP DVD(Internet VOD Player)

6.Set Top Box

7.Home Gateways

8.Gaming Consoles

9.Printers

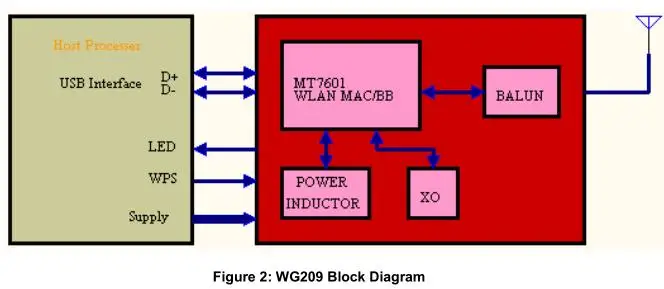

Applications Block Diagram
