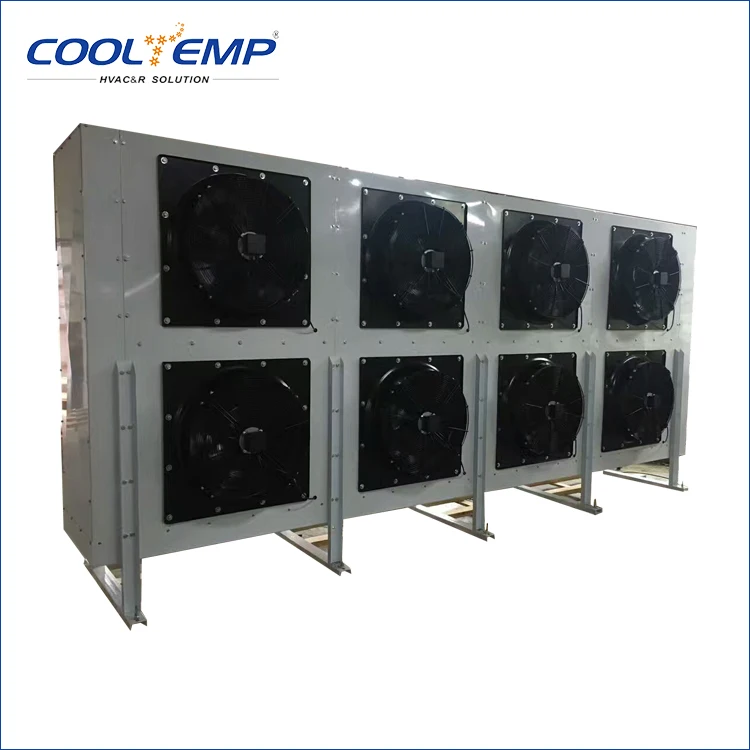

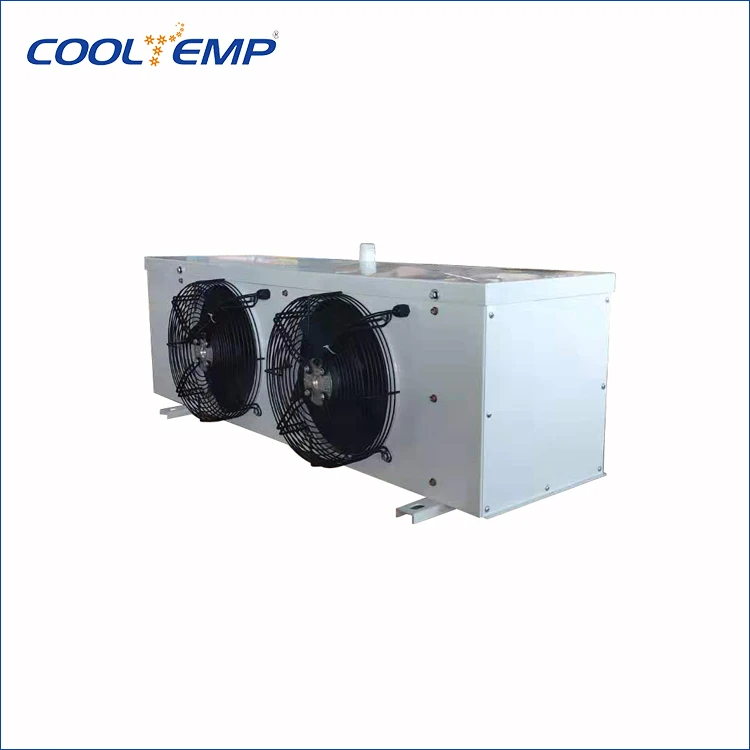

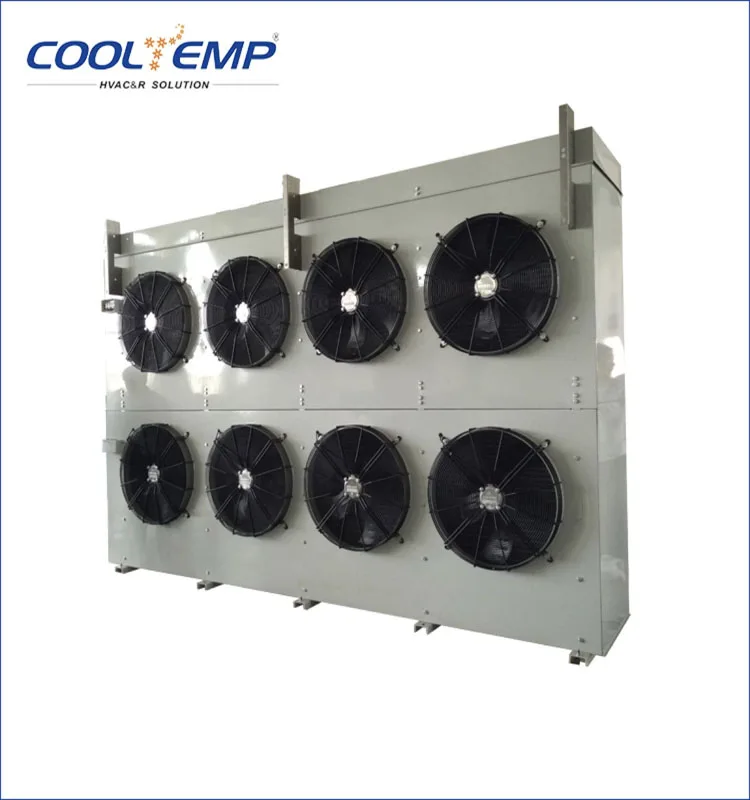

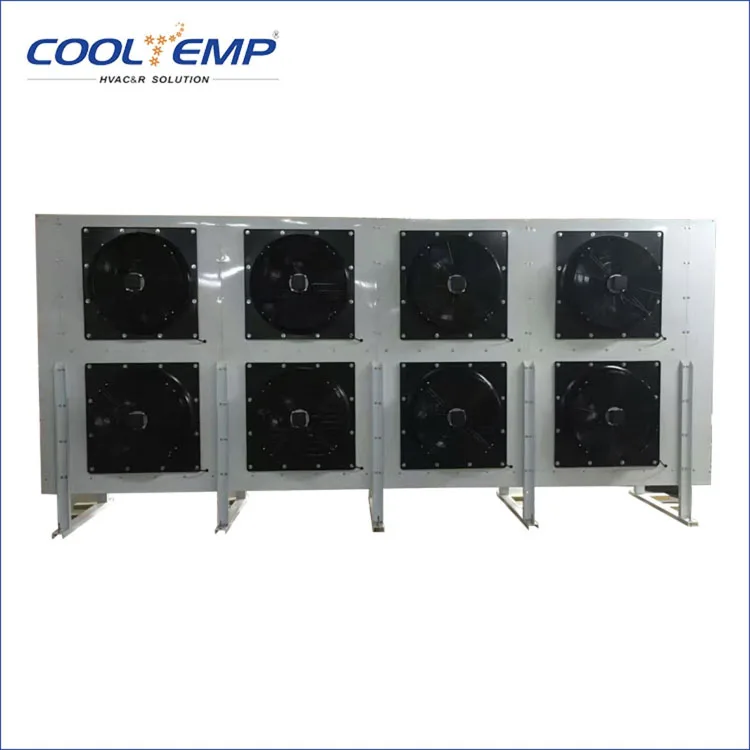

Direct Factory Price Blast Freezer Evaporator For Fish Cold Room

Product Overview

Description

Ceiling Type    Fast Frozen Unit Coolers     Fan:Φ630mm      Fin Space:9.0mm/18mm Inner-charge
Model	SC4 Capacity (KW)		SC5 Capacity (KW)		Tube length	Surface	Circuit Vol.	Fan					Heater		InTube (inch)	OutTube (inch)	Net Weight (KG)
	Airinlet Ta-25℃    Evaporation Te -31℃		Airinlet Ta -34℃    Evaporation Te-40℃
	R22	R404A	R22	R404A	m	m2	dm3	Fan Mot no.	Air Flow (m3/h)	Air Throw (m)	Fan Mot Amper (A)	Fan Mot Power (W)	Electric Defrost (A)	Electric Defrost (W)
LK6T632	18.0	17.6	14.8	14.7	288	76	39.0	630*2	26600	31	6.4	3200	18.9Δ	10800	7/8	1-5/8	280
LK8T632	21.7	21.4	17.9	17.9	384	102	53.0	630*2	24200	29	6.4	3200	28.4Δ	16200	1-1/8	2-1/8	310
LK6T633	27.5	27.2	22.5	22.5	432	114	59.0	630*3	29900	32	9.6	4800	28.4Δ	16200	1-1/8	2-1/8	380
LK8T633	32.7	32.5	27.1	27.1	576	153	79.0	630*3	36300	30	9.6	4800	42.6Δ	24300	1-3/8	2-1/8	420
LK8T634	37.9	37.5	30.6	30.6	691	183	95.0	630*4	44800	31	12.8	6400	51.3Δ	29250	1-3/8	2-1/8	510
Defrost electric heating pipe connection:Δ triangle connection .



Floor Type    Fast Frozen Unit Coolers     Fan:Φ630mm      Fin Space:9.0mm/18mm Inner-charge
Model	SC4 Capacity (KW)		SC5 Capacity (KW)		Tube length	Surface	Circuit Vol.	Fan					Heater		InTube (inch)	OutTube (inch)	Net Weight (KG)
	Airinlet Ta-25℃    Evaporation Te -31℃		Airinlet Ta -34℃    Evaporation Te-40℃
	R22	R404A	R22	R404A	m	m2	dm3	Fan Mot no.	Air Flow (m3/h)	Air Throw (m)	Fan Mot Amper (A)	Fan Mot Power (W)	Electric Defrost (A)	Electric Defrost (W)
LKY6T634	36.0	35.2	29.6	29.4	576	152	79.0	630*4	53200	31	12.8	6400	37.9Δ	21600	2*7/8	2*1-5/8	560
LKY8T634	43.4	42.8	36.4	35.8	768	204	105.0	630*4	48400	29	12.8	6400	56.8Δ	32400	2*1-1/8	2*2-1/8	620
LKY6T636	55.0	54.4	45.6	45.0	864	228	118.0	630*6	79800	32	19.2	9600	56.8Δ	32400	2*1-1/8	2*2-1/8	760
LKY8T636	65.4	65.0	55.4	54.2	1152	306	158.0	630*6	72600	30	19.2	9600	85.3Δ	48600	2*1-3/8	2*2-1/8	840
Defrost electric heating pipe connection:Δ triangle connection /star connection Y,Y must be connected to the neutralline.
