Triangle Flower Umbrella Necktie Bag Making Machine
- Category: >>>
- Supplier: Ruian Yuanhang Machinery Factory
Share on (60643187354):
Product Overview
Description
Specifications:
Machine is a multifunctional, high-quality hot cutting & sealing bag machine, flower bag making machine.

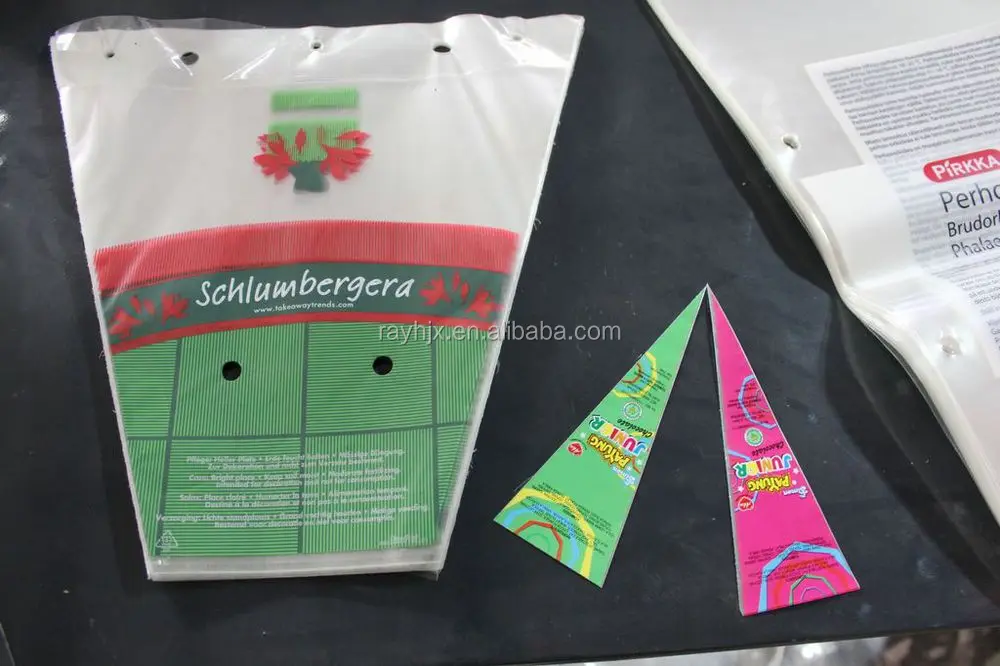

It is computer control, frequency conversion to adjust speed, electric eye following, adjustable function of various specifications, easy to operate. Suitable for different bags such as flower bag, tie bag, umbrella wrapping bag, fruit bag, etc.
This machine is mainly from 4 divisions: fuselage and main force system, the part of Film-feeding, the part of Bag-receiving, the control box.
Main features:
1, This machine uses the liquid crystal computer to touch the screen control, may initialize the system bag speed, makes the bag length, establishes in advance approves/the inferior quantity to carry on automatically counts, alarm in advance, after in groups/inferior quantity knock off.
2, The computer control burns the knife temperature, may carry on the lock following to the temperature.
3, The host electrical machinery speed controls with the frequency changer, the revolution steady province electricity, the ease of operation is relaxed.
4, Electro-optical tracker system,accuracy control system bag size.
5, Using the high-level import silica gel conveyor belt, the service life long, makes the bag to be artistic.
6, The belt dashed line spot breaks the function.
7, The side be sealed is of high strong , very smooth, and good in appearance.
Main Technical Parameters:
Model | YHB-600 | YHB-700 | XYHB-800 | YHB900 |
Max.Length of bag-making | 520mm | 620mm | 720mm | 820mm |
Max.Width of bag-making | 600mm | 700mm | 800mm | 900mm |
Max.Angle of bag-making | 55°C | 55°C | 55°C | 55°C |
Thickness of material | 0.02-1.5um | 0.02-1.5um | 0.02-1.5um | 0.02-1.5um |
Max.Speed | 30-100 pcs/min | 30-100 pcs/min | 30-100 pcs/min | 30-100 pcs/min |
Bag-making precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
Voltage | 220V | 220V | 220V | 220V |
Total Power | 7kw | 8.5kw | 10kw | 11.5kw |
weight | 2000kg | 2100kg | 2200kg | 2300kg |
Machine Size (L×W×H) | 5300*1400*1700mm | 5300*1500*1700mm | 5300*1600*1700mm |
5300*1700*1700mm |

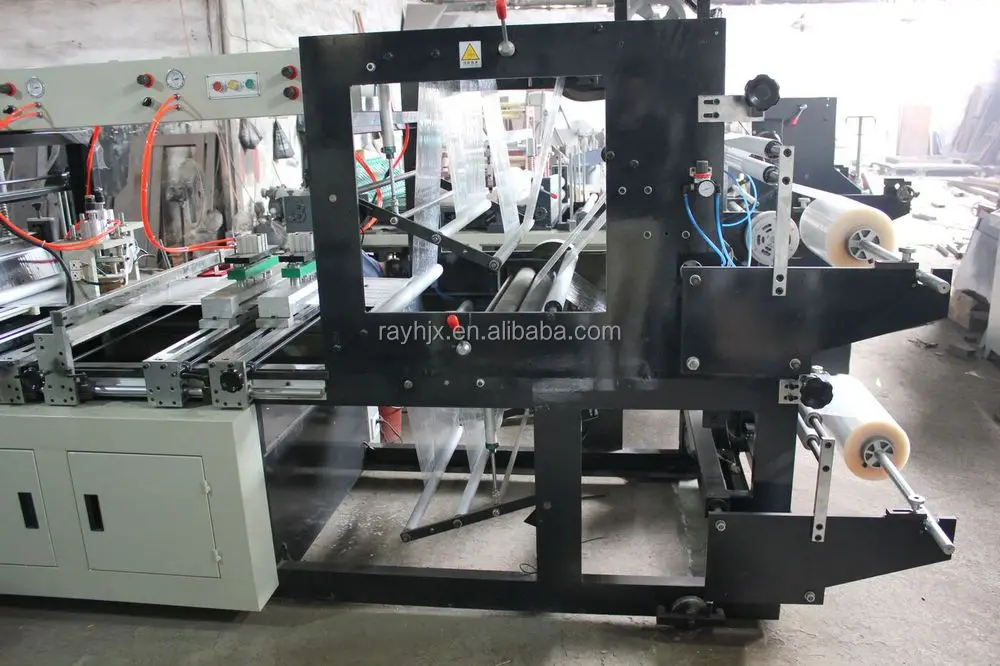

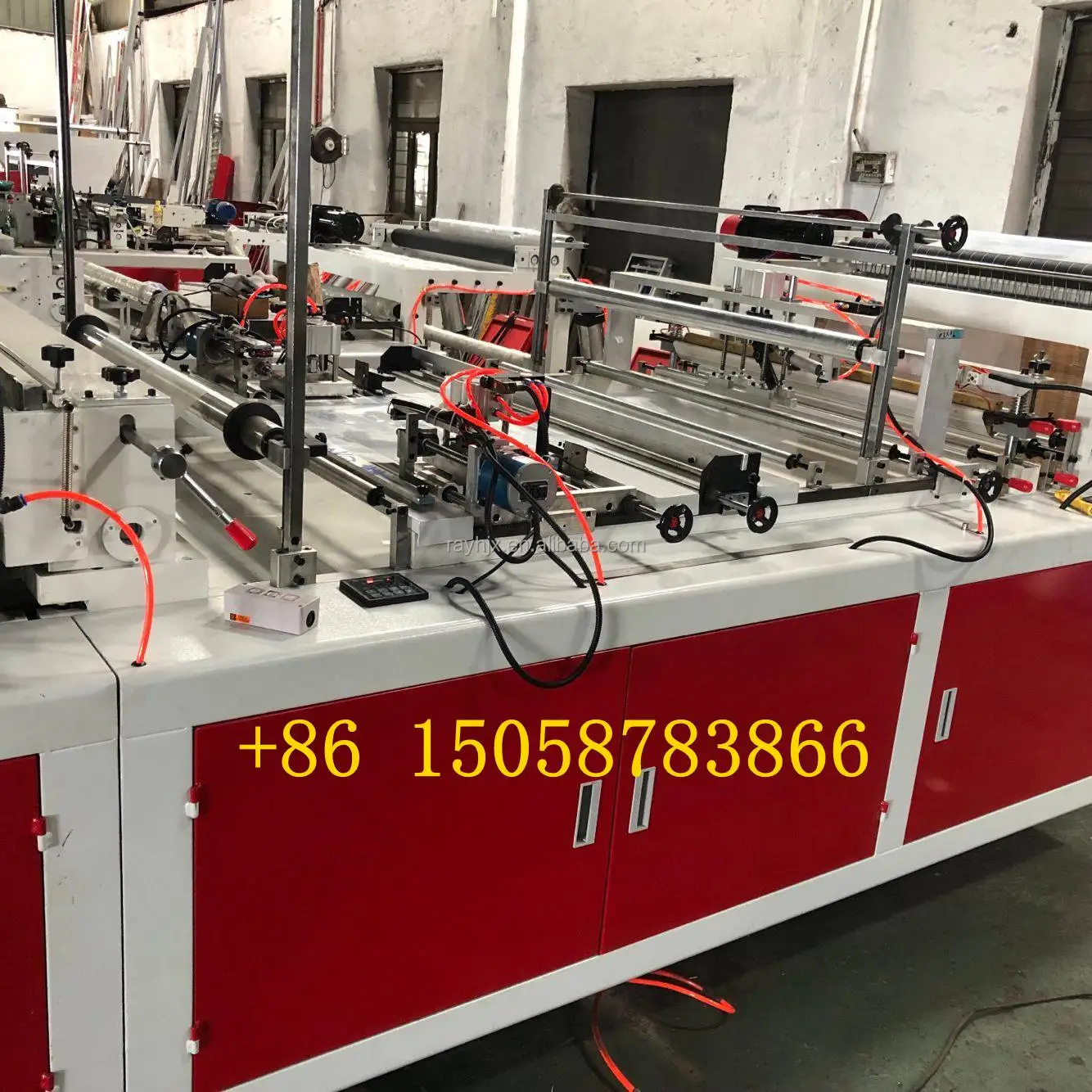

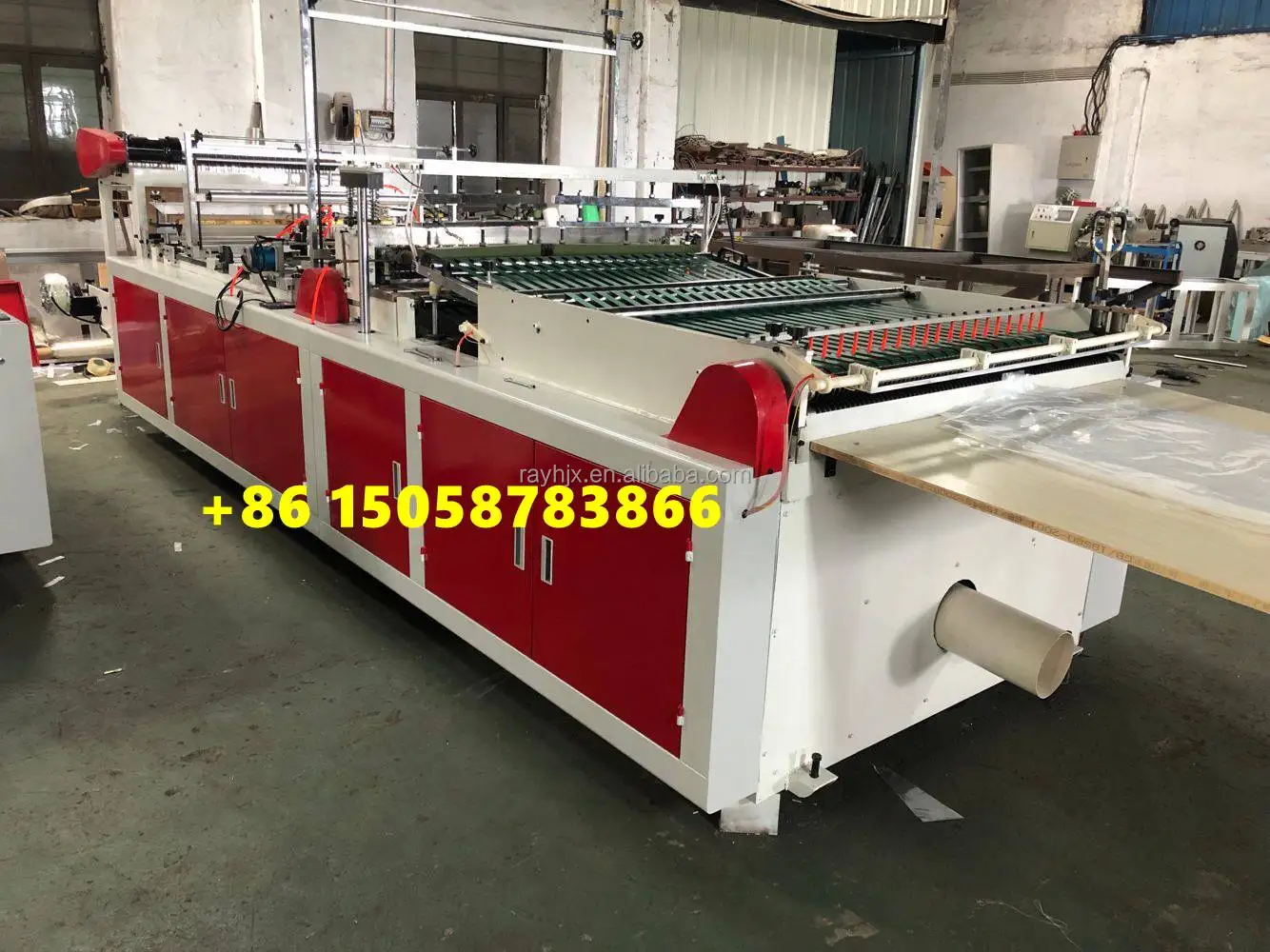

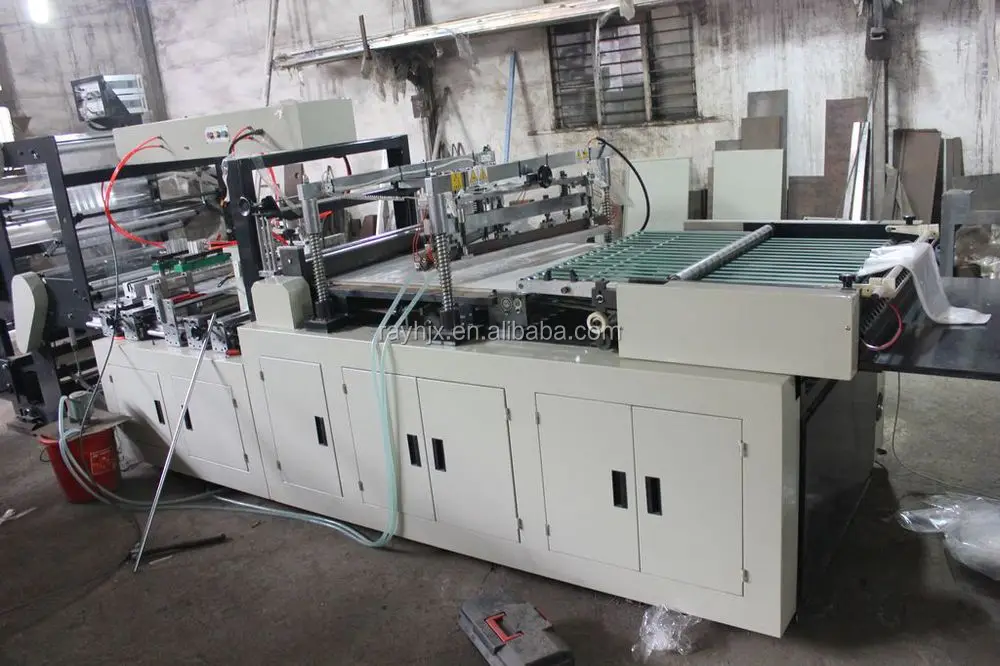

Machine Photos:

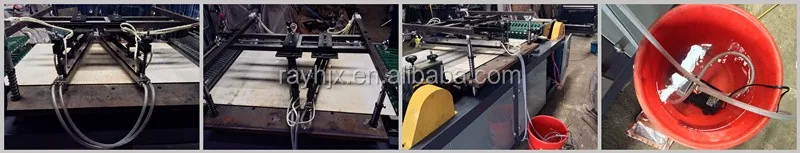

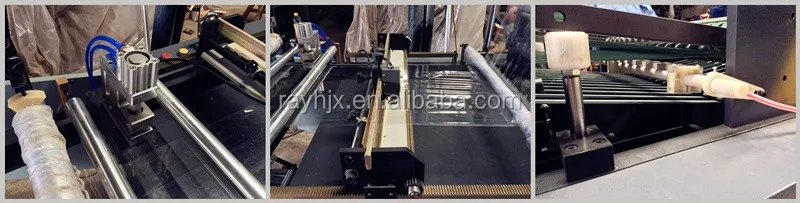

Hole punching part Electro-optical tracker Anti-static

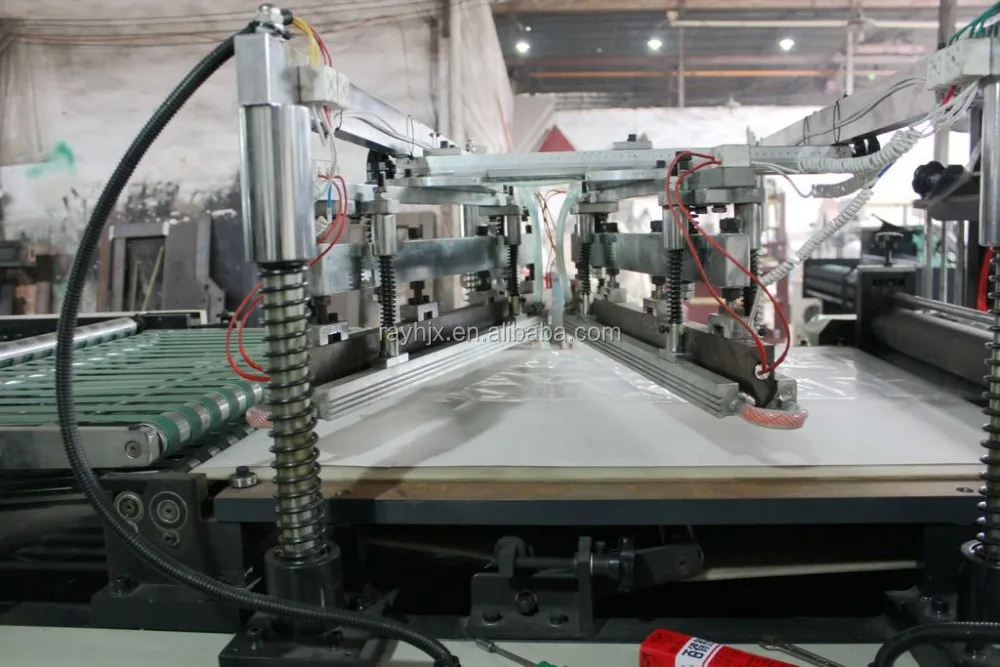

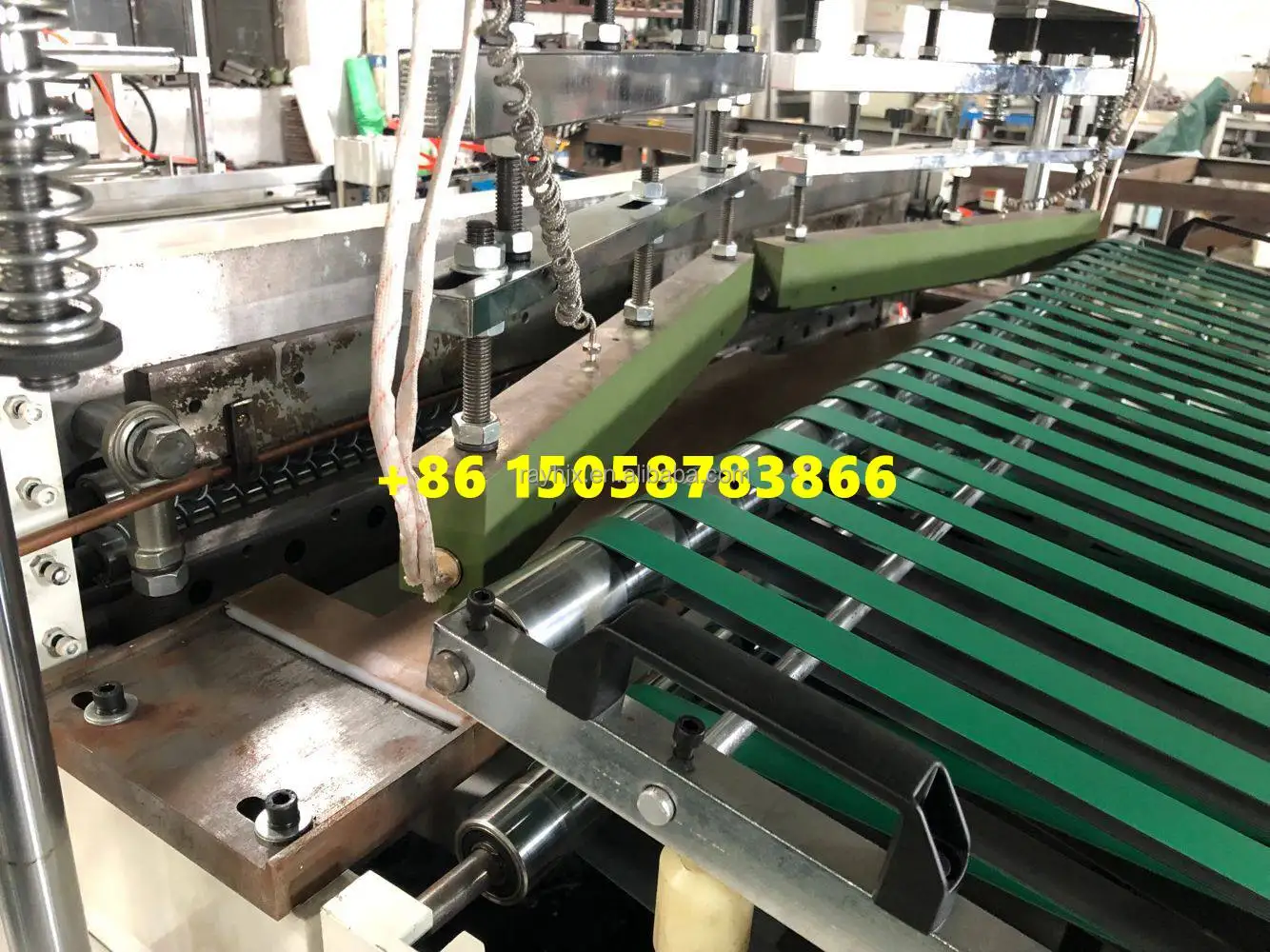

Heating knife: with water pump
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
