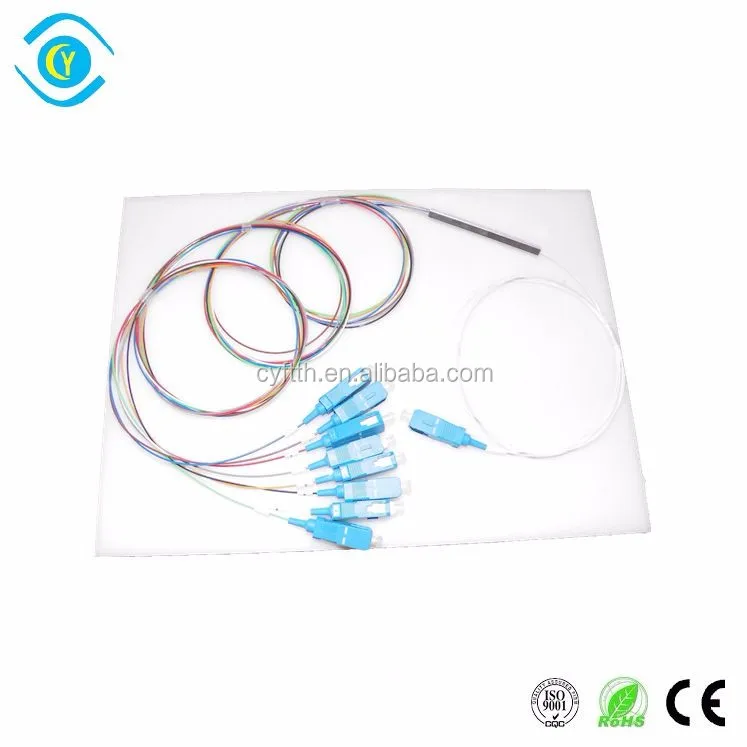

SC/FC/APC/UPC 1*8 Mini Type PLC Splitter
SC/FC/APC/UPC 1*8 Mini Type PLC Splitter
SC/FC/APC/UPC 1*8 Mini Type PLC Splitter
SC/FC/APC/UPC 1*8 Mini Type PLC Splitter
SC/FC/APC/UPC 1*8 Mini Type PLC Splitter
SC/FC/APC/UPC 1*8 Mini Type PLC Splitter

SC/FC/APC/UPC 1*8 Mini Type PLC Splitter

Share on (60643225656):


Price:RUB 382.56

Quantity:


Product Overview

Description

Product Description

Applications:

Ø LAN, WAN and Metro Networks

Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net

Features:

Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity

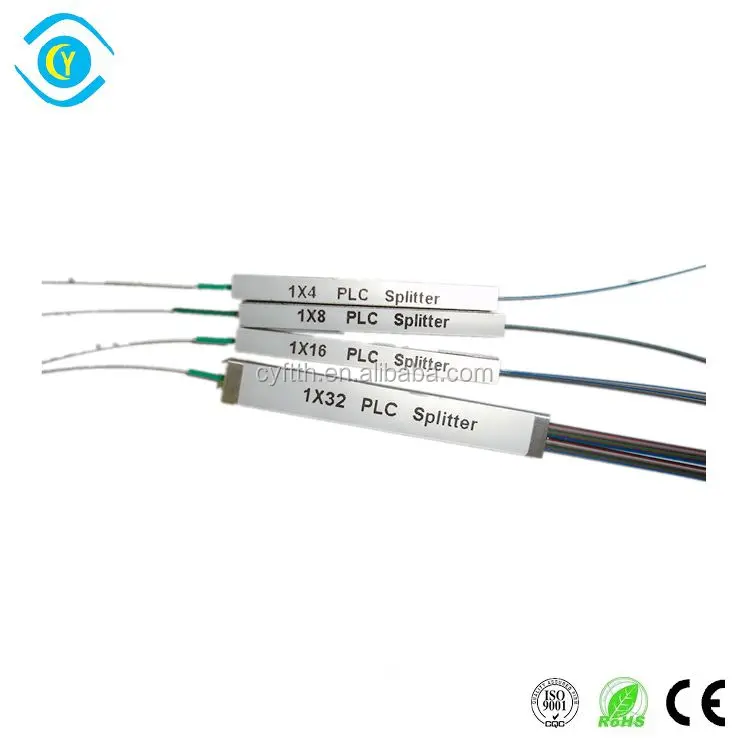

Parameters
1*4
1*8
1*16
1*32
1*64
1*64
Operation Wavelength(nm)

 1260-1650
1310±40
1490±10
1550±40
Insertion Loss(dB)
≤7.4
≤10.7
≤13.9
≤17.2
≤21.5
≤20.1
PDL
≤0.3
≤0.3
≤0.3
≤0.3
≤0.5
≤0.3
Uniformity of I.L
≤0.8
≤1.0
≤1.4
≤1.6
≤2.0
≤1.6
Return Loss(dB)
≥55
Directivity(dB)
≥55
Working/Storage Temperature(℃)
-40~+85
Parameters
2*4
2*8
2*16
2*32
2*64
2*64
Operation Wavelength(nm)

 1260-1650
1310±40
1490±10
1550±40
Insertion Loss(dB)
≤7.6
≤11.0
≤134.8
≤17.9
≤21.5
≤20.1
PDL
≤0.3
≤0.3
≤0.3
≤0.3
≤0.3
≤0.5
Uniformity of I.L
≤0.8
≤1.0
≤1.4
≤1.4
≤1.6
≤2.0
Return Loss(dB)
≥55
Directivity(dB)
≥55
Working/Storage Temperature(℃)
-40~+85
Detailed Image
Our Company

Company Profile:

     Shanghai Changyue Communications Co.,Ltd was established in 2009. Located in Minhang district, Shanghai, where is very close to the technological frontier area of China Huang Pu River.
     Changyue is one of the pioneers in the high-tech optical communication industries, who combines development, production, sales and service as a whole, provides operators with comprehensive solutions in optical networks, fixed networks and mobile networks.
     Our products include FTTH products, optical distribution products, passive optical products, antenna feeder accessories, lightning protection products and smart ODN products, etc.

Certification:

     Changyue has a series of strict management system, and has obtained the certificates of ISO9001:2008 in 2009 and ISO14001:2004 and OHSAS18001-2007 in 2014. And we have CE,RoHS,TLC.
     Meanwhile, Changyue attaches great importance to the products quality and R&D programs, applied for and obtained a number of TLC product certification, invention patents, utility model patents and appearance design patent, copyright of computer software in registration certificate, high-tech achievement transformation project certificate, etc.

Packing & Delivery

Packing: Nomally packing with Carton.(Can be customized)
Delivery: Nomally transporting by sea transport.(It depends on customers' requirements)
