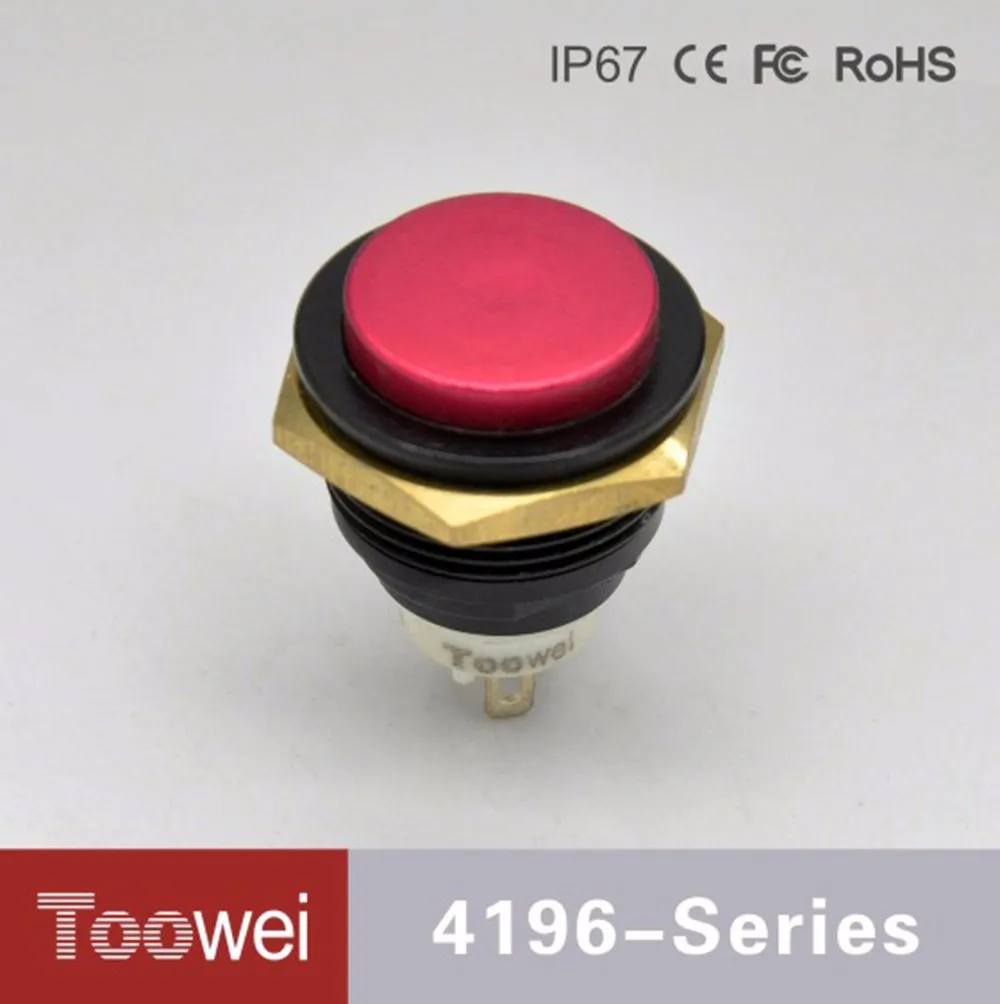

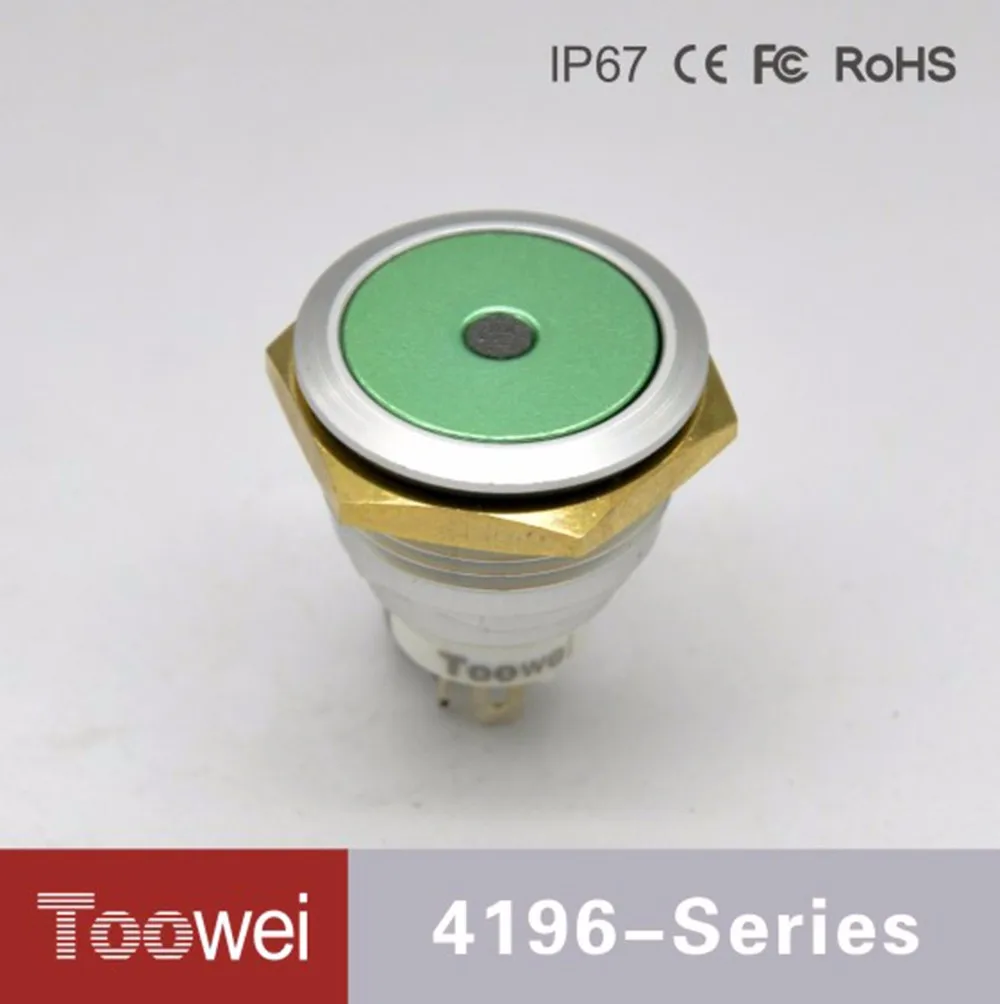

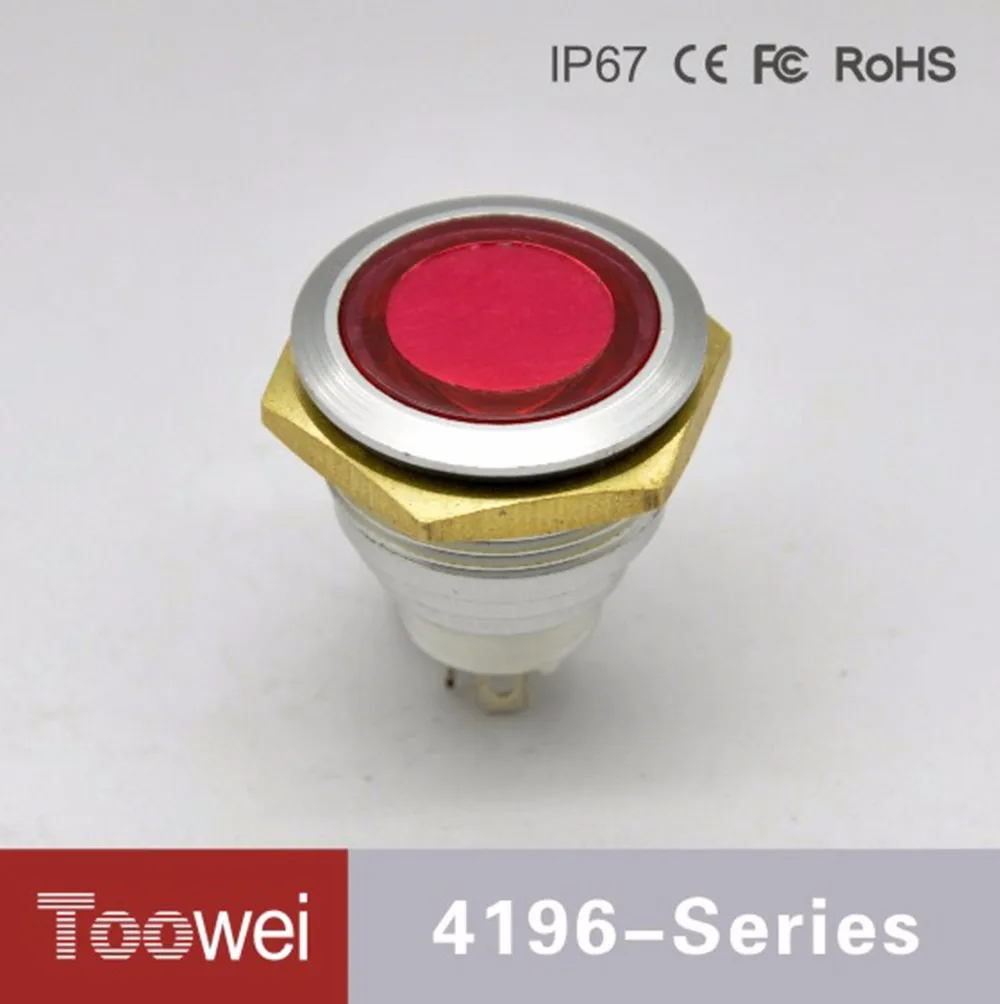

Toowei 19mm stainless steel flat head reset lamp switch pushbutton ip67 momentary switch as machine switches
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (60643225690):
Product Overview
Description
Specification
Waterproof Pushbutton Switch | ||
Model | 4196 | |
Rating Value | 5A 250VAC/8A 125VAC | |
Button Color Light Color | Matel No light/Dot-illumination/Ring illumination | |
Ambient Temperature | -25 °c to +80 °c | |
Founction | ON-OFF/(ON)-OFF | |

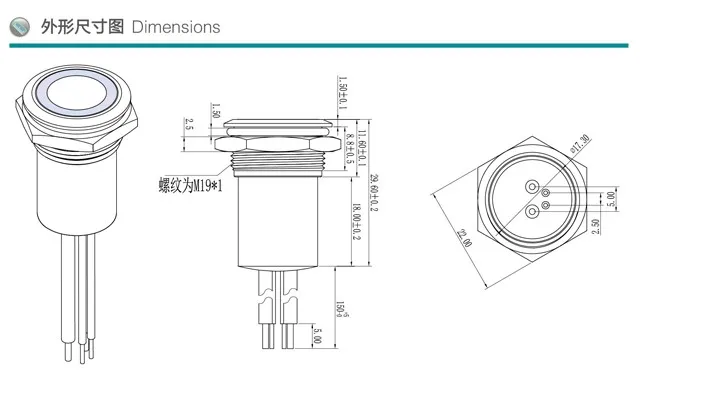

Dimension | Diameter 19mm+0.2 | |
Protection Degree | IP67 | |
Product Description
Feature

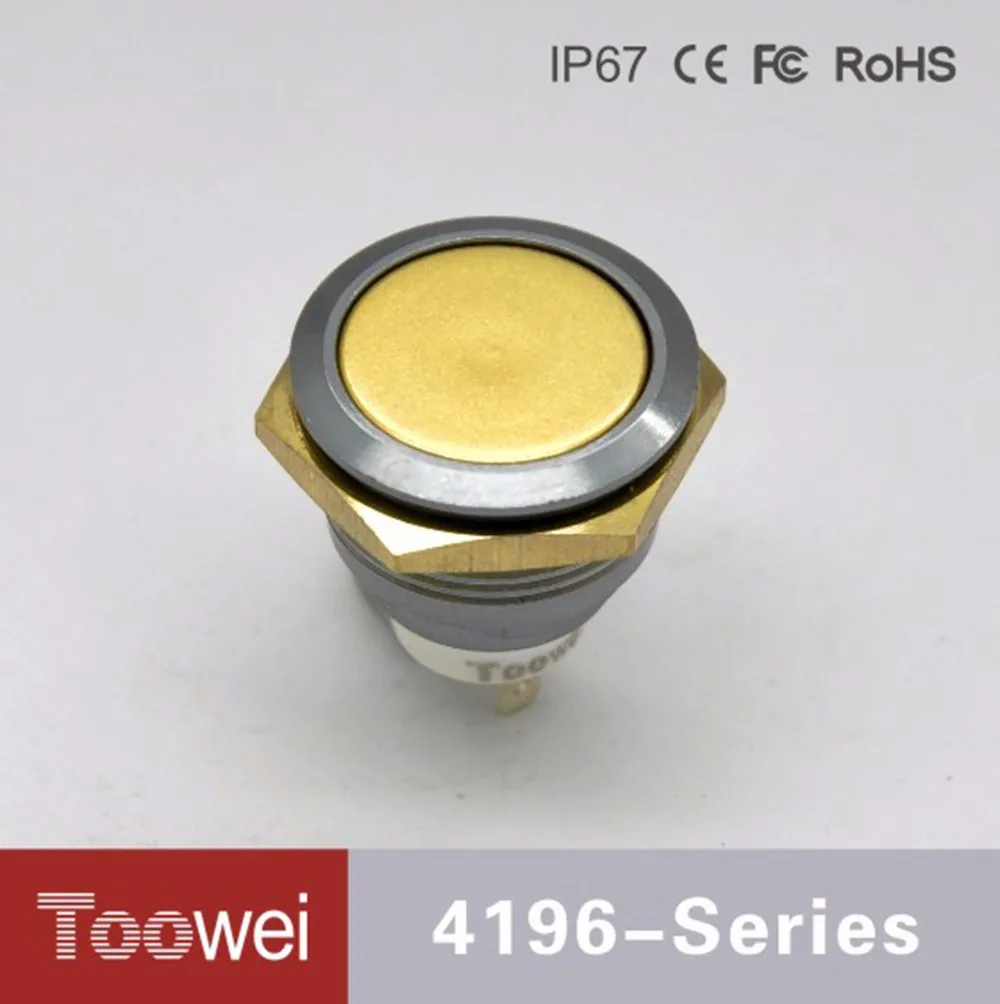

1. A4196 series waterproof pushbutton switch , metal waterproof pushbutton switch , overall waterproof pushbutton switch protection degree up to IP67 .
2. Mounting Dimension:19mm
3. Material : Plastic or Matel
4. Function:Self-locking or Non self-locking(Momentary)
Model and Meaning
* Metal button type only have round button, square button have not matel type.
* Pushbutton Switch with wire , the wire length is 16cm .
A4 | 19 | □ | □ | □ | □ | □ | □ |
A4196 code | Dimension | Shell Color | Button Color | Led Light Color | Light Form | Button Form | Function |
Waterproof Pushbutton Switch | 19:Φ19mm | 5:Stainless Stell 6: Nature Color 7:Black 8:Glod 9: Gray | 1:Red 2.Black 3.Gray 4:Blue 5:Glod 6:Green 7:Nature color 8:Stainless Steel | 0: No light 1:Red 2.Green 3. Yellow 4.Blue 5:White | 0: No light 1:Dot illumination 2. Ring illumination | 1:Convex surface 2:Concave surface 3.Flat surface 4:Print words | 1:Self locking 2: Non self-locking |

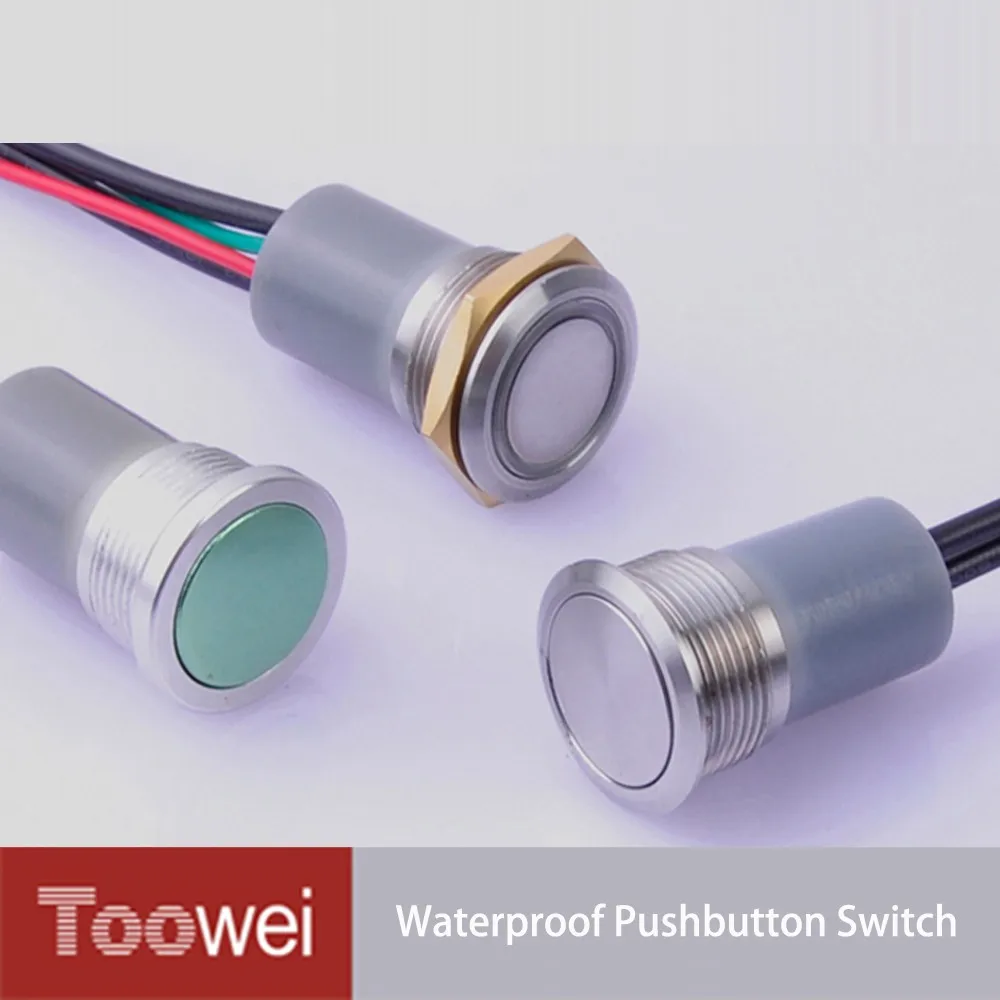

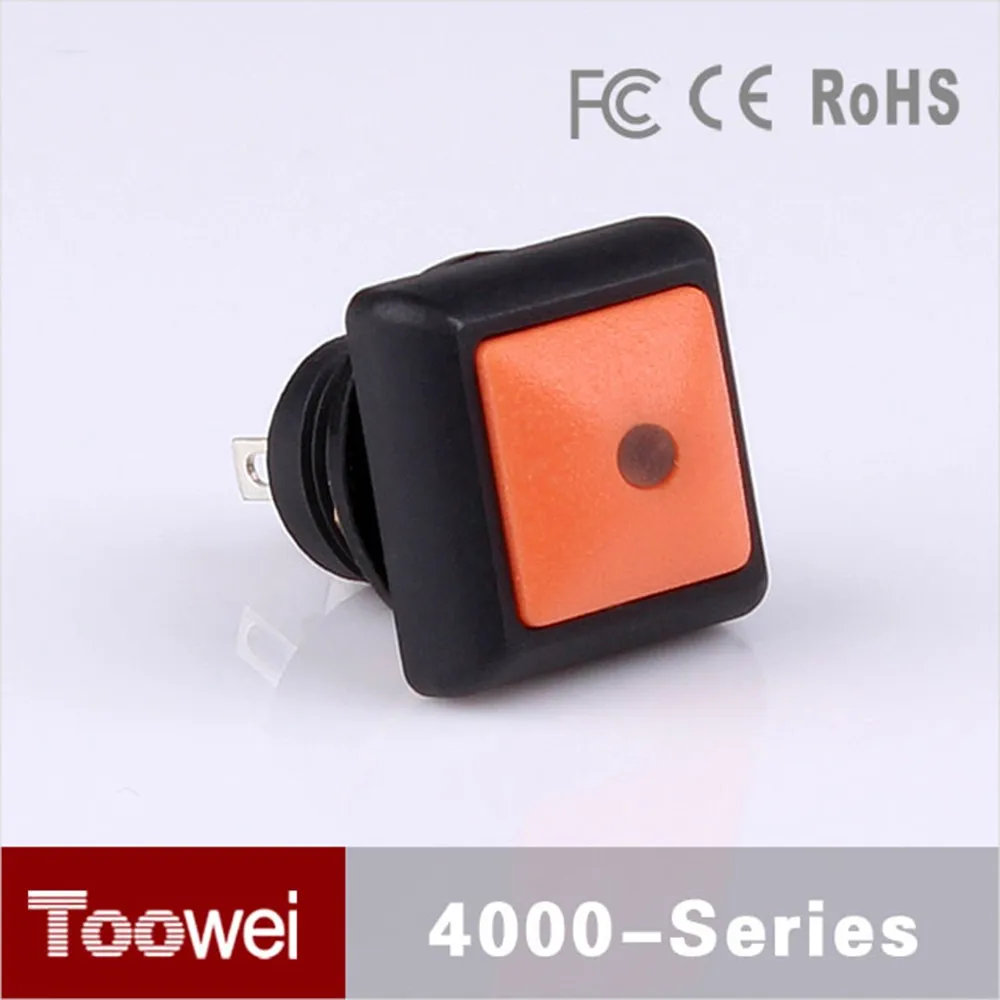

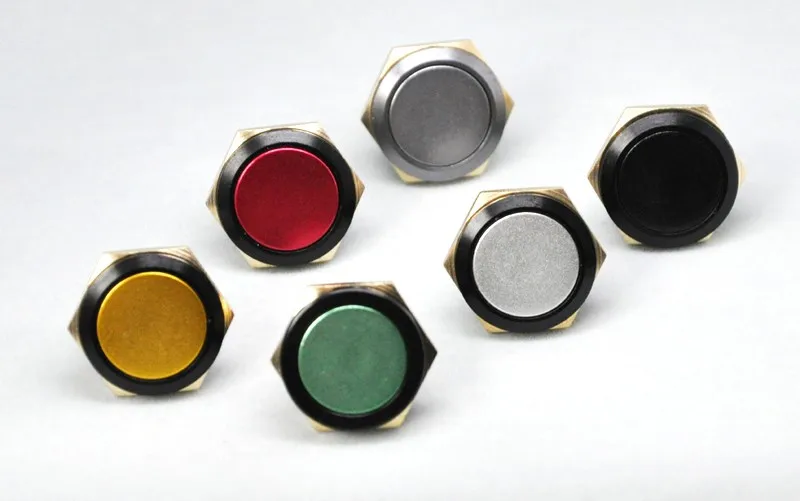

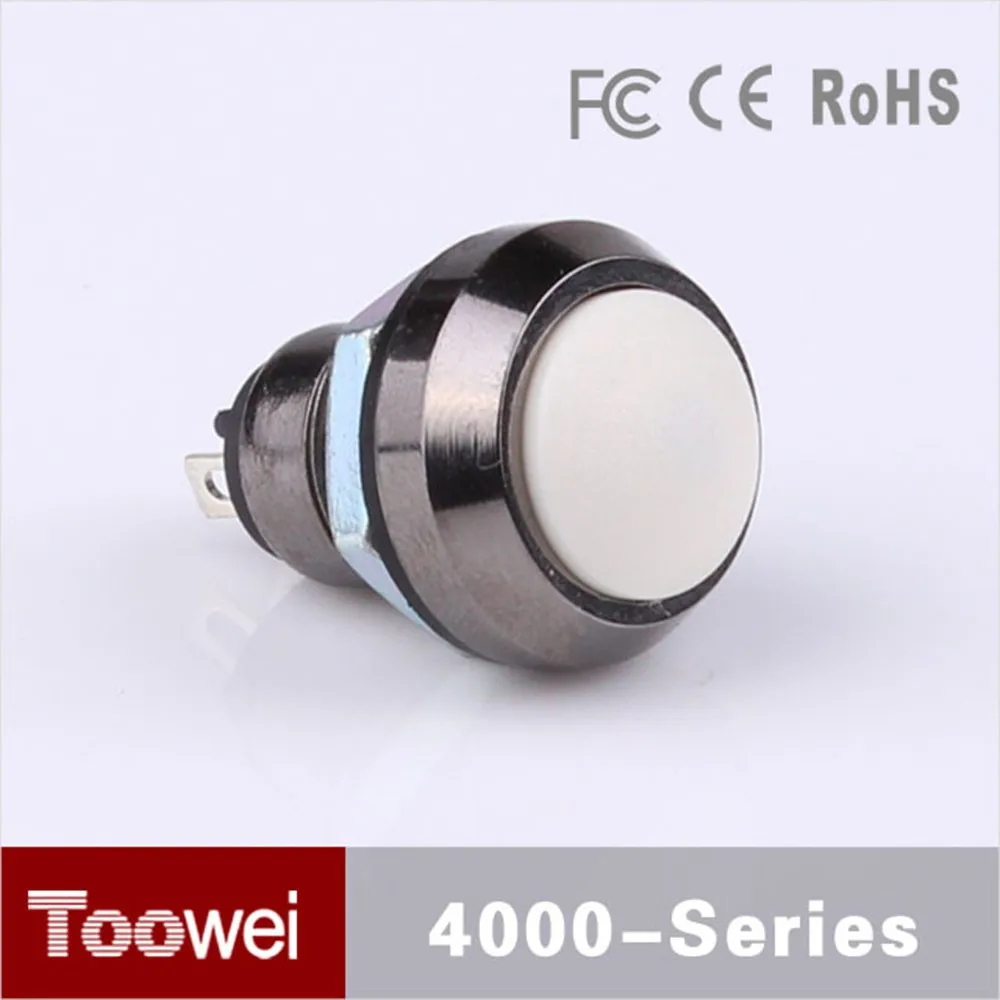

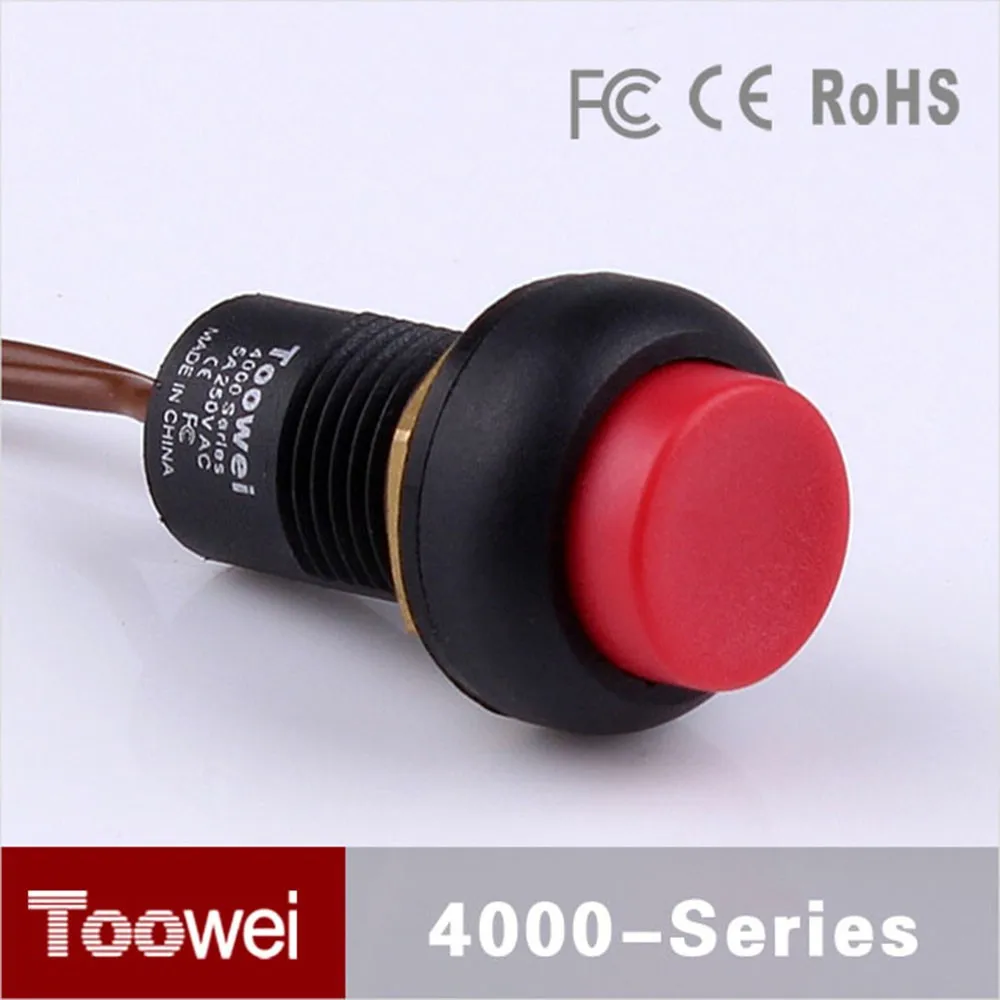

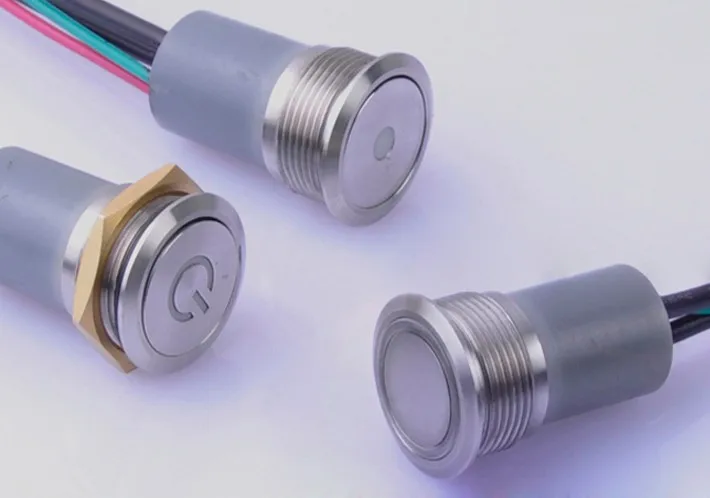

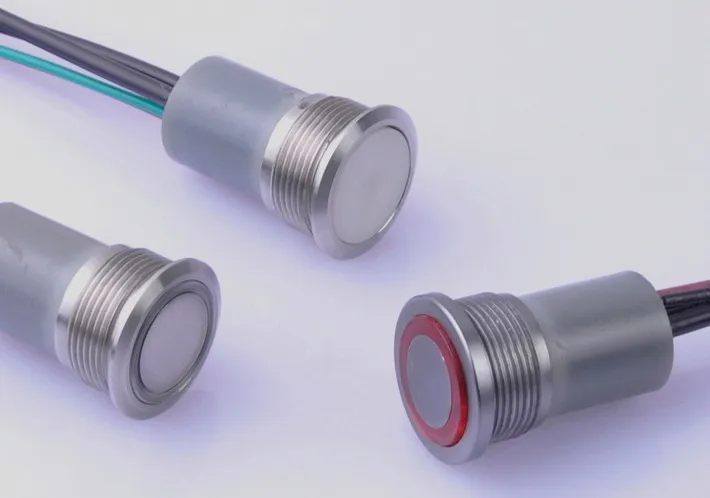

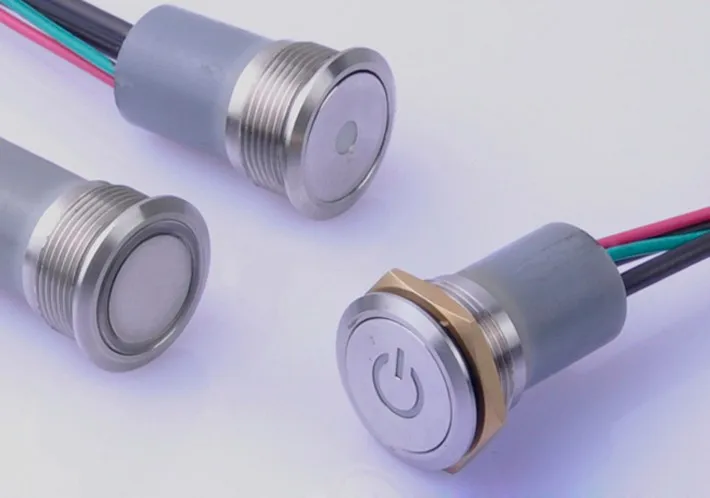

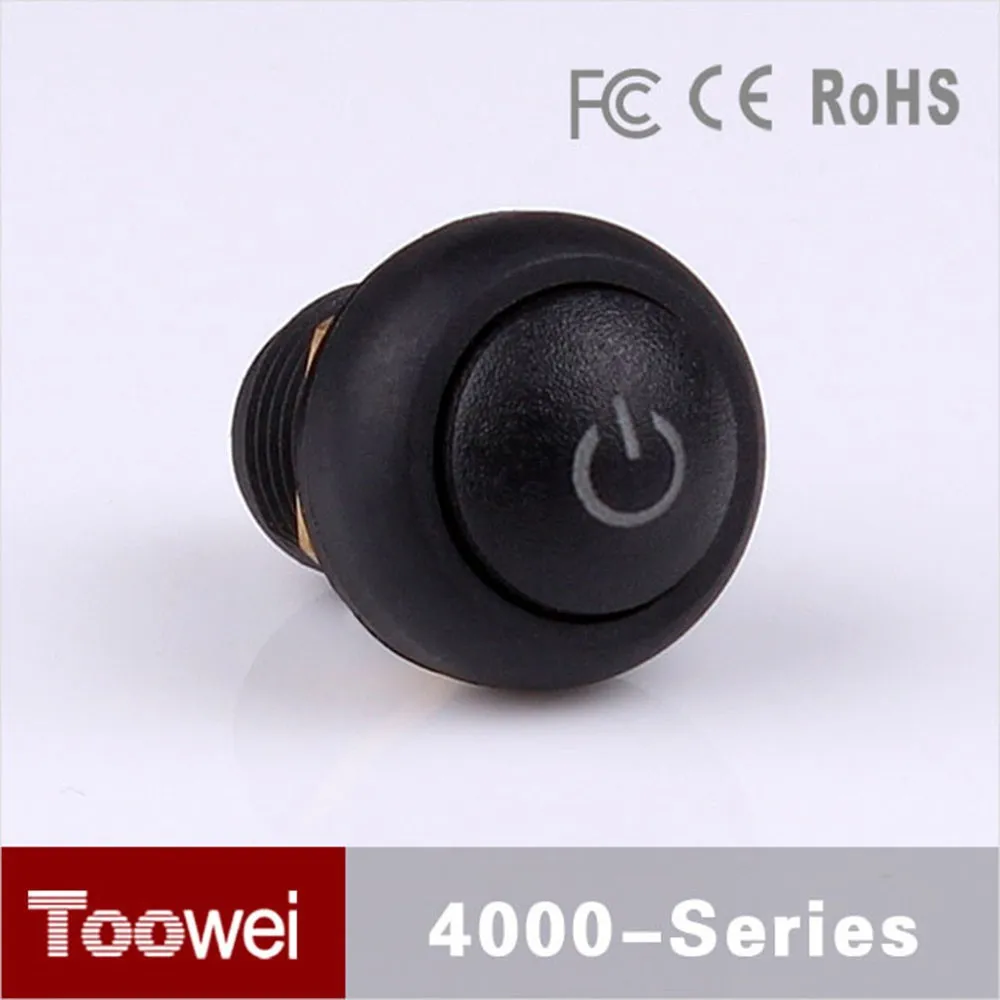

Other Model Show

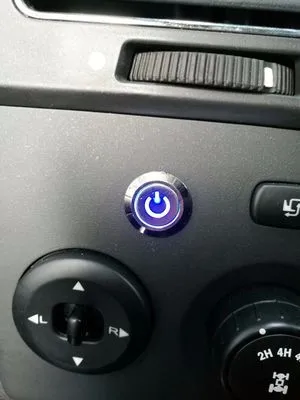

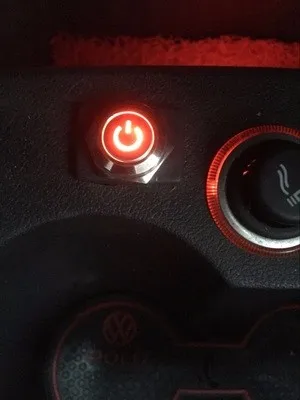

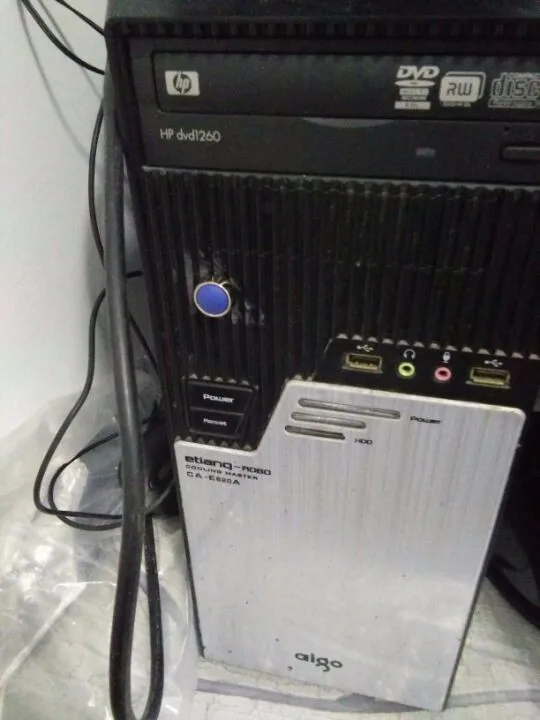

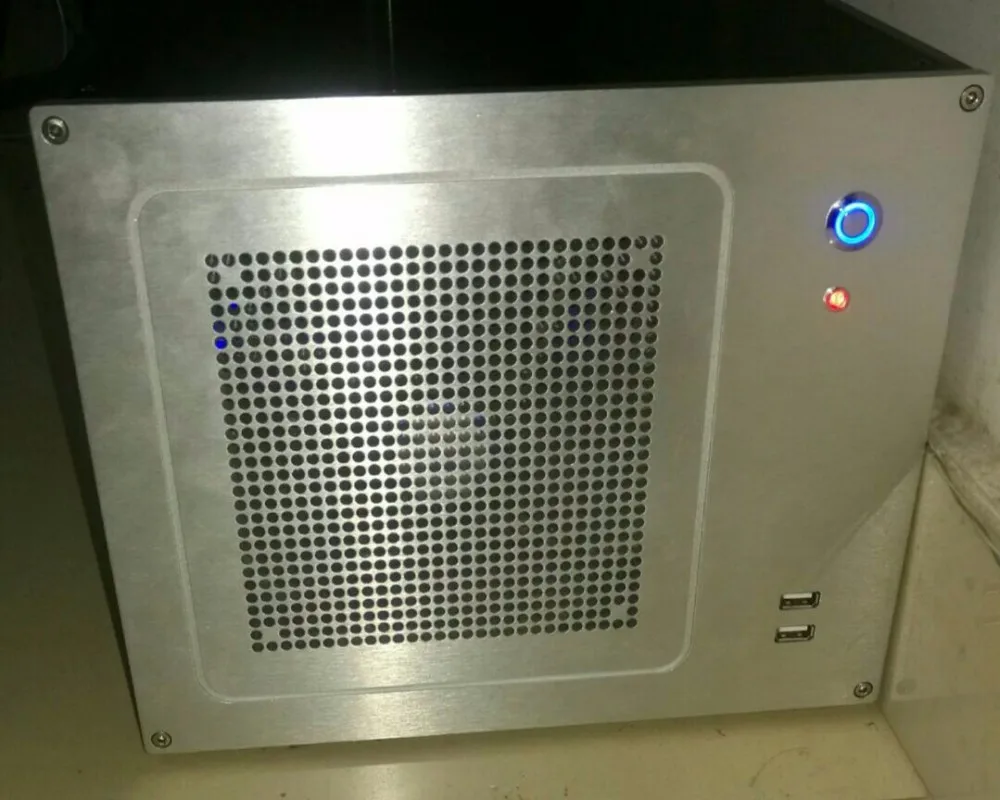

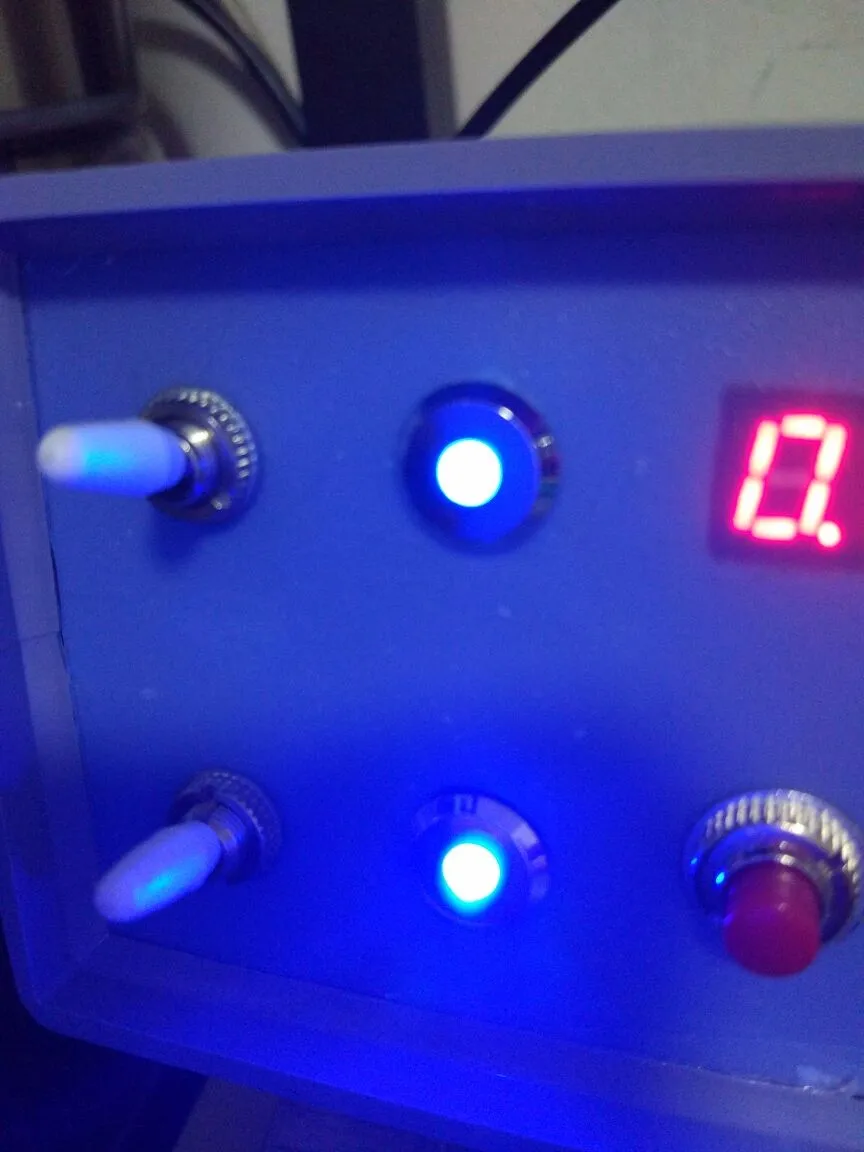

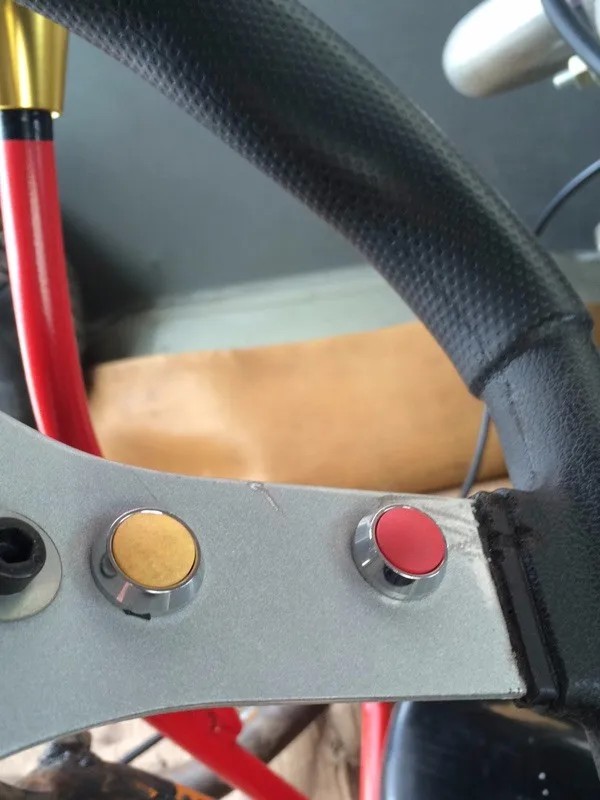

Applications

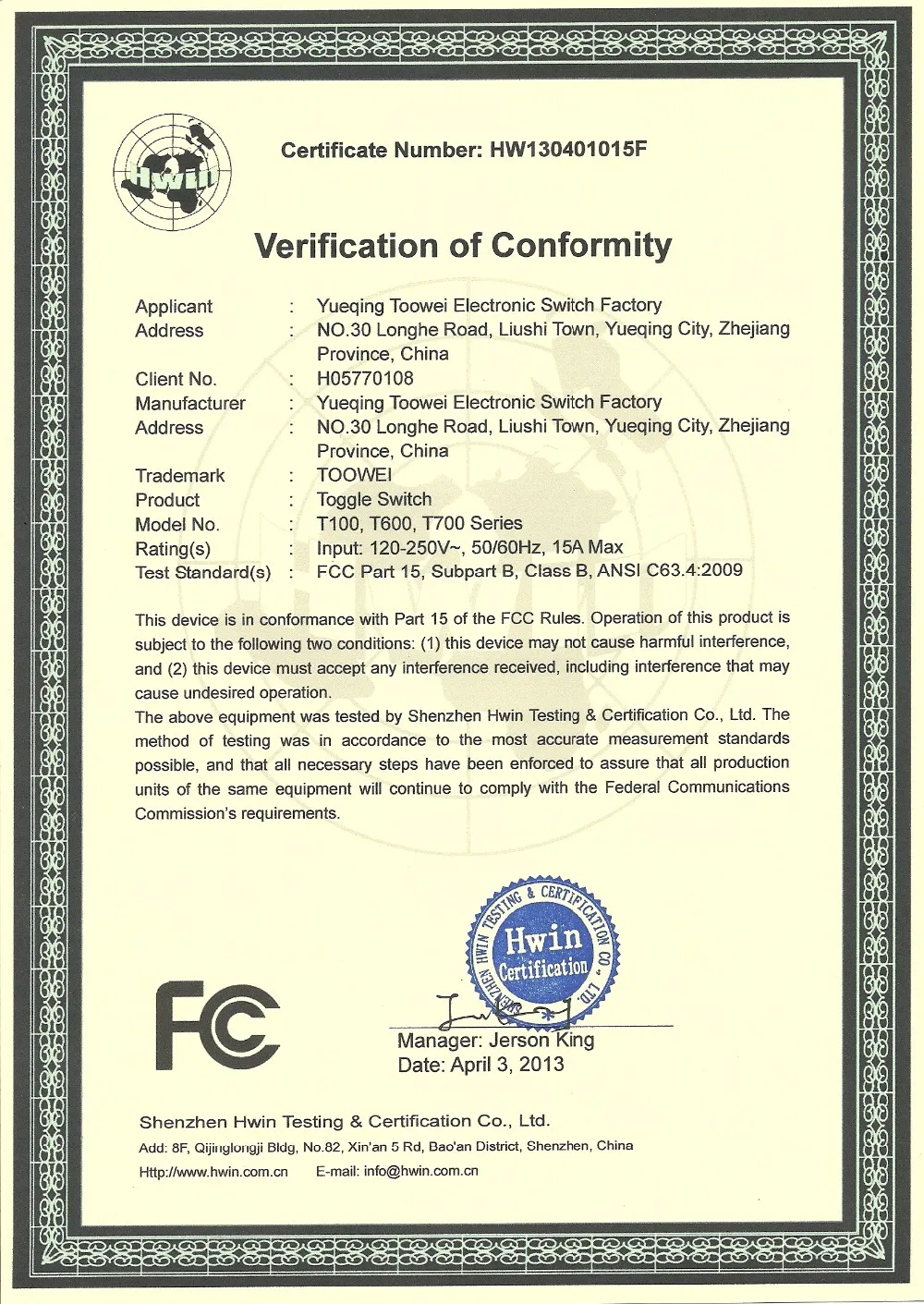

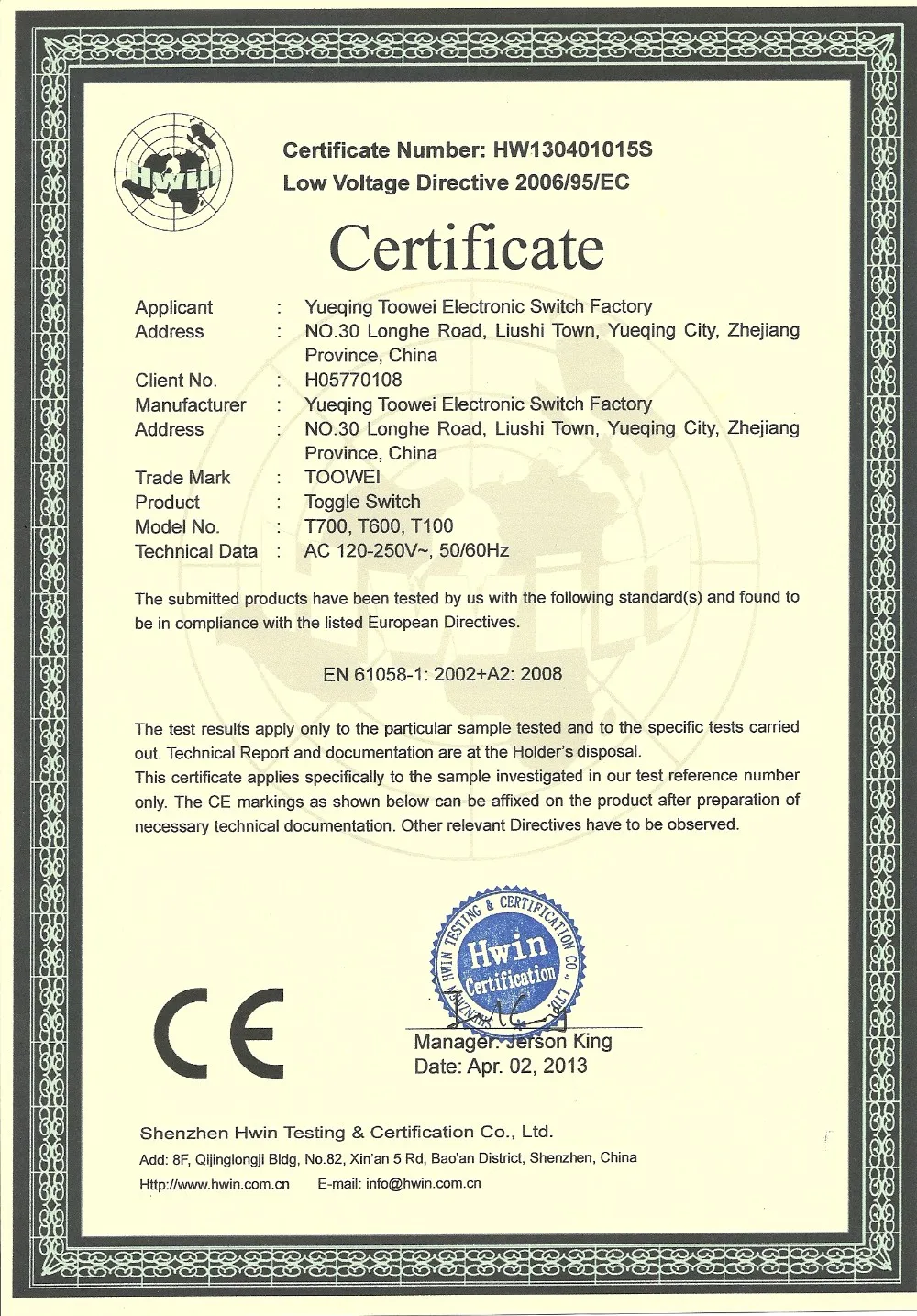

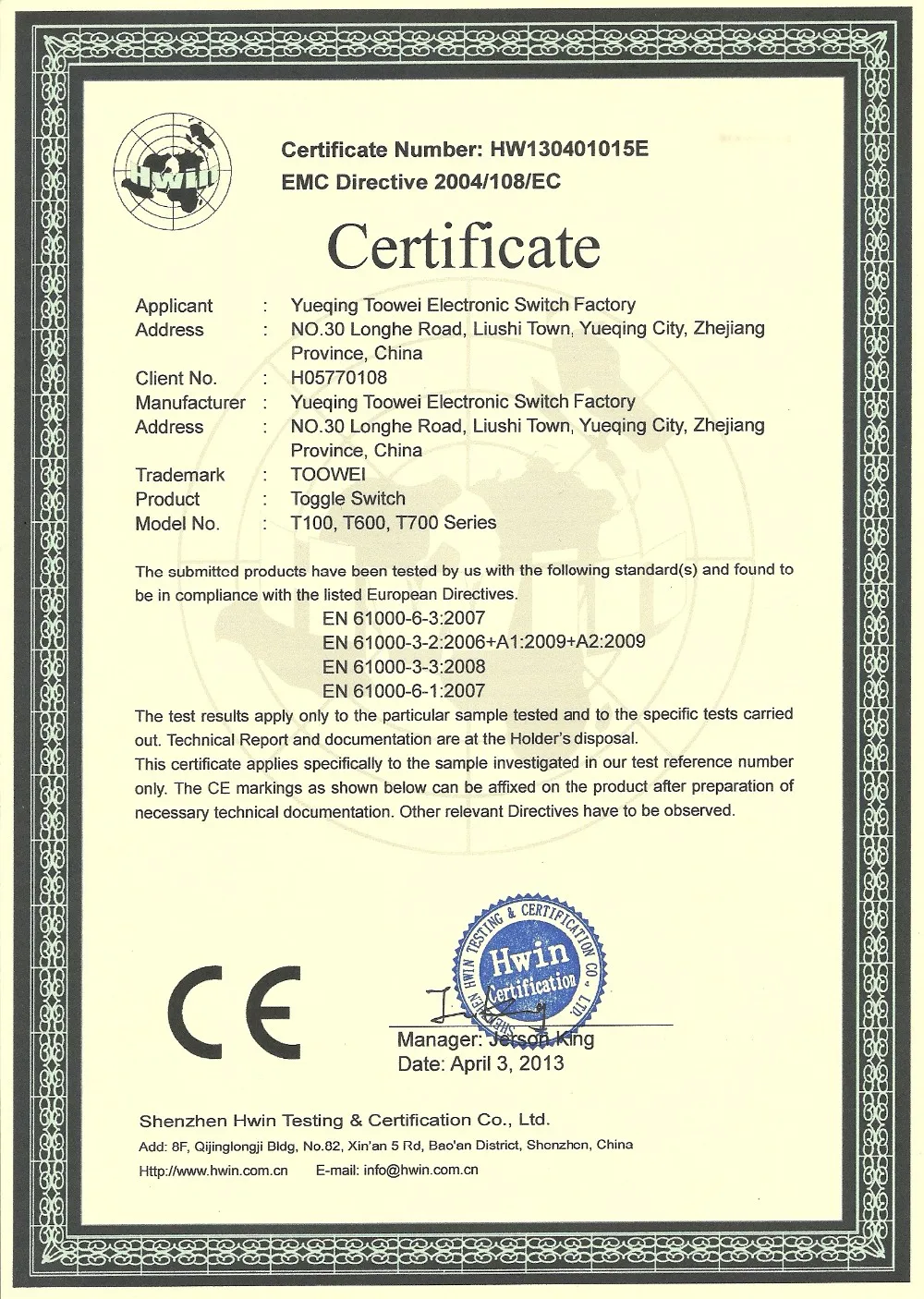

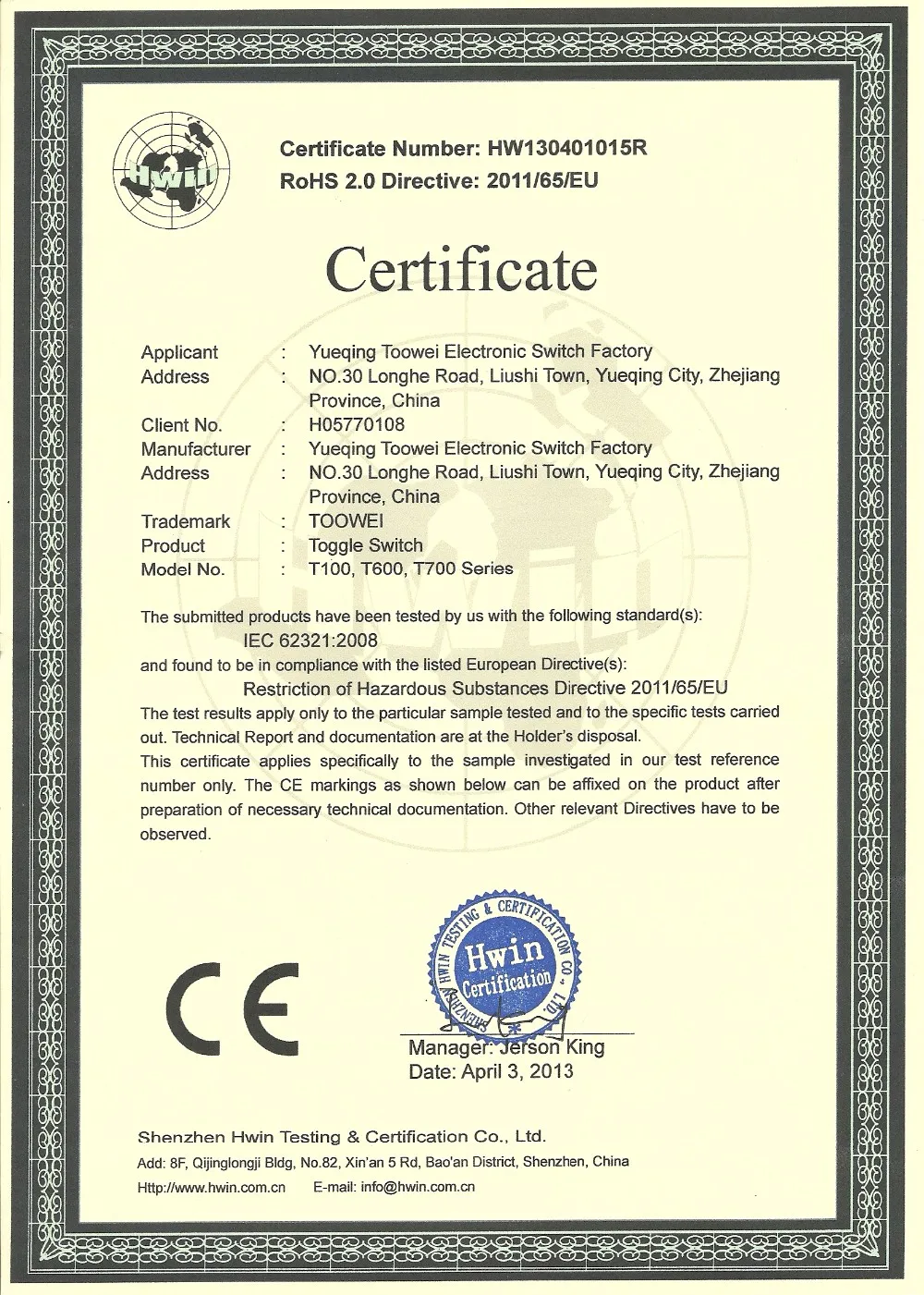

Certifications
Company Information
FAQ
Q1. Can I have a sample order for Toggle Switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
