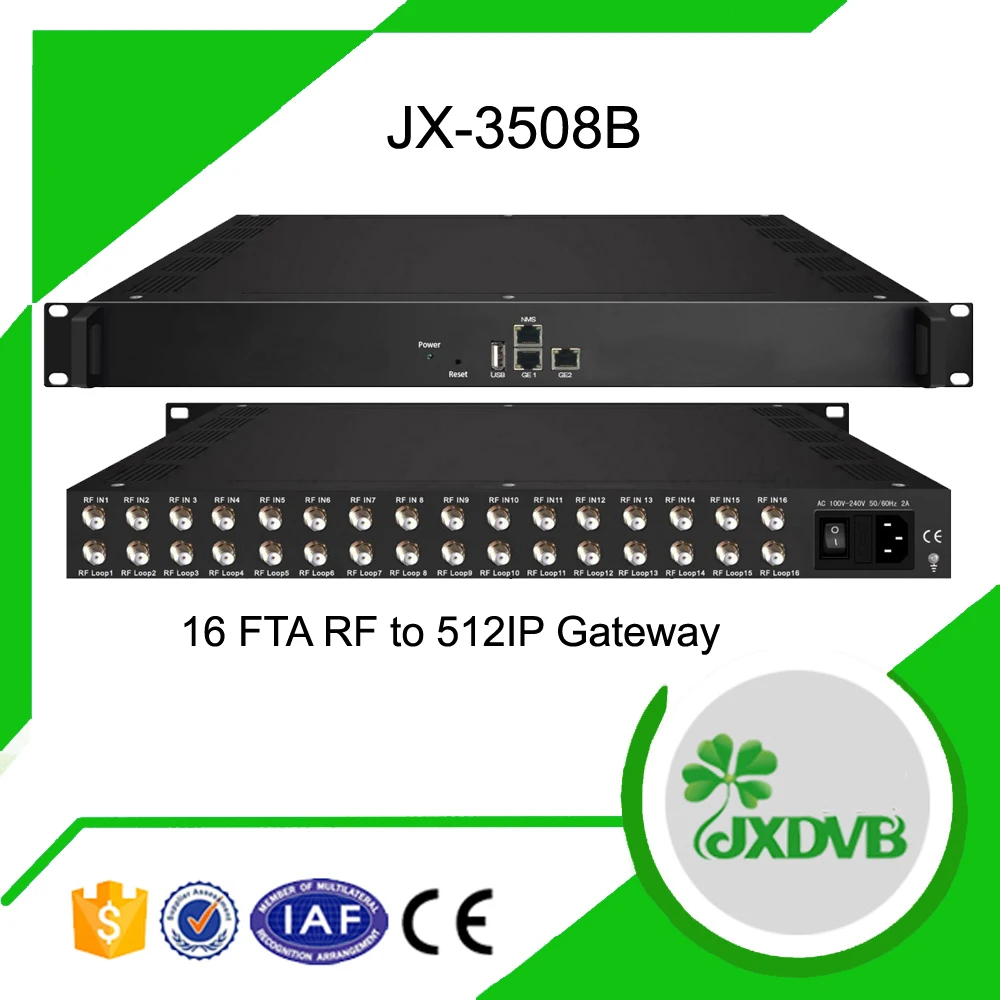

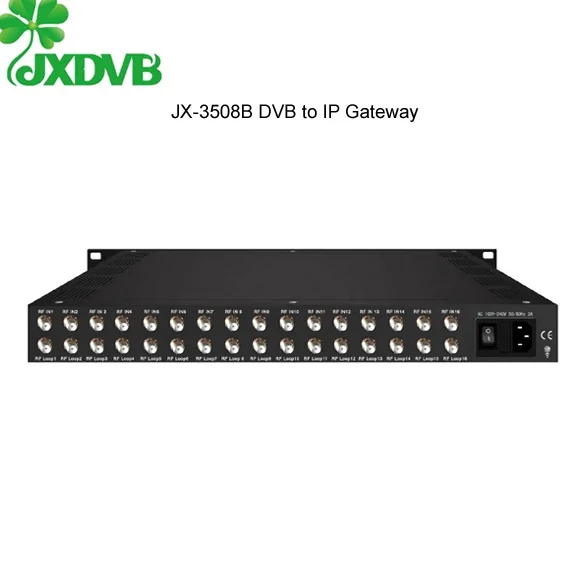

DVB S/T/C IPTV Decoder Descrambler 512 Channels HD Mpeg4 1080P

Input

Optional 1:16 tuners input +2 ASI input---SPTS output

Optional 2:14 tuners input +2 ASI input --- MPTS output

Optional 3:16 tuners input --- MPTS output

Tuner Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Frequency In

30 MHz~1000 MHz

Constellation

16/32/64/128/256 QAM

DVB-T/(T)

Frequency In

30MHz ~999.999 MHz

Bandwidth

6/7/8 M bandwidth

(Version 1)

DVB-S

Input Frequency

950-2150MHz

Symbol rate

1~45 Msps

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

DVB-S

Frequency In

950-2150MHz

Symbol rate

1~45 Msps

FEC

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

(Version 2)

DVB-S

Frequency In

950-2150MHz

Symbol rate

0.5~45Msps

Signal Strength

- 65- -25dBm

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

Max input bitrate

≤125 Mbps

DVB-S

Frequency In

950-2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

32APSK: 0.5~34Msps;

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Max input bitrate

≤125 Mbps

DVB-S-2

Frequency In

950-2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

8APSK: 0.5~40Msps

32APSK: 0.5~34Msps

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9

Constellation

QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input bitrate

≤125 Mbps

ISDB-T

Frequency In

30-1000MHz

ATSC

Frequency In

54MHz~858MHz

Bandwidth

6M bandwidth

BISS Descrambling

Mode 1, Mode E (Up to 850Mbps) (descramble individual program)

Output

512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast

16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast

Syatem

Web based management

Ethernet software upgrade

Miscellaneous

Dimension

482mm×410mm×44mm (W×L×H)

Approx weight

3.6kg

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

100~240VAC, 50/60Hz

Power consumption

20W
