CO, O2, H2S, CH4 4 in 1 gas detection alarm, multi gas detector

Product Overview

Description

4 in 1 gas detection alarm, multi-gas detector



Product overview

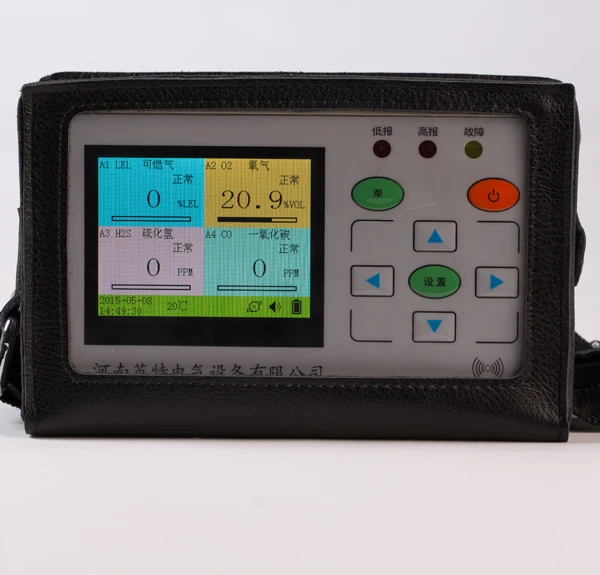

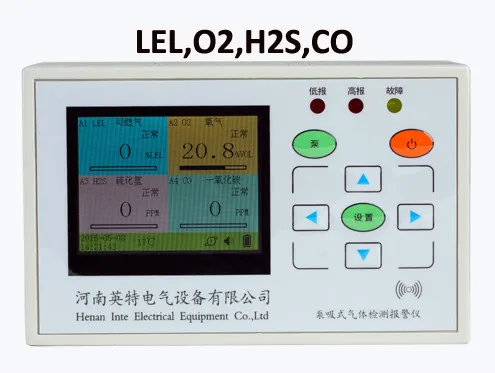

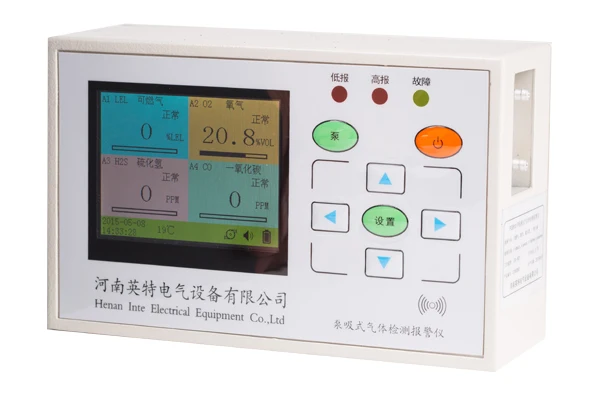

PG610-P portable gas detecotor can detect 4 kinds of gases at one time. Uses external pump to sample gases. Sensitive sensors, stable performance, water-proof, dust-proof, explosion-proof.

    It is widely used in oil exploration, oil and gas transportation, oil refining, metallurgy, power plants, chemical industry, oil depot and gas station, mine, tunnels, underground pipeline and other industries. If gas concentration exceeds the preset alarm level, detector will start the sound-light alarm for reminding users to avoid explosion, fire and poisoning.



Main features:

• Detect 4 gases at one time


• Big OLED display, high brightness, high-definition


• Automatically save detecting data for 3048 records of each channel


• Bar display mode, display the concentration of the gases


• Low power consumption, save energy, save electricity


• Real-time clock display fuction


• Key operation needs to input password to prevent wrong operation


• Automatic calibration fuction, prevent measuring error


• Recover function, prevent the loss of data


• Battery power real-time diaplay, under-voltage hint, lower power automatic shutdown


• Standard mini-USB charging interface, charger is compatible with computer and cell phone's


• Charging protection function, when the battery is full, charger will shutdown automatically


• Connected with computer to realize data download and parameter setting(optional)


• Alarm type: audible and visual alarm, vibration alarm


• STEL and TWA alarm function for toxic gases


• Power on self-test function


• Adjuatable high and low alarm level


• Replaceable modularized sensor

Technical Parameter



Type	4 in 1 gas detector
Detecting gas	combustible gases, toxic gases, oxygen
Measuring Range	see the chart below
Sampling Method	external suction pump
Display Mode	OLED screen shows density, time, battery power, Alarm state,
	percentage progress bar
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Alarm Type	Light: wide-angle light emitting diode
	Sound: 90 Db humming; when concentration increased, frequency increases
	Vibration: oscillator speed of 1300 r/min
Working Temperature	toxic gas: - 20 °C ~ + 50 °C
	Combustible gas: - 40 °C ~ + 70 °C
Working Humidity	< 95% R.H. no condensation
Sensor	electrochemical sensor;  catalytic combustion type sensor for KQ500-EX
Sensor life	2-5 year
Battery	3.7V DC, 1300mAh
Working Time	8h-16h
Protection Class	IP66
Weight	1.2kg
Size	175mm*110mm*60mm
Explosion-proof Level	Exd IICT6(used for explosion proofing detector);
	ExiaIICT4(used for intrinsic safety type detector)















































































Product Information Chart

Product Model	Detected Gas	Measuring range	Resolution	Respond Time	Sensor service life
PG610-P-CO	CO	0-1000ppm	1ppm	≤20 s	2-3 year
PG610-P-O2	O2	0-30%VOL	0.1%vol	≤20 s	2-3 year
PG610-P-O3	O3	0-10ppm	0.1ppm	≤30s	2-3 year
PG610-P-H2S	H2S	0-100ppm	1ppm	≤30 s	2-3 year
PG610-P-H2	H2	0-1000ppm	1ppm	≤30 s	2-3 year
PG610-P-CL2	CL2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-P-NH3	NH3	0-200ppm	1ppm	≤30 s	2-3 year
PG610-P-SO2	SO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-P-NO	NO	0-250ppm	1ppm	≤30 s	2-3 year
PG610-P-NO2	NO2	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-P-CH2O	CH2O	0-50ppm	0.01ppm	≤30 s	2-3 year
PG610-P-HCL	HCL	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-P-HCN	HCN	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-P-ETO	ETO	0-100ppm	1ppm	≤30 s	2-3 year
PG610-P-CLO2	CLO2	0-10ppm	0.1ppm	≤30 s	2-3 year
PG610-P-CO2	CO2	0-5.00%vol	0.01%vol	≤30 s	≥5 year
PG610-P-EX	Combustible gas	0-100%LEL	1%LEL	≤30 s	3-5 year
As for unlisted detected gas and measuring range, please contact with our company
