150ZJ I C42 vertical industrial slurry pump frame plate

Product Overview

Description

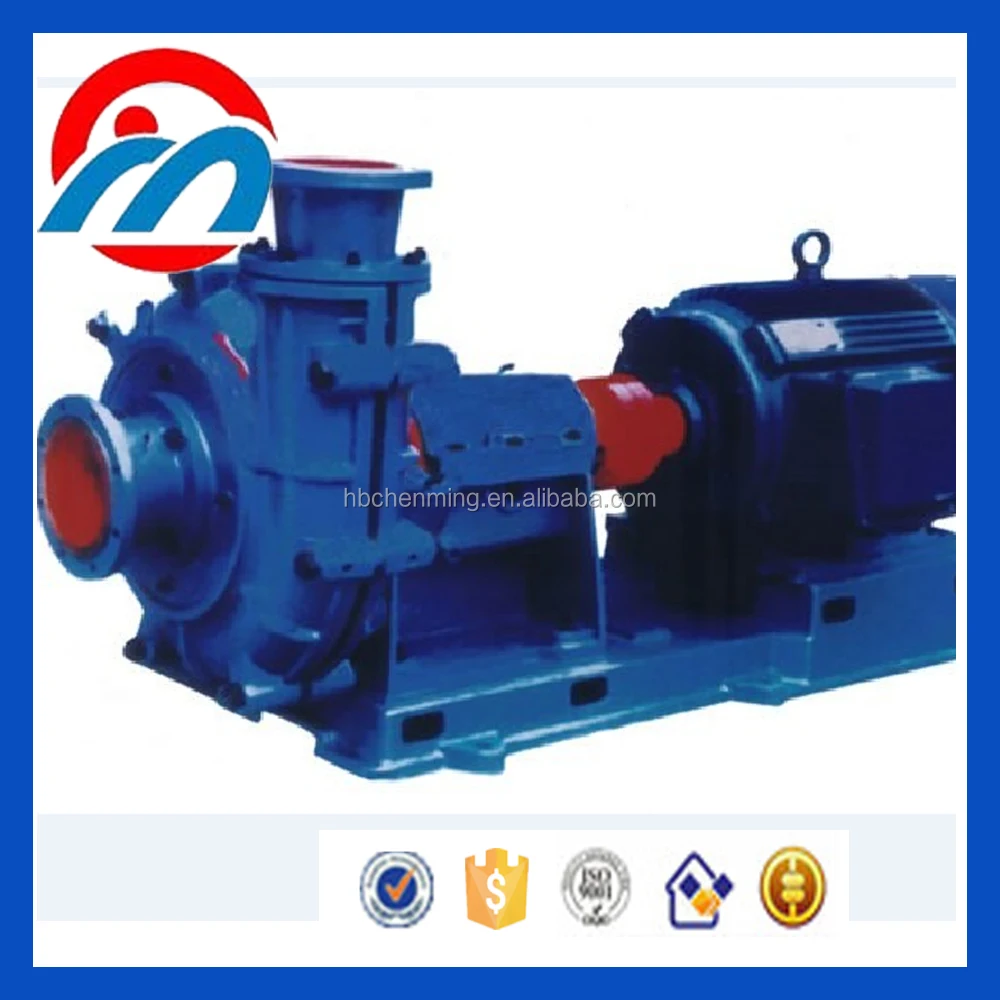

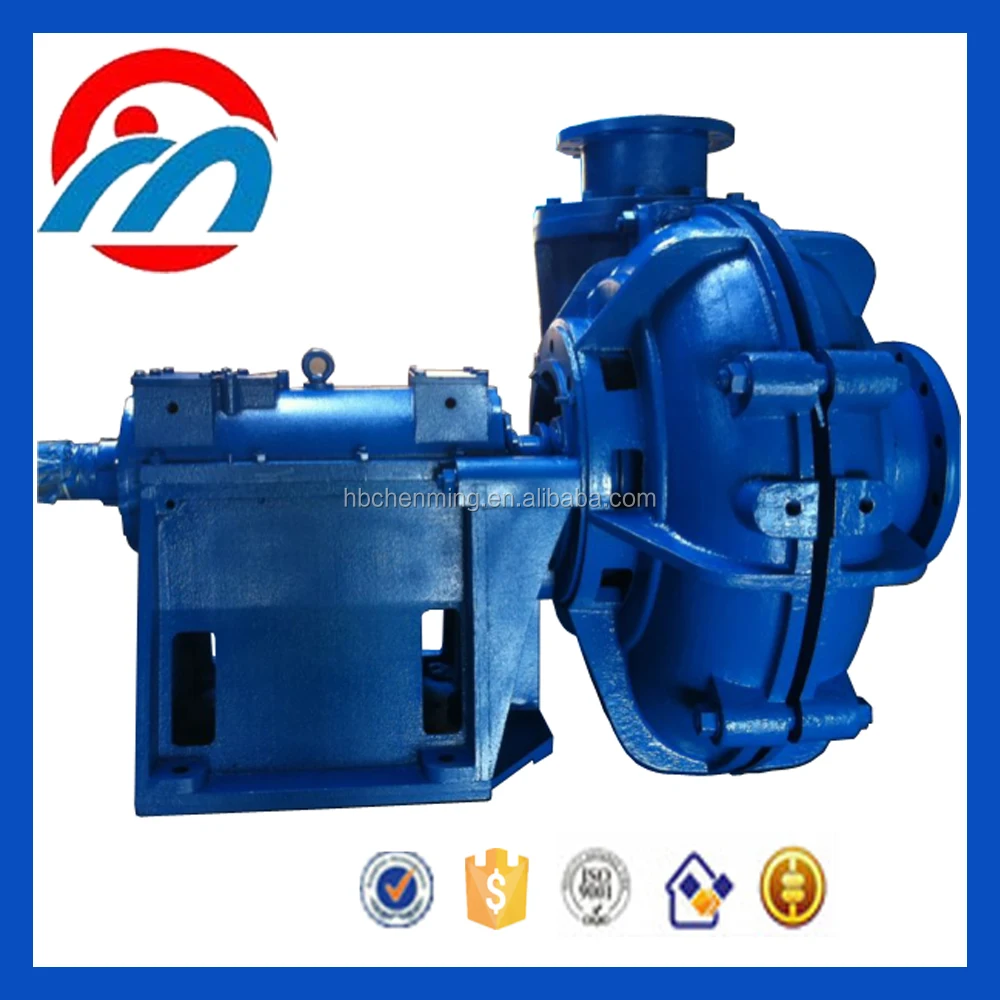

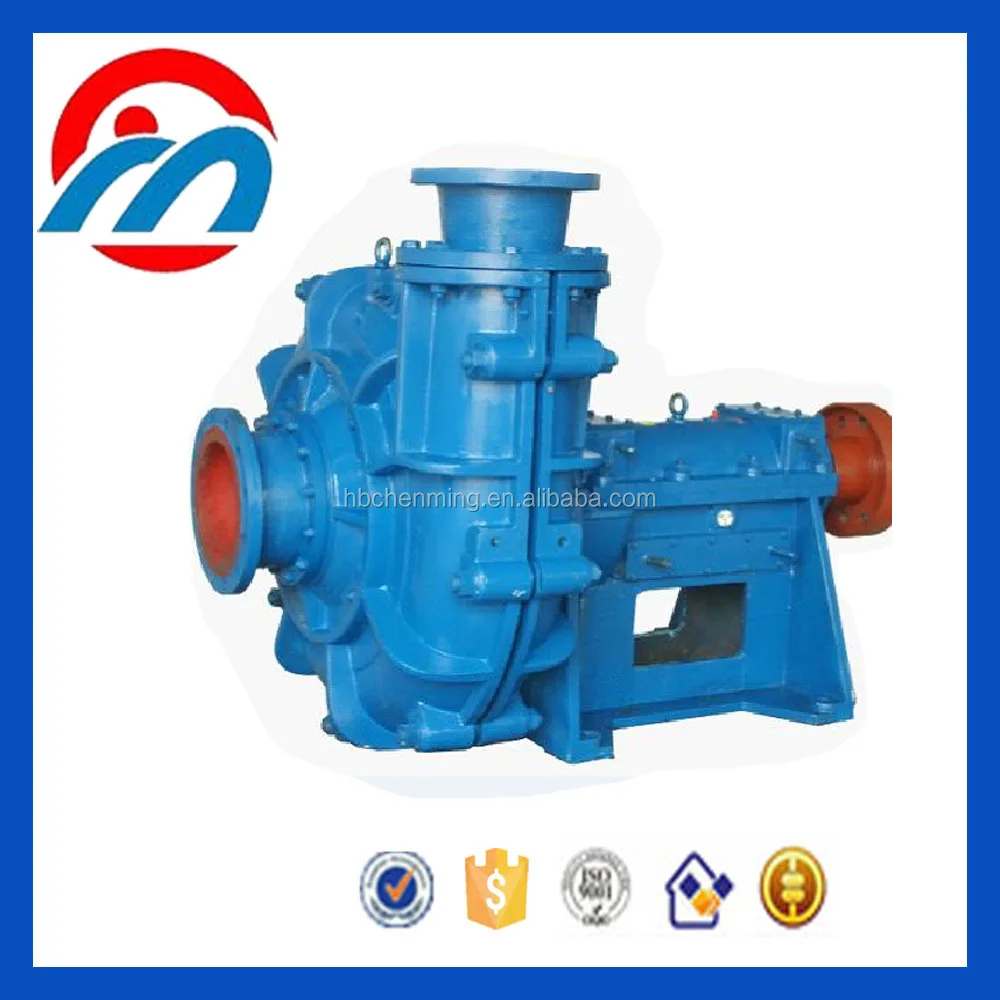

150ZJ-I-C42 vertical industrial slurry pump frame plate

ZJ series slurry centrifugal pumps is a kind of single stage single suction effective wearable centrifugal slurry pump. It designed by Tsinghua University and adopt the newest solid-liquid two phase flow velocity theory published internationally by now.

Advanced design, and high wearable materials, keep the pumps high efficiency, good cacitation, long life expectancy and reliable running.

Specification:

Slurry Pump	Slurry Pump
Sludge Pump	Molasses Price Centrifugal Slurry Pump
Model	CMAH
Material	Cast iron
Mode	Horizontal
Color	White and adjustable
Theory	Centrifugal Pump
Structure	Single-stage Pump
Usage	Slurry
Power	Electric
Standard or Nonstandard	Standard
Fuel	Diesel
Pressure	High Pressure
Application	Mining, coal mine gold mine,metallurgical, mining river dredging, sand pumping vessel sewage treatment plants power plants
Outlet Diameter	40-350mm
Capacity	10.8-5400m3/h
Head	3-118m
Rotation Speed	300-3800r/min
Power	15-1200kW
Warrenty	1 Year
Certificate	ISO9001
Feature	High efficiency,Easy maintenance





Features:

1. Wear parts are constructed with chromium alloy; so pumps have better stability & longer service life.

2. Unique mechanical seal device can protect the electric motor and ensure high suction efficiency.

3. Additional agitation impeller is equipped to help break and mix the sludge.

4. Easy installation, operation and cost saving, since no extra vacuum pump or pump house is needed.

5. Professional technology support is provided during the whole process of the usage and maintenance.

6. The pump can work with blender which raises the efficiency of sand pump.

Structural Property:

The whole machine is dry submersible pump, and the motor adopts oil chamber seal mode and is provided with mechanical seal inside, so that high pressure water and impurities are effectively prevented from entering inner cavity of the motor.

1.Besides the main impeller, there is the agitation impeller which can agitate the sludge deposited on the

water bottom into turbulent flow and pump the sludge out.

2.The trans-flux parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance and strong drainage capacity, and allow big solid particles to pass.

3.The motor is submerged in water, is not limited by suction stroke, and has high sludge suction rate and thorough desilting.

4.The integral device is simplified, needs no auxiliary stirrer device or ejector device, and has simple and convenient operation and low total investment of the unit.

5.The agitation impeller directly approaches the depositional surface, and controls the concentration through submerged depth. Under the condition of large medium proportion, an auxiliary device can be arranged to increase the concentration of the medium.

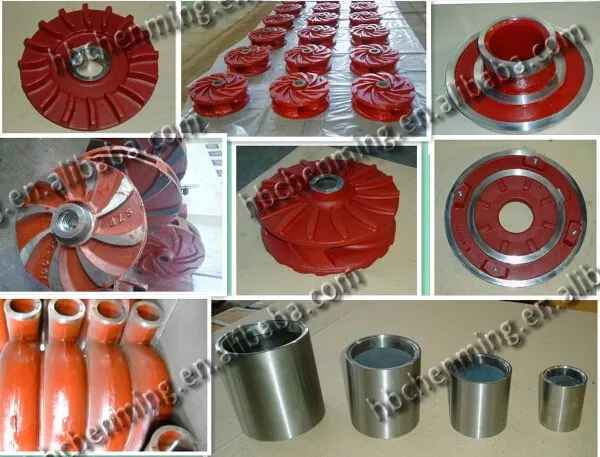

Impeller and other parts:
