OEM Six ports10M 100M RJ 45 poe fiber optic network switch with mavell chipset

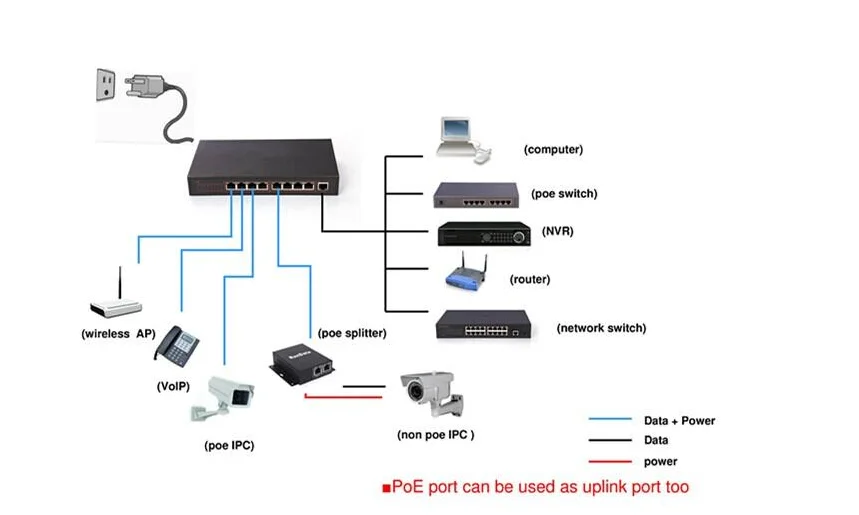

Power over Ethernet media switch is a high performance and 2 layer fiber optic Ethernet access switches.Non-management power over Ethernet switching.Using without configuration.After charging can directly use.The optic interface are very suitable for information point access distance which is beyond cat-5 access distance,resistance to electronic magnetic interference,communication security and other application areas,which are including FTTH broadband access network for residential district,high-speed fiber-optic lan for enterprise,high reliable industrial distributed control system (DCS) ,optical fiber digital video surveillance,network, local area network for hospital, campus network.
This optical fiber Ethernet switches provide 1 or 2 fiber interface, (SC interface). Single-mode/multi-mode,single fiber/dual fiber are optional.20km is our standard configuration, and 40km/60km/80km/100km/120km transmission distance are optional;at the same time,it also provides 4~8 10/100 Base-T (X) RJ45 ports which support 10Mbps,100Mbps data rate,full duplex/half duplex and MDI/MDIX auto-negotiation.it adopts high performance network switch chip and which all ports support non-blocking
,full speed packet forwarding.
The product is durable, achieved IP30 protection,operating temperature can reach from 0°C-70°C;and the average working time without failure can reach more than 50,000 hours.

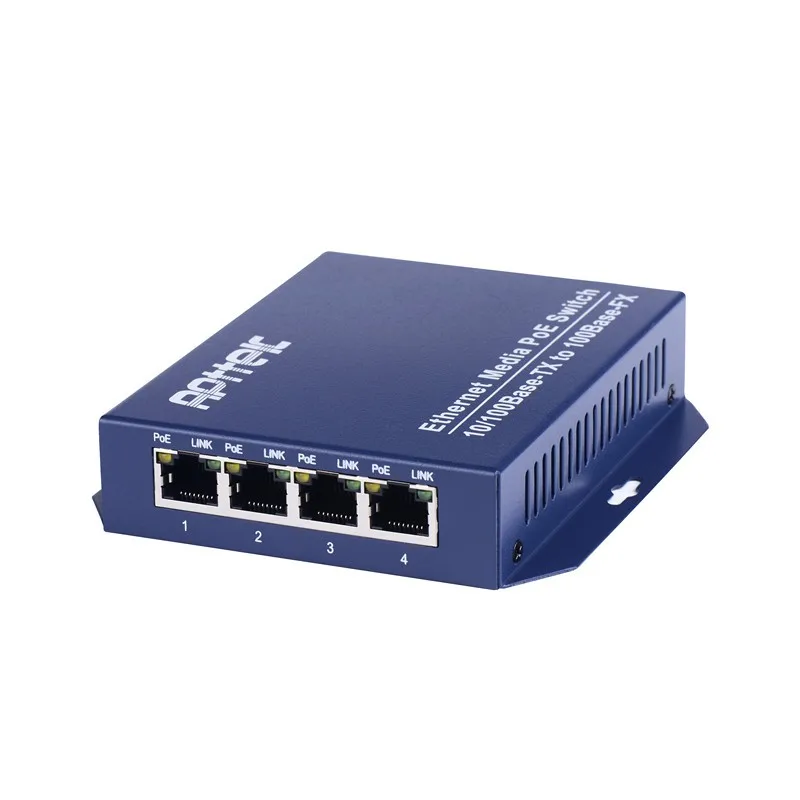

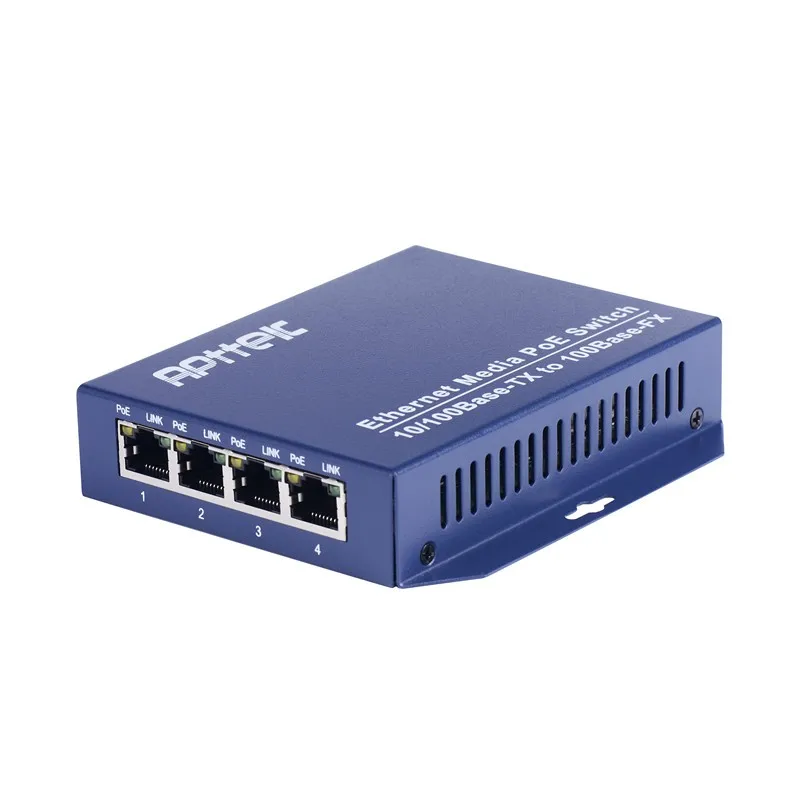

a.APT-10041F-S-4P 4 ports Bast-T to 1 port Base-Fx Poe ethernet switch feature
1. Comply with IEEE802.3, IEEE802.3u, IEEE802.3af / at other standards
2. Support MDI / MDIX auto- negotiation
3. Ultra-low latency data transmission, completely transparent to the network protocol
4.Integrated 1K MAC address table, MAC automatic learning and creating the table
5. Support spanning tree protocol
6.Back pressure half-duplex flow control and full-duplex flow control pause frames to prevent the loss of data frames
7. Support hot-swappable, plug and play
8. Built-in lightning protection circuit
9. Maximum Poe power: each port maximum 25W, Poe maximum reach distance 100m;
10. MTBF time>50,000 hours

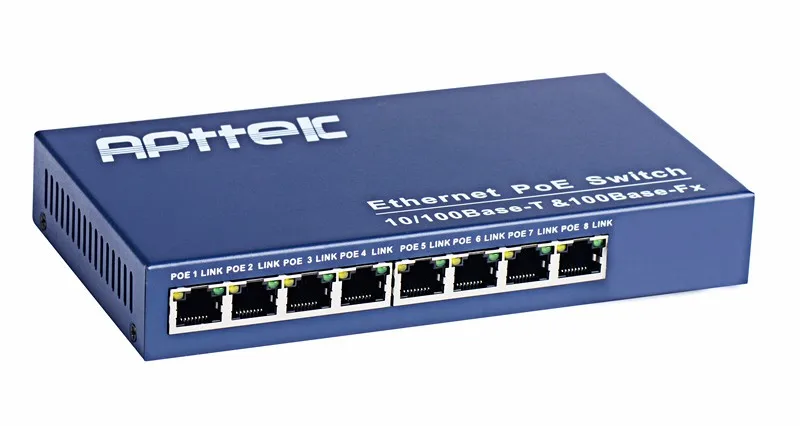

b.APT-1008-8P 8 ports Base-T Poe ethernet switch feature 1.Comply with IEEE802.3, IEEE802.3u, IEEE802.3af at other standards 2. Support MDI / MDIX auto- negotiation 3. Supports PWM power management tools 4. Support prioritization services based on QoS 802.1p 5.Support forwarding maximum packet length 1552 bytes 6. Support port mirroring function 7. Support Link aggregation (LACP) 8. Support VLAN based-on port 9. Support hot-swappable, plug and play 10. Built-in lightning protection circuit 11. Maximum Poe power: each port maximum 25W, Poe maximum reach distance 100m
12.MTBF time>50,000 hours

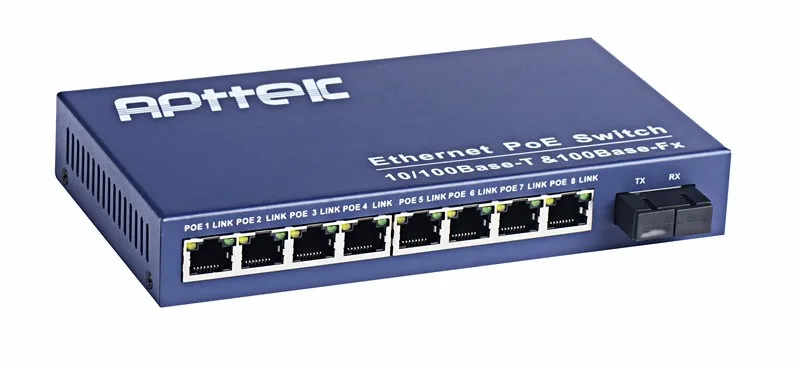

c.APT-10081F-S-8P 8 ports Base-T to 1 port Base-Fx Poe ethernet switch feature
1.Comply with IEEE802.3, IEEE802.3u, IEEE802.3af / at other standards
2. Support MDI/MDIX auto- negotiation
3.Support prioritization services based on QoS802.1p
4. Support PWM power management function
5. Support forwarding maximum packet length 1552 bytes
6. Support port mirroring function
7.Support MAC 1K address
8.Support Link aggregation (LACP)
9. Support hot-swappable, plug and play
10.Built-in lightning protection circuit
11. Maximum Poe power: each port maximum 25W, Poe maximum reach distance 100m;
12. MTBF time>50,000 hours

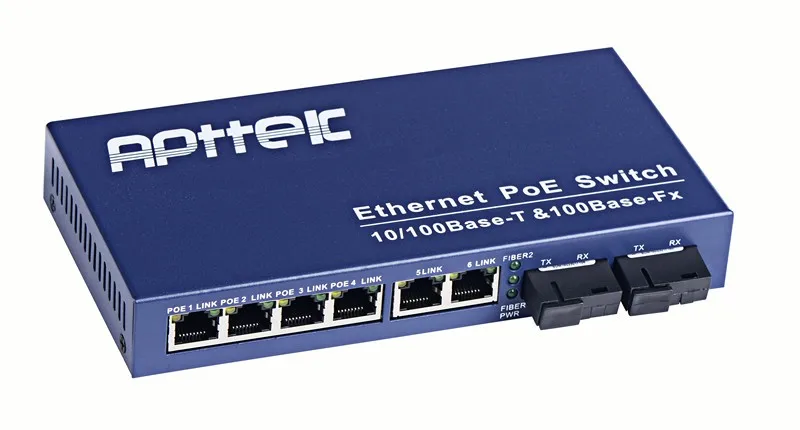

d.APT-10062F-S-4P 6 ports Base-T to 2 port Base-Fx Poe ethernet switch features
1. Comply with IEEE802.3, IEEE802.3u, IEEE802.3af / at other standards
2. Support MDI/MDIX auto- negotiation
3. Support prioritization services based on QoS802.1p
4. Support port mirroring function
5.Support MAC 1K address
6. Support VLAN isolation mode
7. Support hot-swappable, plug and play
8. Built-in lightning protection circuit
9. Maximum Poe power: each port maximum 25W, Poe maximum reach distance 100m;
