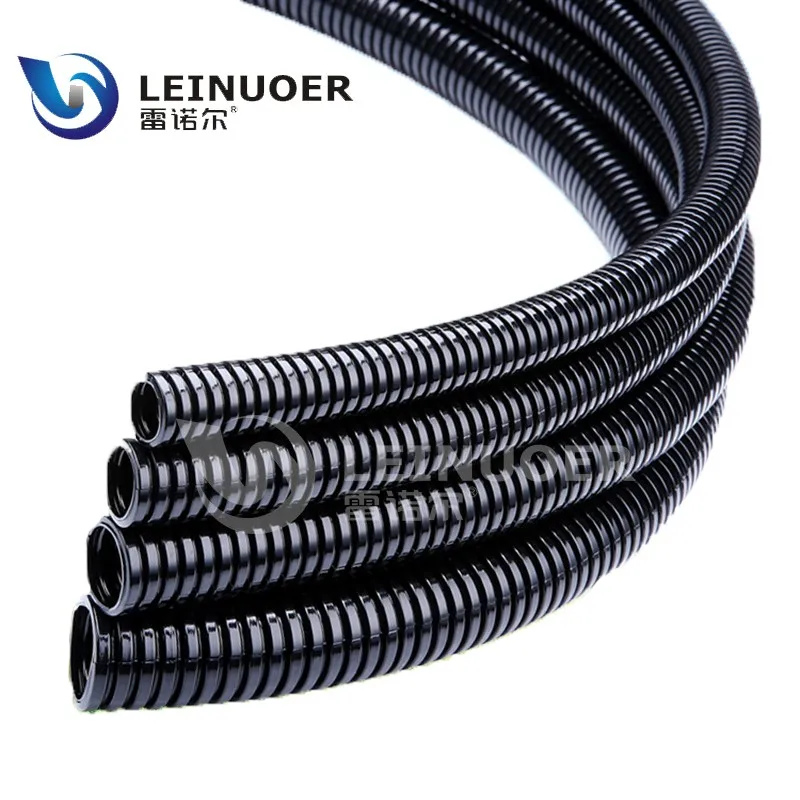

High temperature prevention polyamide nylon PA66 flexible pipe conduit hose
- Category: >>>
- Supplier: Zhejiang Leinuoer Electrical Co. Ltd.
Share on (60643424562):
Product Overview
Description
LEINUOER
Product Description
Flame Retardant PA Nylon Flexible Conduit | ||
Product material: | PA6 nylon,polyamide | |
Working temperature: | -40℃~+125℃, instantaneously can be +140℃. | |
Certification: | RoHS, CE, Product Quanlity Certificate of Railway Ministry , -40℃ Low Temperature Text Report | |
Structure: | corrugated both inner & outer | |
Flame Retardant Rating: | FV-0 | |
Color: | Black. Other colors are customizable upon requirements（split available）. | |
Property: | Well flexibility, distortion-resistant, good bending performance ,strong bearing capacity; resistance against acid, lubricating oil, cooling fluid ,glossy surface ,friction resistance | |
Bearing capacity: | Non-cracking or deformation at feet pressure,recover quickly without damage. | |
Application: | Widely applied in the industries like Robots & automation,new energy automobile ,aviation,train & metro,railway traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,illuminating equipment and electrical insulating protection,etc. Adaptive for both dynamic & static environment,especially with requirement of flame retardant | |

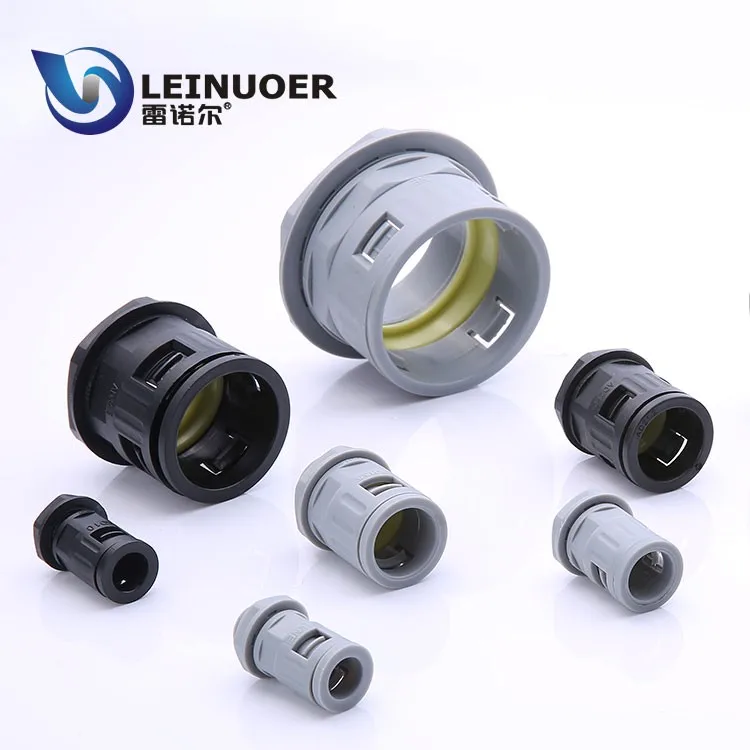

How to use: | Insert the wires or cables into the conduit and match with the suited connectors such as LNE-SM-G ,SM or SM-F series. | |

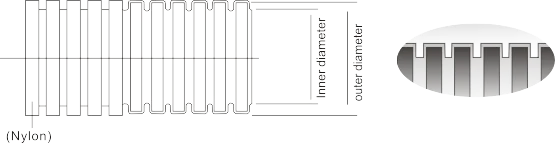

Order No.Black | Order No.Grey | Flexible Conduit | Inner*Outer Diameter(mm) | Curved Radius(mm) | Packing Unit(M) | ||
LNE-PA-Z-7.0B | LNE-PA-Z-7.0G | AD7.0 | 4.5×7.0 | 16 | 200 | ||
LNE-PA-Z-10.0B | LNE-PA-Z-10.0G | AD10.0 | 1/4″ | 6.5×10.0 | 16 | 100 | |
LNE-PA-Z-11.6B | LNE-PA-Z-11.6G | AD11.6 | 8.0×11.6 | 16 | 100 | ||
LNE-PA-Z-13.0B | LNE-PA-Z-13.0G | AD13.0 | 5/16″ | 10.0×13.0 | 20 | 100 | |
LNE-PA-Z-15.8B | LNE-PA-Z-15.8G | AD15.8 | 3/8″ | 12.0×15.8 | 30 | 100 | |
LNE-PA-Z-18.5B | LNE-PA-Z-18.5G | AD18.5 | 14.3×18.5 | 40 | 100 | ||
LNE-PA-Z-21.2B | LNE-PA-Z-21.2G | AD21.2 | 1/2″ | 17.0×21.2 | 45 | 100 | |
LNE-PA-Z-25.0B | LNE-PA-Z-25.0G | AD25.0 | 20.0×25.0 | 45 | 50 | ||
LNE-PA-Z-28.5B | LNE-PA-Z-28.5G | AD28.5 | 3/4″ | 23.0×28.5 | 50 | 50 | |
LNE-PA-Z-32.0B | LNE-PA-Z-32.0G | AD32.0 | 26.0×32.0 | 55 | 50 | ||
LNE-PA-Z-34.5B | LNE-PA-Z-34.5G | AD34.5 | 1 | 29.0×34.5 | 60 | 50 | |
LNE-PA-Z-42.5B | LNE-PA-Z-42.5G | AD42.5 | 1 1/4″ | 36.0×42.5 | 70 | 50 | |
LNE-PA-Z-54.5B | LNE-PA-Z-54.5G | AD54.5 | 2″ | 48.0×54.5 | 90 | 25 | |
LNE-PA-Z-74.0B | LNE-PA-Z-74.0G | AD74.0 | 2 1/2″ | 63.0×74.0 | 130 | 20 | |
LNE-PA-Z-88.0B | LNE-PA-Z-88.0G | AD88.0 | 3″ | 76.0×88.0 | 170 | 20 | |
LNE-PA-Z-108.0B | LNE-PA-Z-108.0G | AD108.0 | 4″ | 94.0×108.0 | 225 | 20 | |

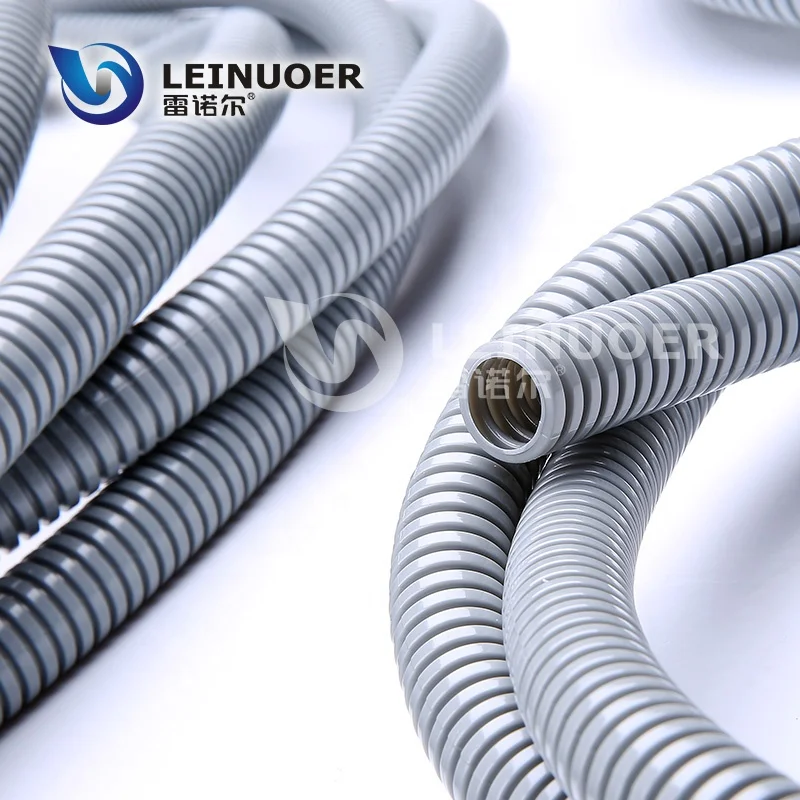

Detailed Images

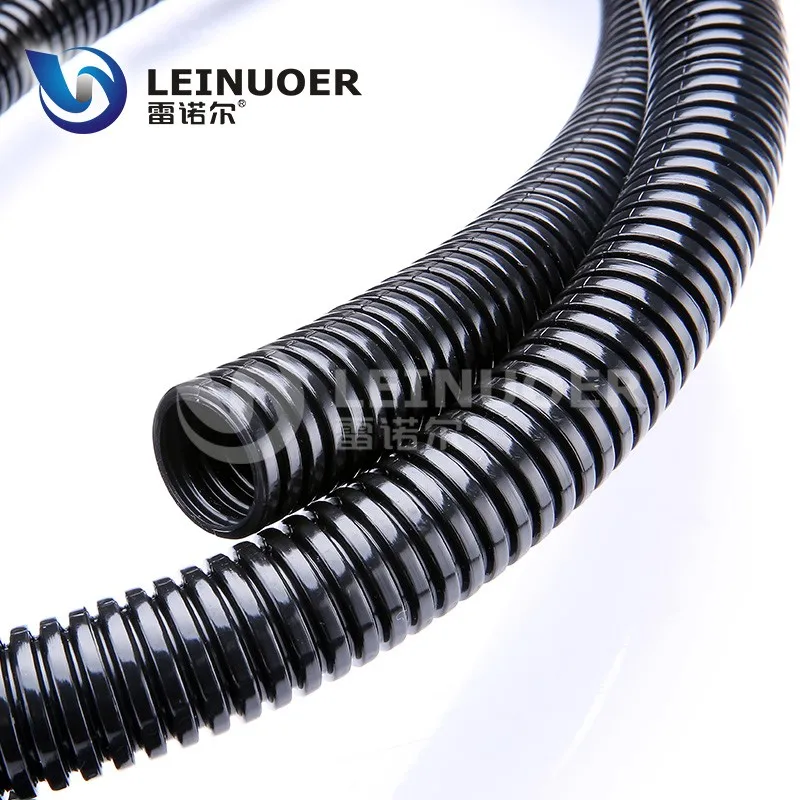

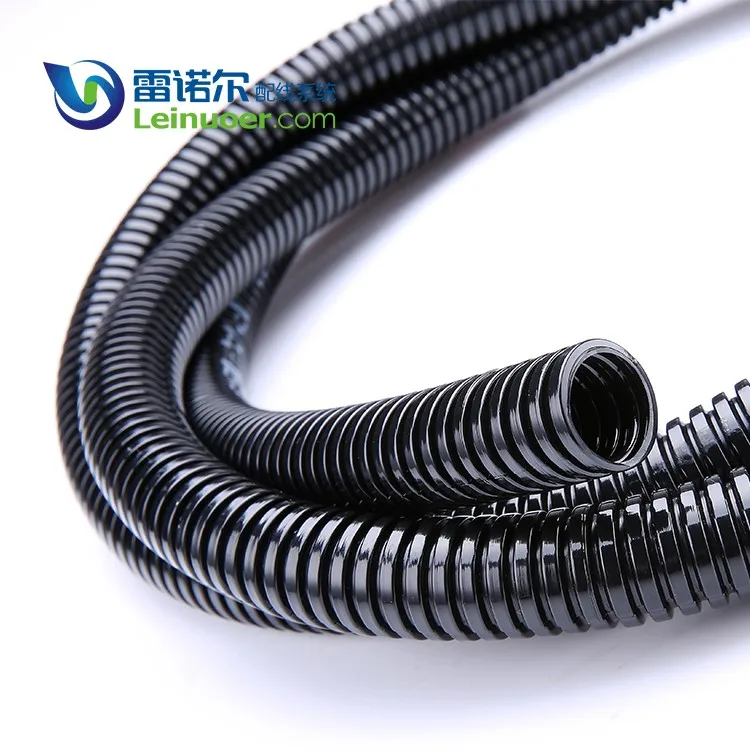

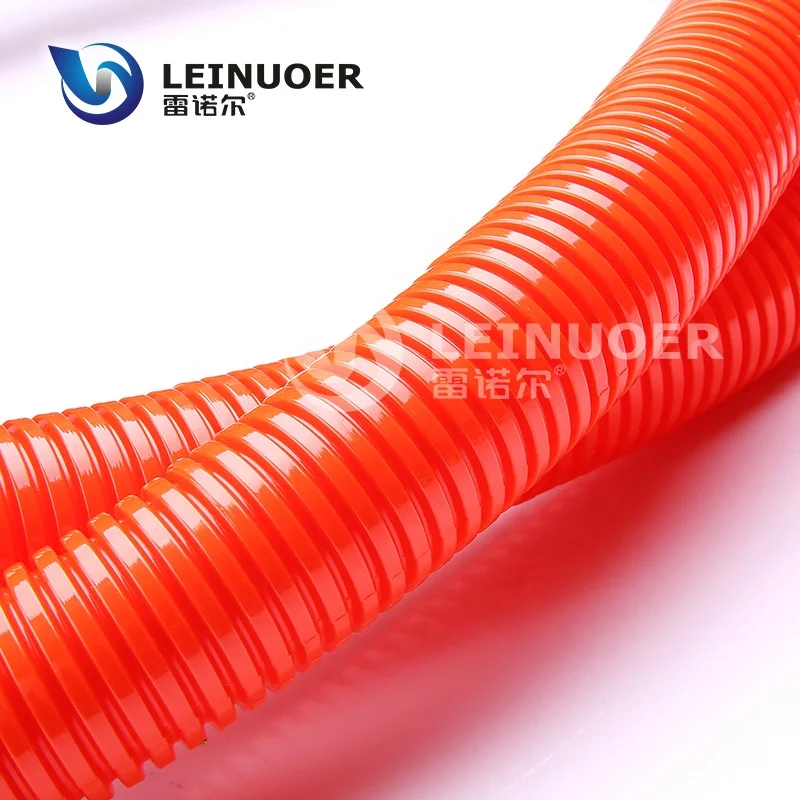

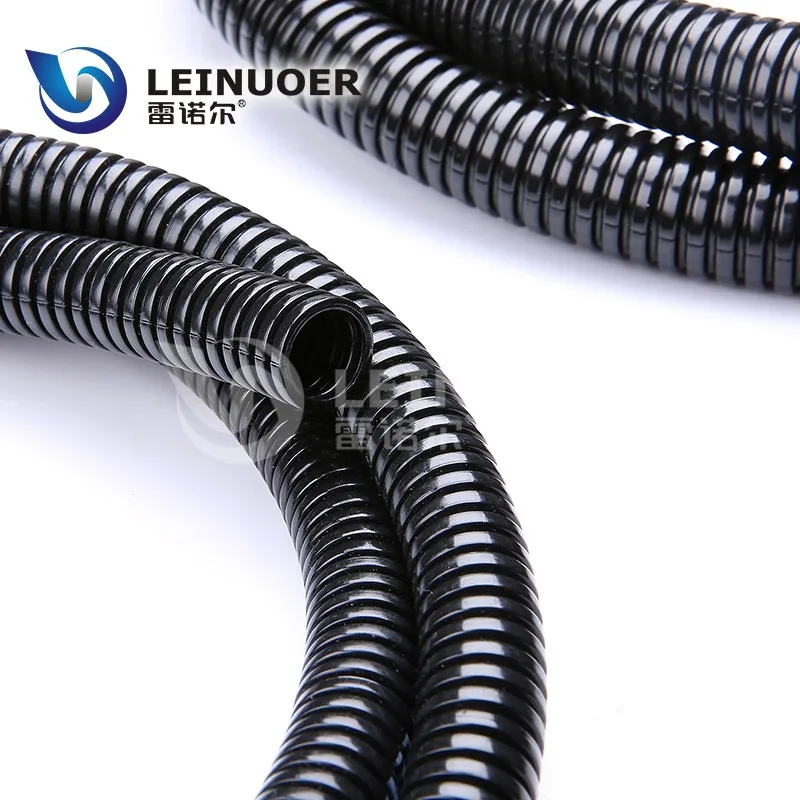

High temprature prevention polyamide/nylon/PA6 flexible pipe/conduit/hose
nylon PA66 flexible pipe conduit hose
PA66 conduit
flexible pipe
Packing & Delivery
Delivery way:UPS,EMS,DHL,TNT,FEDEX,BY AIR,BY SEA……

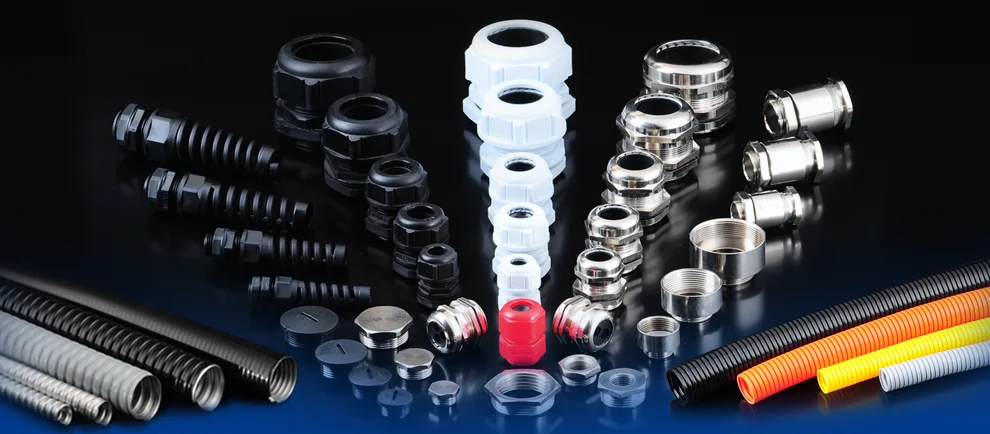

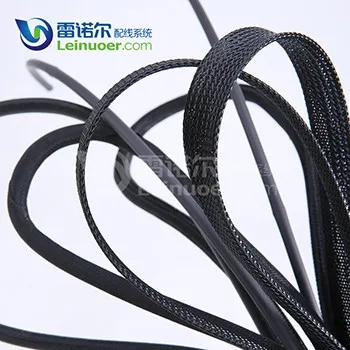

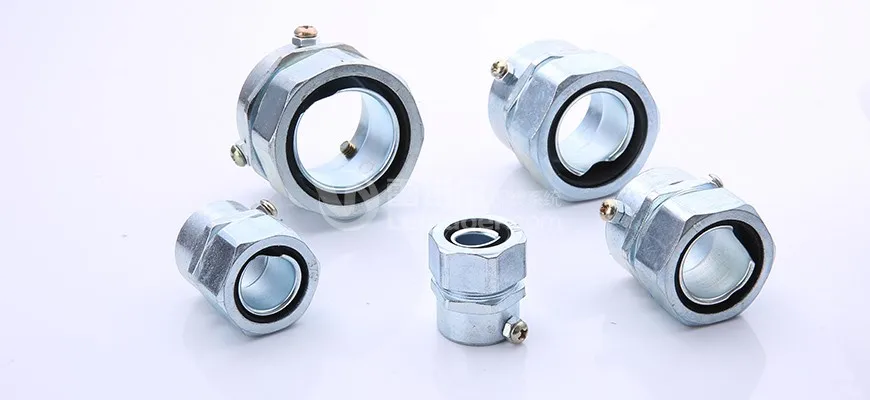

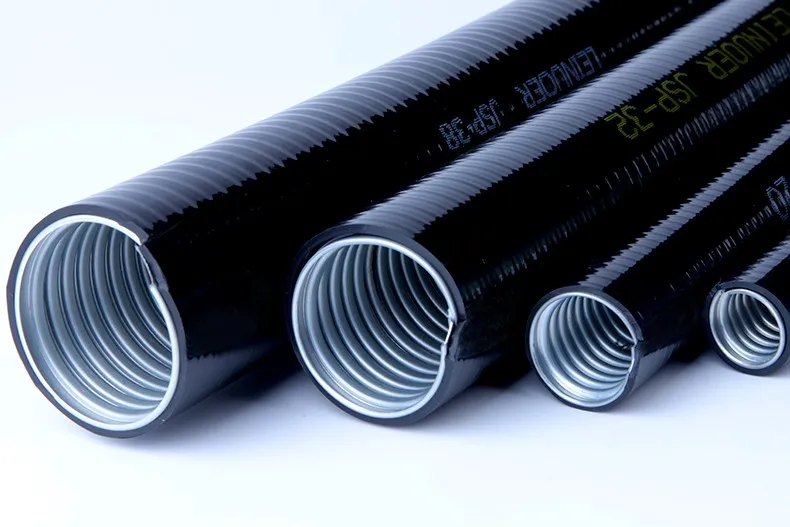

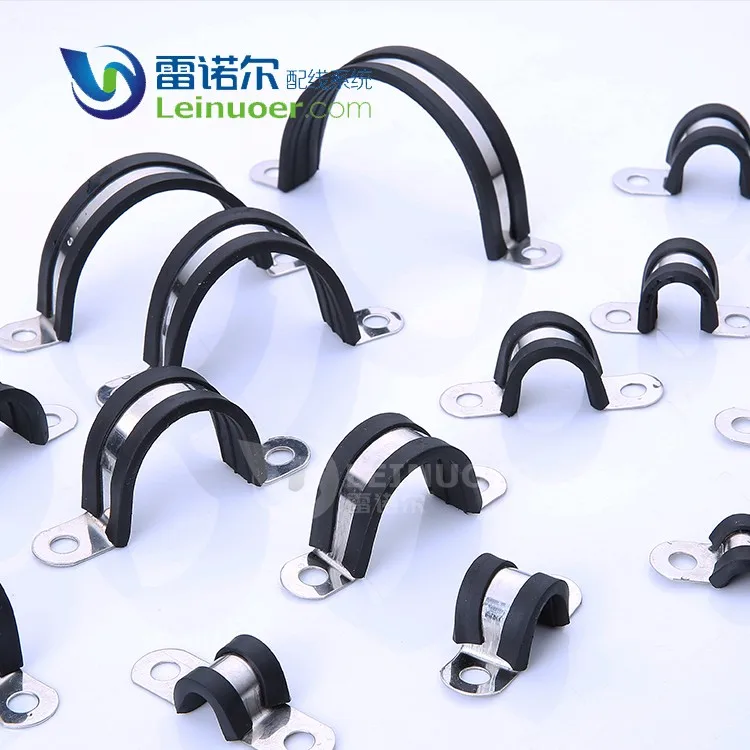

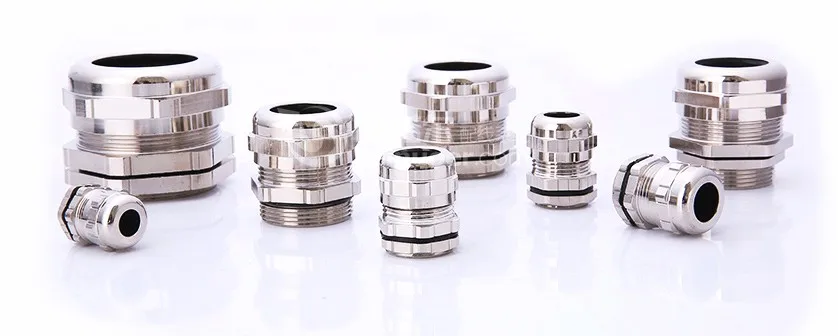

Related Product
Application
Electrical power Telecommunication Electricity transmission project Power plant
New energy vehicles Automobile manufacture
FAQ
Q1:How can i get the samples?
A1:Please kindly contact our sales to get the samples. Preparation needs 2-3 days.
samples is free when the value not exceed 10USD ,the express fee need to afford.
Q2:What is the payment Method? Do you accept L/C?
A2: At present we support T/T , Paypal, western union or Cash.
We accept irrevocable L/C at sight and T/T payment 50% as deposit and 50% balance before the shipment.
Q3:What's the Minimun order Quantity?
A3: trial order is available.
Q4:What's Your Payment Term?
A4:Exw, FOB, CIF etc.
Q5:What Certificates Have You Got?
A5:Our company is verified by ISO9001, CE, ROSH, The Ministry of Railways Certification.
