Product Overview
Description
Product Description
JTM Autoclaved Aerated Concrete Making Line Concrete Brick Manufacturing Machine AAC Block Production Plant For Sale
Advanced Technology JTM Autoclaved Aerated Concrete Making Line Concrete Brick Manufacturing Machine AAC Block Production Plant For Sale

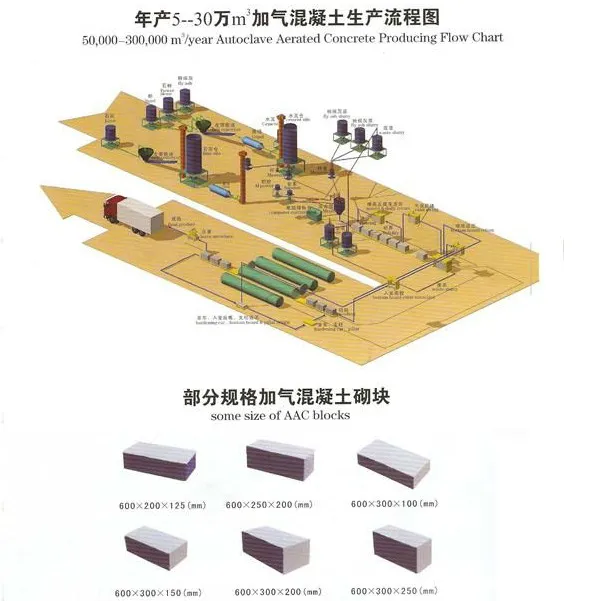

1, Introduction of AAC Block Manufacturing Line
Areated concrete block (light block) is the light and porous building material. It has light keeping temperature cant burn and other advantages. It can be made into many kinds of bricks for example: 600× 200× 100, 80× 80× 180, 240× 115× 53, 600× 200× 125)
Areated concrete common conception Common concrete density is usually 1600-2400kg/m3, but Areated concrete are 500kg/m3, 600kg/m3, 700kg/m3. It has not the big grain, main use silicon material (for example: Coal ash, sand, stone dust and others ), through making the material small for example sand, they can be used directly if has enough degree of small (for example coal ash. Mixing calcium material lime cement water to a special slop, then add the aluminum dust and the additive. Make the aluminum dust and the special slop have a Chemical reflect. Then produce Hydrogen to make the concrete slop to expanding or swell, foam. Next, put them into the curing room to concreting cutting steaming curing, last, there will become the light brick, the porous rate is 70-80%.
2, Main features of AAC Block Manufacturing Line
1. Light weight, Areated concrete density is usually 400-700kg/m3, (according the market in produce ), same as 1/3 of clay block and 1/5 common concrete. So use the Light block can reduce the weight of the build more, and also reduce the beam of roof and pillar press best. Then you can see, it can save the material and cost, it also fighting shaking.
2...Keeping temperature It has many are porous, the delivery hearting coefficient is 0.9-0.22W/(mk), the same as 1/4 or 1/5 of clay brick, so it is best materials now in the world.
Have many kinds material, have lowest waste
Main Material: Coal ash sand waste mine material coal stonestone dust and other silicon materials. <o: p="">
(1 )Product weight is according to 600kg/m3 to control.
(2 )annual capacity 200, 000M3.
(3) set raw material proportion: Cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.
(4) water and material rate 0.631
(5) one mould product 2.88M3
(6) Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
(7) casting slurry temperature 38-42 degree
(8) body quiet stop. Time is 1.5-2.5housr, temperature 50
90 degree, after quiet stop body strength is 0.15-0.18Mpa
Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.
| 1. Sand 69% | ||||
| Super Grade | First Grade | Qualified product | ||
| SiO 2 | ≥ | 85% | 75% | 65% |
| CI- | 0.02% | 0.03% | 0.03% | |
| Mica | ≤ | 0.5% | 0.5% | 1% |
| S O 3 | ≤ | 1% | 1% | 2% |
| clay | ≤ | 3% | 5% | 8% |
| K 2 O+Na 2 O | ≤ | 1.5% | 3% | 5% |
| 2. Lime 20% | ||||
| Item | Grade | |||
| Super Grade | First Grade | Qualified product | ||
| A(CaO+MgO) Quality Fraction % | ≥ | 90 | 75 | 65 |
| MgO Quality Fraction % | ≤ | 2 | 5 | 8 |
| SiO 2 Quality Fraction % | ≤ | 2 | 5 | 8 |
| CO 2 Quality Fraction % | ≤ | 2 | 5 | 7 |
| Digestion speed ,min | ≤ | 5-15 | ||
| Digestion temperature , °C | ≥ | 60-90 | ||
| Undigested residue quality fraction ,% | ≤ | 5 | 10 | 15 |
| Fineness ( 0.080 square hole sieve left amount) % | ≤ | 10 | 15 | 20 |
1.Detailed information:
(1)Professional manufacturer of AAC block making machine for 15 years;
(2)Our products have passed ISO9001:2008,BV,CE,SGS certification;
(3)Engineers available to service machinery overseas;
(4)Warranty:one year,24 hours technical support by e-mail;
AAC Block Making machine
2.Autoclaved Aerated Concrete AAC Block Making Machine Introduction:
Autoclaved Aerated Concrete (AAC) Block -aac block machine , also called Light Block, used siliceous (fly ash, sand, slag) and calcareous (lime & cement) as the main raw materials, which through the process ofbatching, pouring, cutting, autoclaving, separating and packing to make into the final products. It is new type & environmental construction material and widely used for industry and civil building construction. aac block machine is the most mature technology of production and application in the worldwide nowadays.
JTM Autoclaved Aerated Concrete Making Line Concrete Brick Manufacturing Machine AAC Block Production Plant For Sale
3.Advantages of AAC Blocks:
1.Lightweight: Porosity achieve 70% to 85%, volume density is generally 500-900kg/m3, as 1/5 of general concrete brick,the 1/4of clay brick, the 1/3 of hollow brick, and similar with wood can float in water. It can reduce building weight, reduction in the cost of integrated building,moreover,prolong building's life.
2.Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 100 mm walls can reach to 4 hours fire resistance, 300mm thick up wall can reach to 9 hours fire resistance.
3.Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 100mm thick wall up to 41 db.
4.Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.
5.Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.
6.Anti-seismic: The same building structure, improve the two seismic than the brick level.
AAC Block Making mahine

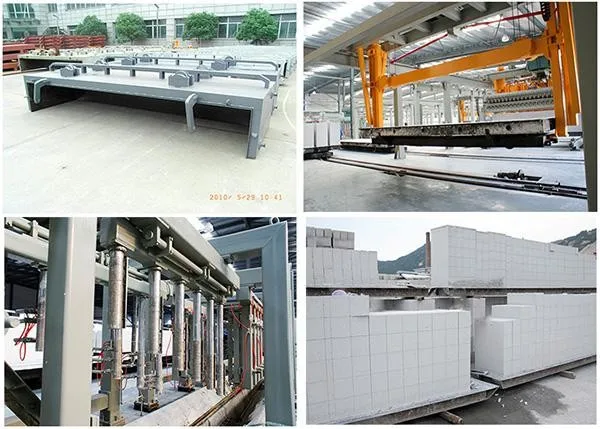

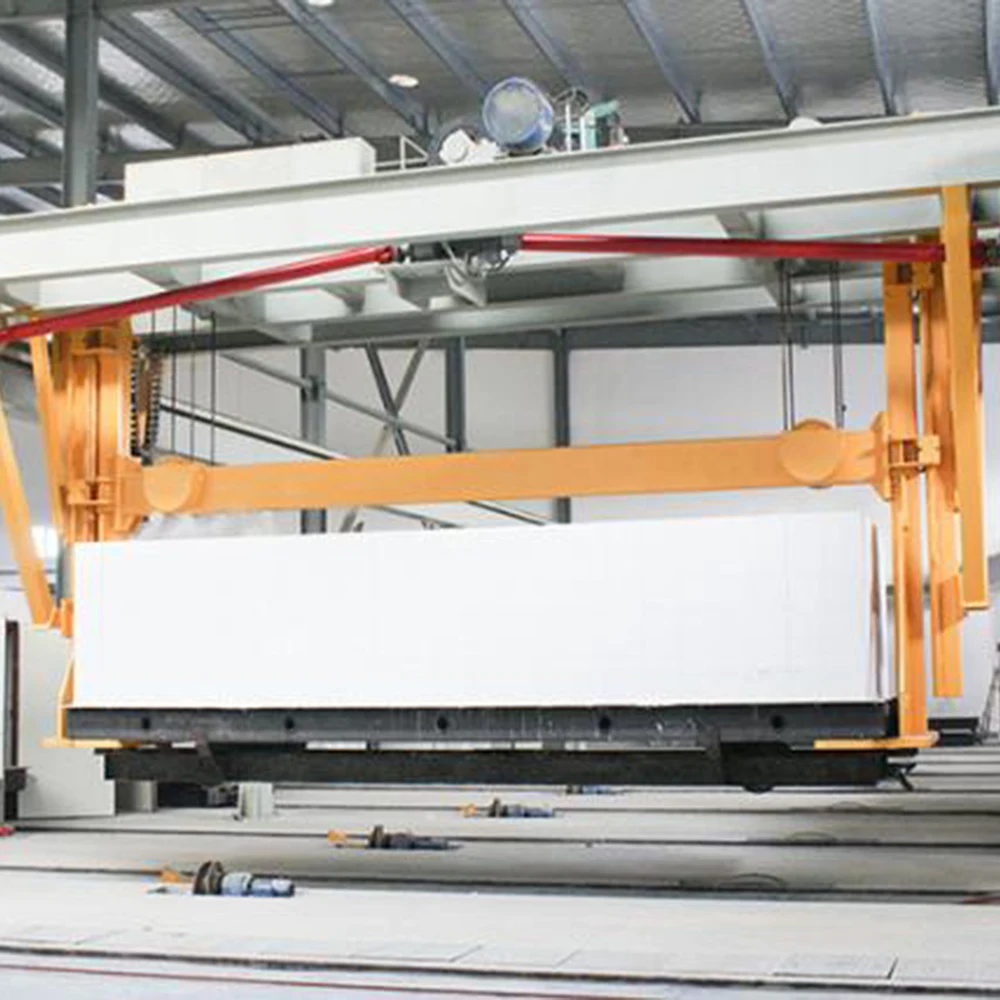

4.Detailed pictures of Autoclaved Aerated Concrete AAC Block Making Machine:
AAC Block Making machine

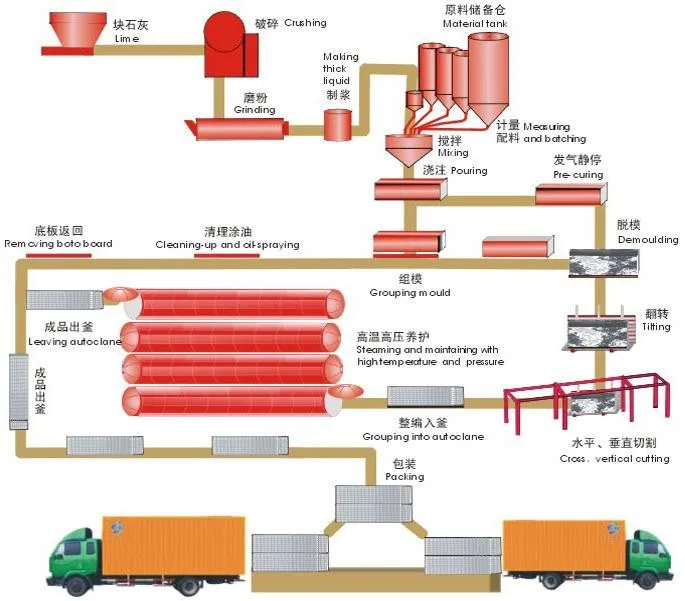

5.Main Process Flow of AAC Production line/AAC Block Making Machine Line:
1. Raw material: Store the fly-ash (tailings etc), lime and gypsum after milling to the needed fineness (200 mesh)
2. Mixing the fly-ash, cement, lime, gypsum and water in the pot after batching.
3. Promote the slurry temperature to 40-50 degree by steam, and mill with aluminum powder for 1min.
4. Pour the slurry into the mould, and still in the curing room for frothing in 2-2.5h.
5. Cut it in to needed size by the cutter after the slurry approach the cutting intensity, and place the block on the trolley.
6. Autoclaved curing after the trolley enter into the autoclave (vacuum, rise the pressure, keep the pressure, reduce the pressure),keeping the constant pressure 1.2MPa. The whole process needs about 8 hours.
7. The products out of the autoclave are placed in a stack. We can recycle the scrap and the waste water from the whole production.
JTM Autoclaved Aerated Concrete Making Line Concrete Brick Manufacturing Machine AAC Block Production Plant For Sale
6.Sand& Flyash of AAC Block Raw Materials(AAC Block Making Machine Line):
| Name | Unit | Proportion | Name | Unit | Proportion |
| Fly ash | % | 60-70 | Sand | % | 55-65 |
| Cement | % | 6-15 | Cement | % | 10-20 |
| Lime | % | 18-25 | Lime | % | 20-30 |
| Gypsum | % | 3-5 | Gypsum | % | 2-3 |
| Aluminium powder paste | 1/10000 | 8 | Aluminium powder paste | 1/10000 | 8 |
| Water&material rate | 0.60-0.65 | Water&material rate | 0.65-0.75 | ||
| Casting temperature | °c | 36-40 | Casting temperature | °c | 35-38 |
| Aluminium mixing time | s | 30-40 | Aluminium mixing time | s | 30-40 |
JTM Autoclaved Aerated Concrete Making Line Concrete Brick Manufacturing Machine AAC Block Production Plant For Sale
Certifications:
Group Photos with Customers:
What is the normal size of the AAC block?
Length (mm): 600
Width (mm): 75, 100, 125, 150, 175, 200, 250
Height (mm): 200, 240, 250, 300
Remarks: the size can be customized
What are the applications of the finished AAC blocks?
Finished AAC block is Suitable for all nonbearing wall and bearing wall of multi-story (less than six-floor), nonbearing wall internal parting wall, thermal insulation rooms front panel, floorslab.
1.Unit weight grade (kg/m3): 500, 600, 700, 800 (means 05,06,07,08 grade)
2.Compression strength grade (Mpa): A3.5, A5.0, A7.5, A10.0 (1Mpa=10kg/m2)
3.Drying shrinkage (mm/m): ≤ 0.8
4.Heat conductivity(w/m.k): 0.09-0.22
5.Sound-proofing performance(db): 40-47.75
Company Information
Zhengzhou Jiangtai Heavy Industrial Machinery Co., LTD is a modern and high-tech enterprise established with a state level research center. We are located in Gongyi,Zhengzhou China, covering an area of above 27 thousand square meters. Since established 20 years ago, we have won many honors as well.
The company has been taking the scientific management method of the modern enterprise, producing products with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country.
Our company has a lot of engineers and technical personnel. They absorb the advanced management method of domestic and overseas positively, carry out the systemize construction strongly, do their best to meet customer's needs, and try to build the top-grade employees' team.
Our Services
As a professional exporter,our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 7*24after-sale services.
1) We customize the products according to the customers’ requirements. If you are not sure about the exact product you want, we can give you some advices, according to your factory’s area, annual capacity, raw material, your finished products.
2) We provide the complete unit foundation flat layout chart so that the construction and installation can be done easily.
3) We provide the methods of the maintenance of products.
4) Engineers are available to service machinery overseas.
1.Pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.On-purchase service: our company can solve professional technical problems and other related issues for you.
3.After-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
